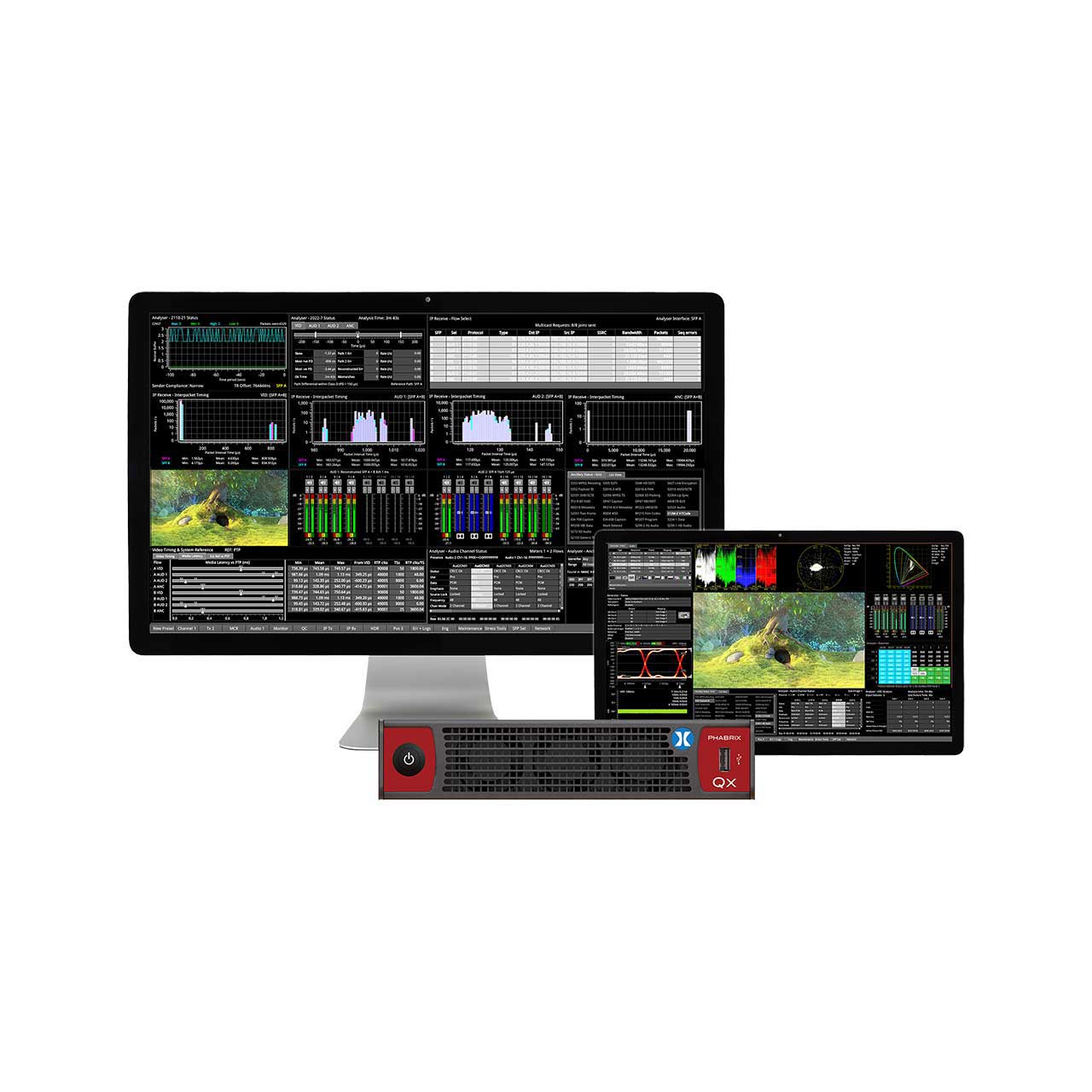

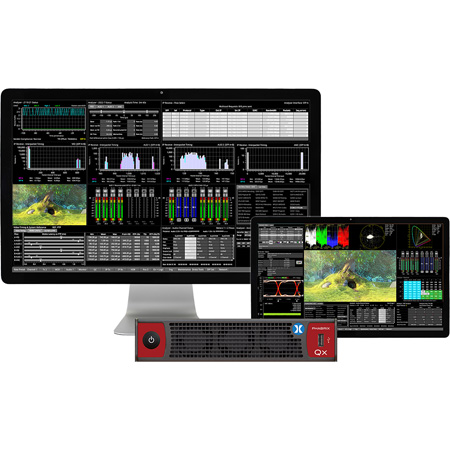

Phabrix PHQX01E-3G Qx 1U 1/2 rack HD/2K Rasterizer/ Analyzer with Eye & Jitter HD/3G-SDI incl PHQXO-IP-STND/PHQXO-DATA

ITEM #: PHQX01E-3G MFG #: PHQX01E-3G

free ship

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    PHQX01E-3G - Overview

    The Qx brings together all the advanced Test & Measurement tools required for transitioning to the next generation of video formats. Designed for HD/3G/6G/12-SDI and IP ST 2110/2022-7/2022-6 environments, the instrument set includes tools for rapid fault diagnosis, compliance monitoring and product development.

    The Qx rasterizer offers SDI and IP toolsets as standard. Core media analysis tools for broadcast operator HD-SDI environments include picture view, waveform analyzer, vectorscope, 32 channel audio metering and ANC status. The core IP toolset supports payloads on native 10G SFP+ interfaces using generic IP SFPs, giving full access to be able to monitor and measure the IP traffic to SMPTE standards.

    • Features:

      • User-defined instrument display layout
      • HD-SDI Analysis and Monitoring
      • 12G-SDI Physical Layer Analysis
      • Suite of IP Monitoring Tools
      • ST 2110 Analysis Feature Set - Optional
      • Advanced HDR Analysis - Optional
      • Audio and Video Generation - Optional
      • Dataview and ANC Inspector
      • Presets, VNC and GUI Screenshots

    • Specifications:

      • Formats Supported
      • IP SMPTE 2110/2022-7
      • IP SMPTE 2022-6
      • 3G/1.5G-SDI HD Formats
      • 12G/6G/3G/1.5G-SDI UHD Formats - Optional
      • SDI Eye and Jitter Physical Layer Analysis - Factory Option

        Software Options Supported
      • Audio/Video Generator (SDI, ST 2022-6, ST 2110) - Optional
      • Eye and Jitter Toolset - Factory Option
      • UHD/4K Upgrade - SDI Option
      • SDI-STRESS Testing Toolset - Optional
      • HDR/WCG Support - Optional
      • IP ST 2022-6 Decap, ST 2110-20/30/31/40 Decap with ST 2022-7 and PTP - Standard
      • IP Network Traffic Measurement Toolset (ST 2110) - Optional
      • IP Network Traffic Generation Tooslet (ST 2022-6) - Optional

        Video Inputs/Outputs
      • 4 x SDI inputs, HD/3G, 75 Ohm terminated BNC
      • 2 x SFP+ MSA/NON-MSA cages (supports 12Gbps copper or fiber SDI interfaces)
      • 4 x SDI outputs, HD/3G, 75 Ohm BNC
      • Support for 6G/12G SDI I/O - Optional
      • RTE Real-Time Eye input (12G/6G/3G/HD-SDI) x 1 (SDI input A) BNC - Factory Option
      • Ethernet IP inputs/outputs (accepts generic SFPs)
      • 2 x SFP+ 10G Cages (also supports MSA/NON-MSA 12Gbps copper or fiber SDI SFPs)

        Audio Inputs/Outputs
      • 4 x 75 Ohm AES selectable I/O (26 pin high density `D' Type socket)
      • 1 x Stereo analog audio output (26 pin high density `D' Type socket)
      • 8 channel 48kHz PCM audio on HDMI and SDI Instrument output

        User Interface
      • HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A - HDMI 1.4
      • SDI 3Gbit SDR/HDR instrument out, 1920 x 1080, 4:2:2 YCbCr - BNC
      • ST 2110-20 SDR/HDR, ST 2110-30 instrument out, 1920 x 1080, 4:2:2 YCbCr - Optional

        Reference
      • 2 x 75 Ohm BNC high impedance looping reference input, tri-level or B&B with cross lock

        Networking & Control
      • 10/100/1000 BASE-T
      • 8 x bi-directional GPI (26 pin high density `D' Type socket)

        Monitoring
      • Internal Beeper

        Form factor
      • Size/Weight - 253 x 44 x 211 mm, 1.9kg

        Electrical
      • Power consumption - 50W typical, 70W max
      • 4 Pin XLR power connector - 12V nominal (10V-18V)
      • AC Power adapter - 90-264VAC, 120W
