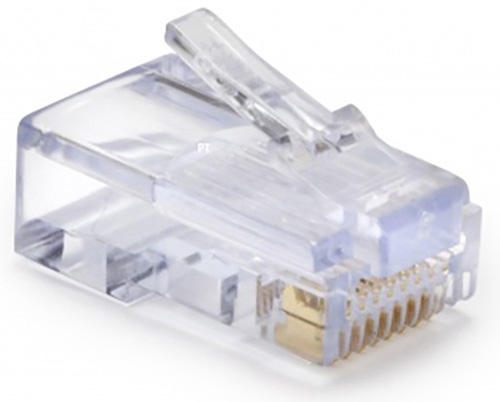

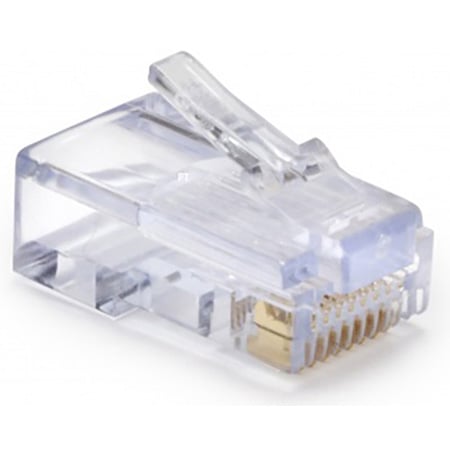

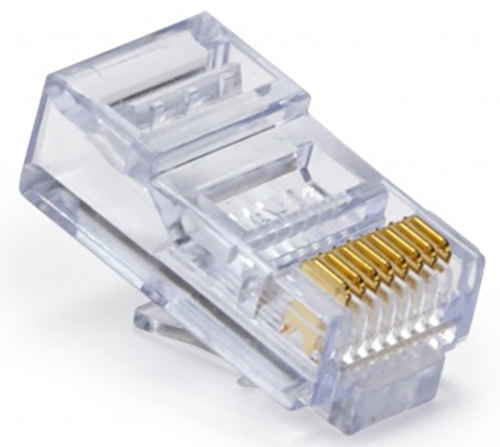

Platinum Tools 100015 EZ-RJ45 CAT5/5e Connectors for Solid or Stranded Conductors - 15 Pack

ITEM #: PLAT-EZ5-15 MFG #: 100015

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$12.08

Our Price:

$10.27

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    100015 - Overview

    The EZ-RJ45 connector system has been used and endorsed by professionals worldwide for over 20 years. The design allows conductors to extend through the front end of the connector for easy verification of correct wiring order prior to crimping. The Platinum Tools 100015 has a large interior body cavity design and crimped rear strain latch assures secure termination on small OD CAT5/5e cables. Connectors are crimped and excess conductors trimmed in one action with either the 100054C or 100062C crimp tools. Standard model 100004C crimper may be used with 24AWG cables.

    • Features:

      • Connectors are UL rated and CAT5/5e, FCC and RoHS compliant
      • CAT5/5e performance per EIA/TIA B.2
      • Fast, simple terminations. One piece design, eliminates the need for load bars or liners
      • Use with solid or stranded conductors
      • Max cable OD: .275" (6.98mm)
      • Conductor OD range (including insulation) .037" - .041" (.94mm - 1.04mm)
      • Contacts: Phosphor bronze with 50 micro 24K hard gold over 100 micro nickel plate
      • Made in USA

    • GTIN:

      0899740000469
