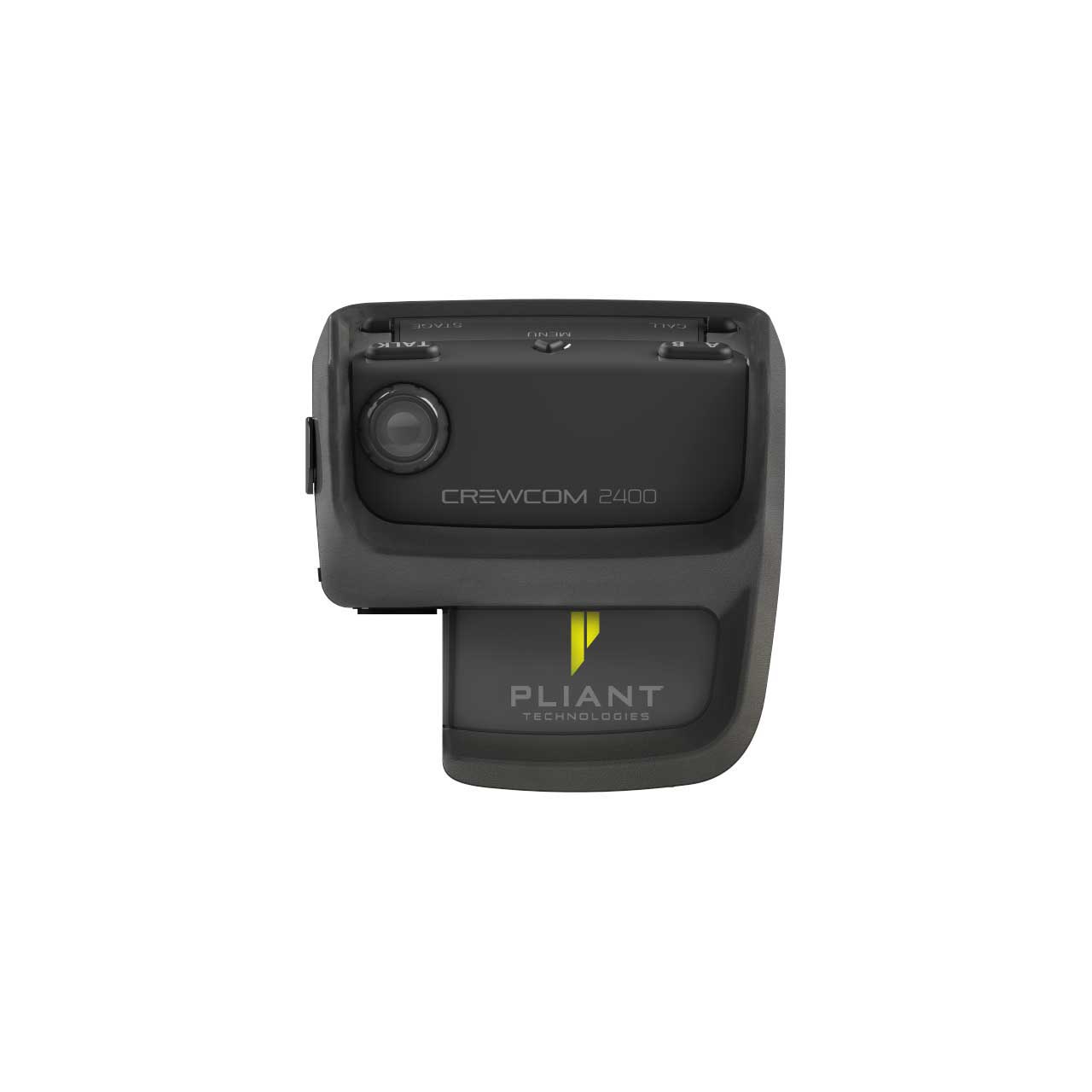

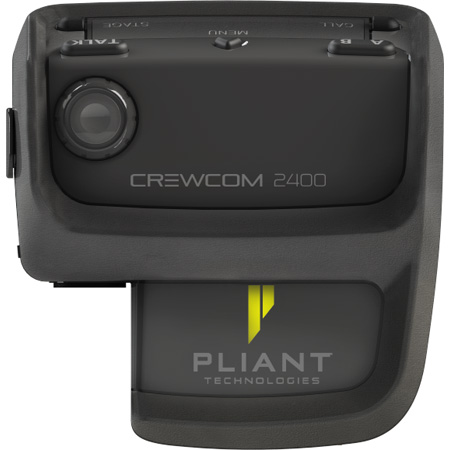

Pliant Technologies CRP-12-2400 CrewCom 2.4GHz 1-Volume/2-Channel Radio Pack for CB2-2400 BaseStation - 2400-2483 MHz

ITEM #: PLI-CRP-12-2400 MFG #: CRP-12-2400

Primary Image
Pliant Technologies
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,350.00

Our Price:

$1,282.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    CRP-12-2400 - Overview

    The Pliant Technologies CRP-12-2400 CrewCom 2.4GHz, one-volume, two-channel (A or B) Radio Pack is an innovative digital wireless beltpack used for connecting mobile users to the CrewCom CB2 system. Along with standard full-duplex communications, the radio pack allows users to Independently listen and talk on two conferences. The pack also features intuitive controls, a compact lightweight design, advanced RF technology, and a backlit LED channel indication.

    Note: This Radio Pack is ONLY compatible with the CB2-2400 BaseStation, is NOT compatible with any CrewCom CCU-44 or CCU-22 CU.

    • Features:

      • Compact size
      • Light weight (13 oz./ 369 g)
      • 7 kHz audio for excellent voice quality
      • Familiar volume/talk user interface
      • Preprogrammed Function Buttons (x2)
      • USB connection for pairing, firmware updates and battery charging
      • Dual battery (Li-Poly or AA) operation
      • Greater than 9 hours continuous operation (Li-Poly)
      • Easy-to-use spring-loaded belt clip


    • Specifications:

      • RF Frequency (MHz): 2400-2483 MHz
      • RF Scheme: FHSS with TDMA
      • Effective Radiated Power: 100 mW (+20 dBm)
      • Receiver Sensitivity: -100 dBm at 10-5 BER
      • Radio Certification FCCID: HSW-CCT24 and IC: 4492A-CCT24
      • Transmission Range: 150 m (approx. 500 ft.) under typical conditions; 450 m (approx. 1500 ft.) line of sight
        Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.
      • Audio Dynamic Range: Greater than 90 dB
      • Audio Frequency Response: 150 Hz-7 kHz
      • Channels: 2
      • Volume Knobs: 1
      • Talk Buttons: 1
      • Headset Connector: 4-pin male XLR
      • Microphone Type: Auto Detect; Dynamic or Electret
      • Antenna: (2) 2dBi Dipole
      • Battery Life, Rechargeable Lithium-Polymer: Greater than 10 hours
      • Charging Power Supply: Micro USB; 6W AC wall adapter
      • Charge Time for Lithium-Polymer Battery (with supplied PSU): Under 3 hours
      • Optional Power: 3 Standard AA alkaline batteries - Battery Life AA Batteries Approximately 5 hours
      • Dimensions (L x W x H): 11.43 cm x 11.61 cm x 5.87 cm (4.50 in. x 4.57 in. x 2.31 in.)
      • Weight (with Lithium-Polymer battery): 350 g (12.3 oz.)
      • Material: Polycarbonate substrate with thermoplastic elastomer overmold
      • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity. RP Power Supply is 0 to 40° C (32° to 104° F).
      • Maximum Altitude: 2,000 m (6,562 ft.)
      • RoHS Compliant: Yes
      • IP Rating: IP-65
      • Compliance Model Number: RP2500


    • Item Includes:

      • 1x 2.4GHz Radio Pack
      • 1x PBT-LIP-01 Lithium-Polymer Rechargeable Battery
      • 1x Multi-blade Worldwide Battery Charger/Power Supply
      • 1x Product Overview Guide
