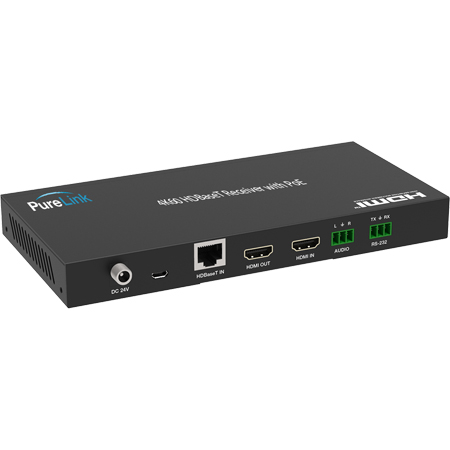

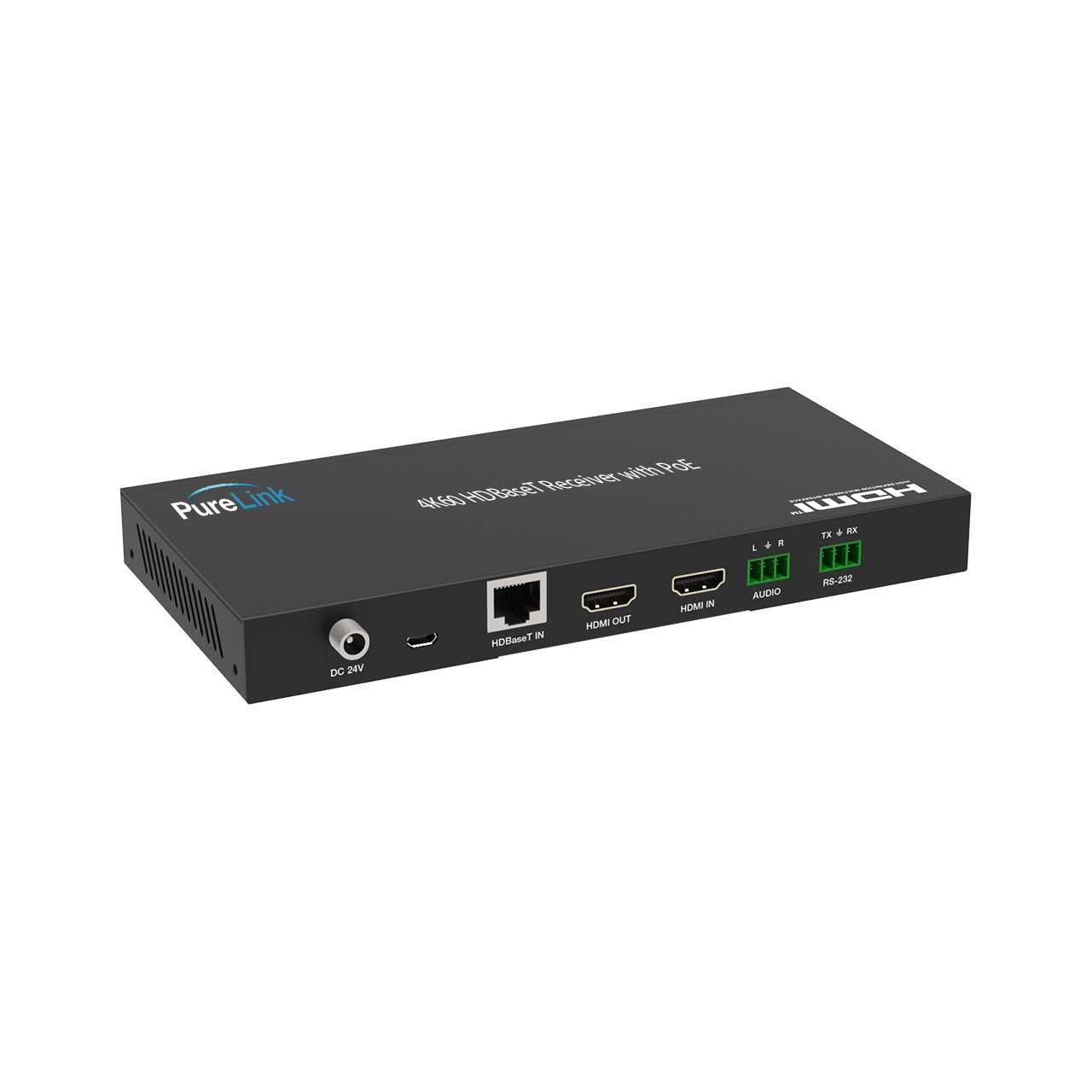

PureLink HCE III-P Rx HDBaseT to HDMI 2.0/4K/60 4:4:4/HDCP 2.2/RS232/Audio Extraction/Local HDMI Input Receiver with PoE

HCE III-P RX - Overview

• Features:

  • 4K60 4:4:4
  • Supplies true PoE
  • Perfect receiver for any brand HDBaseT camera
  • Local input with auto switching


• Specifications:

  • Performance
  • Supported HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
  • Power Supply: 100-240VAC 50/60Hz
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Relative Humidity: 20 to 90% RH (no condensation)
  • MTBF: 50,000 hours
  • Rack Mounting Option: -
  • Transmission Distance: Max distance (1080P): 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7

    Connections
  • Input Types:
    1x HDMI IN [Type A, 19-pin female]
    1x HDBaseT IN [RJ45, 8-pin female]
  • Output Types:
    1x HDMI OUT [Type A, 19-pin female]
    1x AUDIO OUT [Phoenix jack]
  • Control Ports:
    1x RS-232 [3-pin phoenix connector]
    1x FW [Micro USB, Update port]

    Enclosure
  • Rack Mounting Option: -
  • Product Dimensions (WxDxH):
    Wall plate: 1.31 x 2.59 x 2.70" (33.3 x 65.7 x 68.7mm)
    Faceplate: 2.75 x 0.11 x 4.5" (69.9 x 3 x 114.3mm)
    Receiver: 7.87 x 4.05 x 0.87" (200 x 102.8 x 22mm)
  • Product Dimensions: 12.21 x 7.09 x 2.76" (310 x 180 x 70mm)
  • Product Weight: 7.7Lbs (3.5kg)


• Warranty:

  • 3-Year Limited Warranty
