PureLink OLC II RX HDTools 2 LC Fiber to DVI Receiver - Full HD

ITEM #: PLK-OLC-II-RX MFG #: OLC II RX

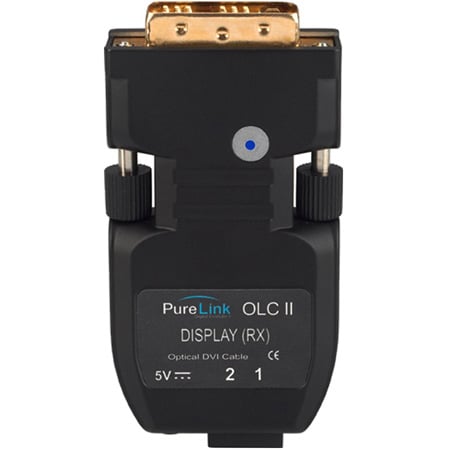

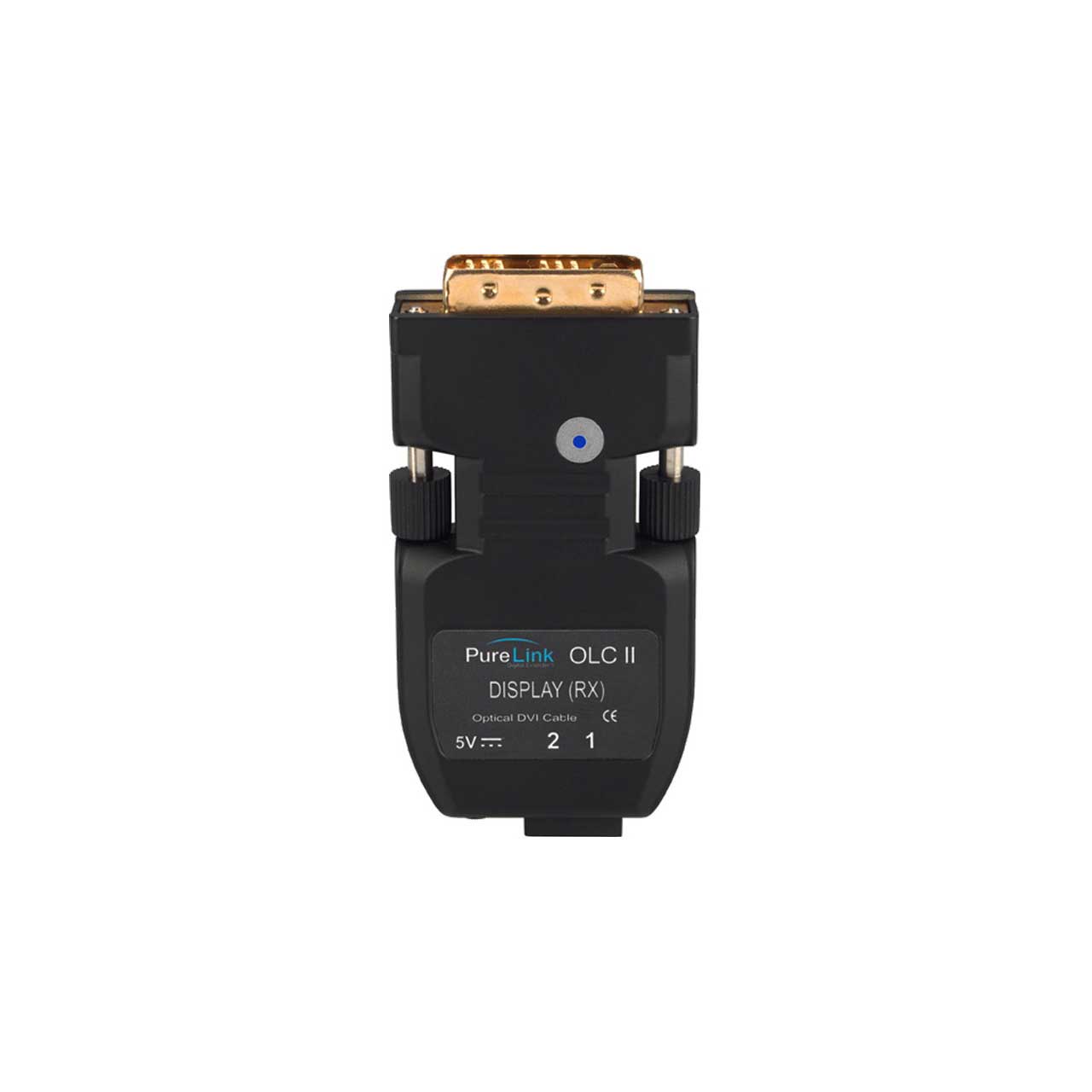

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$759.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    OLC II RX - Overview

    PureLink's OLC II RX DVI Pure Fiber Optic Extension Modules extend 1080p HD content up to 6,600 feet over a single-mode and up to 1,650 ft over a multi-mode cable. Featuring PureLink's unique Auto-EDID feature, a separate DDC connection is no longer necessary. This simplifies cable management and ensures rapid communications between devices.

    The transmitter and receiver are detachable and housed in exceedingly compact DVI enclosures. Since it is a detachable type, the LC fiber cable can be run through small conduits and other tight spaces without extender set. There is no special mounting needed for OLC II. Simply, the transmitter and receiver units connect directly to video source and monitor.

    The OLC II is ideal for a waide rangeof applications requiring long distance transmission of HD video content. Since it only uses fiber, transmission of content is highly secure and immune to outside interference. It is an ideal product for government, military, school and medical environments. When it comes to moving DVI content over large areas, nothing beats a PureLink.

    • Specifications:

      • Type / Number of fiber: 2 Strand fiber optic cable, 50/125 µm or 62.5/125 µm multimode & singlemode
      • Connector: 2 Female LC connectors
      • Operating distance: Up to 6,600 ft ( 2000m ) singlemode / up to 1,650 ft ( 500m ) multimode
      • NOTE: Operating distance is approximate. This is a typical distance. The maximum distance may be greater than these typical numbers depending on factors such as fiber type, bandwidth, connector splicing, losss, bend radius and environmental factors.
      • Nominal peak wavelength: 850 nm (Multimode) 1310nm (Singlemode)

        Transmission power
      • Singlemode: -5 dBm, typical
      • Multimode: -5 dBM, typical

        Maximum receiver sensitivity
      • Singlemode: -17 dBm, typical
      • Multimode: -11 dBm, typical

        Optical loss budget
      • Singlemode: 12 dB, Max
      • Multimode: 8 dB, Max

        Video
      • Maximum Channel Data Rate: 1.65 Gbps per color
      • Pixel clock: 165 MHzz
      • Supported resolution: Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 6,600ft) Singlemode - Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 1,650ft) Multimode
      • Formats: RGB & YCbCr digital
      • Standard: DVI 1.0

        Video connector - Transmitter & Receiver
      • Signal Type: Single link DVI-D
      • Connector: Male DVI-D

        General Information
      • Power supply Ext. adapter - Input: 100-240 VAC, 50-60 Hz, Output: 12VDC, 1A, 5 watts(max)
      • NOTE: Both transmitter and receiver extender need to be powered locally by provided external power supply adapter.
      • Dimension: 1.6" (w) x 0.4" (d) x 2.8" (h)
      • Weight: 0.33 lbs
      • NOTE: All nominal levels are at ± 9%
      • NOTE: Specifications are subject to change with or without notice

        Power consumption
      • Tramsmitter: 1 watt
      • Receiver: 1 watt
