PureLink PI3000-005 PureInstall HDMI 2.0 to DVI Cable with TotalWire Technology and Secure Lock System - 1.6 Foot

PI3000-005 - Overview

• Features:

  • DVI Single Link (24+1) for resolutions up to WUXGA/1920x1200
  • Gold-plated precision contacts with PureLink SLS (Secure-Lock-System)

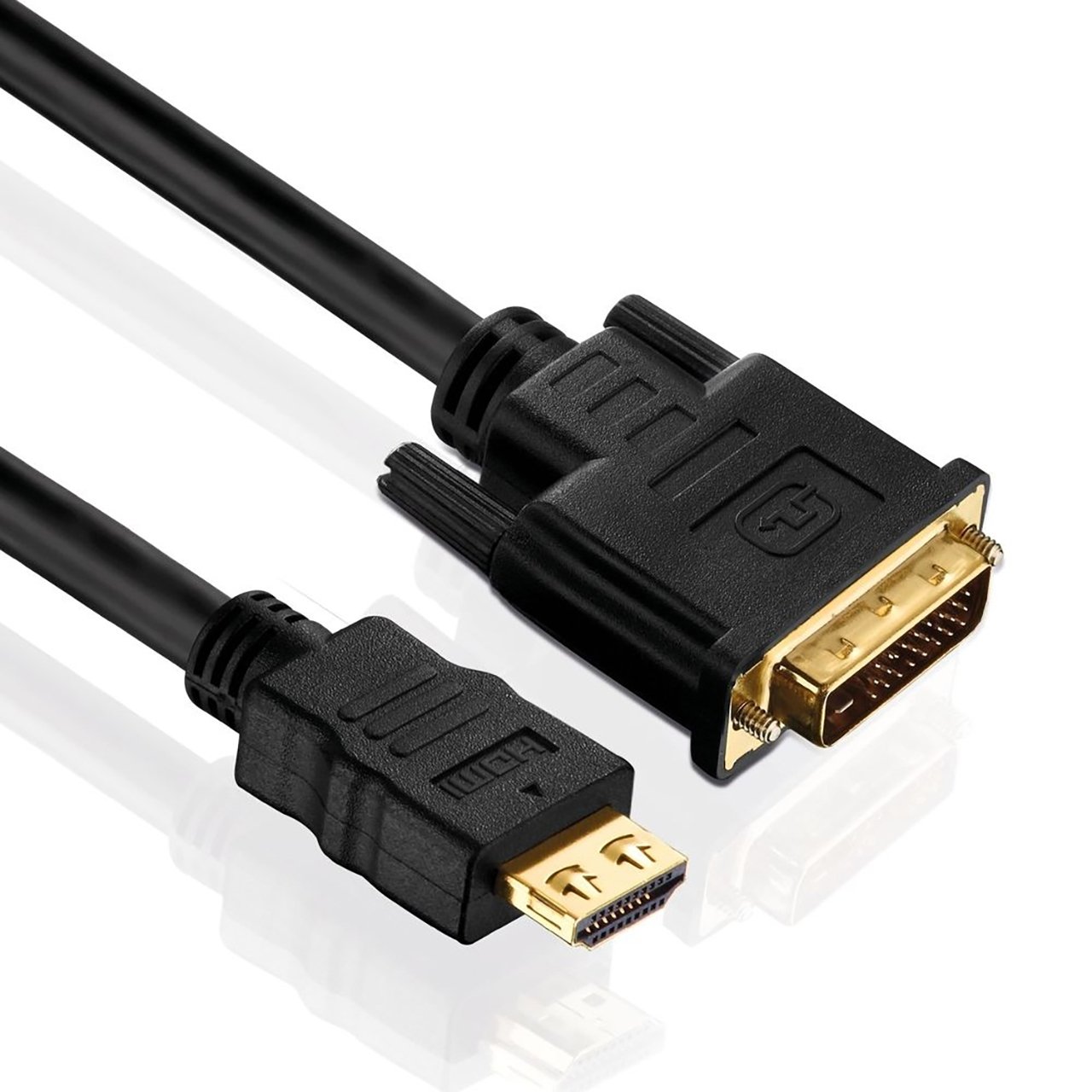

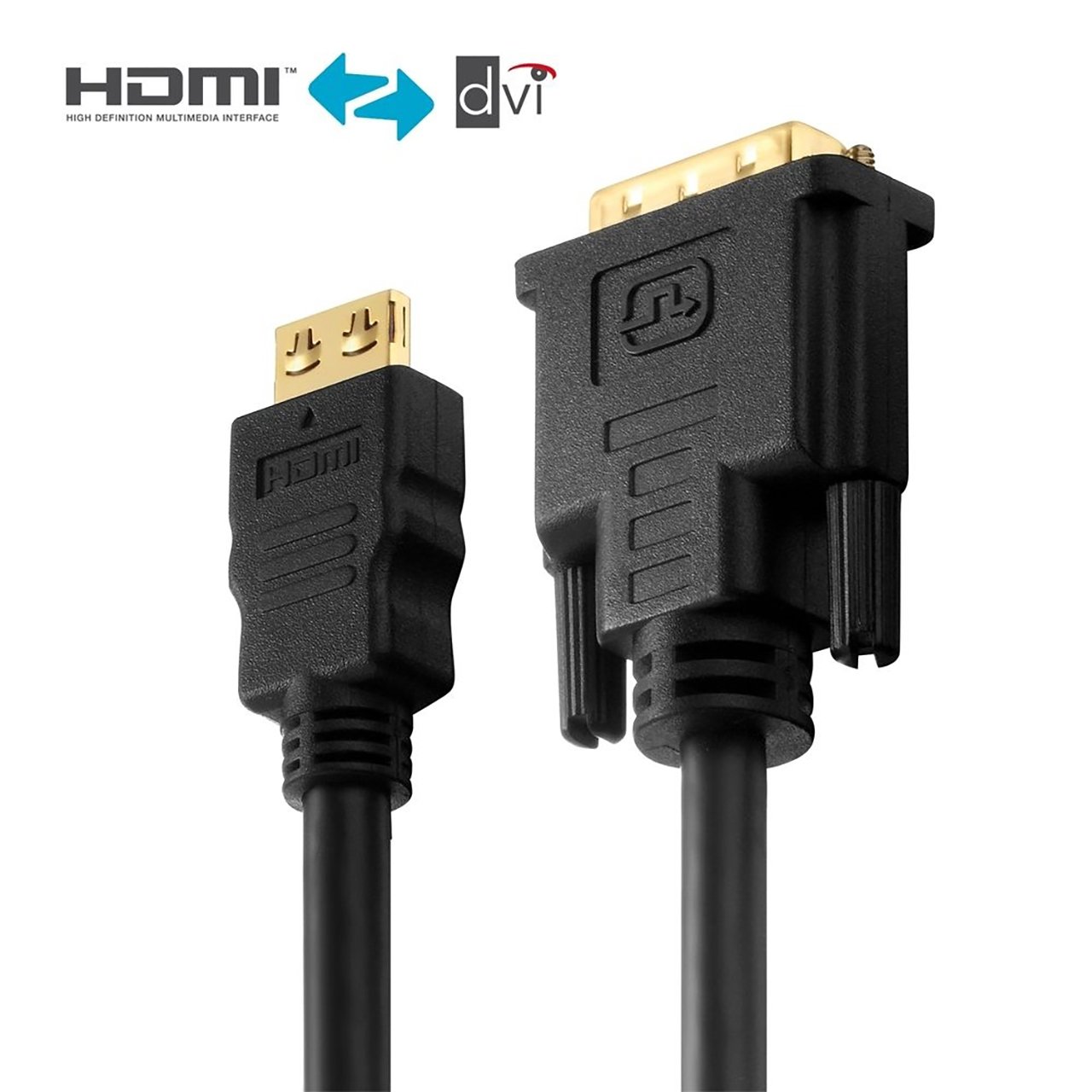

  • HDMI-A male to DVI-D Single Link (24+1) male

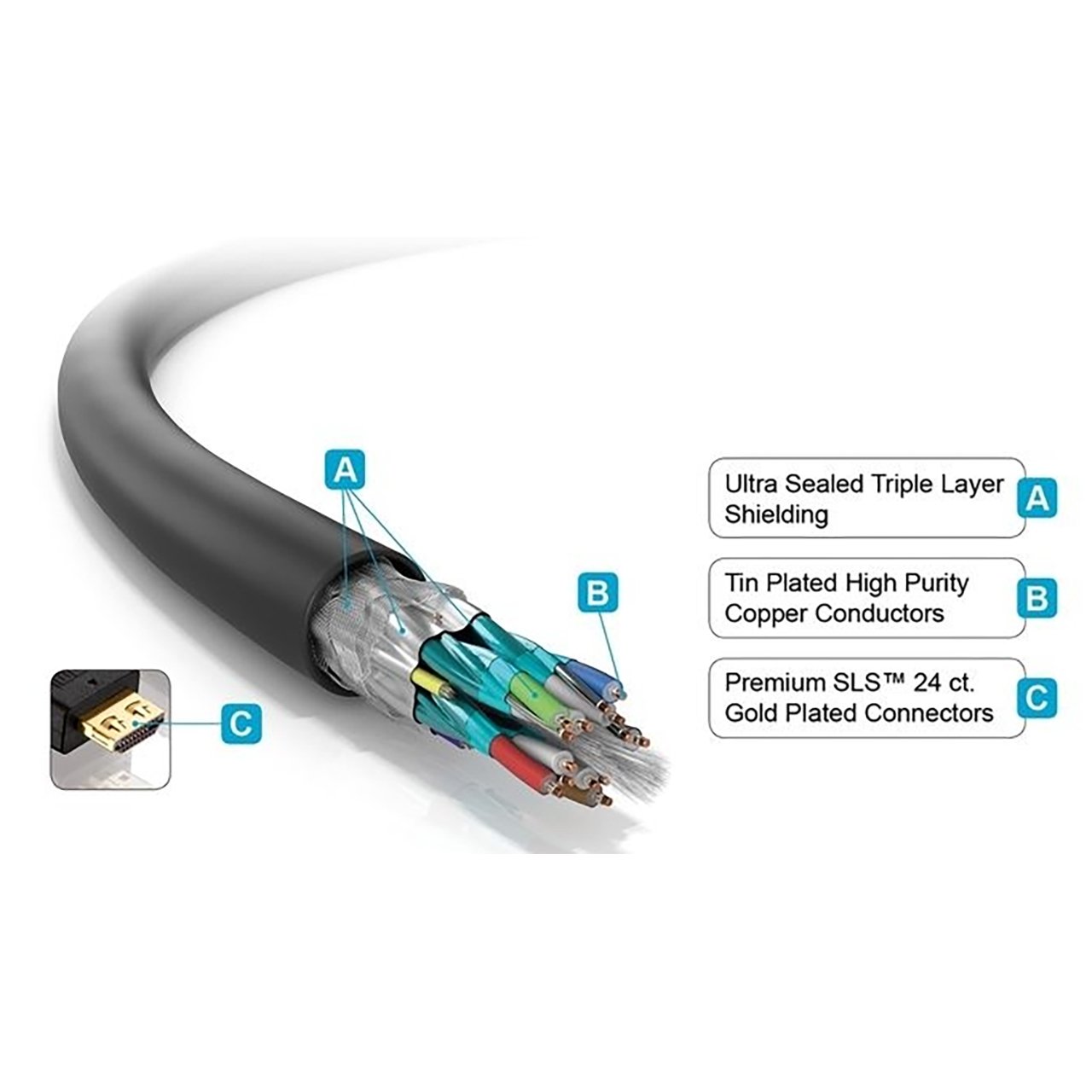

  • High purity, tinned OFC copper conductors and triple shielding, AWG28
  • 100% tested for professional AV applications


• Specifications:

  Connections
  • Connector Material: PVC
  • Contact Material: 24 ct. gold plated, long-life design
  • Shielding: Yes
  • Connector 1: HDMI Type A male (19-pin)
  • Connector 2: DVI-D male (24+1-pin)
  • HDMI Dimensions: 1.7" x 0.8" x 0.4" (43.5mm x 19.5mm x 10.5mm)
  • DVI-D Dimensions: 1.9" x 1.5" x 0.6" (47.7mm x 37.7mm x 15.8mm)
  • Contacts: 24 ct. gold plated, long-life design

    Electric Signal
  • Maximum Pixel Clock/Bandwidth: WUXGA (1920x1200)
  • HDCP: Yes
  • EDID: Yes

    Cable
  • Type: Round cable
  • Inner Conductor Material: Tinned OFC Copper
  • AWG: AWG28
  • Number of Shieldings: 3
  • Shielding 1: Aluminium Foil (100% density)
  • Shielding 3: Mesh (100% density)
  • Outer Material: Elastic PVC
  • Outer Diameter: 7.3mm

    Signal Transmission
  • Supported Standards: HDMI, DVI Single Link
  • Transmission Modes: Digital video signals
  • Supported Colors: 8 bit RGB/YUV, Deep Color, x.v.Color
  • Further Standards: HDCP, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)


• Item Includes:

  • 1x PureInstall HDMI 2.0 to DVI Cable - 1.6 Foot


• Warranty:

  • Limited Life Time Warranty
