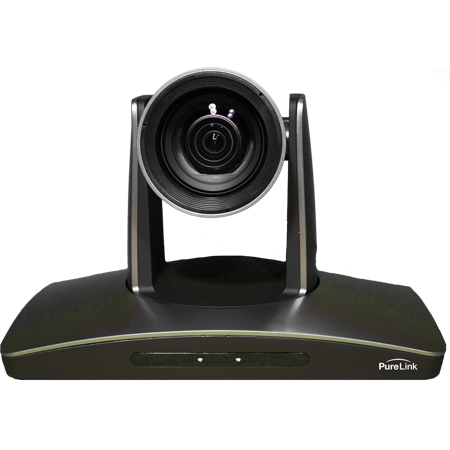

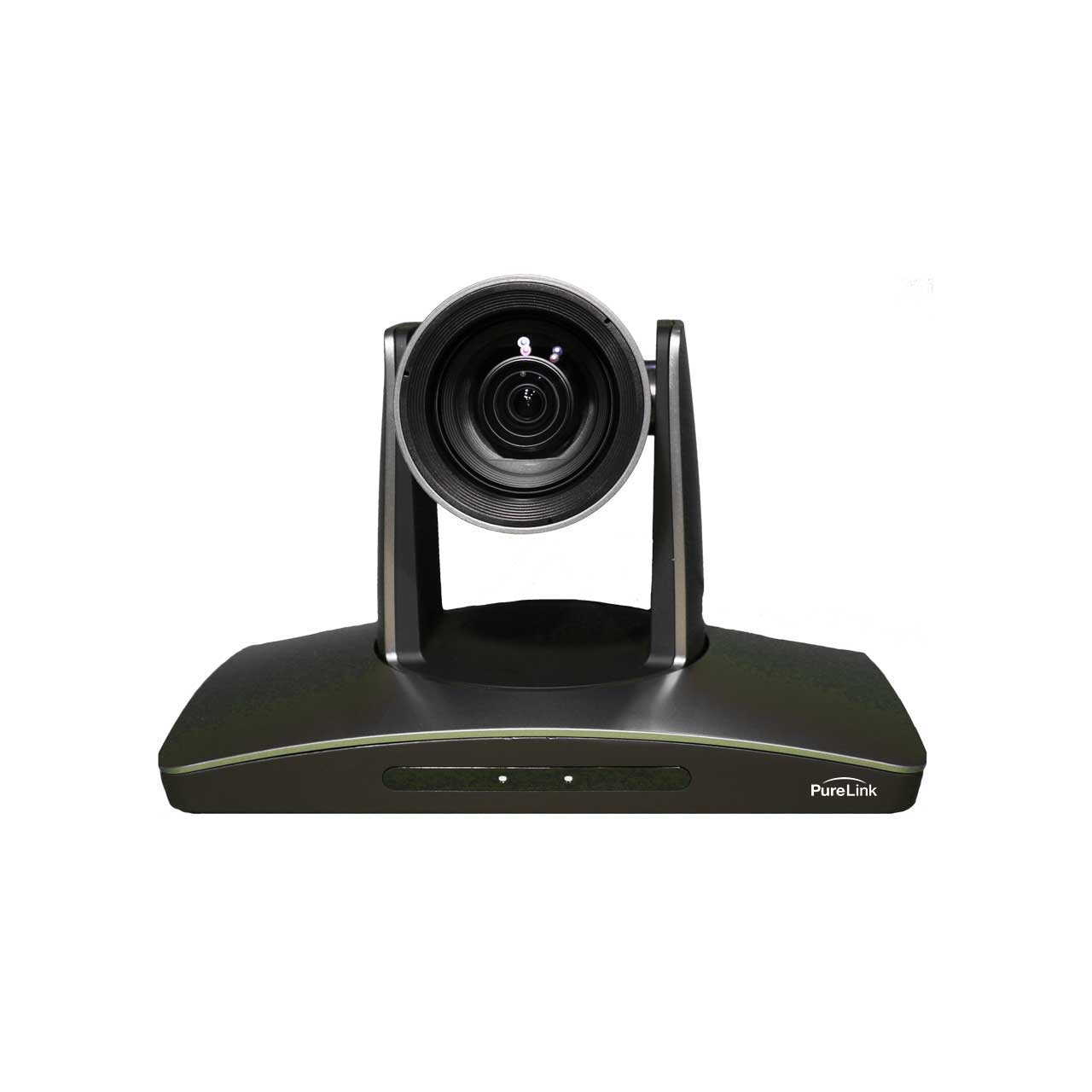

PureLink VIP-CAM-100-NDI PTZ NDI Camera with RTSP - RTMP - 3G-SDI and HDMI Outputs - 20X Performance Optics - Full HD

VIP-CAM-100-NDI - Overview

• Features:

  • NDI HX output for easy and reliable distribution of signal
  • 20x High Performance Optical Zoom w 12x Digital Zoom (240x total zoom)
  • Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
  • HDMI, 3G-SDI, RTSP and RTMP outputs
  • VISCA and PELCO control


• Specifications:

  • Technical Specifications - Camera
  • Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
  • Supported Resolutions: 1080p/60, 1080[/30, 1080i/60, 720p/60, 720p/30, 1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25
  • Focal: f = 4.7mm - 94.0mm
  • IRIS: F1.6 - F3.5
  • Optical Zoom: 20x
  • Digital Zoom: 12x
  • Shortest Focus Distance: 10mm - 1.000mm
  • Field of View: 59.5° - 2.9°
  • Minimum Illumination: 0.5Lux (Color), 0.1Lux (B/W)
  • Shutter Speed: 1/1- 1/10,000s
  • AGC: Auto/Manual
  • White Balance: Auto, Indoor, Outdoor, One Push, Manual, Auto Track
  • AE Control: Auto, Manual, Shutter Priority, Iris Priority
  • S/N rate: ≥ 50db
  • Tilt Range: -30° to +90°
  • Tilt Speed: 0.1° to 90°/s
  • Weight: 3.74Lbs (1.7kg)
  • Display: DC 12V

    Pan & Tilt
  • Pan Range: -170° - +170°
  • Tilt Range: -30° - +90°
  • Pan Speed: 0.1° - 120°/s
  • Tilt Speed: 0.1° - 90°/s
  • Preset Number: 256
  • OSD: Available
  • Image Flip: Enabled
  • Video Compression: H.265, H.264

    Network
  • Maximum Image Size: 1920x1080 @60fps
  • Video Compression: H.265, H.264
  • Audio Compression: AAC
  • Protocol: NDI HX, RTSP, RTMP, ONVIF
  • Network Support: Dual Stream; up to (10) simultaneous users

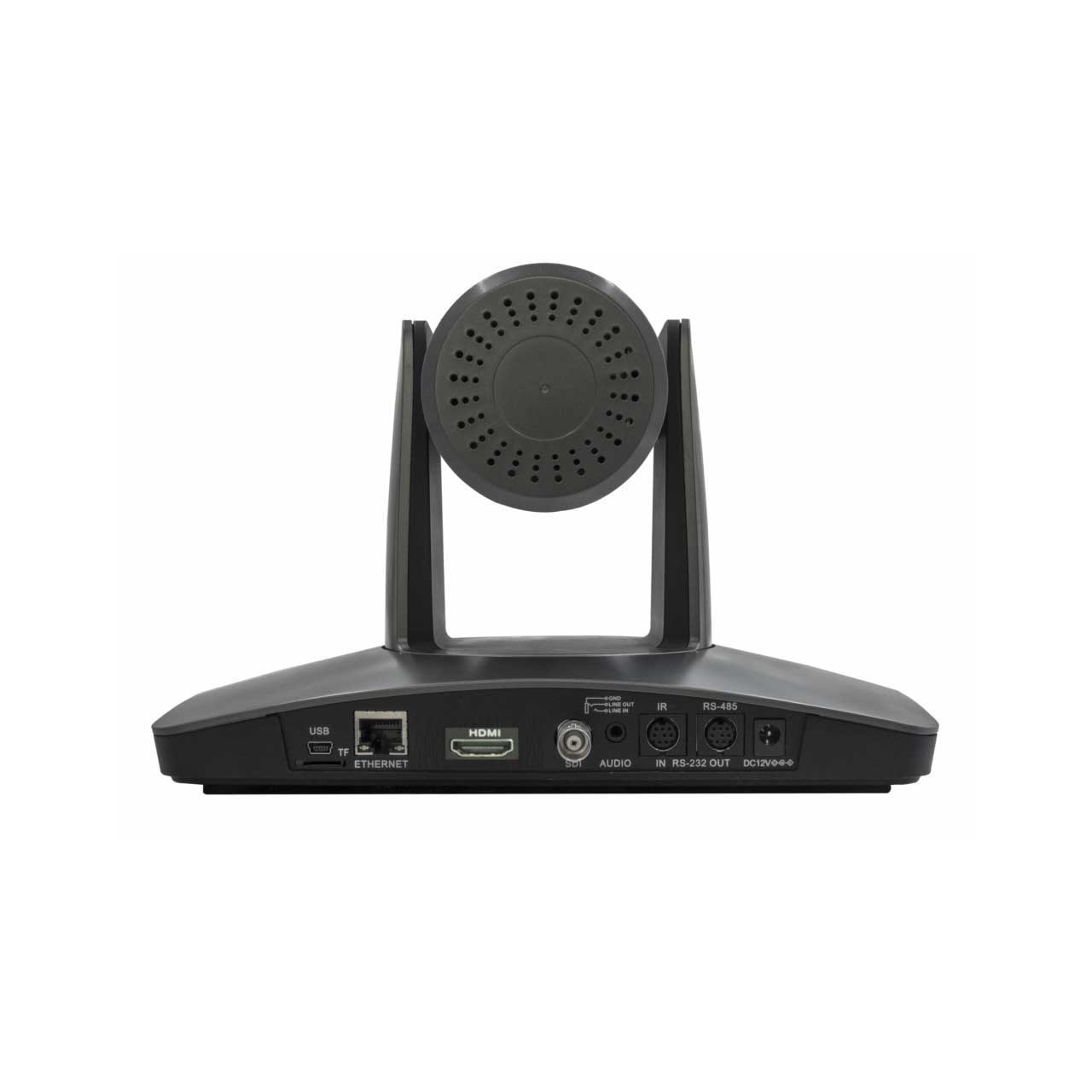

    Interface
  • Ethernet: RJ45, 100M
  • Video Output: NDI HX, HDMI, 3G-SDI, RTSP, RTMP
  • Control Interface: RS-232, IR, RS-485

    General
  • Control Protocol: VISCA and Daisy Chain Support, PELCO-P, PELCO-D
  • Address: 0 - 63
  • Display: DC 12V
  • Power Consumption: <15w
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Dimensions: 8.9 x 6.2 x 8.1"
  • Enclosure: Gray
  • Weight: 3.75Lbs (1.7kg)


• Warranty:

  • 3-Year Limited Warranty
