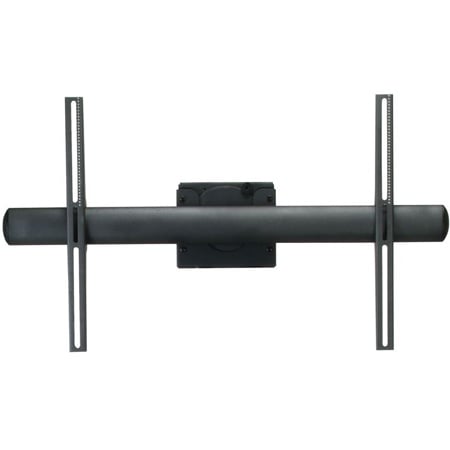

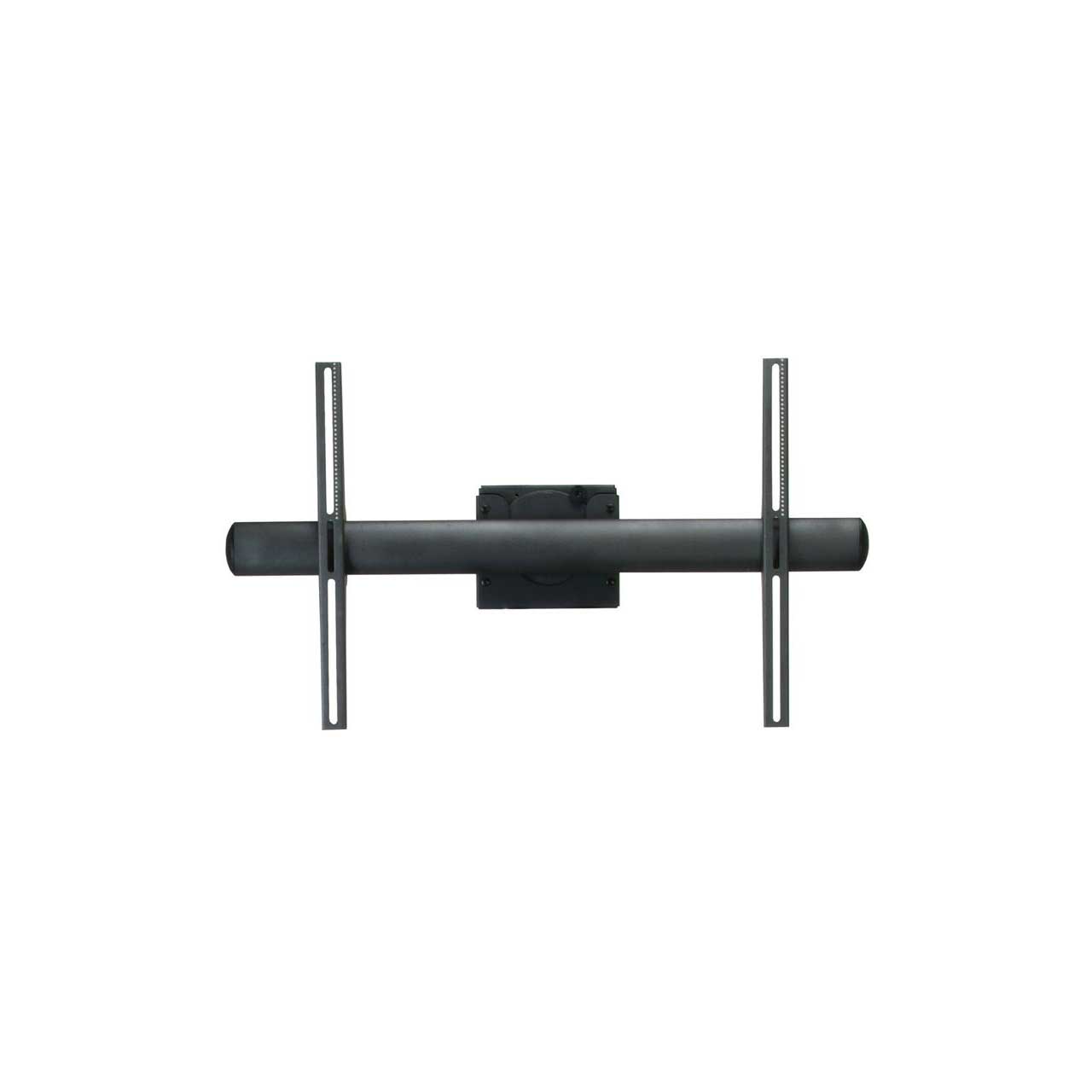

Premier Mounts RTM-L 360 Degree Rotating Tilt Mount for 37-61 Inch Flat Screens

RTM-L - Overview

• Specifications:

  • Shipping Weight : 33.8 lb. | 15.33 kg
  • Weight Capacity per Mount: 160 lb. | 72.57 kg
  • Number of Mounts: 1
  • Total Weight Capacity: 160 lb. | 72.57 kg
  • Width: 37.2 in. | 944.88 mm
  • Height: 21 in. | 533.40 mm
  • Depth: 9.37 in. | 238.00 mm
  • Mounting Pattern Type: Range
  • Mounting Pattern: 250 x 200 (Min) , 875 x 505 (Max) mm
  • Typical Display Sizes: 37.00 in. & up
  • Tilt: +35.00°/ -10.00°
  • Rotation: 360°
  • Shipping Box DIM Sizes: 11 in. (wide) x 9.8 in. (high) x 41.8 in. (deep) | 279.4 mm x 248.92 mm x 1061.72 mm
  • UPC: 0829973150723


• Item Includes:

  • 2 x Universal Mounting Brackets
  • 1 x Hand Crank
  • 1 x M6 Knurl Knob
  • 8 x Griplate
  • 1 x Rotary Tilt Mount
  • 5/32" Allen Wrench
  • Level
  • 8 x 1/4" Nylon spacers(large)
  • 8 x 9/16" Nylon spacers
  • 8 x 1/4" Nylon spacers(Small)
  • 8 x 1" Nylon spacers
  • 8 x 5/16" Flat washers(metal)
  • 8 x Nylon sleeves
  • 12 x 1/2" Nylon spacers(large)
  • Thread depth indicator
  • 8 x M4x16 Screw
  • 8 x M4x25 Screw
  • 8 x M5x12 Screw
  • 8 x M5x16 Screw
  • 8 x M5x20 Screw
  • 8 x M5x25 Screw
  • 8 x M5x50 Screw
  • 8 x M6x16 Screw
  • 8 x M6x20 Screw
  • 8 x M6x30 Screw
  • 8 x M6x45 Screw
  • 8 x M8x20 Screw
  • 8 x M8x25 Screw
  • 8 x M8x30 Screw
  • 8 x M8x35 Screw
  • 8 x M8x45 Screw
  • 8 x M8x70 Screw


• GTIN:

  0829973150723
