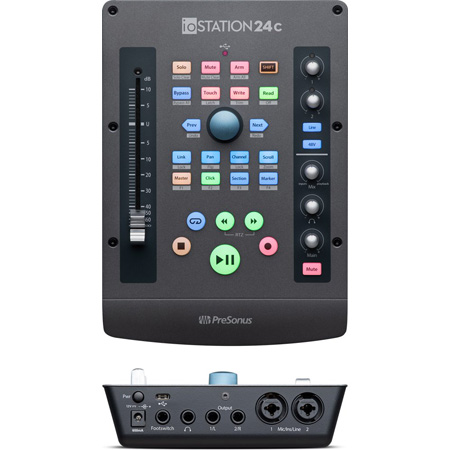

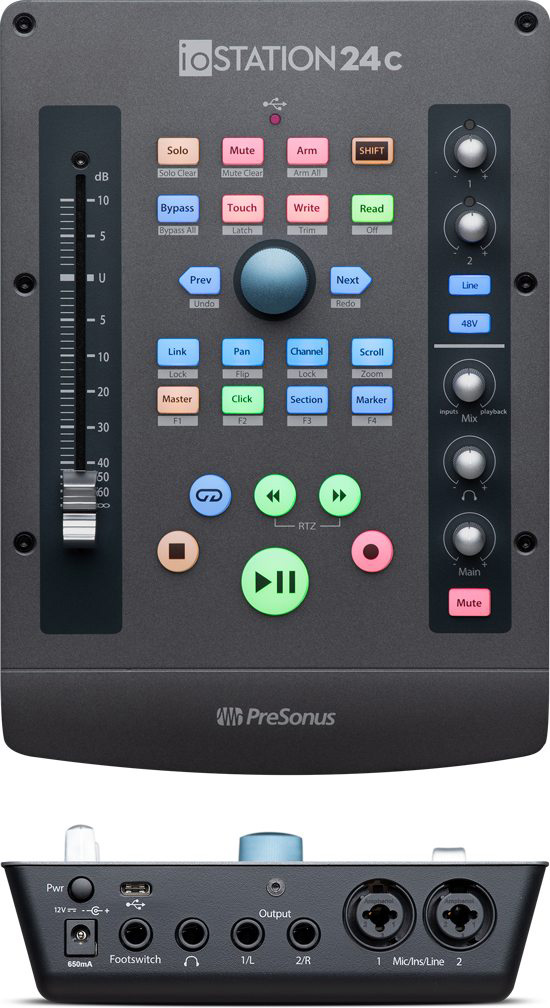

PreSonus IOSTATION 24C 2x2 192kHz USB-C Compatible Audio Interface and Production Controller

ITEM #: PRE-IOSTATION24C MFG #: IOSTATION 24C

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PRE-IOSTATION24C

IOSTATION 24C - Overview

The collaborative partner for the solo artist.
When you're a solo artist, you have to be more than just creative to realize your vision--you must also be a producer and an audio engineer. The PreSonus ioStation 24c audio interface and production controller provides the tools needed for all of these diverse roles in a compact, ergonomic desktop design that will fit into any home studio. Record your audio through two pristine XMAX mic preamps and high-definition 24-bit, 192 kHz analog-to-digital converters. Navigate your recordings with easy-to-use transport controls.

Superior front-end for superior results.
Audiophile-grade digital converters and transparent preamps create a superior recording and listening experience. The ioStation 24c audio interface features two of PreSonus®' acclaimed XMAX Class A analog microphone preamps that deliver incredibly high headroom, deep lows, shared smooth highs, and a rich overall sound--you'll hear every breath, transient, and detail in your recordings. High-quality converters provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally.

Work smarter.
We've incorporated elements from the award-winning FaderPort®-series controllers into the ioStation 24c. Rather than forcing you to reinvent your mixing method, the ioStation 24 augments the way you currently mix. You will still use your faithful keyboard and mouse for things they do well, while the ioStation 24c handles what you really want to get your fingers on: your mix.

Streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control Pro Tools, Logic Pro X, Cubase, Ableton Live, and more. No driver installation is necessary; just plug in your ioStation 24c and take command of your mix. Deep integration with the included PreSonus Studio One® Artist will let you mix at lightning speed.

World-class recording software included.
Seamlessly integrated with the included PreSonus Studio One Artist music production software, the ioStation 24c audio interface works with virtually all macOS® and Windows®x recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools or hemmed in by track limitations. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content and upgrades without even opening your browser--you'll build the version of Studio One that's right for you.

Your studio assistant.
The ioStation 24c's unique Session Navigator is your caffeine-fueled assistant engineer, providing easy access to eight mission-critical functions for maximum flexibility.Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline using the encoder or work measure-by-measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level.

  • Features:

    • General Features
    • Two products in one: audio interface and production controller
    • Record through two high-quality XMAX mic preamps
    • Control your favorite DAW with a touch-sensitive motorized fader and intuitive navigation controls
    • Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack

      Recording Features
    • USB-C™ compatible (USB 2.0), 24-bit/192 kHz audio interface
    • 2 mic/instrument/line inputs with XMAX mic preamps
    • 2 balanced 1/4" TRS main outputs
    • Simultaneous I/O up to 2 inputs and 2 outputs

    • Production Features
    • Single touch-sensitive, 100 mm long-throw, motorized fader
    • Large, 360° button encoder
    • Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
    • Drop Marker, Next/Prev Marker, Next/Prev Event
    • General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
    • Session Navigator provides quick control over Track Scrolling, Timeline Scrolling

  • Specifications:

    • Microphone Preamp
    • Type: XLR Female (via Combo), Balanced
    • Maximum Input Level: +16 dBu (Balanced, min. gain)
    • Gain Control Range: 80 dB
    • Frequency Response: 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
    • Dynamic Range: > 107 dB (A-wtd, min. gain)
    • Total Harmonic Distortion: < 0.007% (1 kHz, min. gain)
    • EIN: < -128 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
    • Input Impedance: 1.6 kΩ
    • Phantom Power: +48V, > 8 mA per input

      Instrument Inputs
    • Type: 1/4" TS Female (via Combo), Unbalanced
    • Maximum Input Level: +15 dBu
    • Gain Control Range: 80 dB
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: > 110 dB (A-wtd, min. gain)
    • Total Harmonic Distortion: < 0.012% (1kHz, -1 dBFS, min. gain)
    • Input Impedance: > 1 MΩ

      Line Inputs
    • Type: 1/4" TRS Female (via Combo), Balanced
    • Maximum Input Level: + 22 dBu (Balanced, min. gain)
    • Frequency Response: 20 Hz to 20 kHz
    • Dynamic Range: > 114 dB (A-wtd, min. gain)
    • Total Harmonic Distortion: < 0.007% (1 kHz, -1 dBFS, min. gain)
    • Input Impedance: 10 kΩ

      Main and Line Outputs
    • Type: 1/4" TRS Female, impedance balanced
    • Maximum Output Level: +18 dBu (Balanced)
    • Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
    • Dynamic Range: > 109 dB (A-wtd)
    • Total Harmonic Distortion: < 0.005% (1 kHz, +4 dBu)

      Headphone Outputs
    • Type: 1/4" TRS Female, Stereo, Unbalanced
    • Maximum Output Level: 150 mW/channel (56Ω load)
    • Frequency Response: 20 Hz to 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
    • Dynamic Range: > 107 dB (A-wtd)
    • Total Harmonic Distortion: < 0.02% (1 kHz, -1 dBFS, no load)
    • Headphone Impedance (working range): 32Ω to 300Ω

      Digital Audio
    • Connection Type: USB 2.0 over USB-CT Compatible Connection
    • ADC Dynamic Range: 115 dB (A-wtd)
    • DAC Dynamic Range: 115 dB (A-wtd)
    • Bit Depth: 24 bits
    • Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

      Clock
    • Jitter: < 70 ps RMS (20 Hz - 20 kHz)
    • Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)

      Power
    • 12 VDC, 1.2A, external power supply

      Physical
    • Height: 2.4" (61 mm)
    • Depth: 6.8" (172 mm)
    • Width: 9.6" (244 mm)
    • Weight: 2.2 lbs (1 kg)

  • Item Includes:

    • Studio One Artist recording and production software
    • Over 6GB of additional loops and sample content
    • Studio Magic Plug-in Suite

  • GTIN:

    0673454008672
