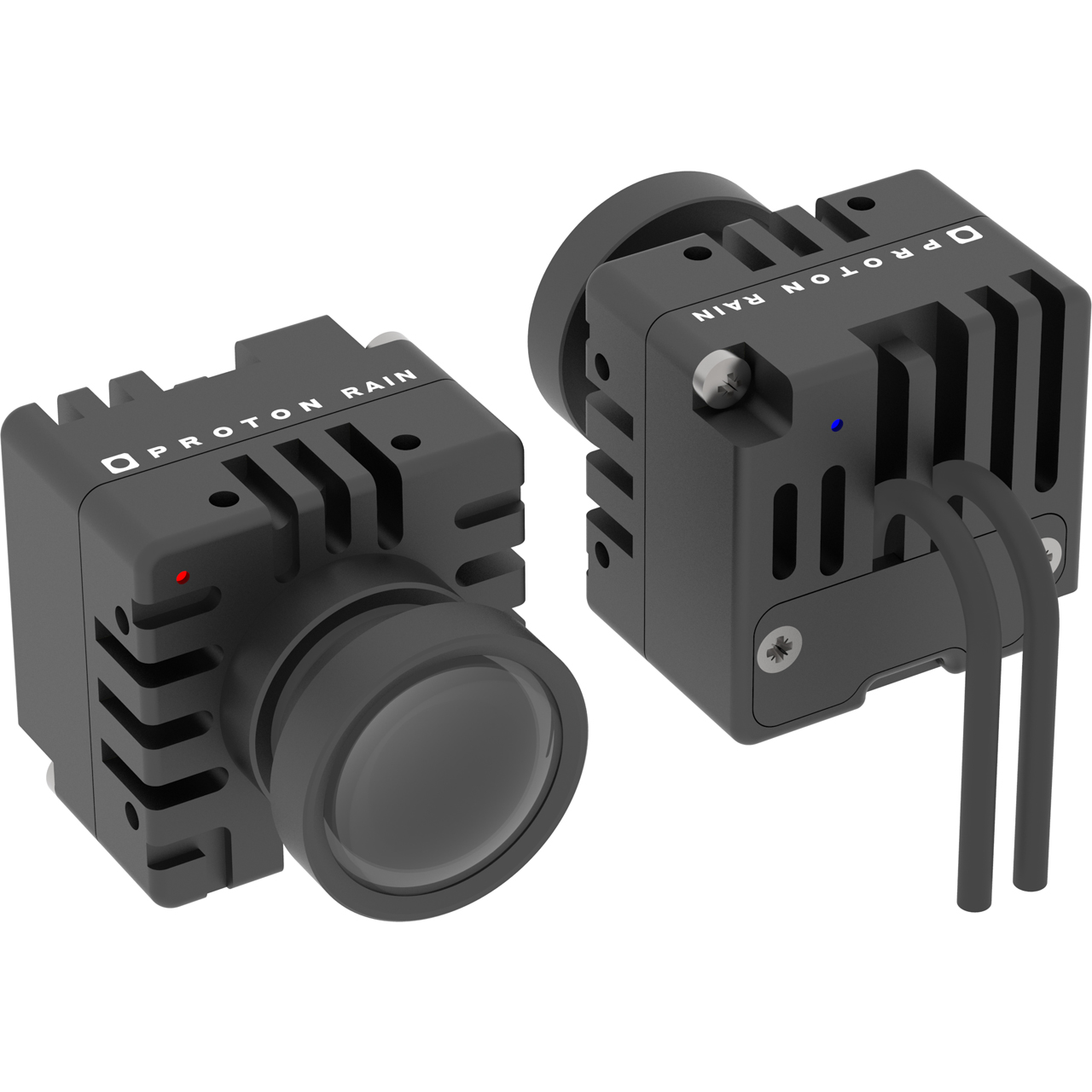

Proton PCI-RAIN Weatherproof IP67 Broadcast Camera with Integrated Tally Light - HDR Compliant

PROTON-PCI-RAIN - Overview

• Features:

  • Smallest IP67 Broadcast camera on the market
  • Up to 120° ultra wide angle
  • High 12-bit dynamic 1080p, 2-stops more on mini cameras
  • HDR compliant - HLG, PQ and S-log3
  • High sensitivity
  • Lowest operational voltage (4.5V - 25V)
  • Lowest Power (2.5W)
  • Tally light integrated


• Specifications:

  • Dimensions (LxWxH): 1.18" x 1.18" x 1.02" (30mm x 30mm x 26mm)
  • Protection: IP67 (outdoor)
  • Weight: 0.086lbs (39g)
  • Operation Voltage: 4.5V - 25V (Camera has reverse polarity protection)
  • Power: 3.0W (1080p60, cold camera)
  • Operational Temperature: -22°F - 167°F (-30°C - 75°C)
  • Lens Mount: M12/S-mount. Inbuild high quality IR cut filter. Supporting lenses with no IR filter with perfect color reproduction.
  • Sensor:
    - 4µm pixel - 1/1.8" - 8.8mm diagonal
    - 12-bit dynamic (72dB)
  • FOV:
    - 124° (H)/85° (V) with a 2.2mm lens
    - 97° (H)/64° (V) with a 3.2mm lens
  • ISO:
    - 75 - 2400 (gain mode 0)
    - 200 - 6400 (gain mode 1)
  • Shutter: 6µs, 1/FPS
  • Video Modes: 1920x1080 SDI 1.5G/3G P23, P24, P25, P29, P30, P50, P59, P60, 150, 159, 160


• Item Includes:

  • Proton RAIN Full HD Mini Broadcast Camera
  • 3.2mm f/2.3 Lens (M12/S Mount)
  • Limited 6-Month Manufacturer Warranty


• Warranty:

  • 6 Month Limited Warranty
