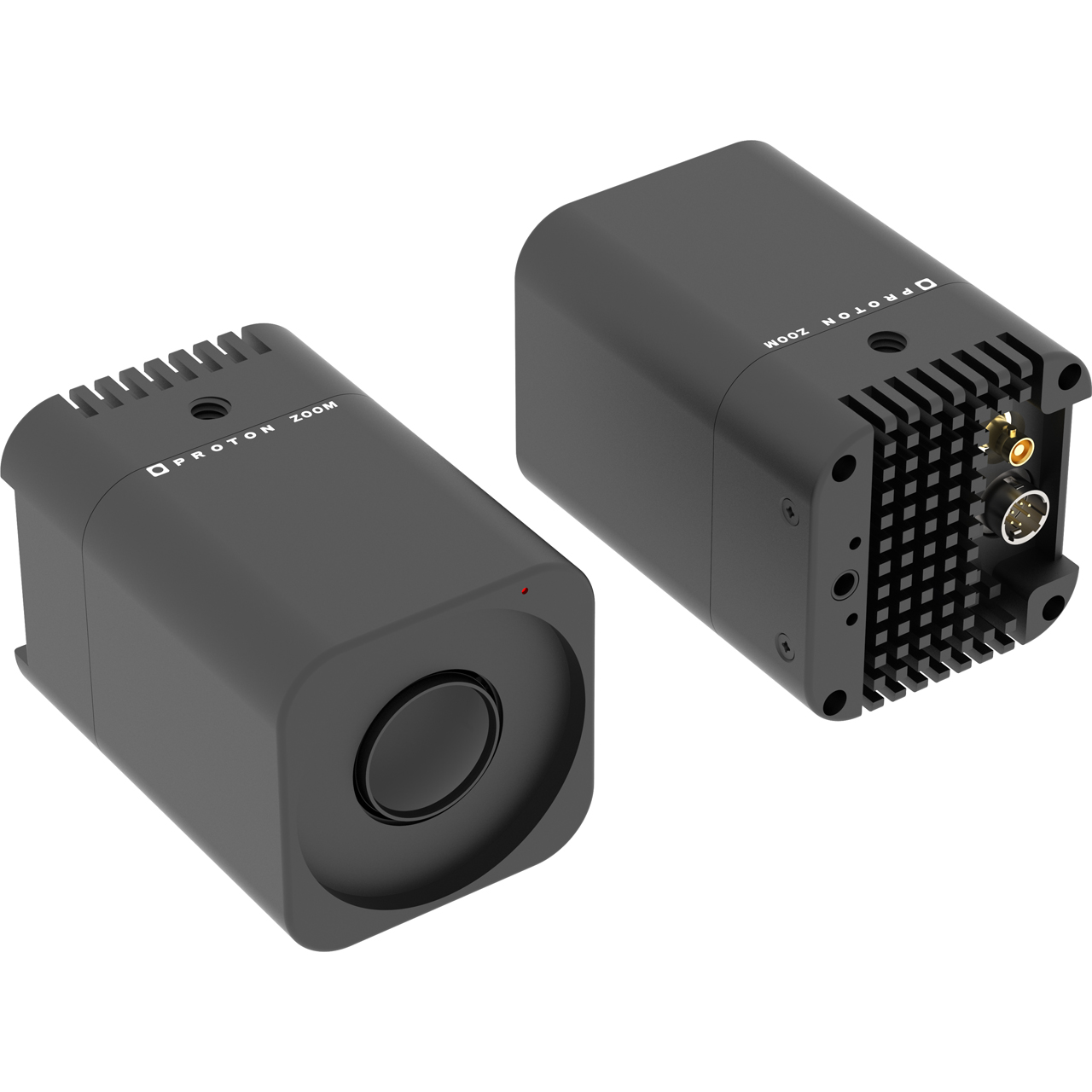

Proton PCI-ZOOM Compact POV Camera with 2.2x Zoom - Integrated Tally Light - HDR Compliant

PROTON-PCI-ZOOM - Overview

• Features:

  • Smallest Broadcast camera with zoom on the market
  • From 55° to 115° ultra wide angle, 2.2x zoom
  • High 12-bit dynamic 1080p
  • 2-stops more on mini cameras
  • HDR compliant, HLG, PQ and S-log3
  • High sensitivity Low noise, less light required
  • Lowest operational voltage 4.5V - 25V
  • Lowest Power - 3.5W
  • Tally light integrated


• Specifications:

  • Dimensions (LxWxH): 1.97" x 1.97" x 2.87" (50mm x 50mm x 73mm)
  • Weight: 0.516lbs (234g)
  • Operation Voltage: 5 V - 25V (Camera has reverse polarity protection)
  • Power: 3.8W (P60 , cold camera)
  • Operational Temperature: -22°F - 140°F (-30°C - 60°C)
  • Lens/FOV:
    - Integrated motor lens with zoom (2.2x), focus and iris control
    - 55° - 115° horizontal viewing angle
    - F1.5 @ 115° wide angle
    - F2.4 @ 55° narrow angle
  • Sensor:
    - 1/1.8" 1920x1080 4µm pixel
    - 7.68mm x 4.32mm - 8.8mm diagonal
    - 12-bit dynamic (72dB)
  • ISO Base Sensitivity:
    - 75 - 2400
    - 200 - 6400 (low light mode)
  • Shutter: 6µs, 1/FPS
  • Audio:
    - 3.5mm stereo microphone audio socket
    - 48kHz sampling rate 24 bit
    - 80dBA Signal-to-Noise-Ration
  • Video Modes: 1920x1080 SDI 1.5G/3G P23, P24, P25, P29, P30, P50, P59, P60, 150, 159, 160


• Item Includes:

  • 1x PROTON ZOOM Camera


• Warranty:

  • 6 Month Limited Warranty
