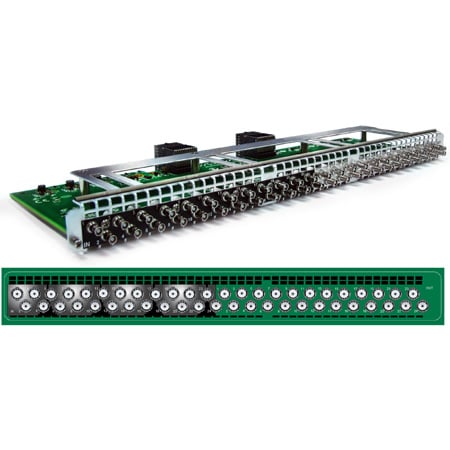

Imagine PV-24C-IOG Platinum VX SD/HD/3G Modular 24 Coax Video I/O Module

ITEM #: PV-24C-IOG MFG #: PV-24C-IOG

free ship

Our Price:

$5,687.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    PV-24C-IOG - Overview

    The Imagine Communications PV-24C-IOG is an exceptionally dense and powerful series of 3G/HD/SD triple rate routers, the Platinum VX comes standard with built-in Magellan™ set up and configuration utilities. When implemented as part of a larger routing system in a hybrid environment, Platinum VX can seamlessly operate under the overarching management of the Magellan™ SDN Orchestrator, which provides a seamless path to IP while maintaining standard routing and broadcast workflows. This versatile line of video routers also fully supports the award-winning Magellan range of router control panels.

    Built for on-the-job, 24/7 reliability, and supporting broadcasters and mobile production facilities as well as cable, telco and government applications, Platinum VX video routers are easily incorporated into any workflow and deliver an unparalleled level of versatility and value that helps any operation work smarter and more efficiently.

    • Features:

      • Clean and Quiet Processing
      • True Preview Capability
      • Density
      • Wide range of supported signal types from 3Mb/s to over 3Gb/s
      • Control Panels
      • Control System
      • Automation Support
      • Versatility
      • Full Redundancy Capabilities

    • Specifications:

      • Input
      • Input Connector 75 ohms HD-BNC
      • Impedance 75 ohms ( HD-BNC)
      • Signal Type SMPTE 424M, SMPTE 292M, SMPTE 259M
      • SMPTE 344M, DVB-ASI
      • Return Loss (HD-BNC)
        >15 dB, up to 1.485 GHz
        >10 dB, 1.485 to 2.97 GHz
      • Equalization (HD-BNC)
        Automatic
        550 m Belden 1694A for 270 Mb/s data rate
        250 m Belden 1694A for 1.485 Gb/s data rate
        150 m Belden 1694A for 2.97 Gb/s data rate

        OUTPUT
      • Output Connector 75 ohms HD-BNC
      • Impedance 75 ohms ( HD-BNC)
      • Signal Type
        SMPTE 424M
        SMPTE 292M
        SMPTE 259M
        SMPTE 344M
        DVB-ASI
      • Return Loss (BNC, HD-BNC)
        >15 dB, up to 1.485 GHz
        >10 dB, 1.485 to 2.97 GHz
      • Amplitude 800 mV ± 10%
      • Overshoot <10%
      • DC Offset 0V ± 0.5V
      • Rise Time
        270 Mb/s: 400-800 pS
        1.485 Gb/s: <135 pS
        2.97 Gb/s: <135 pS
      • Fall Time
        270 Mb/s: 400-800 pS
        1.485 Gb/s: <135 pS
        2.97 Gb/s: <135 pS
      • Jitter
      • 270 Mb/s, 1.485 Gb/s: <0.2UI reclocked
        2.97Gb/s: <0.3UI reclocked

        Physical Specifications
      • Dimensions (HxWxD): 1.75 x 17.5 x 10.75"
      • Weight (approx, fully loaded): 2.5 kg
      • Matrix Size: 16x16 + 16x16SFP
