Python II 16-Channel Fiber Optic HD/SDI Transmitter w/Integrated CWDM - 1 Fiber
  • Python II 16-Channel Fiber Optic HD/SDI Transmitter w/Integrated CWDM - 1 Fiber
  • Python II 16-Channel Fiber Optic HD/SDI Transmitter w/Integrated CWDM - 1 Fiber
Questions? Ask a Markertek Expert:
800-522-2025 Email

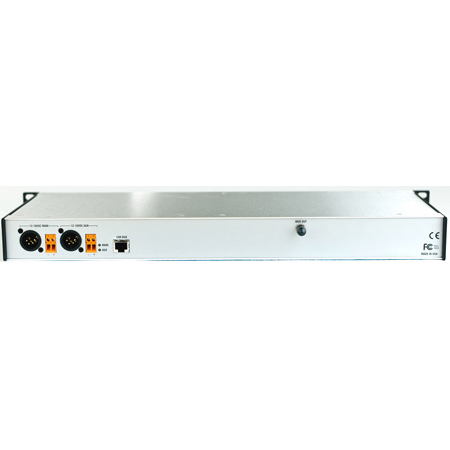

Python II 16-Channel Fiber Optic HD/SDI Transmitter w/Integrated CWDM - 1 Fiber

Item #: PY-GHJK-W16   •   MFG #: PY-GHJK-W16


List Price:$23,160.00
Our Price:$21,307.20

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we’ll make it happen.



    ?Python II lowers the cost of digital video distribution, simplifies your cable plant and eliminates all concerns about distance, interference and grounding. The Python II converts up to four groups of four-channels of HD/SDI to pristine fiber optic transport, all in a compact 1RU frame. Select a transmitter and a receiver frame for eight or sixteen channels, for example, in one direction. Select two transceiver frames for, say, eight channels in each direction.

    The Python II CWDM with the Band Splitter option provides for sixteen HD/SD Channels in one direction or eight each way on just one single mode fiber.

    The Python II offers the industry's broadest range of digital transmission rates while maintaining the quality that broadcasters demand. It supports numerous interface standards, including applicable SMPTE, ATSC, and DVB recommendations.

    • Features

      • ?Economical, low profile packaging
      • 4 to 16 Channels per 1 RU chassis
      • Wide range of digital formats
      • 19.4 Mbps to 1.5 Gbps transport
      • Compatible with digital TV standards SMPTE 292M & 259M
      • Handles DVB/ASI signals
      • Immune to pathological data errors
      • Equalizes coax up to 1.5 Gbps
      • BNC input/output
      • Wide optical budget
      • Low system jitter
      • Low power consumption
      • High reliability, durable design
      • CWDM multiplexing options
      • Compatible with other Telecast SD/HD SDI Transport Systems
    • Specifications

      • ?Transmission Method: Digital
      • Input Level: 800 mV (peak to peak)
      • Input/Output Impedance: 75 Ohms
      • Return Loss (1.5GHz): >15 dB, 5Mhz-1.5GHz
      • Coaxial Input Equalization Maximum Rate: 1.5 Gbps
      • Coaxial Input Equalization at 1.5Gbps: 300 meters of Belden 8281
      • Bit-Error Rate (@ -22 dBm rx optical power): 10-12
      • Jitter (using pathological data pattern): < 0.2 UI
      • Operating Wavelength: 1310 nm or 1550nm Optical Window
      • Link Margin: up to 22 dB
      • Transmitter Output Power Options: -7 dBm or 0 dBm
      • Receiver Sensitivity: -20dBm/-22 dBm
      • Optical Source: Laser diode
      • Optical Detector: PIN
      • Fiber Type: Single mode or multimode
      • Dimensions (LxWxH): 16.7 x 10.5 x 1.75
      • Weight: 5 lbs
      • Connectors (Electrical): BNC
      • Connectors (Optical): ST
      • Input Voltage: 12-24VDC
      • Power Consumption: < 15 Watts
      • Indicators: Power On, SDI Data Presence, Optical Power
      • Temperature Range: -20° C to +55°C
      • Humidity Range: 0 to 95% non-condensing
