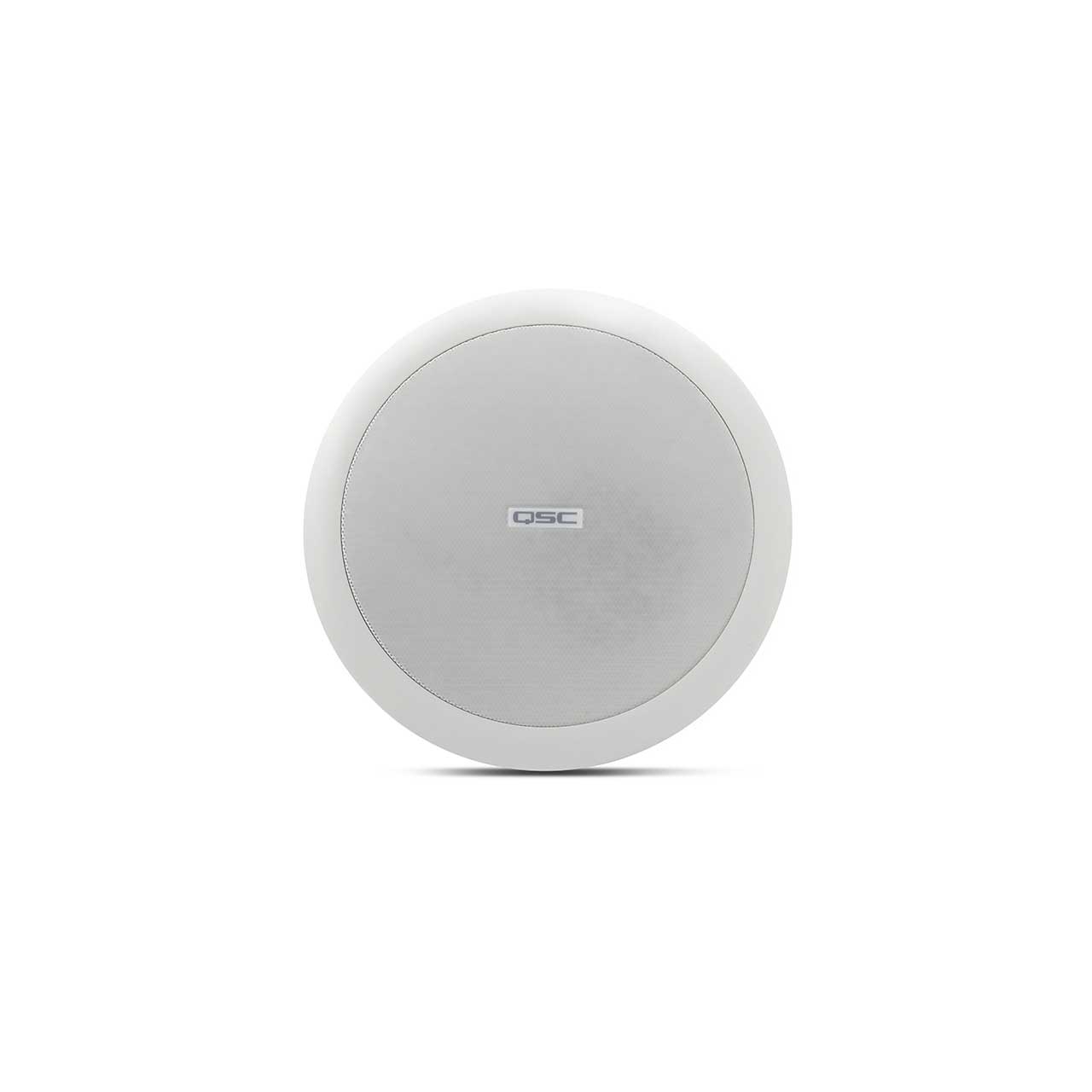

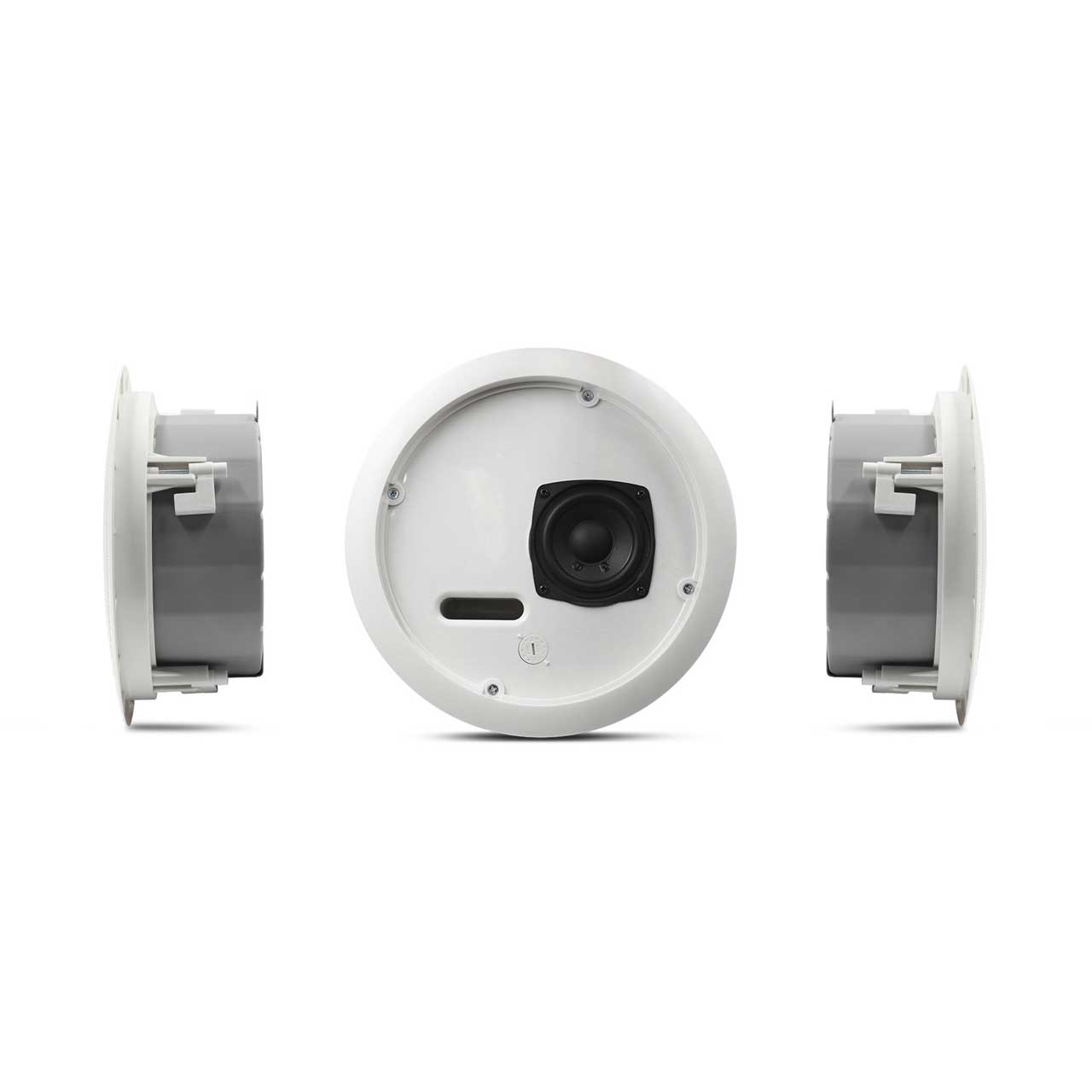

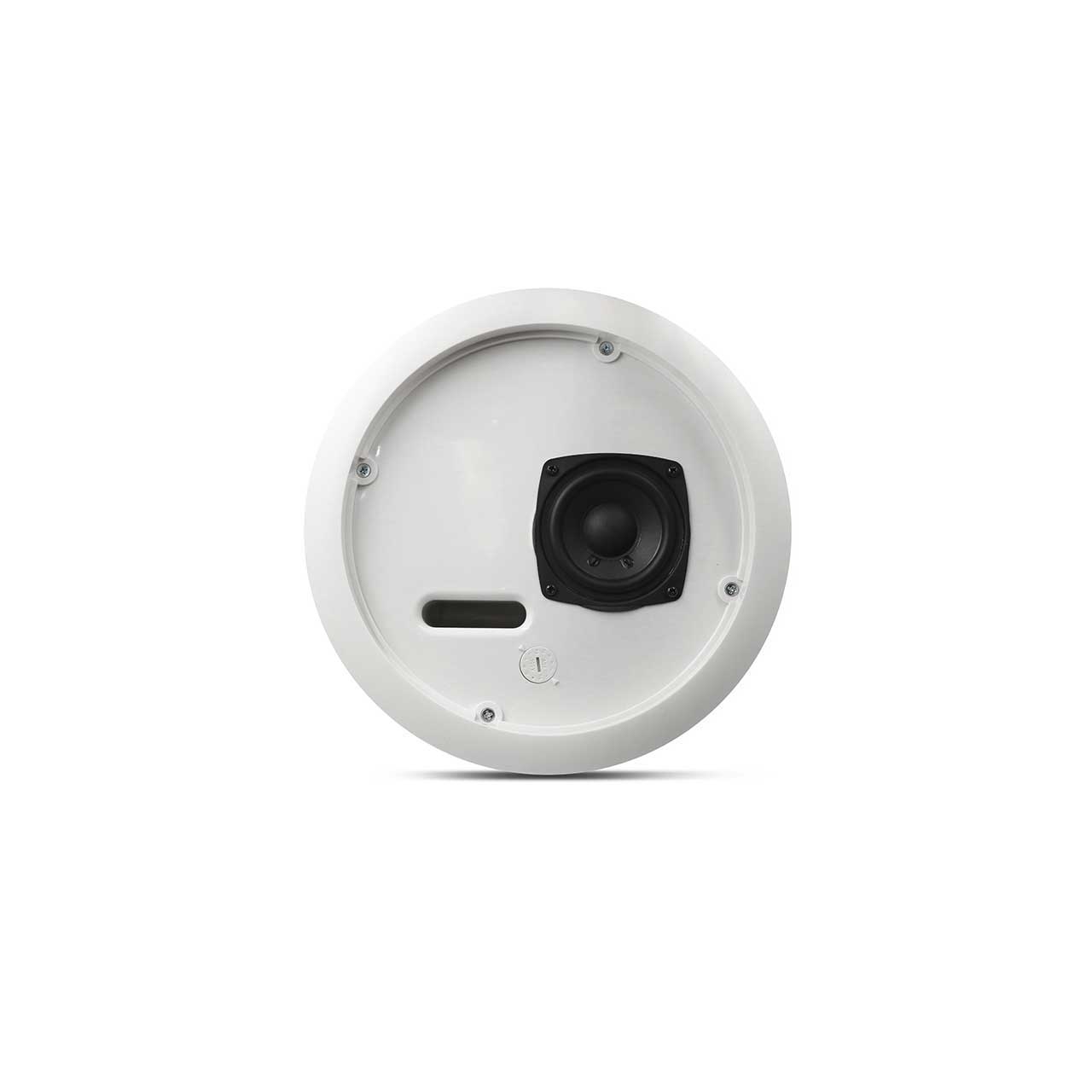

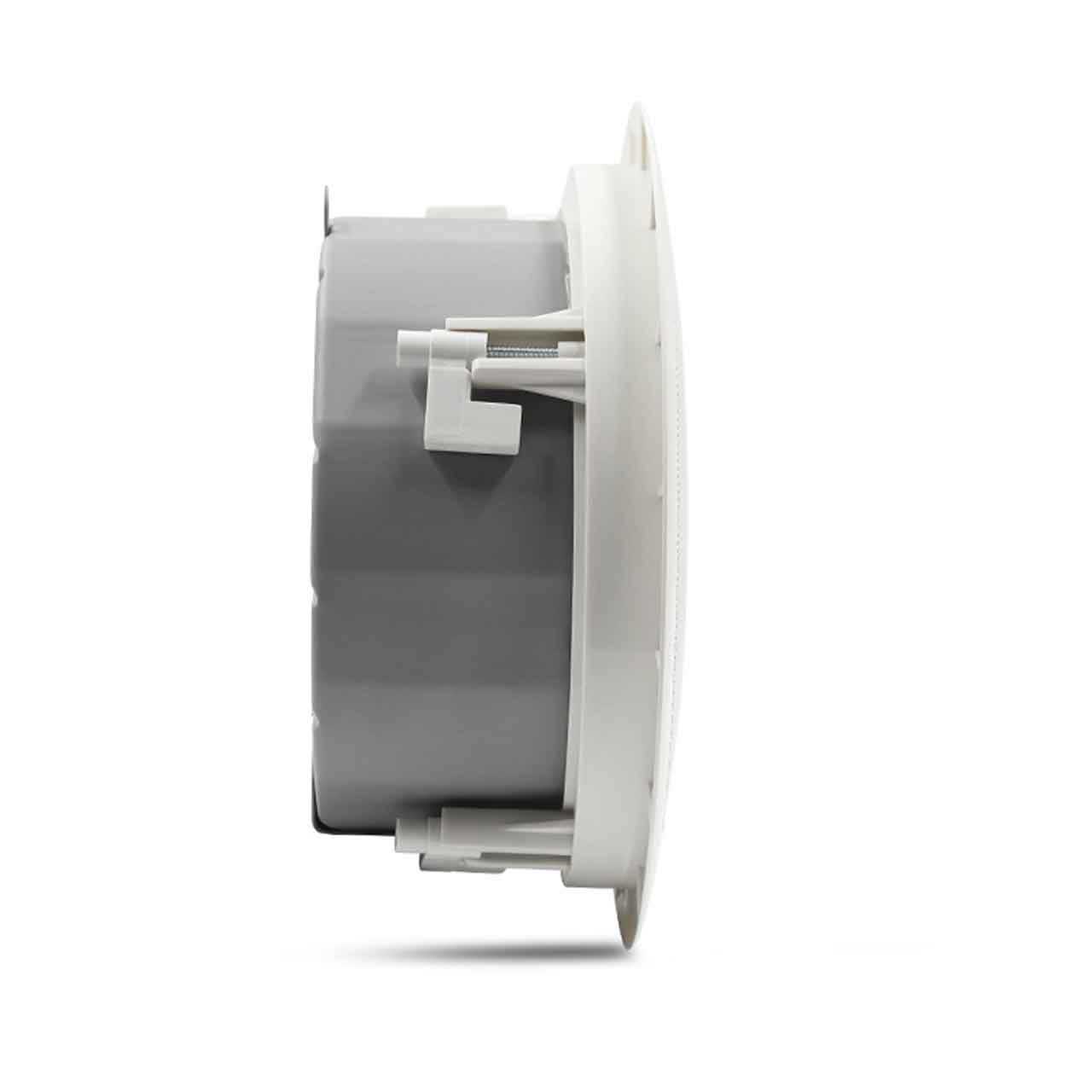

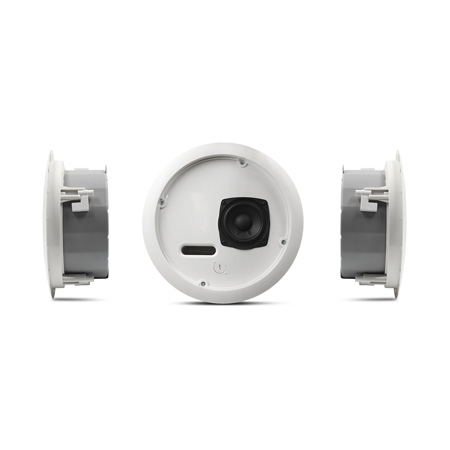

QSC AC-C2T-LP 2.75 Inch Full-Range Low Profile Ceiling Speaker - 70/100V Transformer with 8Ohm Bypass - Pair

QSC-AC-C2T-LP - Overview

• Features:

  • Low-profile enclosure ensures no obstructions during installation
  • High-quality 2.75" full-range transducer provides a natural rise in high frequency extension
  • Ported baffle for increased low frequency extension down to 75 Hz
  • Low saturation 70 / 100 V transformers with 8 Ω bypass

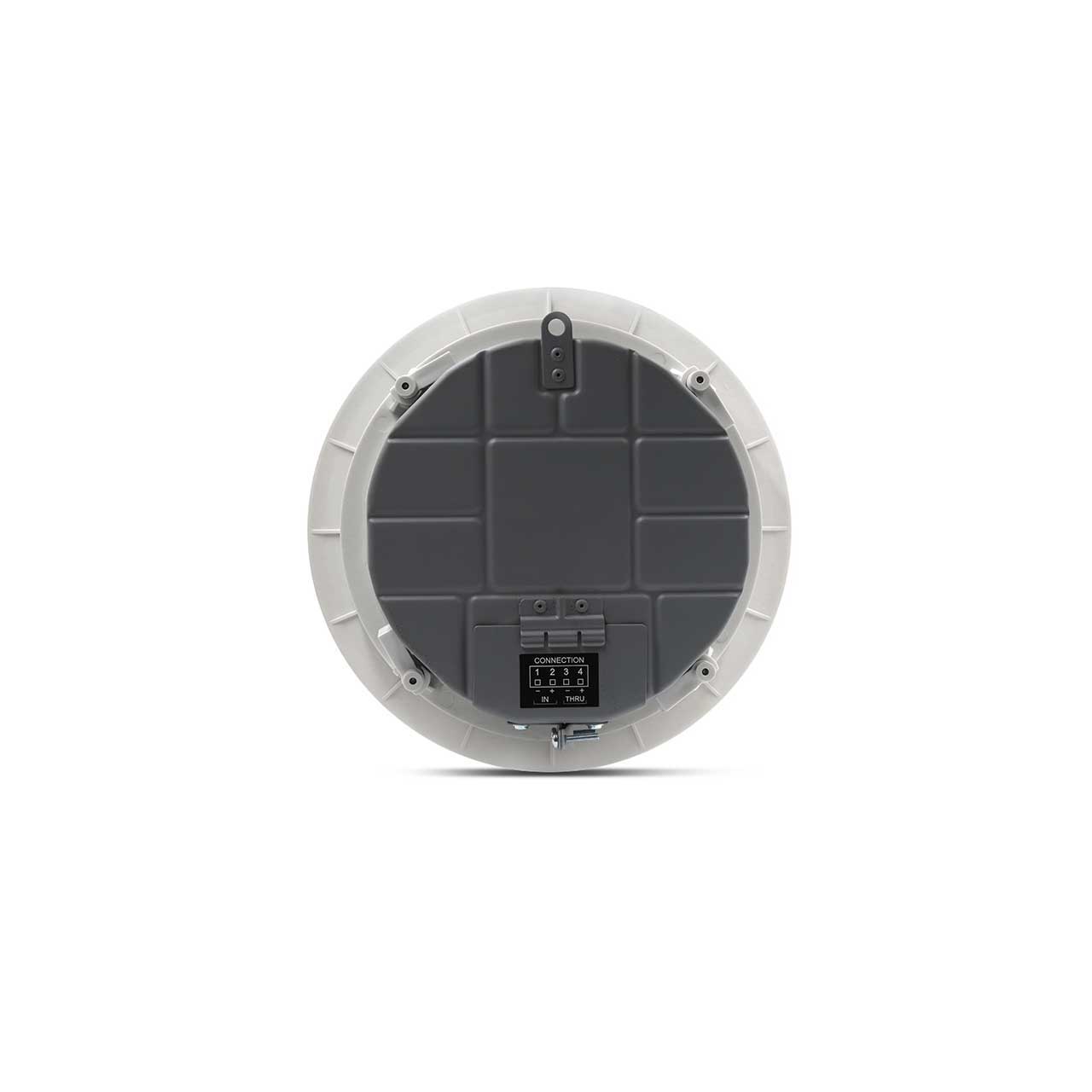

  • 4 pole Euroblock connector eases system wiring
  • Intrinsic Correction™ voicings available via Q-SYS Ecosystem and QSC processing amplifiers
  • White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
  • Complete EASE, CAD & BIM information available online


• Specifications:

  • Transducer: 2.75 in (70 mm), weather-treated paper cone
  • Effective frequency range: 70 Hz to 20 kHz
  • Broad-band sensitivity: 84 dB
  • Rated noise power/voltage: 16 W / 11.3 V RMS
  • Coverage angle (-6 dB): 170° (500 Hz to 5 kHz)
  • Maximum SPL (continuous / peak): 96 / 102 dB
  • Rated impedance: 8 Ω
  • Transformer taps: Bypass: 16 Ω, 70 V: 16, 8, 4, 2, 1 W and 8 Ω bypass, 100 V: 16, 8, 4, 2, W and 8 Ω bypass
  • Input connector type: Euroblock connector with parallel output terminals
  • Baffle material: ABS polymer
  • Grille material: Powder coated steel
  • Back can material: Powder coated steel
  • Net weight: 4.2 lb (1.9 kg)
  • Product dimensions: 10.35 x 3.82 in (263 x 97 mm)
  • Cut-out dimensions: 9 in (229 mm)
  • Ceiling capture thickness: 0.25 - 1.5 in (6.35 - 38.1 mm)
  • Shipping weight: 13.8 lb (6.3 kg)
  • Shipping dimensions (W x D x H): 25.2 x 14.2 x 7.2 in
  • Included accessories: Rails & C-ring for ceiling tile installation


• Item Includes:

  • 2x AC-C2T-LP Speakers
  • 1x Rails and Ceiling Rings


• GTIN:

  0684284077073
