QSC AD-P-HALO-BK Integrated Sub/Satellite Pendant Loudspeaker System - Black

ITEM #: QSC-AD-P-HALO-BK MFG #: AD-P.HALO-BK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$810.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AD-P.HALO-BK - Overview

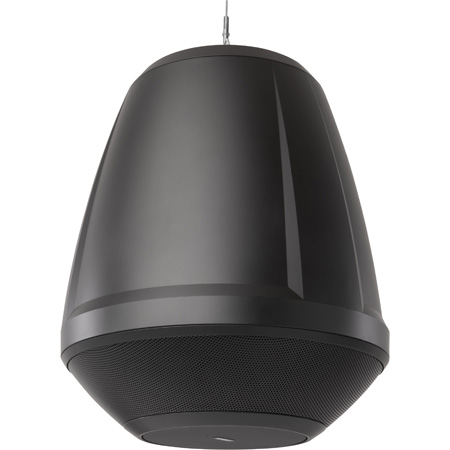

    The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.

    All-in-one solution, no assembly required:

    The AD-P.HALO is purpose-designed and fully integrated in a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowering the overall project costs and allowing the integrator to focus on the sound.

    Designed for performance and musicality:

    Featuring a 6.5" subwoofer and four 2.75" transducers in a single, pendant-mount enclosure, the AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that far surpasses the background music performance of traditional two-way pendant-mount loudspeakers.

    Perfect AcousticDesign™ Series companion:

    The AD-P.HALO joins the AcousticDesign Series portfolio of loudspeakers, which offer sleek aesthetic design and high-quality sound across multiple form factors (ceiling-mount, pendant-mount and surface-mount).

    • Features:

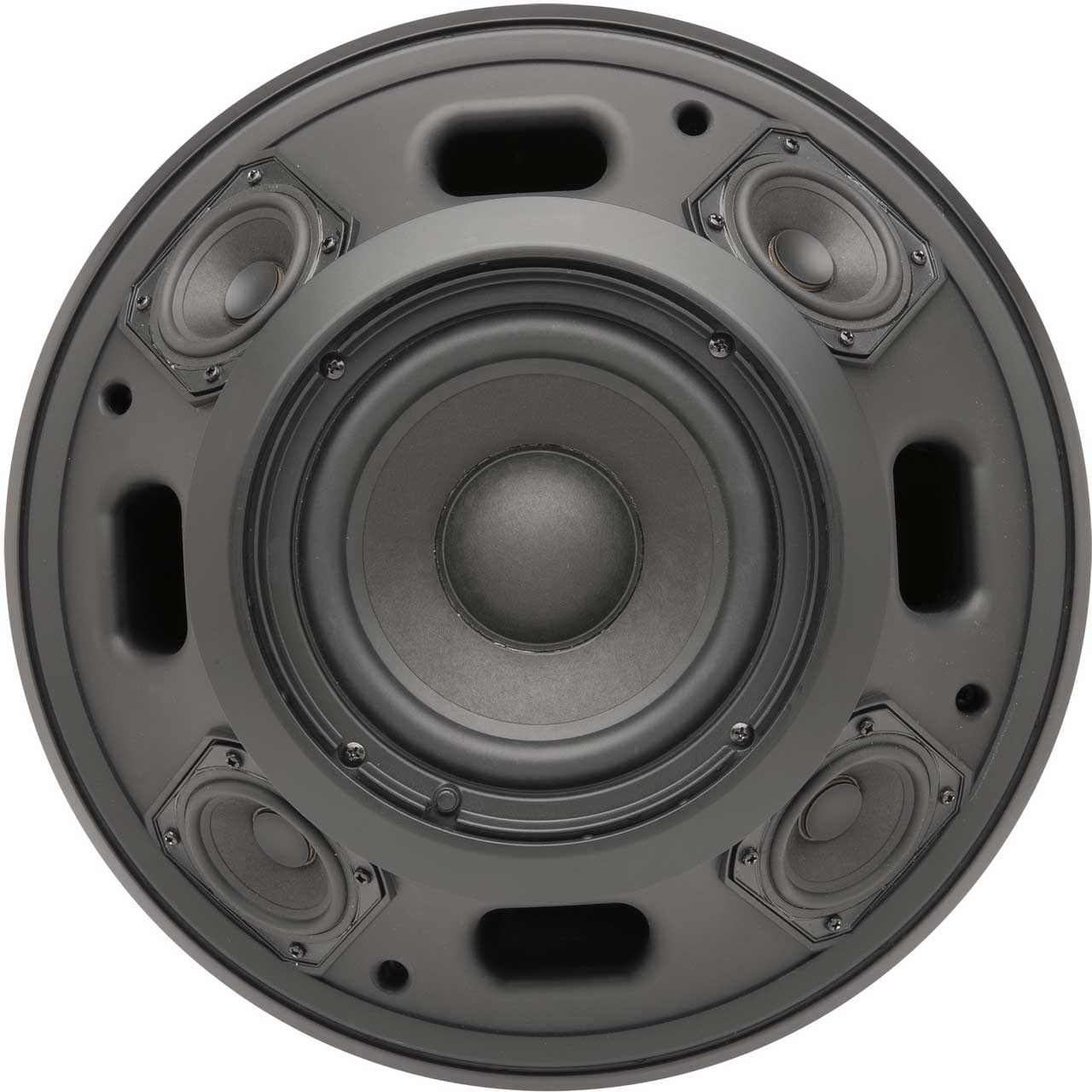

      • Integrated 6.5" subwoofer and four 2.75" satellite transducers in a single pendant-mount enclosure
      • All-in-one solution with no assembly required
      • 200 W RMS power rating
      • Consistent tonal characteristics across the entire AcousticDesign Series family for surface, ceiling, and pendant applications
      • Intrinsic Correction™ voicings available via Q-SYS Ecosystem and QSC processing amplifiers
      • Rugged ABS enclosure
      • Low-saturation 70 / 100 V transformers with 6Ω bypass
      • Transformer taps: 100 W, 50 W, 25 W, 12.5 W
      • IP-54 ingress rating
      • UL1480A and CE compliant
      • Available in black (RAL 9011) or white (RAL 9010)
      • Included suspension hardware and fasteners
      • Complete EASE, CAD, & BIM information available online

    • Specifications:

      • System Details: AD-P.HALO
      • Systems Type: Integrated SUB/SAT
      • LF Transducer: 6.5 in (165.1 mm)
      • HF Transducer: 4x 2.75 in (69.85 mm)
      • Frequency Range: 40 Hz - 20 kHz
      • Sensitivity: 86 dB
      • Rated Noise Power: 100 W
      • Max Noise Voltage: 24.5 V RMS
      • Coverage: 110° conical
      • Directivity Index: 8 dB
      • Directivity Factor: 6
      • Maximum SPL (continuous/peak): 105 / 111 dB
      • Nominal Impedance:
      • Crossover Frequency: 250 Hz (2nd order low-pass + 3rd order high-pass filters)
      • Transformer Taps: 70 V : 12.5, 25, 50, 100, 100 V : 25, 50, 100
      • Port Tuning: 50 Hz
      • Input Connectors: 4-pin male/female Euroblock with pass-thru and locking screws
      • Enclosure Material: Injection-molded ABS baffle and enclosure
      • Grille Material: Stamped steel, perforated and powder-coated
      • Shipping Dimensions(WxDxH): 21.06 x 17.52 x 17.13 Inch
      • Net Weight: 10.2 lb (22.5 kg)
      • Shipping Weight: 12.5 lb (27.6 kg)

    • Item Includes:

      • 1x QSC AD-P.HALO-Black
      • 1x Suspension Hardware and Fasteners

    • Warranty:

      • Limited 3-Year Warranty

    • GTIN:

      0684284077011
