    R800 7000 - Overview

    The Radial JD7 Injector is a guitar signal splitter that is able to drive as many as seven amplifiers at the same time and do so without the noise that often plagues most systems.

    It features A or B selectable inputs with Radial's award winning class-A buffering circuit for ultra low distortion. To ensure maximum signal fidelity, Drag ControlT load correction lets you replicate the load on the guitar pickup as if connected to a tube amplifier for the most natural tone. The hi-Z outputs are equipped with high-performance Jensen Transformers for optimal signal transfer. Transformer isolation along with individual ground lifts help eliminate hum and buzz caused by ground loops for cleaner, quieter guitar tracks. 180§ polarity reverse ensures all amps play in phase while channels 5 and 6 are equipped with effects loops for greater setup flexibility.

    The JD7 is fully equipped for Reamping: a built-in Radial direct box lets you record a dry track while a separate ReampT input is ready for re-recording dry tracks when needed. This enables you to move mics around the room, change amps or add effects to optimize the sound of the recording. And Reamping works equally well on bass, voice and other instruments.

    Designed to spur on creativity, the JD7 is plug & play easy to use, super quiet, and amazingly natural sounding. a guitarist's dream come true and a producer's very best friend.

    Using the JD7 as a splitter!

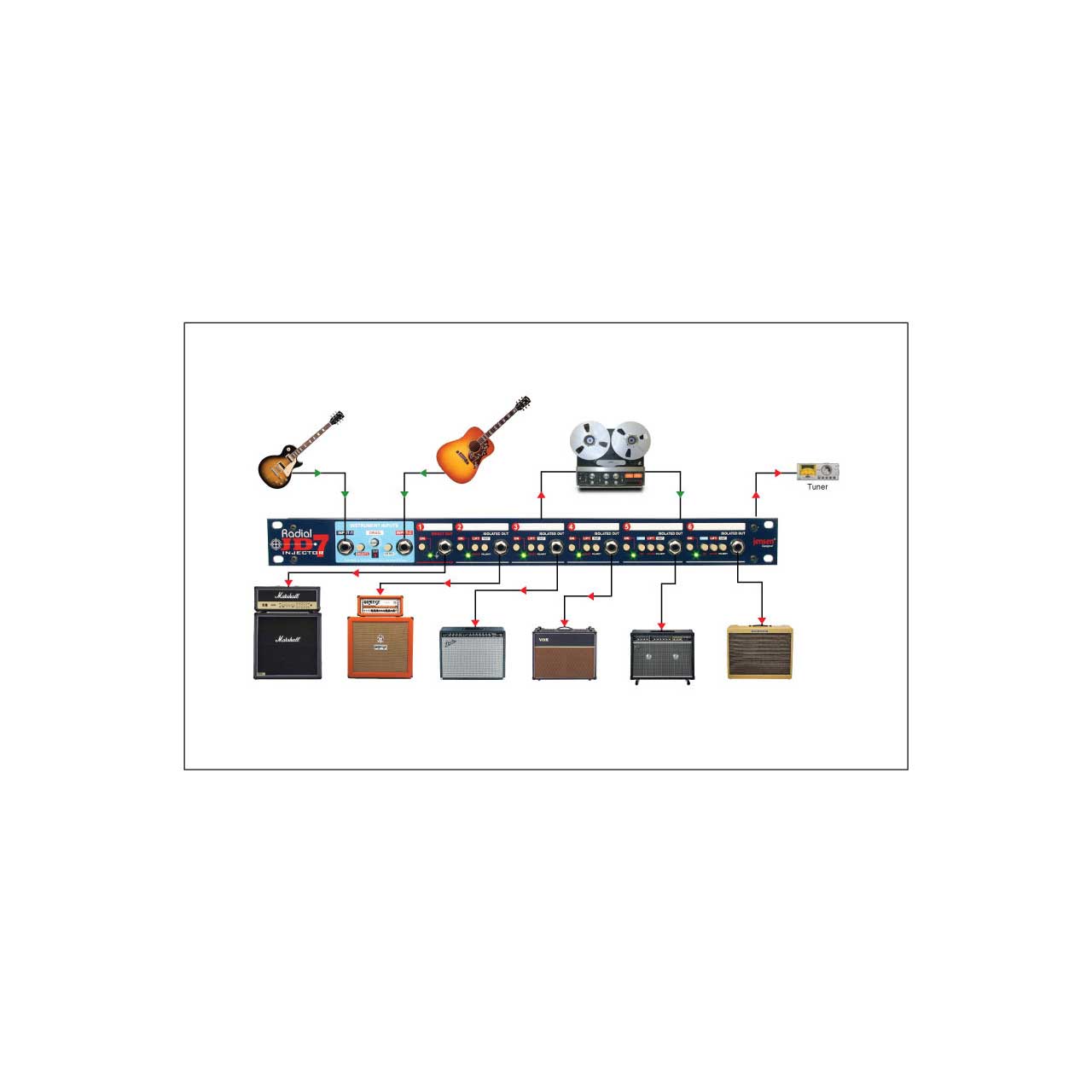

    The JD7 is equipped with A or B inputs and 6 guitar outs on the front panel plus a tuner out on the rear. Use ch-1 with a properly grounded amp, then add as many as you like. All outputs are isolated to eliminate hum and buzz (see fig 3 above).

    Using the JD7 for Reamping!

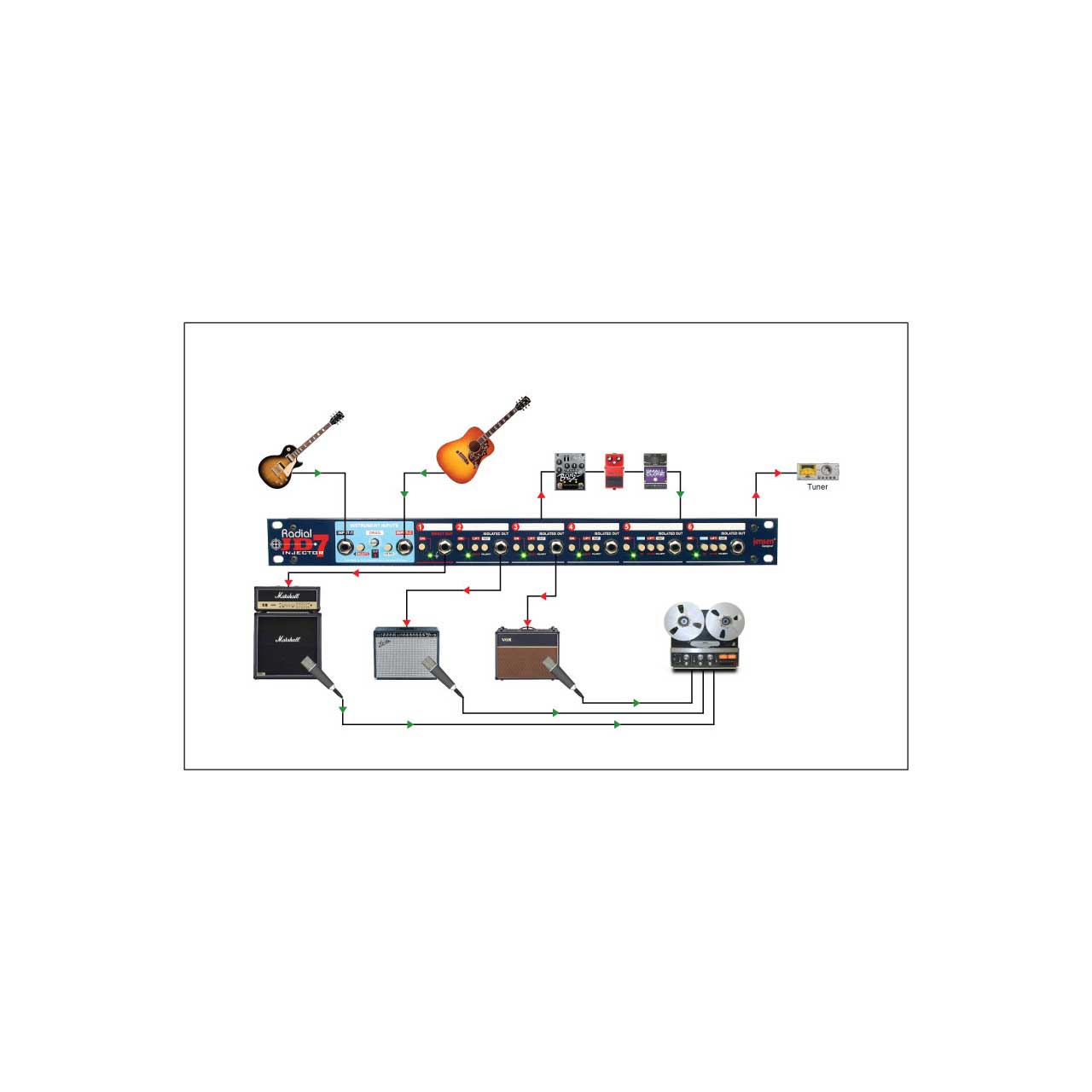

    Start by recording a dry track using the JD7's DI output. Then send the clean track back to the Radial JD7's rear panel XLR input. Adjust the level and you are now set to drive as many amps as you need. Move the mics, change the tone settings (see fig 4 above).

    Using the JD7 with effects!
    A great way to quiet down noisy guitars is to run all your signals through the JD7. The high performance class-A buffers and Jensen transformer isolated outputs are truly amazing! Channels 5 and 6 are also equipped with effects loops (see fig 5 above).

    • Features:

      • Drive up to 7 amps and effects at the same time
      • 100% discrete class-A buffers with Jensen Transformer isolation
      • Built-in Radial DI with multi-out Reamping capabilities
      • Drag control load correction for natural sound
      • Input select: A or B selectable inputs
      • Input pad: -8dB (input B)
      • Phase reverse: 180° polarity reverse (isolated outputs)
      • XLR output: Transformer isolated DI out with phase rev. & gnd lift
      • XLR input: Balanced line-level Reamp input with gnd lift
      • Ground lift: Isolated channels 2 thru 6; Bal XLR I/O
      • XLR configuration: AES standard (pin-2 hot)
    • Specifications:

      • Audio circuit type: 100% discrete class-A with transformer isolation.
      • Frequency response: 20Hz ~ 20kHz (± 1dB).
      • Signal to noise ratio: -115dB (0dBu input).
      • Dynamic range: 125dB (unbalanced input to unbalanced output).
      • Noise floor: -115dBu (direct output-1), -115dBu (isolated outputs).
      • Maximum input: +13dBu (unbalanced ¬" instrument inputs-A & B), +23dBu (balanced line-level reamping input).
      • Total harmonic distortion: 0.05% @ 1k (direct output-1), 0.05% @ 1k (isolated outputs), 0.1% @ 1k (balanced DI mic-level output).
      • Inter-modulation distortion: 0.2% @ -20dBu.
      • Input impedance: Variable from 10k Ohms ~ 1megaOhm.
      • Output impedance: ¬" unbalanced: 10k Ohms; XLR balanced: 150 Ohms.
      • Power: +15VDC/400mA adapter included.
      • Construction: 14 gauge steel chassis & outer shell.
      • Finish: Durable powder coat.
      • Size: 17.5" x 6" x 1.75" (44.5 x15.25 x 1.75cm).
      • Weight: 7.5 lb (3.4 kg).
      • Shipping size 22" x 10" x 4.5" (55.9 x 25.4 x 11.4cm).
      • Shipping weight 8lbs (3.63kg).
      • Conditions: For use in dry locations only between 5°C and 40°C.
      • Warranty: Radial 3-year, transferable.
