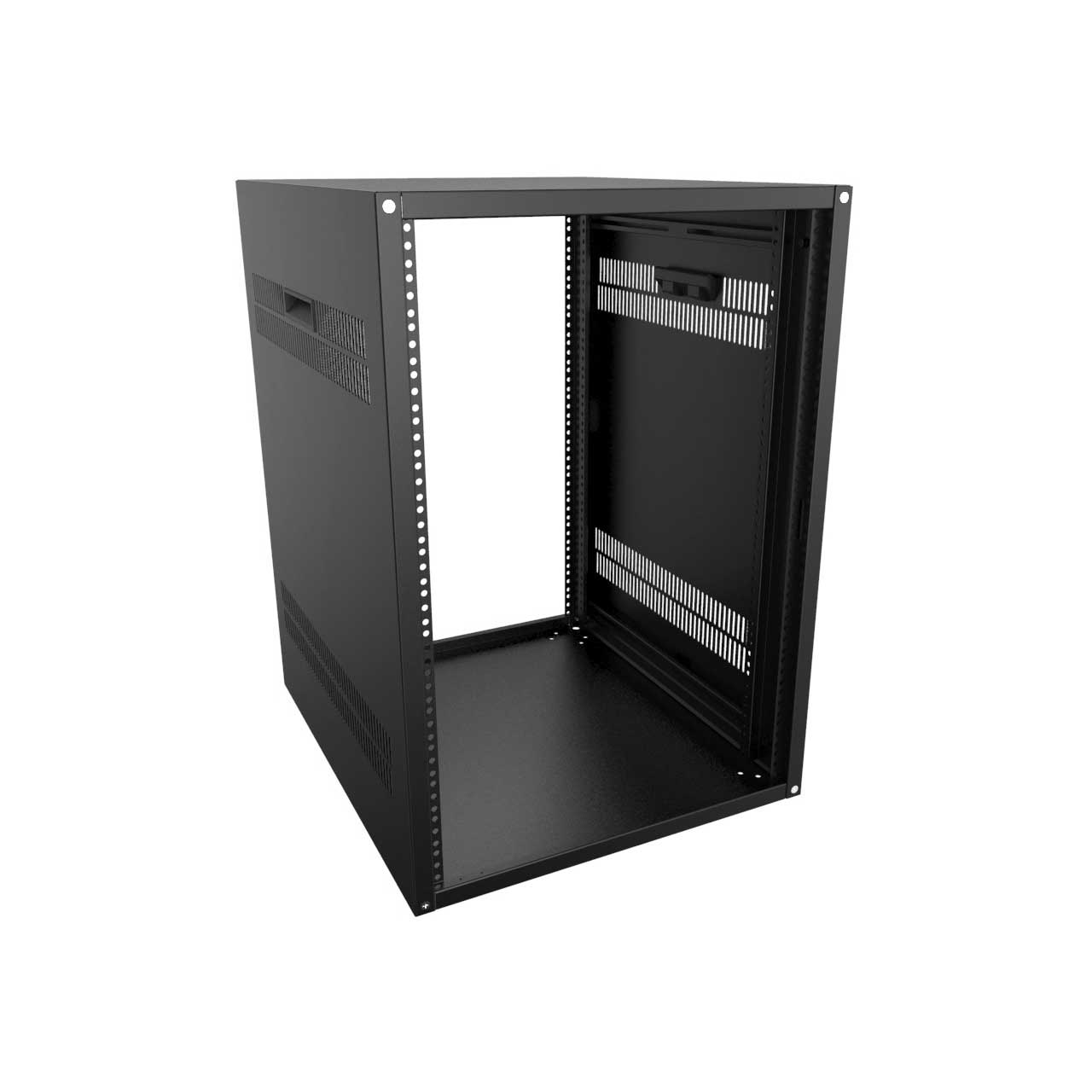

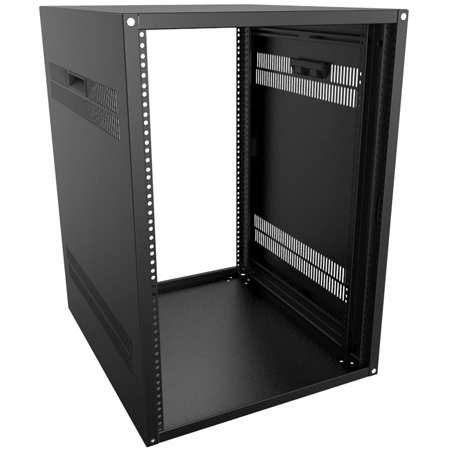

Hammond RCHV1902824BK1 RCH Series 16U Ventilated Rack Case - 28 x 25.5 Inch

RCHV1902824BK1 - Overview

• Features:

  • Constructed in 16-gauge steel.
  • Two pairs of adjustable depth 19" EIA compliant round hole punched rails.
  • Includes rubber feet, two lifting handles, a starter pack of (16) 10-32 clip nuts.
  • Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
  • Front & back lip is .585" (14 mm) so usable depth is reduced by 1.17" (30 mm).
  • Tested to nearly double the suggested load rating of 800 lbs (363 kg).
  • Rugged textured powder paint finish.
  • Knockdown design ships unassembled for easy handling and shipping protection.
  • TAA Compliant.
  • RoHS Compliant.
  • Manufactured in North America.


• Specifications:

  • Dimensions: 30 x 21 24.50 inches (16U)
  • Usable Mounting Dimensions: 28 x 19 x 23.25 inches
  • Shipping Weight: 67.99 lbs (30.84 kg)
  • Rack Units 16
  • Rack Type Cabinet
  • Paint Color Black
  • Rail Type Round Hole with 10-32 Clip Nut


• Item Includes:

  • 1x RCHS/V Top Panel assembly
  • 2x RCHS K.D. - Side
  • 1x RCHS/V Bottom Panel Assembly
  • 4x RCHS K.D. - Punched Combo Rails
  • 2x Black Plastic Handle
  • 8x 1/4-20X1/2 Hex Slot Bolts
  • 8x Nuts - 1/4-20 Spring
  • 8x Screws - M6 x 1.0 x 12mm


• GTIN:

  0623980028231
