COMBINE6HDR - Overview

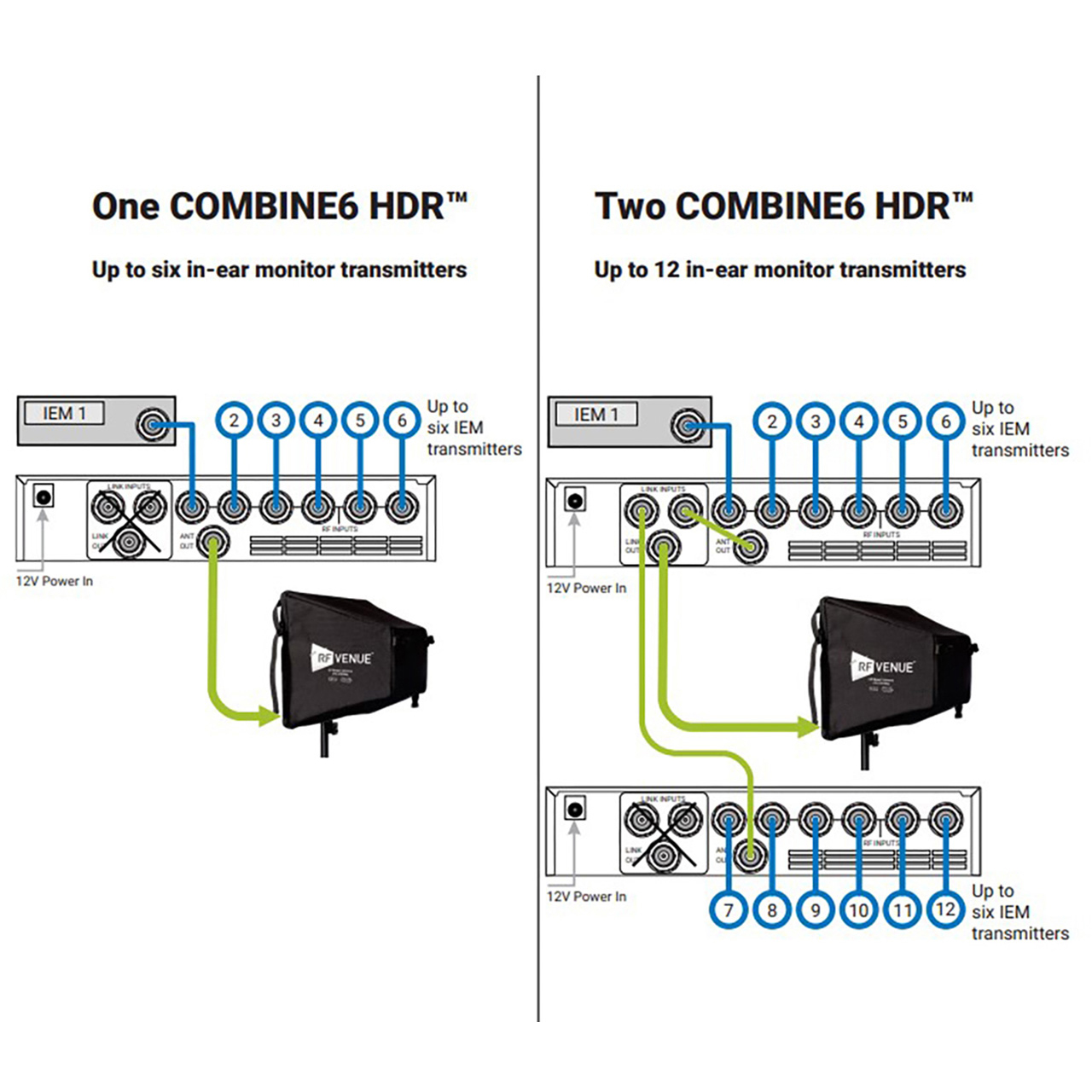

The RF Venue COMBINE6 HDR is a high-quality transmitter combiner specifically engineered for IEM systems. Building on the success of RF Venue's COMBINE4 and COMBINE8, the COMBINE6 HDR delivers even better RF performance in a more compact half-rack footprint. Two COMBINE6 HDRs can even be cascaded together using the built-in passive expansion circuit for an industry first 12 IEM channels in a 1RU space.

  • Specifications:

    • Frequency Range (USA/Canada): 470 - 608MHz
    • Frequency Range (International): 470 - 698MHz

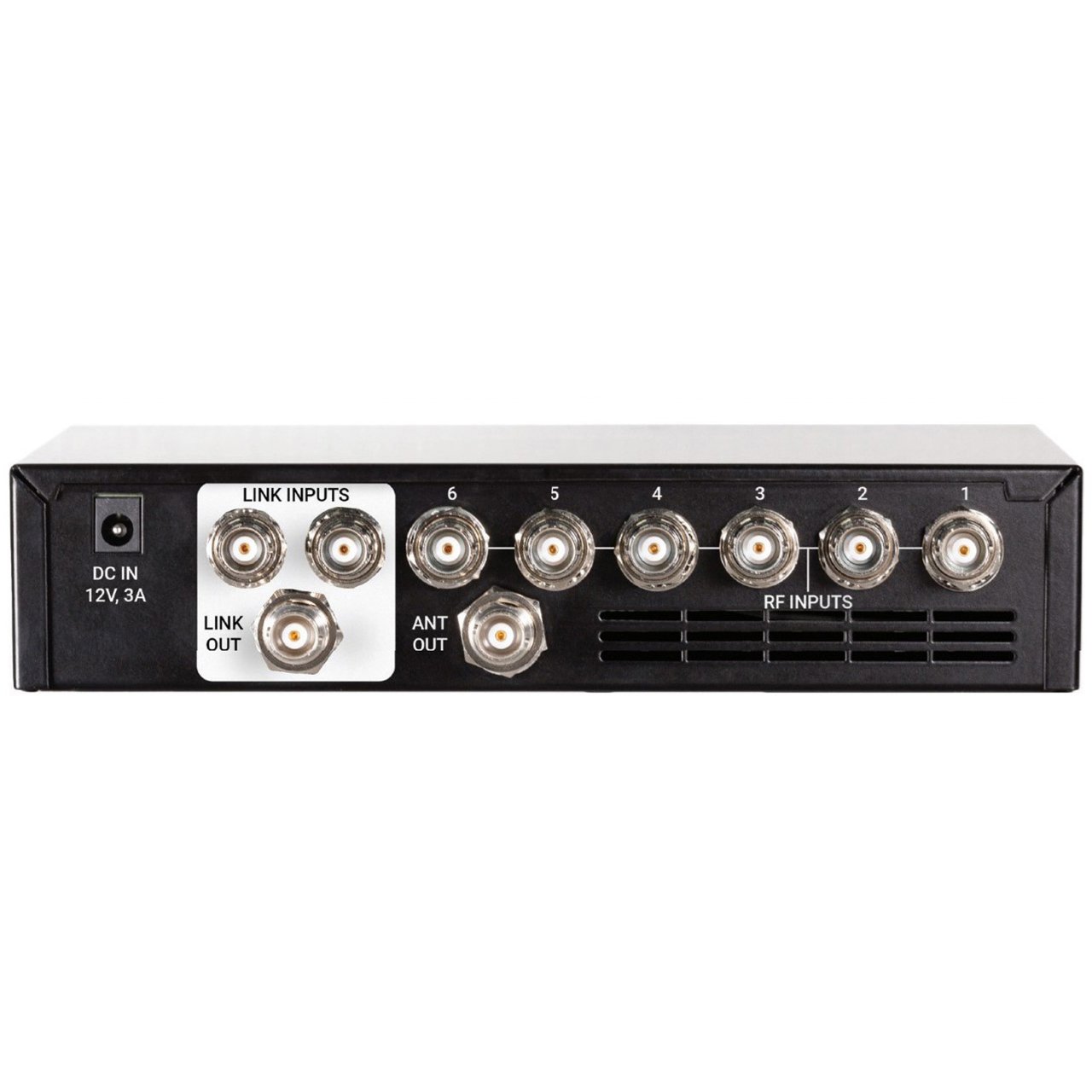

    • RF Inputs: 6x BNC inputs
    • Maximum Input Power: 60mW (+18dBm) per port
    • Input Port Isolation: 50dB, typical
    • Signal Overload Threshold: 17dBm, typical
    • Passive Circuit Loss: 4dB, typical
    • DC Power Supply: External, 100V - 240V AC, 50/60Hz, 1A
    • DC Power In: +12V, 3A
    • Dimensions (WxHxD): 8.8" x 8.25" x 1.75" (223.5mm x 210mm x 44.5mm)
    • Weight: 3.56lbs (1.6kg)

  • Item Includes:

    • 1x COMBINE6 HDR signal combiner
    • 1x 12V 40 Watt power supply
    • 1x Set of Rack Ears (Short and Long)
    • 1x Half Rack Connecting Plate and Mounting Hardware
