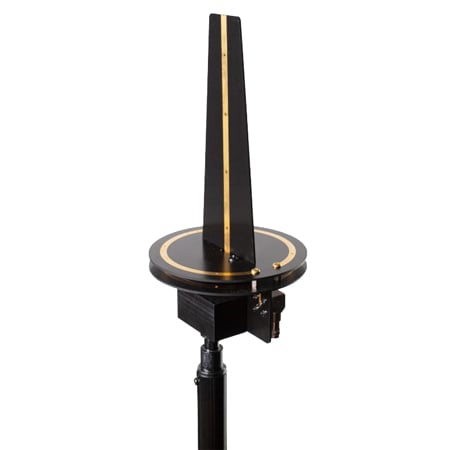

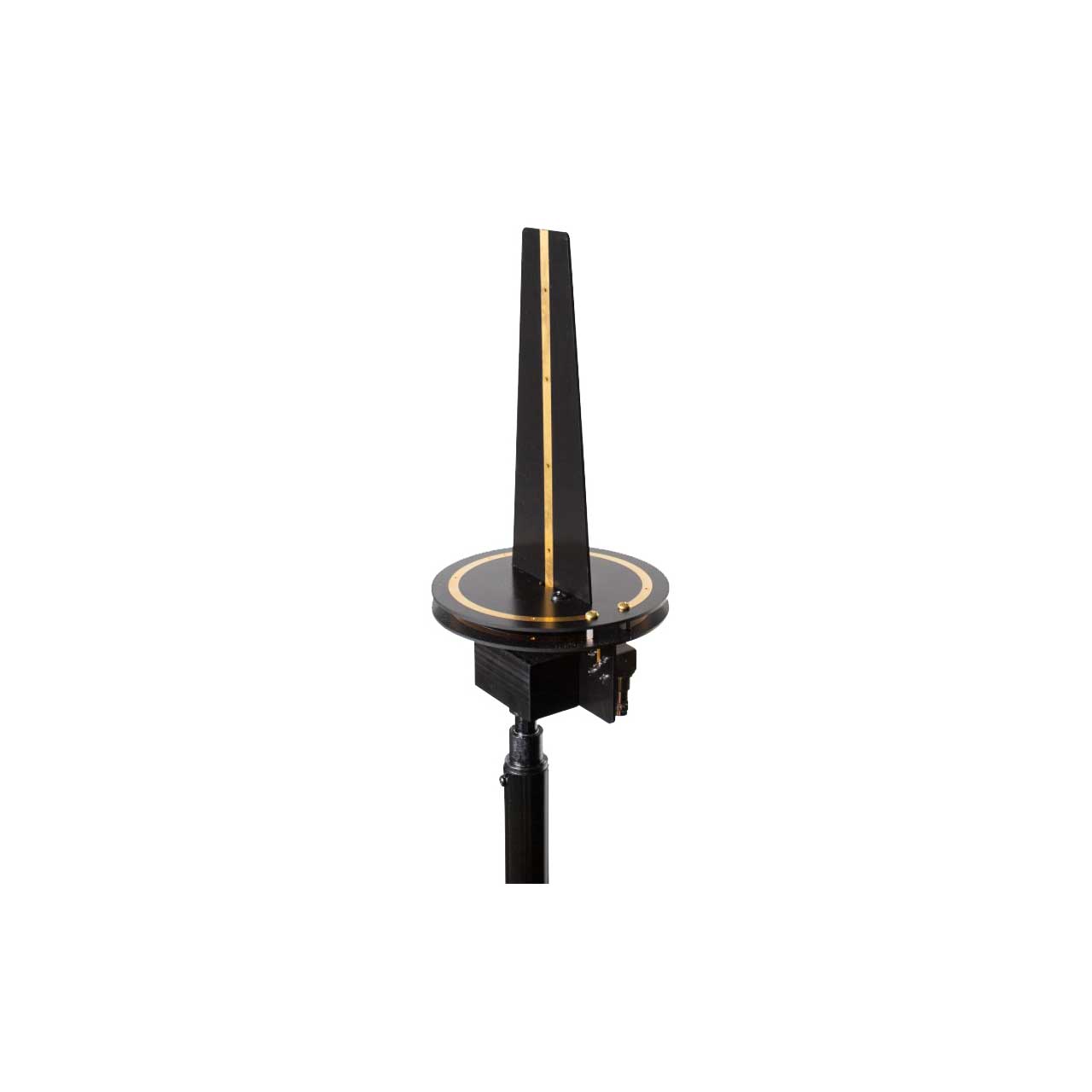

RF Venue D-OMNI Diversity Omni Antenna for Wireless Mic Systems

ITEM #: RFV-D-OMNI MFG #: D-OMNI

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$682.00

Our Price:

$649.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    D-OMNI - Overview

    The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.

    The Diversity Omni Antenna is perfectly suited for indoor multi-zone projects or outdoors where large areas of coverage are needed, such as sports venues, theme parks, and amphitheaters.

    To connect the Diversity Omni Antenna to a wireless microphone system, simply connect both the A and B antenna inputs from an antenna distribution system like the RF Venue DISTRO4 or DISTRO9 HDR and position the antenna where coverage is desired.

    Unlike traditional omnidirectional antennas, the Diversity Omni Antenna allows receivers to see a constant signal regardless of microphone orientation - allowing the presenter to hold a wireless microphone in any position relative to the antenna. A single Diversity Omni provides superior coverage to two traditional omni antennas, allowing cost savings as well as reduced time to installation.

    • Features:

      • Compact design for easy placement, position wherever coverage is needed.
      • Perfect for multi-zone projects where mics move between rooms, or outdoors where wide areas of coverage are needed.
      • Weather resistant design allows it to be mounted outdoors by installing protection for the connectors and the provided
        Cordura nylon cover.

    • Specifications:

      • Electrical:
      • Operating frequency: 470-616 MHz
      • Bandwidth: 146 MHz
      • Average return loss (Vertical): -10.5 dB
      • Average return loss (Horizontal): -13 dB
      • Impedance: 50Ω

        Vertical Monopole:
      • Beam width: 360° azimuth
      • F/B ratio: 0 dB
      • F/S ratio: 0 dB
      • Gain: +2 dBd @ 500MHz

        Horizontal Folded Loop:
      • Beam width: 360° azimuth
      • F/B ratio: 0 dB
      • F/S ratio: -1 dB
      • Gain.: -2 dBd @ 500MHz

        Physical:
      • Length: 105mm
      • Height: 204mm
      • Weight: 187g
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating Temperature: -23°C - 54°C
      • Color: Black and Gold
      • Connector(s): (2) BNC female

    • Item Includes:

      • 1x Diversity Omni Antenna
      • 1x Stand mount bracket
      • 1x Weather resistant cover

    • GTIN:

      0672975227340
