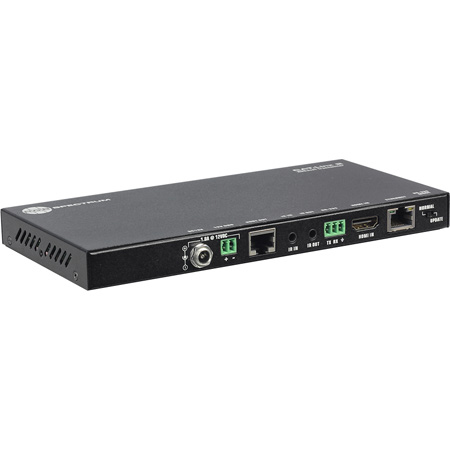

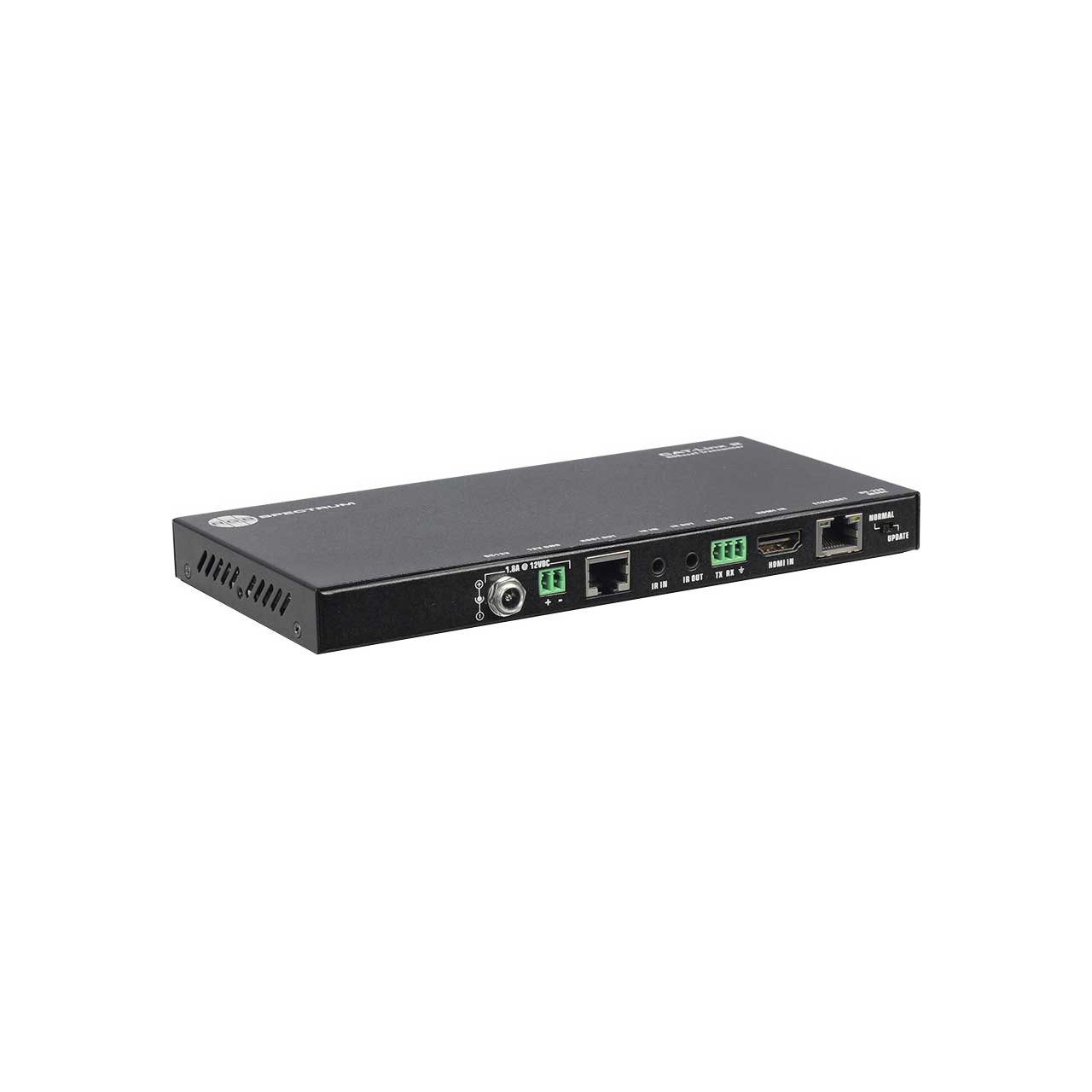

RGB Spectrum CAT-Linx 2 TX Single-Channel CAT-Linx 2 HDBaseT Transmitter - Power over HDBaseT (PoH) Capable

ITEM #: RGB-CAT-LINX2-TX MFG #: CAT-LINX 2 TX

free ship

Our Price:

$550.00

Availability: Temporarily Out of Stock
iAvailability Description Popup


    CAT-LINX 2 TX - Overview

    CAT-Linx™ 2 CAT-Linx 2 TX extenders transmit signals up to 4K Ultra HD at 60Hz using conventional CAT 5e/6 cable. CAT-Linx 2 units can transmit HD signals up to 100 meters and 4K Ultra HD signals up to 70 meters. Transmit (TX) and Receive (RX) endpoints are compatible with all RGB Spectrum wall processors, multiviewers, switchers, and AV devices from other manufacturers.

    For installation ease and convenience, CAT-Linx 2 extenders have integrated power (PoH) to supply endpoints over the same CAT5e/6 cable that carries the video and data signals. This eliminates the need for external power connections. A CAT-Linx 2 pair needs only one power supply connected to either the transmitter or the receiver end to power both devices. Compact, space-saving size allows attaching receivers directly to the back of displays.

    CAT-Linx 2 extenders offer a bevy of advanced features, including HDCP 2.2, Dolby and DTS HD audio support, and serial and IR control of display devices. The signal extenders provide a cost-effective way to control signal sources and displays. You can control a source from the display location or control the display from the signal source location via the CAT-Linx 2’s IR pass-through function. Bidirectional RS-232 signal transmission between endpoints is also available for serial control of display devices.

    CAT-Linx 2 extenders meet the specifications of the HDBaseT Alliance and are compatible with other HDBaseT-certified products. A mounting rack which holds 12 RX or TX units is available. CAT-Linx 2 HDBaseT extenders are a high performance, feature-rich, and cost effective solution for signal distribution, for both small-scale and large-scale installations.

    PLEASE NOTE: This is the Transmitter unit only and requires the Receiver unit to function.
