Riedel DSP-1216HL Desktop Smartpanel for Intercom / Audio Monitoring and Control

ITEM #: RI-DSP-1216HL MFG #: 1220800

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Riedel Communications Inc.
Free Shipping with $49 Minimum Order

Our Price:

$3,080.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1220800 - Overview

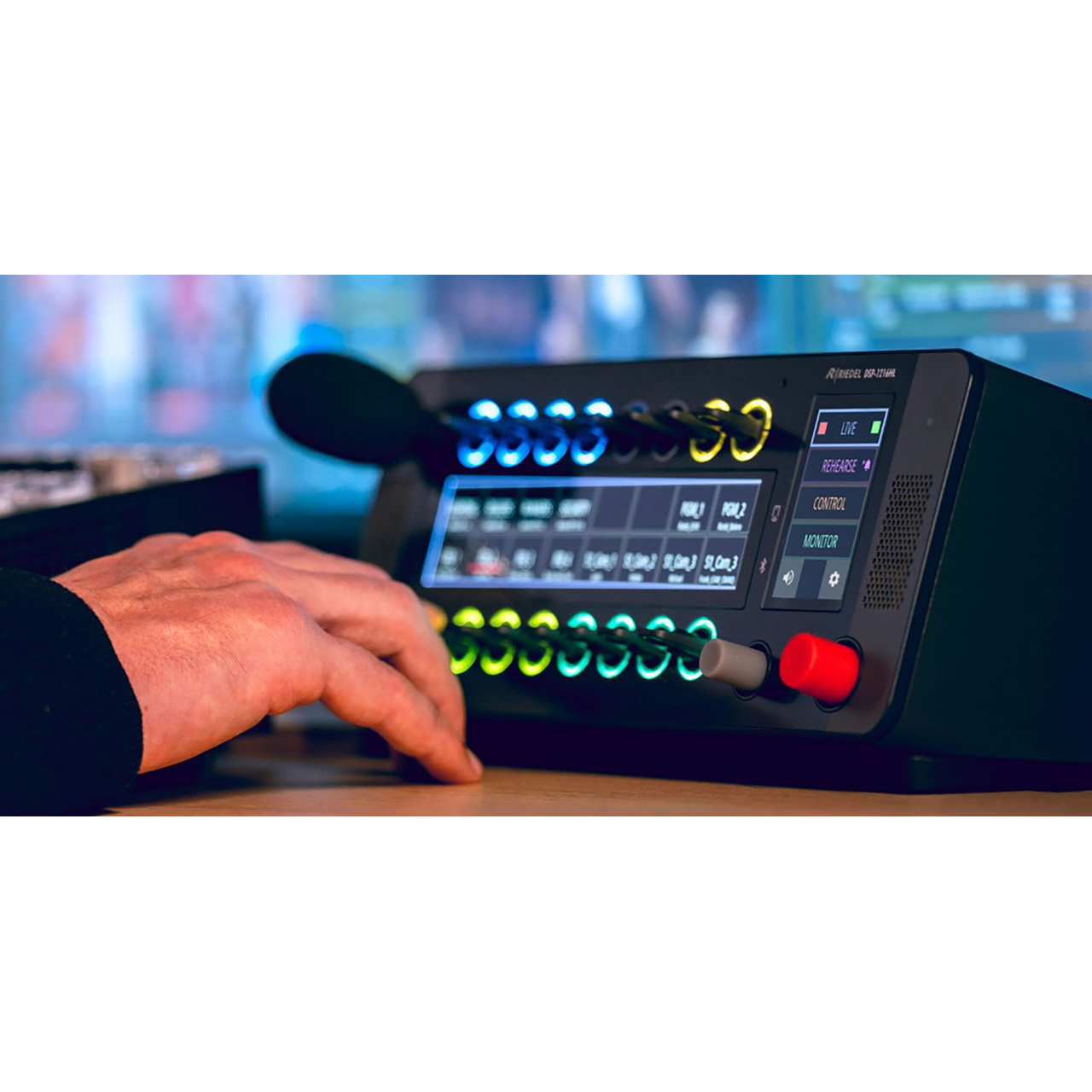

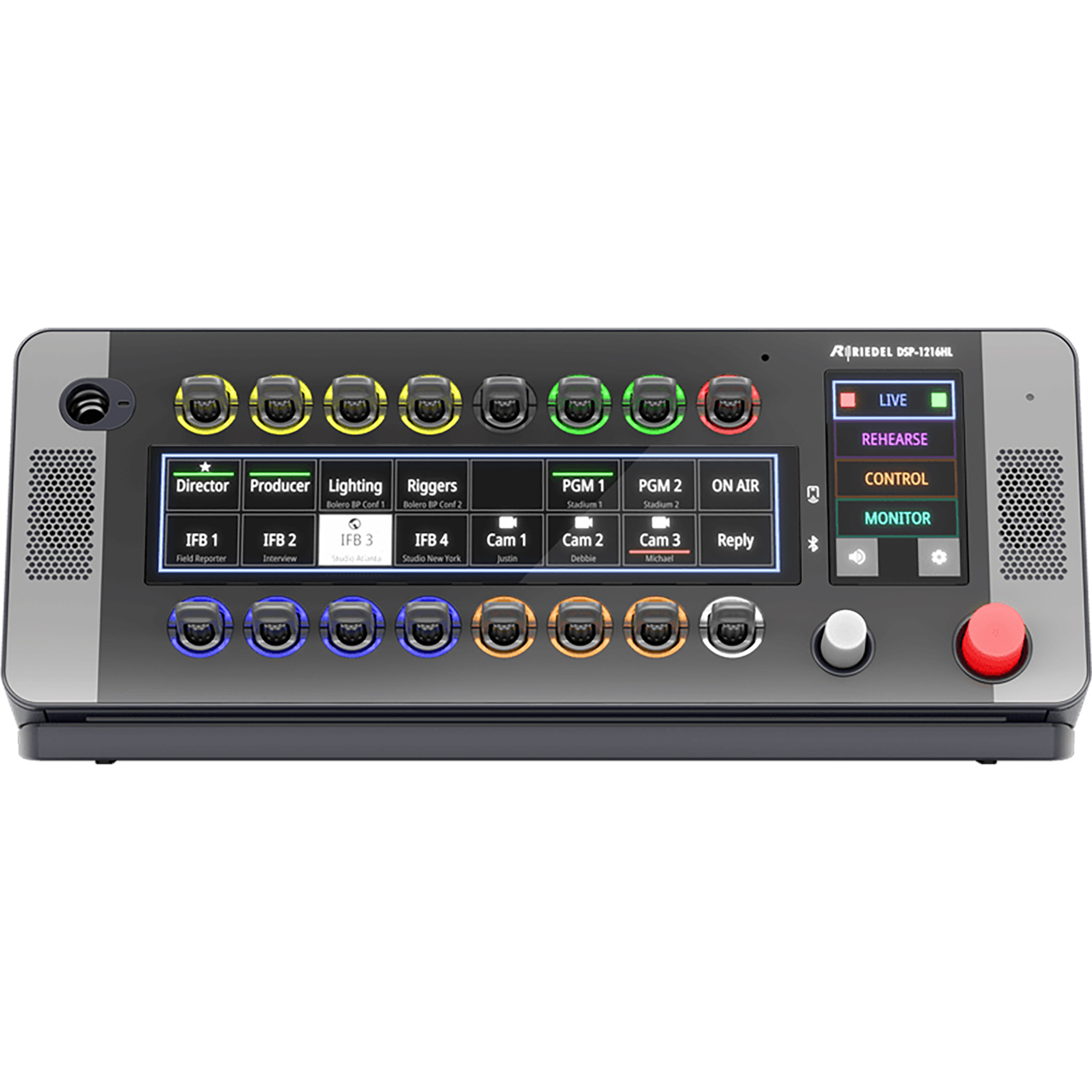

The Riedel DSP-1216HL is the latest addition to Riedel's 1200 Series SmartPanels, delivering powerful intercom, audio monitoring and control panel capabilities in a compact desktop form factor. Designed for professionals in broadcast, live events, theaters, OB vans, and sports venues, this multifunctional panel offers maximum flexibility while saving valuable space. Engineered with user comfort and efficiency in mind, the DSP-1216HL eliminates the need for rack-mounted panels adapted for desktop use. It delivers best-in-class usability with hybrid lever keys, highresolution touchscreens, and an integrated 2.1 speaker system - all in a sleek, space-saving design.

Much like a smartphone, a SmartPanel allows users to adapt its functionality to their workflows by leveraging various software apps instead of multiple single-purpose panels. The Desktop SmartPanel supports the full suite of 1200 Series SmartPanel apps, including the Intercom App for real-time communication, the Control Panel App for seamless third-party integration, and the Audio Monitoring App for highperformance audio monitoring. Users can run multiple apps in parallel, maximizing workflow efficiency and reducing hardware requirements.

The DSP-1216HL features 16 innovative hybrid lever keys with integrated rotary encoders for precise control over variable parameters in the same location as the key itself. LED rings around each key allow for easy grouping or signalization based on color, streamlining operation. Two high-resolution, full-color multitouch displays provide exceptional visibility across various lighting conditions. For added flexibility, userdefinable Key Banks enable access to multiple layers of keys while dedicated rotary encoders make adjusting the main and sidetone volume, muting the panel or navigating the menu a breeze.

The panel's high-quality 2.1 speaker system enhances intercom workflows with crystal-clear intelligibility in headset-free scenarios while also serving as a reliable audio monitoring solution. And with its space-saving footprint and VESA mounting option, the DSP-1216HL offers unmatched versatility, making it the ideal choice for professionals who demand efficiency, functionality, and superior performance.

  • Features:

    • Space-saving design with improved ergonomics for desktop use
    • 16 Hybrid Lever Keys with integrated rotary encoder
    • Full-color, sunlight-readable touch displays & RGB LED rings
    • Supports intercom, audio monitoring and control panel applications
    • Artist connectivity via AES67(SMPTE ST2110-30&31)
    • SMPTE 2022-7 redundancy
    • NMOS IS-04 & IS-05 connection management
    • Integrated 2.1 Speaker System delivering high-quality audio
    • VESA mounting option


  • Specifications:

      General
    • Supply Voltage: 100V - 240V AC, 50 - 60Hz
    • Power Consumption: ≤15W, ≤50 BTU/hr
    • Dimensions: 11.1" x 4.5" x 6.8" (282mm x 115mm x 174mm)
    • Weight: 5.57lbs (2.5g)
    • Humidity: 20% - 90% relative (non-condensing)

      Front Elements
    • Keys & Rotaries:
      - 16x software-assignable lever keys with rotary encoder and push button
      - 2x rotary encoders
    • Displays: 3x high-resolution, bright color, sunlight readable TFT displays with multi-touch control (capacitive)
    • Mic:
      - 1x threaded 6.3 mm jack for microphone
      - 1x internal panel microphone (future use)
    • Speaker: 1x full-range, DSP-controlled
    • NFC: Technology RFID, Frequency 13.56MHz (future use)
    • Bluetooth: Frequency DTS Band 2400 ... 2483.5MHz (future use)
    • Lightsensor: Adaptation of the display brightness to the environment (future use)

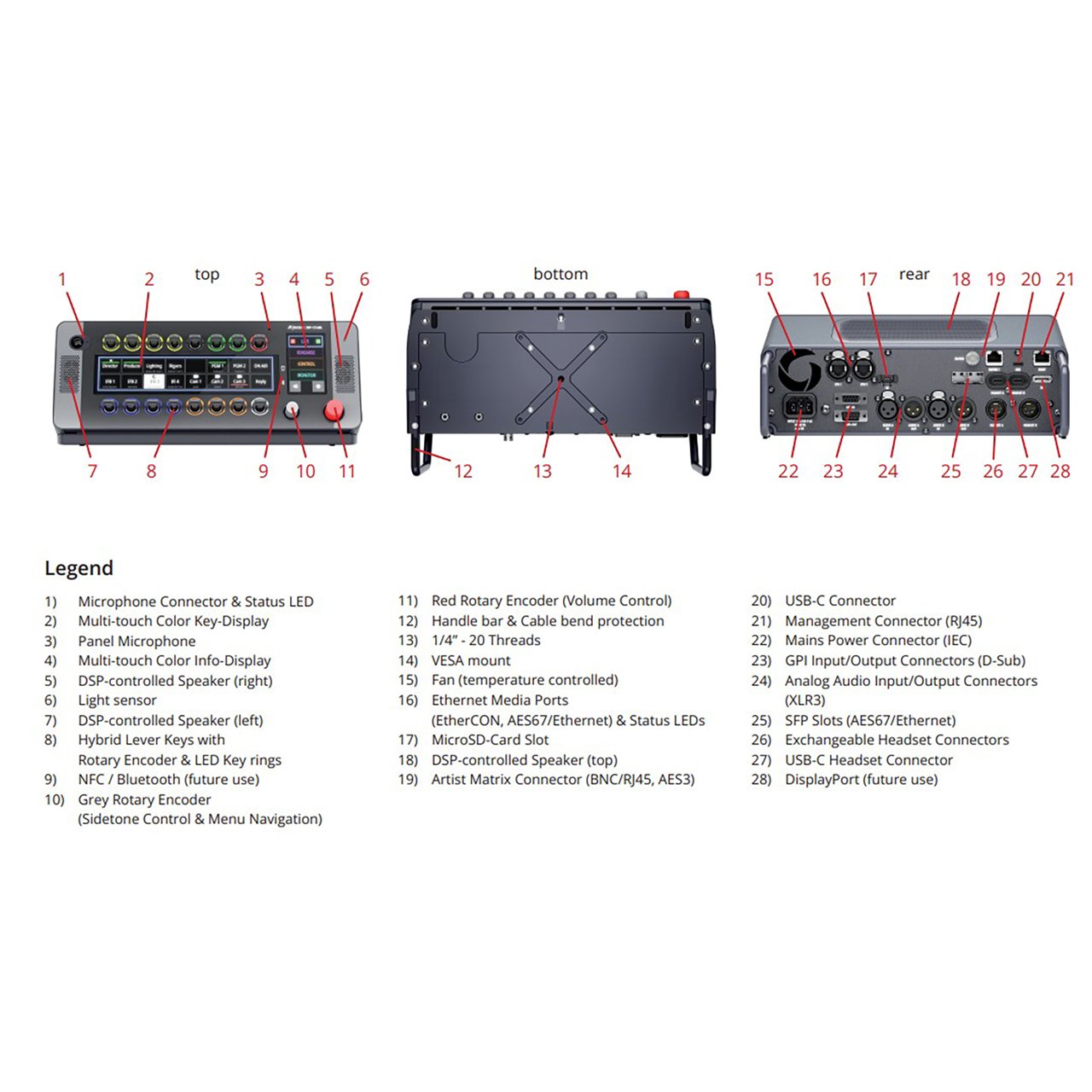

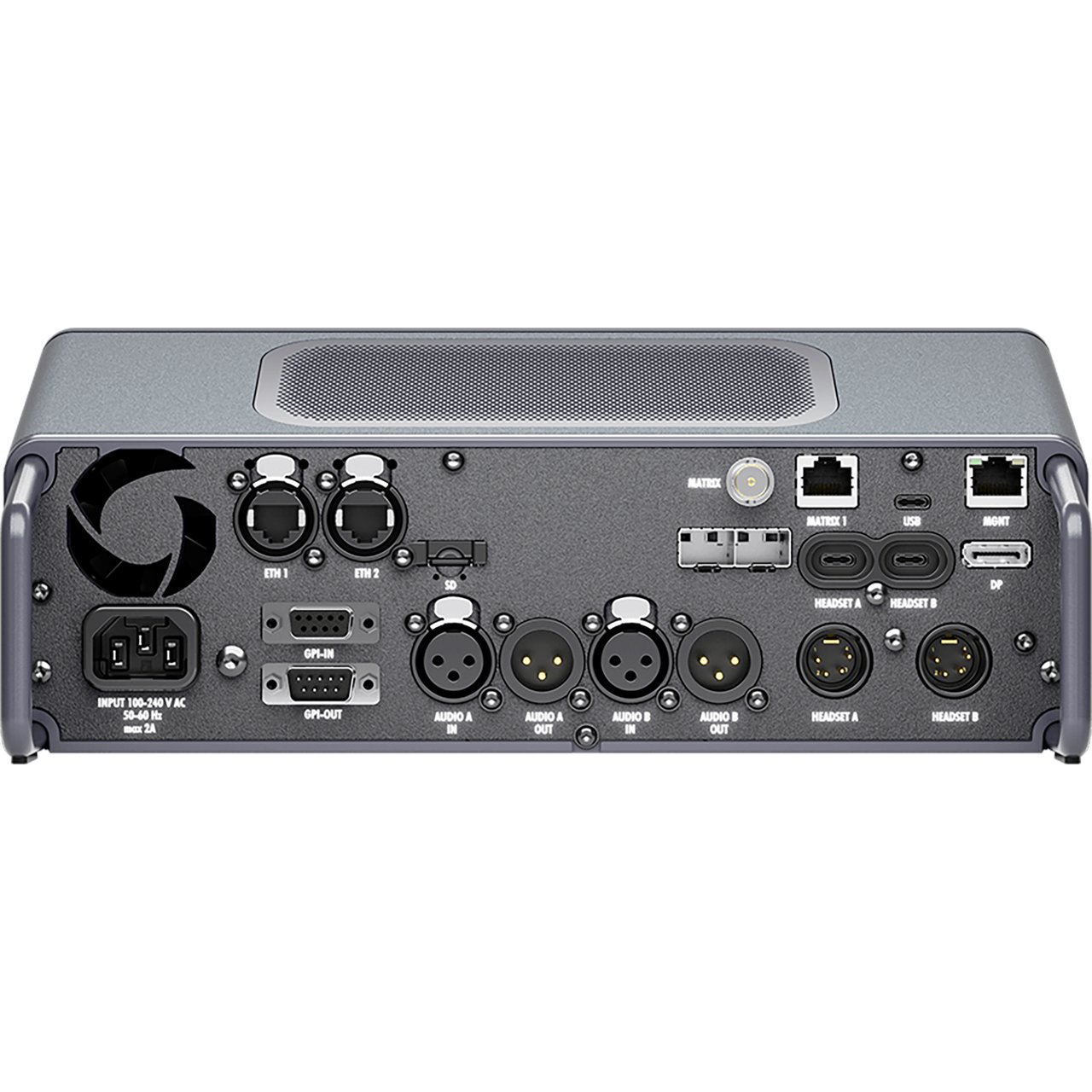

      Rear Elements
    • IEC: Power Input
    • SFP: 2x Ethernet ETH 3 / ETH 4 (1000BASE-X, Ethernet, AES67)
    • USB: 1x USB 2.0 (standard Type-C, max. 500mA)
    • MicroSD-card: 1x MicroSD / MicroSDHC card up to 32GB (for service purpose only)
    • RJ45:
      - 2x Ethernet ETH 1 / ETH 2 (1000BASE-T Ethernet, AES67)
      - 1x Management port for panel configuration
      - 1x Artist Matrix connector (AES3)
    • BNC: 1x Artist Matrix connector (AES3)
    • DisplayPort: 1x DisplayPort connector (future use)
    • Sub-D9 (Male):
      - 3x GPI output (Umax 48V / 300mA, protected by self-healing fuse, male)
      - 3x GPI input (Uin = +5V - +48V, female)
    • XLR-3:
      - 2x Analog audio 4-wire inputs (A/B, female)
      - 2x Analog audio 4-wire outputs (A/B, male)
    • XLR-4: 2x Headset (A/B, user-exchangeable headset connector with preinstalled 4-pin male XLR connector)

      Maximum Level
    • Audio A/B Input (XLR-3): +24dBu @ 0 dBFS, 150Ω source
    • Audio A/B Output (XLR-3):
      - +24dBu @ 0dBFS, 2kΩ load
      - +23dBu @ 0dBFS, 600Ω load
    • Headset A/B Microphone (XLR-4): +16dBu @ 0dBFS, 0dB gain
    • Headset A/B Phones (XLR-4): +19dBu @ 0dBFS, 150Ω load
    • Panel Microphone: 1 mA RMS @ 0dBFS, 2kΩ source

      Frequency Response
    • Audio A/B Input (XLR-3): 20Hz - 20kHz, -0.3 - -0.3dB @ -20dBFS, 150Ω source
    • Audio A/B Output (XLR-3): 20Hz - 20kHz, -0.3 - -0.3dB @ -20dBFS, 600Ω load
    • Headset A/B Microphone (XLR-4): 20Hz - 20kHz, -2.0 - -0.3dB @ -20dBFS, 150Ω source
    • Headset A/B Phones (XLR-4): 20Hz - 20kHz, -0.3 - -0.3dB @ -20dBFS, 600Ω load
    • Panel Microphone: 20Hz - 20kHz, -6.0 - -0.3dB @ -20dBFS, 2kΩ source

      Distortion THD+N
    • Audio A/B Input (XLR-3): <0.001% @ -100dB, 20Hz - 20kHz @ -1dBFS, 150Ω source
    • Audio A/B Output (XLR-3): <0.001% @ -100dB, 20Hz - 20kHz @ -1dBFS, 600Ω load
    • Headset A/B Microphone (XLR-4): <0.001% @ -100dB, 20Hz - 20kHz @ -1dBFS, +20dB gain, 150Ω source
    • Headset A/B Phones (XLR-4): <0.001% @ -100dB, 20Hz - 20kHz @ -1dBFS, 600Ω load
    • Panel Microphone: <0.001 % @ -100dB, 20Hz - 20kHz @ -1dBFS, 2kΩ source

    • Sample Rate/Resolution: 48kHz/24 Bit


  • Item Includes:

    • 1x DSP-1216HL Desktop Smartpanel for Intercom and Audio Monitoring and Control Panel


  • Warranty:

    • 1 Year limited Warranty
