Rane Zone Pager Tabletop Paging Station

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

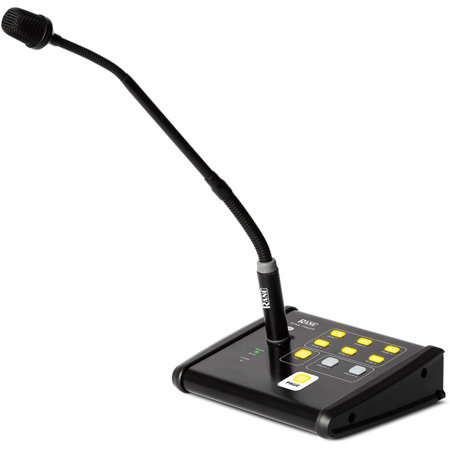

    Rane Zone Pager Tabletop Paging Station

    Manufacturer: Rane Corporation

    Item #: RNE-ZONE-PAGER   •   MFG #: ZONE PAGER




    Our Price:$299.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The RANE Zone Pager is a paging station that allows users to page up to (6) zones separately, to (2) groups of zones, and to all zones at the same time. Lights will indicate if the zone is READY or BUSY (already being paged by a higher-priority paging station) and when the chime has completed (if enabled).

      The Zone Pager accepts an included dynamic gooseneck microphone via a 3-pin XLR connector. The microphone input supplies 24V phantom power for condenser microphones. The Zone Pager is connected to a RANE DSP with a Cat5e (or better) cable on a local run up to 500ft (150m) away from the equipment rack.

      The Zone Pager is perfect for use in bar/lounge restaurants, meeting rooms, schools, house of worship, and smaller venues where multiple paging zones are needed.


      • Features

        • Six-zone smart paging station
        • Two programmable group buttons
        • Gooseneck dynamic microphone included
        • Powered by any Rane DSP commercial processor via RJ-45
        • +24V phantom power and 13dB pad

      • Specifications

        • Frequency Response: 20 Hz - 20 kHz
        • Mic Input Impedance: 1.1kΩ
        • Condenser Mic Max Input: -1dBu
        • Dynamic Mic Max Input: -13dBu
        • Current Draw: 0.10 amps
        • Phantom Power: 24VDC
        • RAD Port Connectors: RJ45 connector
        • Microphone Connectors: XLRF 3-pin
        • Gooseneck Microphone Element: Dynamic
        • Gooseneck Microphone Polar Pattern: Super-cardioid
        • Gooseneck Microphone Frequency Response: 100Hz - 15kHz
        • Gooseneck Microphone Sensitivity: -56dBv/pa (1.6mv/pa)
        • Max SPL: 135dB (THD ≤ 1% @ 1kHz)
        • Operating temperature: 32 - 104°F (0 - 40°C)
        • Dimensions (Width x Depth x Height): 7.9" x 2.2" x 6.4" (200 x 55 x 162mm)
        • Weight: 1.7 lbs (0.776 kg)

      • Item Includes

        • Zone Pager
        • Microphone
        • Quick Start Guide
        • Safety & Warranty Manual
