Roland P-20HD Live Instant Video Replay and Highlight Unit with Slow-Motion and Variable Speed for Live Sports

ITEM #: ROL-P-20HD MFG #: P-20HD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    P-20HD - Overview

    The P-20HD transforms everyday sports video productions into edge-of-seat fan experiences!

    Until now, creating slow-motion instant replays in live sports productions has required an arsenal of complicated and expensive gear-and the knowledge to run it all. Roland's P-20HD changes all that, providing an affordable and easy-to-use solution that lets you bring pro replay capabilities to any production setup. Offering seamless integration with most Roland A/V switchers and HDMI camcorders and cameras, the P-20HD transforms everyday sports video productions into edge-of-seat fan experiences.

    Take Local Sports Production to the Next Level
    When watching a sporting event live or on a broadcast stream, today's audiences expect the high production values they see when watching pro teams on network TV. With the P-20HD, adding the magic of instant replay to your workflow has never been more simple and affordable. Using intuitive controls and the integrated color LCD, you can easily cue up replays of important action to let fans relive the moment, either on your streaming feed or live event screens-or both at once.

    Record and Replay at the Same Time
    The P-20HD records directly to high-capacity SD cards, which are widely available and easy to swap out. And as you cue up and replay clips, the game keeps recording in the background, with no gaps in the action.

    Plays Well with Others
    The P-20HD can be seamlessly inserted into a variety of workflows. Use it on its own, or upstream or downstream of any Roland video switcher. Connect two cameras and switch/composite between sources to capture them for replay. Both HDMI inputs feature built-in scalers, providing worry-free connectivity with nearly any video source.

    Built-In Preview Monitor
    With its onboard color display, the P-20HD makes it simple to manage and execute your workflow in real time. In recording view, the screen shows the current video input, plus critical SD card information like recording duration, remaining storage space, and available time. And in playback view, you can display cropped previews of all video clips for live replay or compilation into playlists.

    Direct-Access Controls

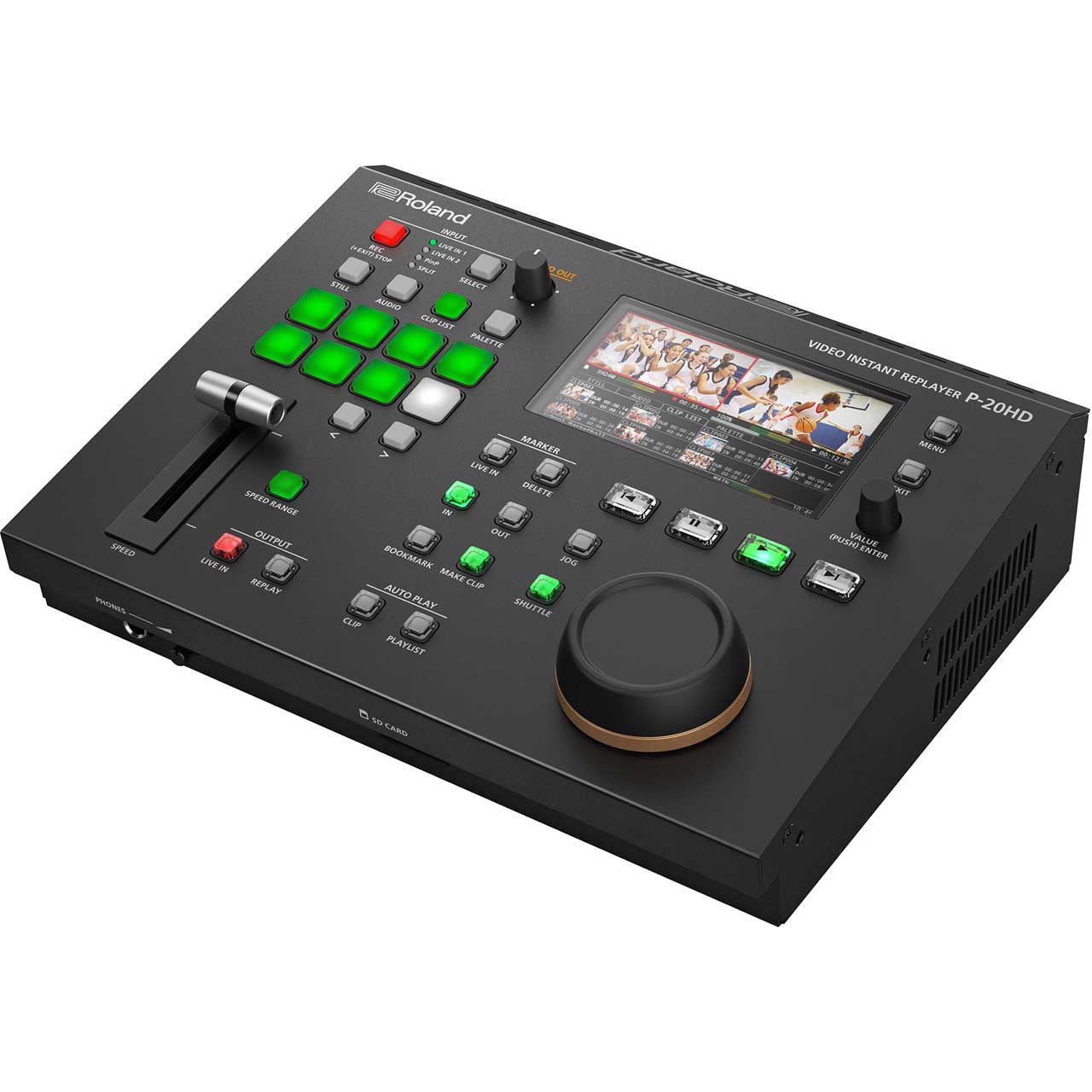

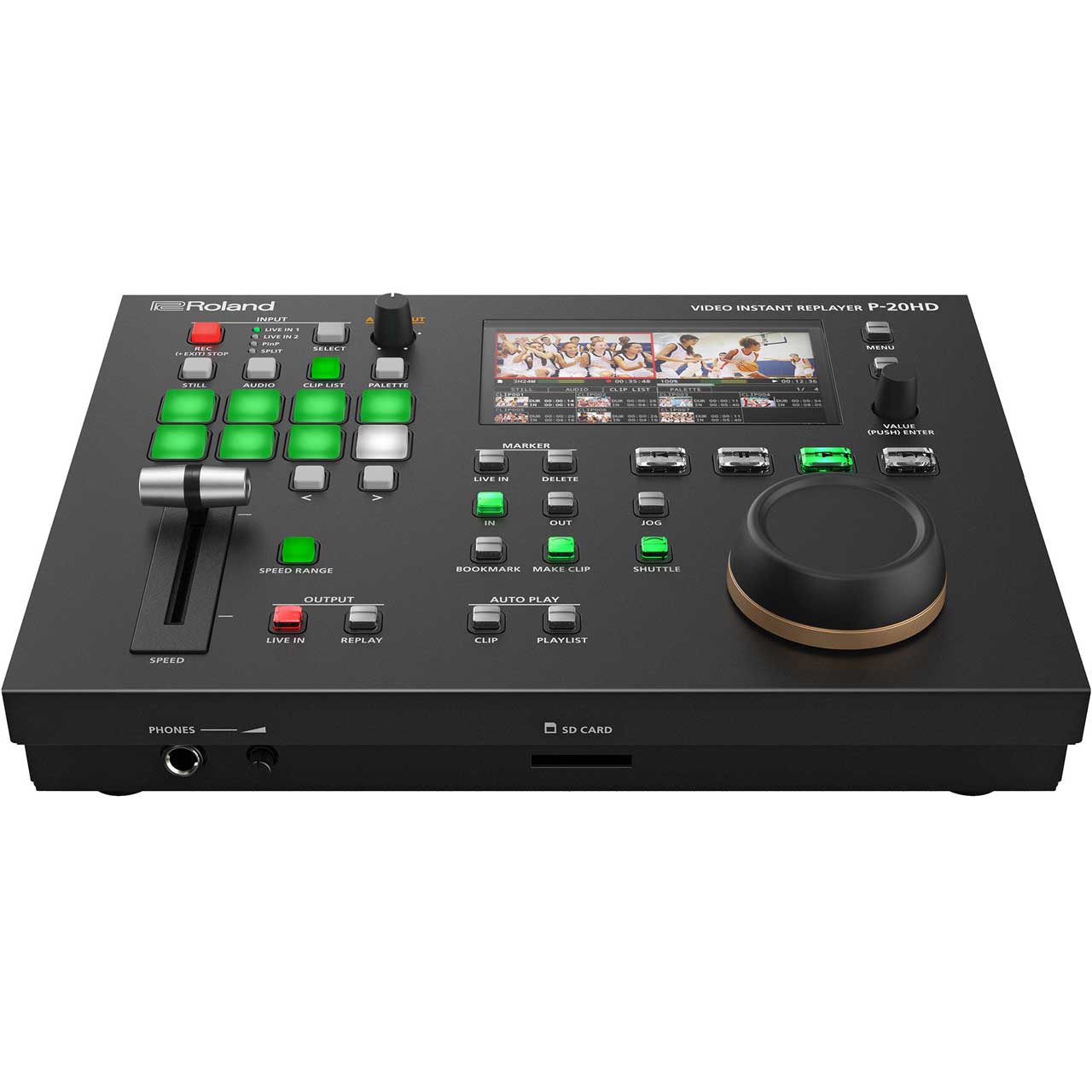

    Filled with single-task hardware controls, the P-20HD provides a hands-on experience that lets you get the job done with zero frustration. Dedicated transport buttons include play, pause, forward, rewind, mark in, and mark out. A jog/shuttle wheel with optical encoding provides precise, fluid control to scrub clips for replay and editing, while the T-bar lets you adjust playback speed. Engaging the Speed Range function provides ultra-fine control, perfect for focusing in on tight action and contested plays.

    Applications:
    - Live Production
    - Live Streaming
    - Education
    - House of Worship
    - Theater
    - Multi-Screen Environments
    - Corporate A/V

    • Features:

      • Slow-motion instant replay and variable speed playback
      • Intuitive controls for single-operator sports production
      • Simultaneous recording and playback
      • Clip playlist builder for creating highlight reels
      • Integrated color LCD for preview monitoring
      • Capture long events to low cost and widely available SD cards
      • Compact, portable, and reliable hardware design
      • Ideal for school sports, esports, and sports training

    • Specifications:

      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Input Connectors: INPUT 1-2: 2x HDMI Type A *Multi-format Supported
      • Output Connectors: MAIN: HDMI type A *Multi-format Supported
      • Input Formats:
        -720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
        - SVGA (800x600/60Hz), XGA (1024x768/60Hz)
        - WXGA (1280x800/60Hz), FWXGA (1366x768/60Hz)
        - SXGA (1280x1024/60Hz), SXGA+ (1400x1050/60Hz)
        - UXGA (1600 x1200/60Hz), Full HD (1920x1080/60Hz)
        - WUXGA (1920x1200/60Hz
        *The refresh rate is the maximum value of each resolution.
        *Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
        *1920x1200/60 Hz: Reduced blanking
        *The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
      • Output Formats:
        - MAIN: 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
        *The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
        - PREVIEW: 1080/59.94p, 1080/50p
        *The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
        - Still Image: Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color, 8-bits alpha channel.
        * It can be stored up to 16 files in each Projects.

        Recording Mode
      • Instant Replay Mode
      • File Format: MPEG2-TS
      • CODEC: H.264 [email protected] 10Mbps 8bit 4:2:0 AAC LC 128kbps, 48kHz, 16bit stereo recording mode: resolution priority, framerate priority
        *It can be selected at project settings
      • Recording Media: SD/SDHC/SDXC card

        Video Effects
      • Composition: PinP, SPLIT
      • Transition: CUT, MIX, WIPE
      • Other: Flip horizontal, Still Image Playback, Test pattern output

      • Audio Processing: Sample rate: 24 bits/48 kHz
      • Audio Formats: Linear PCM, 24 bits/48 kHz, 2ch

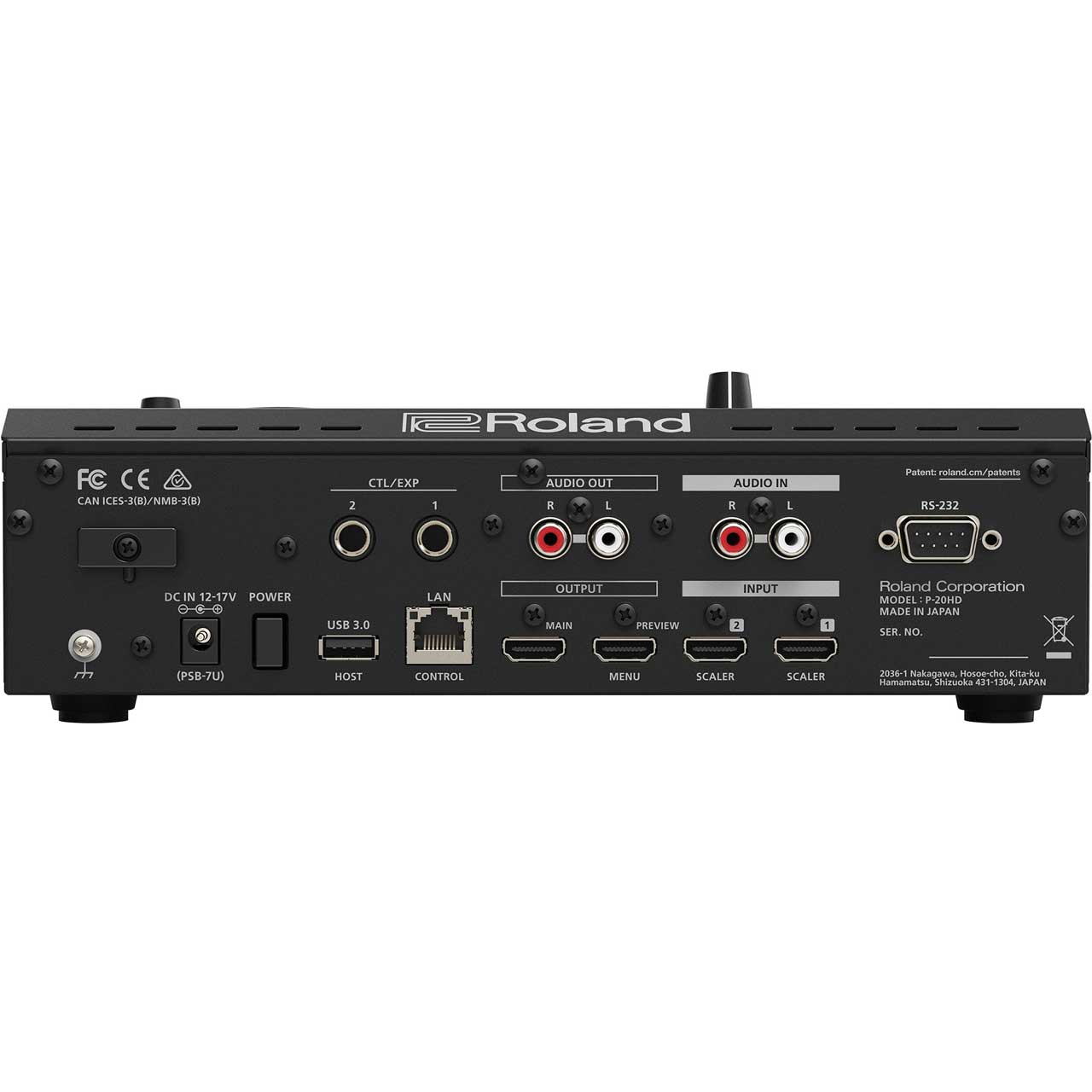

      • Input Connectors:
        - INPUT 1-2: 2x HDMI Type A
        - AUDIO IN: RCA phono type
      • Output Connectors:
        - MAIN OUT: HDMI Type A
        - PREVIEW OUT: HDMI Type A
        - AUDIO OUT: RCA phono type
        - PHONES: Stereo 1/4" phone type
      • Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
      • Input Impedance: AUDIO IN: 15kΩ
      • Output Level:
        - AUDIO OUT: -10 dBu (Maximum: +8 dBu)
        - PHONES: 92 mW + 92 mW (32Ω)
      • Output Impedance:
        - AUDIO OUT: 1kΩ
        - PHONES: 10Ω
      • Audio Effects: Eq, Delay, Limiter, Test tone output
      • Audio Player: File format: WAV (Linear PCM, 48kHz/48kHz, 16bit, stereo

    • Item Includes:

      • 1x P-20HD Video Instant Replayer
      • 1x Owner's Manual
      • 1x AC Adaptor
      • 1x Power Cord

    • Warranty:

      • 3 Year

    • GTIN:

      0761294516843
