Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle
  • Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle
  • Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle
  • Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle
  • Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle
  • Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle

Questions? Ask a Markertek Expert:
800-522-2025 Email

Roland V-1200HD-SYS Video Production Switcher / Video Mixer with Control Surface Bundle

Manufacturer: Roland Professional AV

Item #: ROL-V-1200HD-SYS   •   MFG #: V-1200HD-SYS



List Price:$16,000.00
Our Price:$14,995.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Roland V-1200HD Multi-Format Video Switcher is a 2 M/E switcher featuring a new 4:2:2 / 4:4:4 Hybrid Engine that combines the features of a production switcher with the power of a presentation switcher. Multiple M/E configurations can be selected from 1 M/E, 1.5 M/E and 2 M/E to meet the needs of your production. Inputs include 10 3G/HD-SDI and 4 HDMI with 6 3G/HD-SDI Outputs and 2 HDMI outputs. Scalers on HDMI inputs 3 & 4 and HDMI outputs support SD, HD and VESA resolutions. Switch using the V-1200HDR Control Surface or free downloadable Remote Control Software (RCS). The video inputs and the powerful built-in 16-channel audio mixer can be expanded with XI-Series video and audio expansion cards. An intuitive user interface with assignable cross-points and on screen names ensures maximum flexibility for and live production or broadcast.

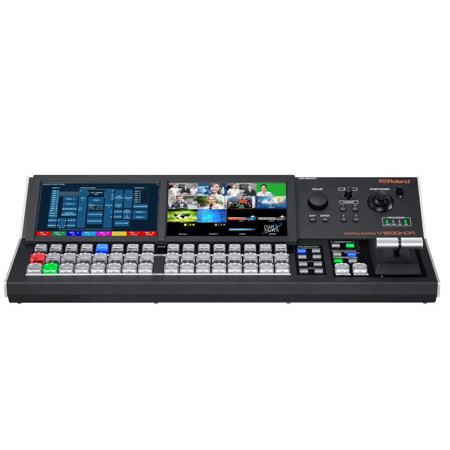

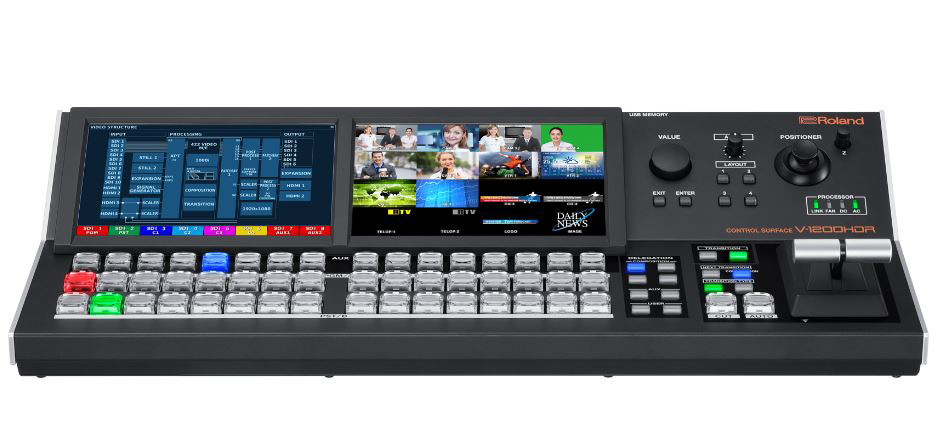

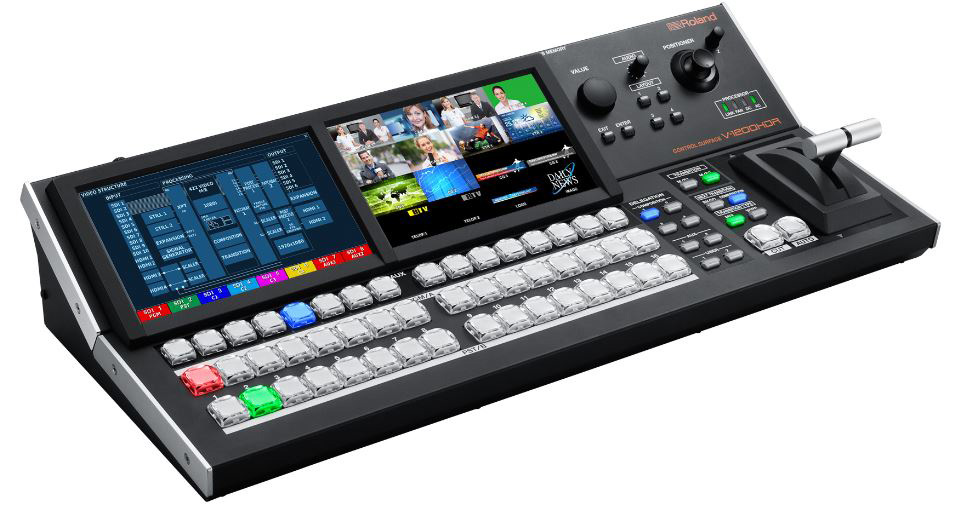

    You'll control all the advanced functionality of your V-1200HD switcher with the V-1200HDR Control Surface included in this bundle. The V-1200HDR provides a professional physical control surface for the V-1200HD with dual LCD touchscreens for monitoring and control, a large T-bar for effects and transitions, customization and operation of the mix effects buses, HDMI video outs, and many buttons for source switching.

    Features of the V-1200HDR Control Surface include dual 7" LCD touchscreen displays enabling you to display different GUIs on the left and right as well as incoming video signals from the HDMI connectors on the rear panel; transition control with t-bar; and 16 cross-points which affords a commanding view of 16 sources at one time.


    • Features

      • V-1200HDR Control Surface
      • Dual Touch Monitors
      • Positioner Joystick Control
      • 16 Cross Points

      • V-1200HD Video Production Switcher
      • 10 SDI and 4 HDMI inputs, and 6 SDI and 2 HDMI outputs
      • 4:2:2/4:4:4 hybrid engine
      • The 4:2:2 process functions as a 2 M/E switcher that is able to switch 2 M/E, 1.5 M/E, and 1 M/E.
      • The 4:4:4 process functions as a multi-format processor that supports live presentation, split-screen, and matrix output.
      • 4K switching mode
      • Up to 92 Inputs/Outputs 16-channel audio mixer
      • Control of up to 7 remote cameras
      • Optional control surface with a T-fader and dual displays
      • All switcher functions can be operated from a computer using remote control software, V-1200HD RCS
      • Input/output expandable via expansion slots

    • Specifications

      • V-1200HDR Control Surface
      • Display: 7 inch Graphic color LCD (touch screen) x 2
      • Video input: HDMI (type A) x 2 * HDCP Supported
      • Others: USB: Type A x 1 * USB Memory, USB: Type B x 1 * Use for future expansion; LAN: RJ45 100Base-TX (Connect to V-1200HD); PHONES jack: Stereo 1/4-inch phone type x 1 (80 mW + 80 mW, 32 ohms); Internal mono speaker
      • Power Supply: AC Adaptor, DC 9 V to 16 V (XLR-4-32 type) * Can not be used at the same time.
      • Operation Temperature: +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
      • Dimensions: 520 (W) x 237 (D) x 111 (H) mm; 20-1/2 (W) x 9-3/8 (D) x 4-3/8 (H) inches (* Protruding parts not included)
      • Weight: 4.3 kg; 9 lbs 8 oz

      • V-1200HD Video Production Switcher
      • Video
      • Processing: 4: 4: 4 (Y/Pb/Pr / RGB), 10-bit / 4: 2: 2 (Y/Pb/Pr), 10-bit
      • Input Connectors-
      • 3G/HD-SDI: BNC typx 10 Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
      • HDMI: type A x 2 (HDMI INPUT 1--2) HDCP Not supported
      • HDMI: type A x 2 (HDMI INPUT 3--4) HDCP Supported, Multi-format Supported.
      • Output Connectors-
      • 3G/HD-SDI: BNC type x 6 Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
      • HDMI: type A x 2 (HDMI OUTPUT 1--2) HDCP Supported
      • HDMI: type A x 2 (HDMI OUTPUT MULTI-VIEW HDCP Not required, 1080/59.94p)
      • (HDMI OUTPUT MULTI-VIEW 2 HDCP Required, 1080/59.94p)
      • Formats-
      • SDI: 1080/59.94p, 1080/50p, Conforms to SMPTE 274M
      • HDMI: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1024x768/60, 1280x720/60, 1280x800/60, 1366x768/60, 1280x1024/60, 1400x1050/60, 1600x1200/60, 1920x1080/60, 1920x1200/60
      • Effects (4:2:2 Processing)-
      • M/E: 1M/E, 1.5M/E, 2M/E (9 types)
      • Transition: Mix, NAM, FAM, Cut, Wipe
      • Composition (Keyer): 4 (PinP, Luminance Key, Chroma Key, External Key supported)
      • AUX: 2
      • Others: Output Fade, Output Freeze, Output Capture, Composition Edit, SDI Output Patchbay
      • Effects (4:4:4 Processing)-
      • M/E: 1M/E, Matrix, Scaler
      • Input: 4 (4:2:2 Processing outputs x 2, HDMI INPUT 3, HDMI INPUT 4)
      • Transition: Mix, Cut
      • Composition (Keyer): 1 (PinP, Luminance Key)
      • Others: HDCP Supported, Output Fade, Output Cropping, Signal Generator.
      • Still Image-
      • Inputs: 2, Internal Memory: 16, Maximum 1920x1080 pixels
      • Format: Windows Bitmap File (.bmp ) 24 bit per pixel, uncompressed, Portable Network Graphic File (.png), Alpha channel Supported.
      • Multiviewer-
      • MULTI-VIEW 1 (4:2:2 Processing): 16/10 screens, Label, Tally, HDCP Supported
      • MULTI-VIEW 2 (4:4:4 Processing): 4 screens, Label, Tally, OSD Setup Menu, HDCP Required AUDIO

      • Audio
      • Processing: Sampling Rate: 24 bits/48 kHz
      • Input Connectors: 3G/HD-SDI: BNC type x 4 (Ch7-10), HDMI: type A x 4, AUDIO IN (XLR/TRS) L (1/2),R (3/4)
      • Output Connectors: 3G/HD-SDI: BNC type x 4 (Ch1-4), HDMI: type A x 2, AUDIO OUT (XLR/TRS) L (1/2),R (3/4)
      • Input Level and Impedance: Audio In: +4dBu (Maximum: +22dBu, 15k ohms)
      • Output Level and Impedance: Audio Out: +4dBu (Maximum: +22dBu, 600 ohms)
      • Formats SDI: Linear PCM, 24bits, 48kHz, 16ch (Conforms to SMPTE 299M) / HDMI: Linear PCM, 24bits, 48kHz, 2ch / AES/EBU: Linear PCM, 24bits, 48kHz, 4ch
      • Effects: Patchbay: 92 inputs x 92 outputs Delay: 16ch / Mixer: 16ch, channel Effects: 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb

      • Others
      • Expansion Slot Slot: 2
      • Reference Input: BNC type x1 / Output/Through: BNC type x1
      • External Connectors-
      • RS-232: DB-9 type (Male) x1
      • RS-422: DB-9 type (Female) x1
      • TALLY/GPIO: DB-25 type (Female) x1 Input: 8, Output/Tally: 16)
      • LAN: RJ45 100BASE-TX (Connect to V-1200HDR or Computer (V-1200HD RCS))
      • USB: A type
      • Memory: 8
      • User Function Button: 32
      • Remote Camera Control: RS-422: D-Sub 9 pin type x1, Protocol: VISCA
      • Power Supply: AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz), DC 24 V (XLR-4-32 type)
      • Operation Temperature +0 to +40°C, +32 to +104°s;F
      • Dimensions: 19 (W) x 14-1/16 (D) x 5-1/4 (H) inches
      • Weight: 19 lbs.
