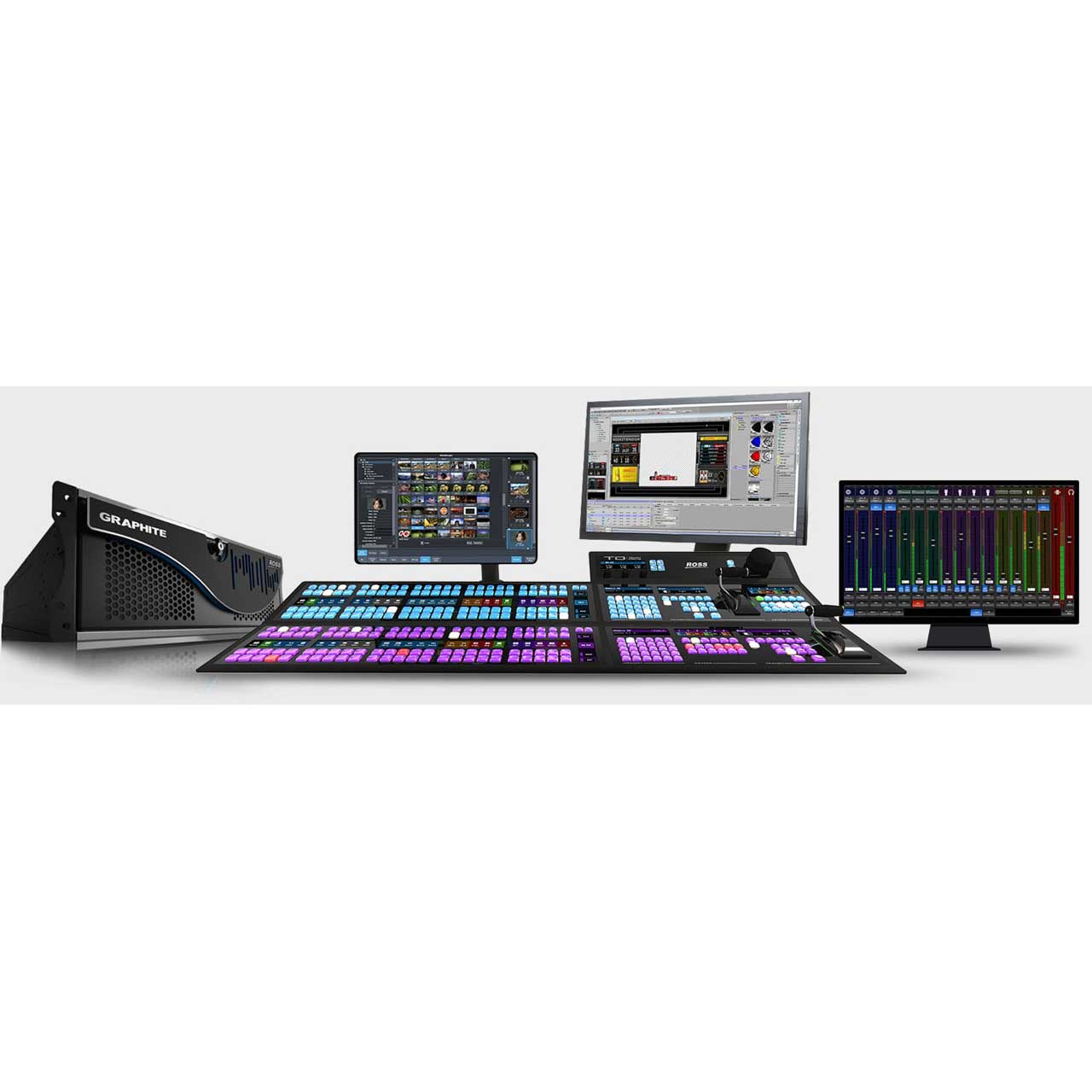

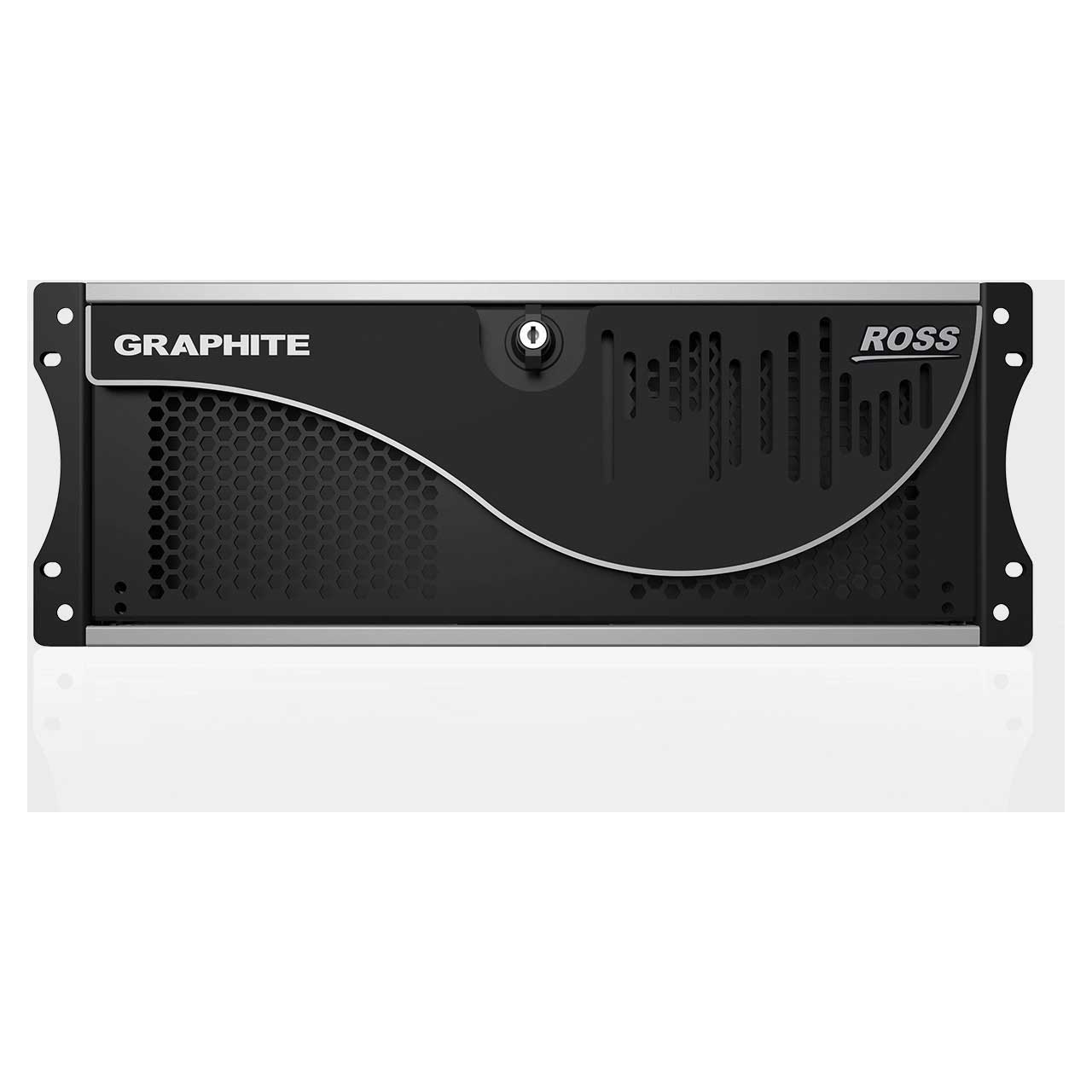

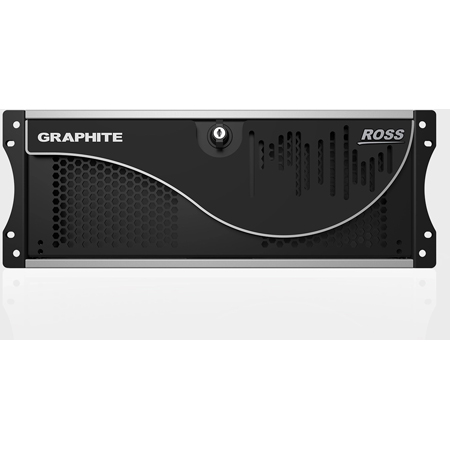

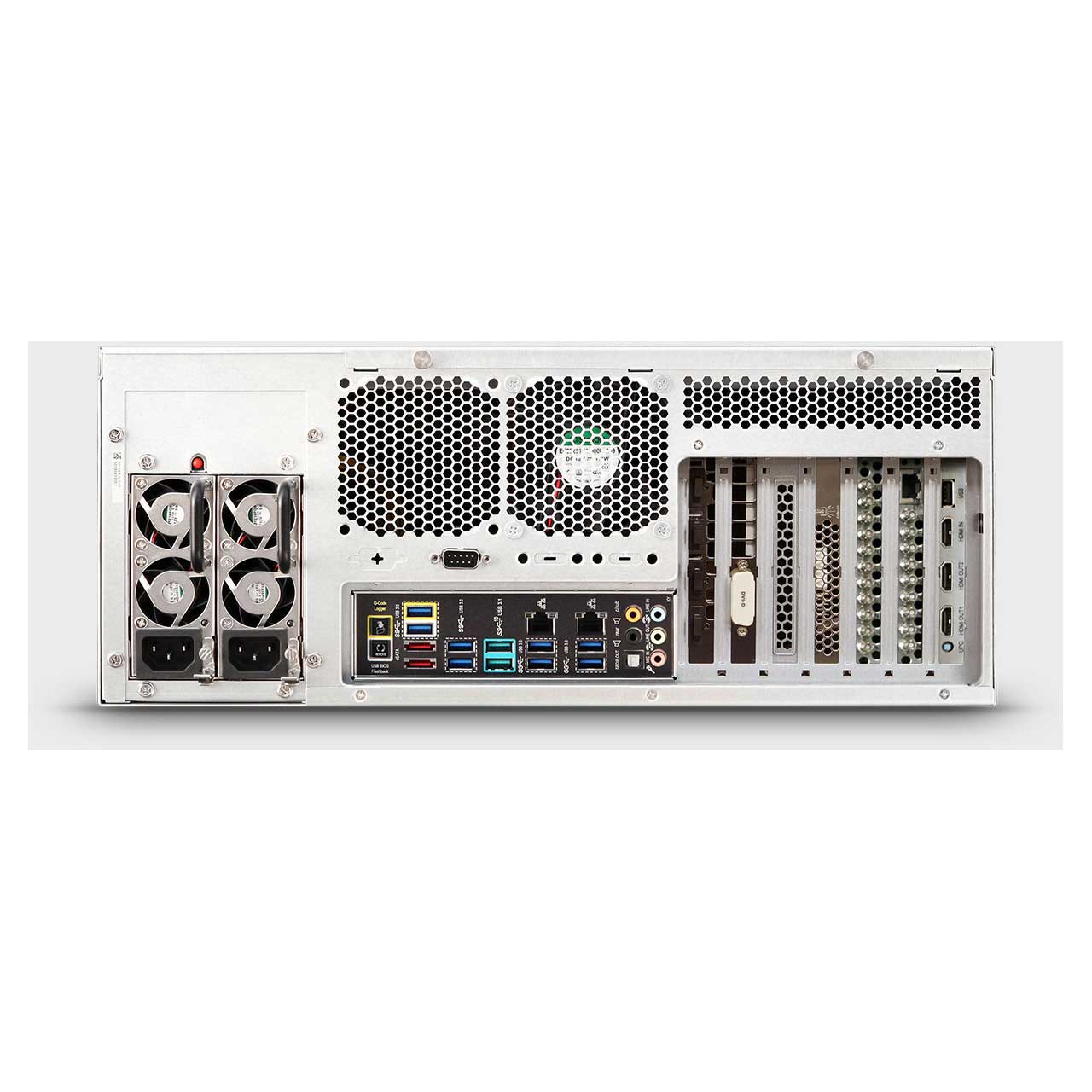

Ross GRAPHITE-4RU-1ME-5IN Graphite 4RU Integrated Production System

GRAPHITE-4RU-1ME-5IN - Overview

• Features:

  • Compact Production Solution A single 4RU chassis houses the production switcher, audio mixer, graphics system and clip players. This simplifies connectivity and reduces space, power, and electrical requirements.
  • Ultra-Reliable Thanks to its unique dedicated hardware, Graphite is immune to performance issues that are commonly associated with traditional all-in-one platforms.
  • Complete Ecosystem Graphite is designed to be a complete production solution right out of the box. Setup and configuration is simple and straightforward and the system even includes customizable graphics packages designed to get production up and running faster and more easily.
  • Flexible Workflow Using Graphite's extensive toolset and intuitive controls, a single operator can manage an entire show using a single tabbed DashBoard screen. For a distributed workflow with separate operators (T.D., Audio, Graphics, etc.), simply connect multiple DashBoard computers together.
  • Incremental Growth Graphite's M/E count and input matrix can be easily upgraded via cost-effective software licenses. Additional hardware and software components that enable production automation, MOS workflows, or multi-studio operations can be added at any time.
  • Experience Counts Graphite is the product of 40+ years of switcher experience and engineering excellence. Graphite combines proven hardware components with world-class software applications to create a powerful set of production tools that is backed by an acknowledged industry leader.


• Specifications:

  • GRAPHITE SWITCHER STANDARD
  • SDI Inputs (HD-BNC): Up to 12
  • HDMI Inputs: 1
  • NOTE: Internal sources, including XPression graphics or clips, MediaStores, ME, MiniME or Aux Bus re-entries, etc. do not reduce the external SDI or HDMI input matrices.
  • SDI Outputs (HD-BNC): 6
  • HDMI Outputs: 2 (HD-BNC - Standard BNC Adaptors sold separately)
  • Full MEs (Mix/Effects Banks): Up to 2
  • MiniMEs: 4
  • MultiViewers with Tally & Source Names: 2 (Up to 16 windows each)
  • Pattern Generators: 2 per Full ME
  • Internal Format Converters/Frame Synchronizers: 6 (Assignable to first 6 inputs)
  • 2D DVEs: 4 (Assignable to Full ME Transition Engines Full ME or MiniME Keyers)
  • Keyers per Full ME: 5 (4 Full Keyers + 1 Transition Keyer)
  • Keyers per MiniME: 2
  • UltraChromeTM Chroma-Keyers: 2 (Assignable to Full ME Keyers or Keyer 2 on any MiniME)
  • MediaStores: 4 (Shared 2GB capacity)
  • Supported Media File Types: .bmp (no alpha), .jpg (no alpha), .tga (with or without alpha, .png (with or without alpha, 48KHz .wav file
  • Animated MediaWipes: Available on all Full MEs
  • Effects Memories with Memory AITM: 100 per ME and MiniME
  • Custom Control Macros: 256
  • Direct Transfer of XPression Stills to MediaStores via Ethernet
  • LiveEDL (generates a standard Edit Decision List for use in post-production)

    SUPPORTED VIDEO STANDARDS
  • Standard Definition: 480i: 59.94 (4:3 or 16:9) 576i: 50 (4:3 or 16:9)DONT
  • High Definition (1.5 Gb/s): 1080p: 25/29.97/720p: 50/59.94/1080i: 50/59.94
  • High Definition (3 Gb/s): 1080p: 50/59.94
  • UHD Upconversion for Output: 4x Quad Link (Canvas mode only)

    ANALOG REFERENCE INPUT
  • 1 (HD/BNC)
  • (Tri-Level HD or Analog SD Black Burst)
  • (HD-BNC - Standard BNC Adaptors sold separately)

    ANALOG LTC INPUT
  • 1 (HD/BNC)
  • (Used with LiveEDL or MultiViewer Clock features)
  • (HD-BNC - Standard BNC Adaptors sold separately)

    DATA/CONTROL
  • Ethernet: 3 (1 Graphite card, 2 Windows mainframe)
