Ross UDA-8705A-R2S openGear Analog Utility Distribution Amplifier Card w/ R2S Split Rear Module for 2x UDA-8705A

ITEM #: ROSS-UDA8705AR2S MFG #: UDA-8705A-R2S

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$462.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    UDA-8705A-R2S - Overview

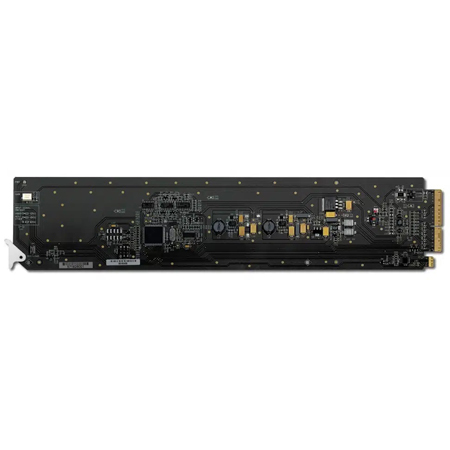

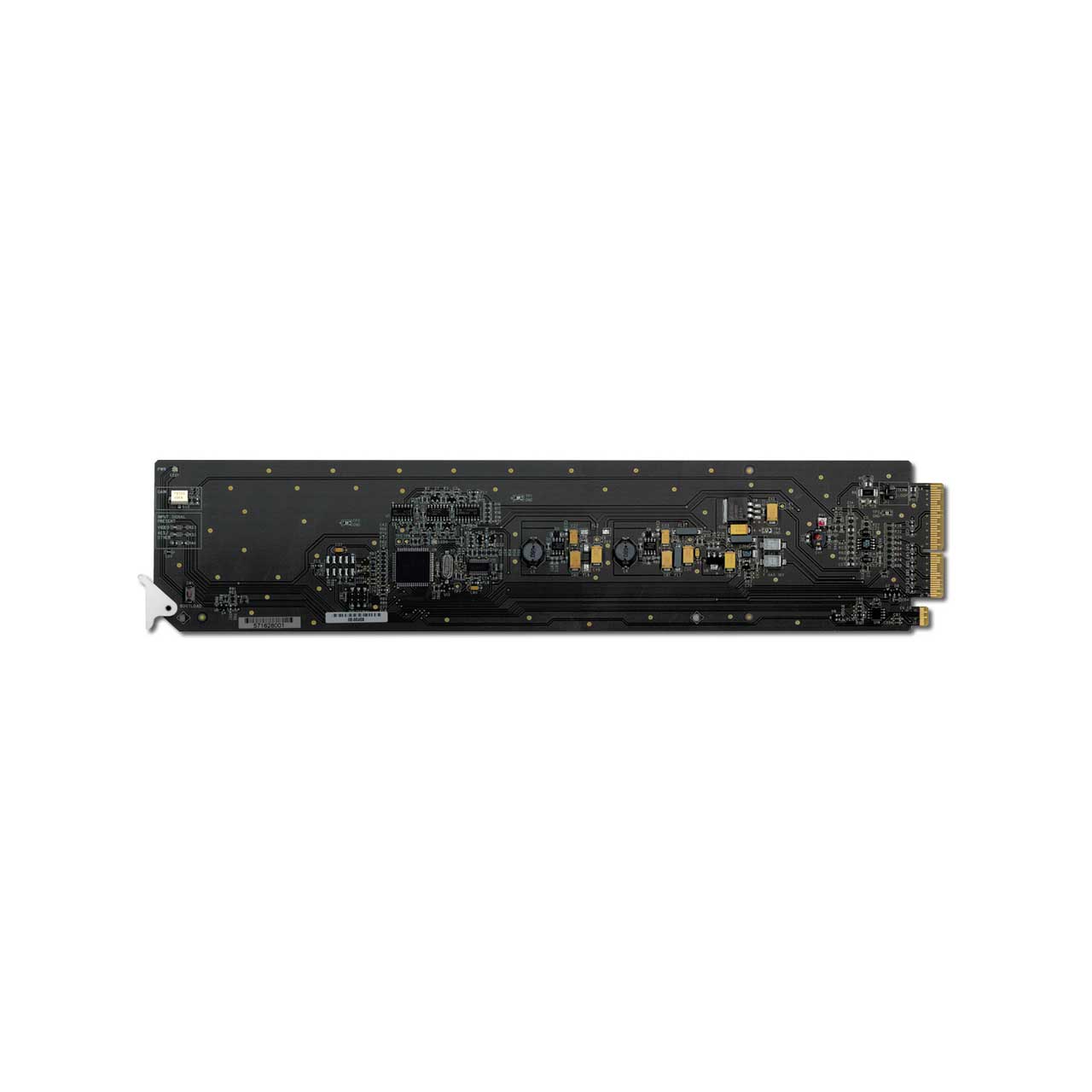

    Ross UDA-8705A-R2S is an openGear Analog Utility Distribution Amplifier with Split Rear Module for 2x UDA-8705A.

    The UDA-8705A is an analog general purpose distribution amplifier in the openGearr platform. Use of this amplifier will avoid the need to purchase a separate analog frame and power supply in digital installations.

    This amplifier may be used in any application where equalization and a differential input is not required - an excellent device for composite and tri-level sync distribution.

    The use of new generation integrated circuits and innovative engineering has resulted in excellent performance combined with economy.

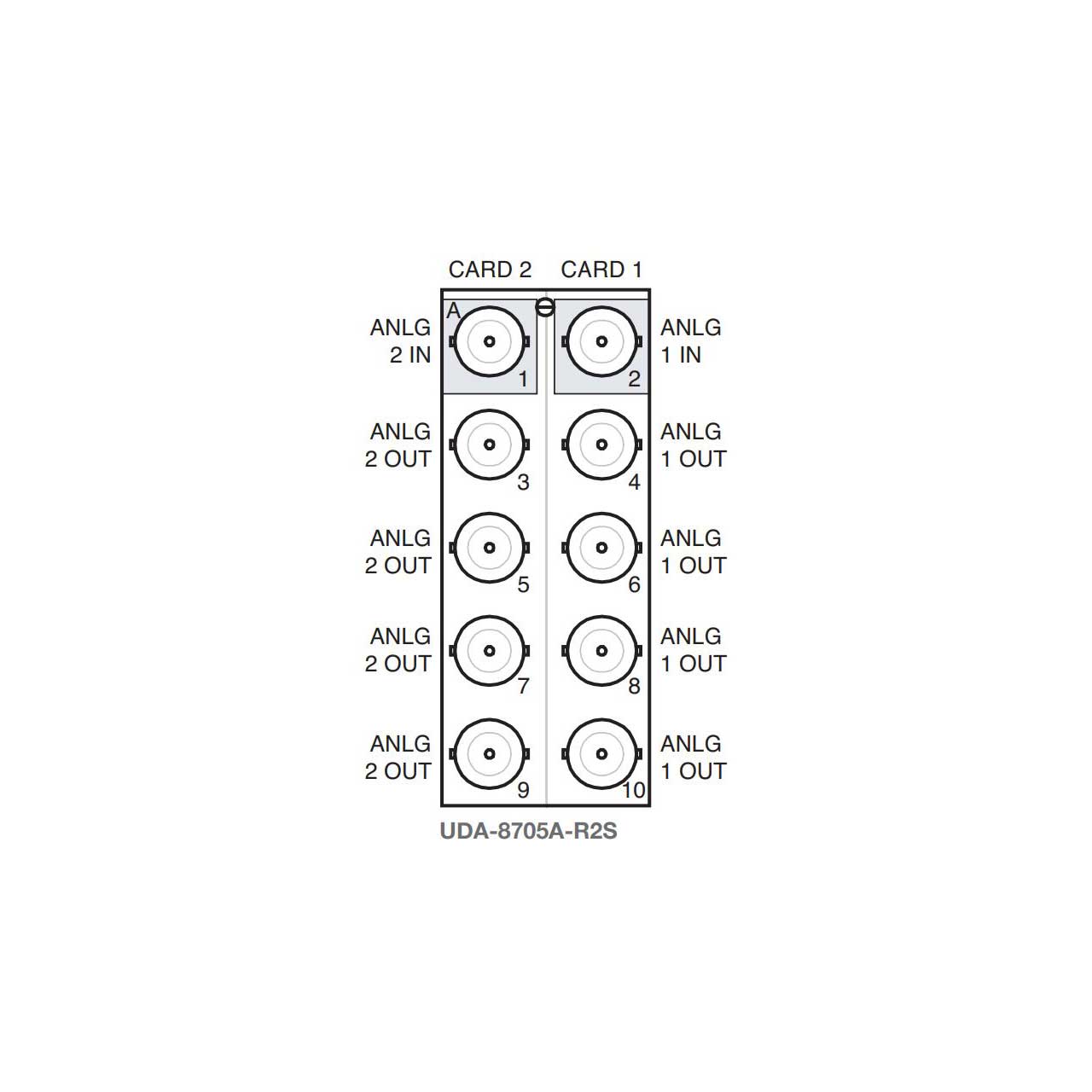

    Please Note! Includes the R2S rear module. The -R2S high density split rear module can accommodate up to 2x UDA-8705A cards, each configured as a 1x4 DA.

    • Features:

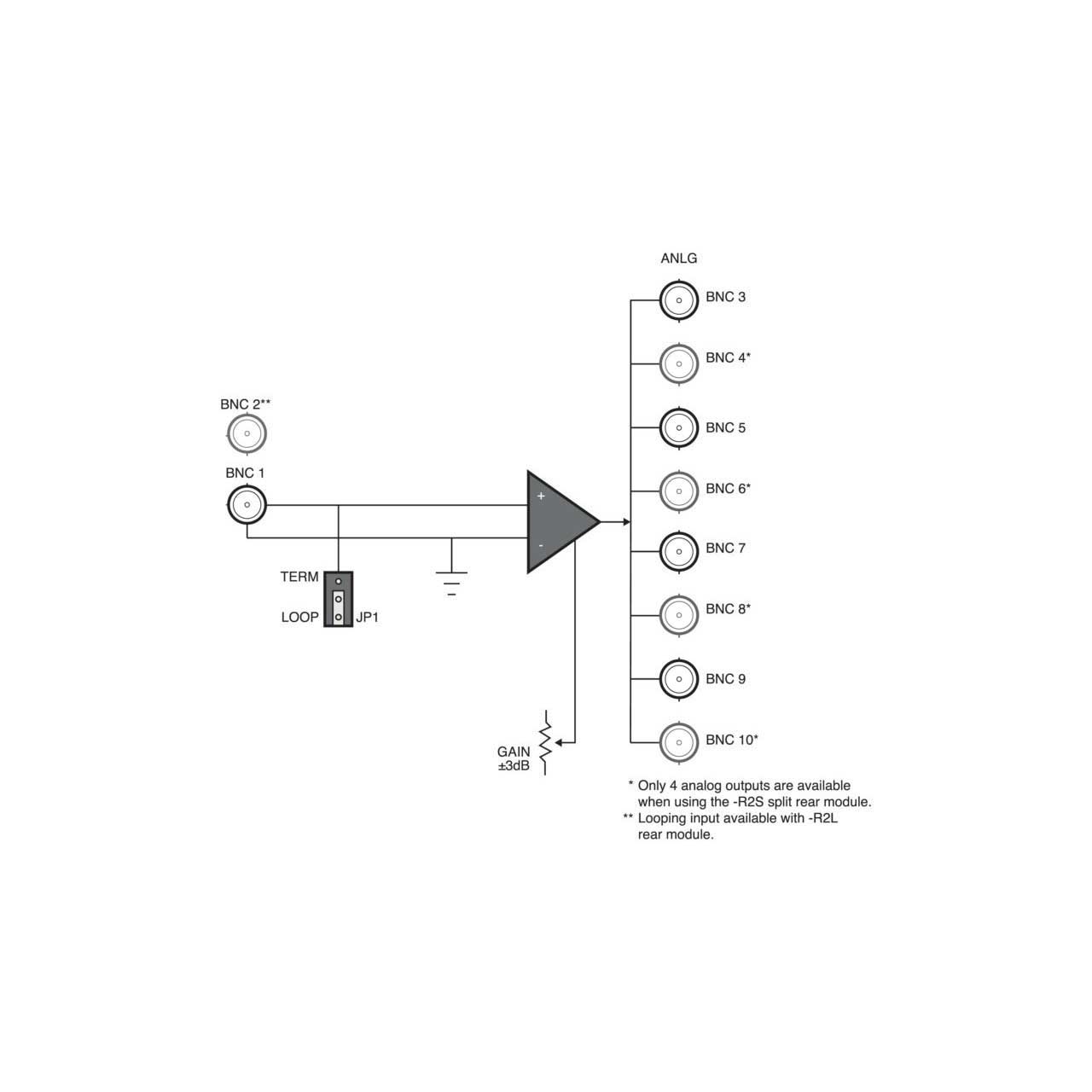

      • 1x4 or analog distribution amplifier
      • DC coupled
      • Wide adjustable gain range of ±3dB
      • Low distortion
      • Excellent isolation between outputs
      • Power to each card is individually fused
      • 20 DAs in OG3-FR
      • Power: 1.5 watts

    • Warranty:

      • 5-year transferable warranty
