ESE ES-208A 1x12 Video Distribution Amplifier

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    ESE ES-208A 1x12 Video Distribution Amplifier

    Manufacturer: ESE

    Item #: ESE-ES-208A   •   MFG #: ES-208A



    List Price:$300.00
    Our Price:$285.49

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

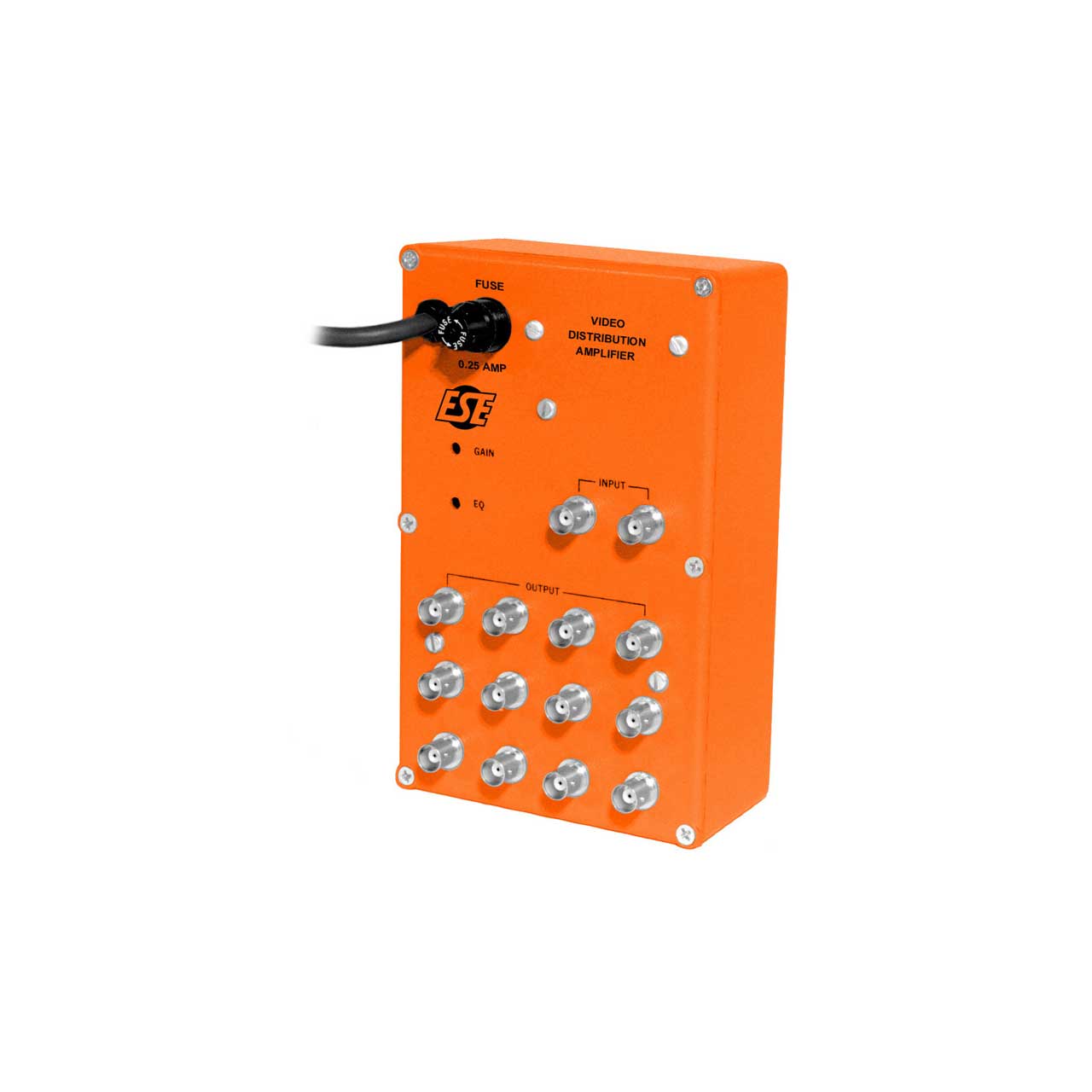

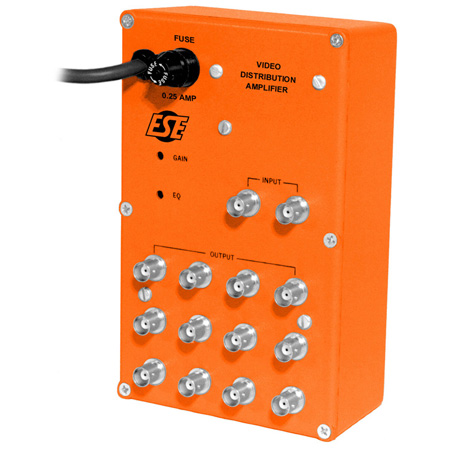

      The ESE ES-208A provides a loop-thru input and twelve isolated outputs, all accessible via BNC connectors. Screwdriver-adjustable Gain and Equalization controls are provided on the front of the case. Up to 1000 feet of cable may be compensated by adjusting the EQ trimmer. The Gain control provides an overall signal level adjustment of -2 to +3.4 db. When the input is not looped thru to other equipment, a 75 ohm terminator should be used on the free input connector. Unused outputs need not be terminated. The unit is housed in a small diecast box, which is ideal for tucking away in the most convenient location.

      These amplifiers can be used for distribution and for signal conditioning, with the EQ control equalizing up to1000 feet of RG-59 coaxial cable. A very wide range of chroma level adjustment can be obtained with the Gain control. The ES-208's output video should be set for 0 VDC (using the DC control) on the blanking or porch level, with video extending positive and sync negative.


      • Features

        • BNC connectors
        • Loop-thru video input
        • 12 isolated outputs (75 ohm)
        • 10 MHz frequency response
        • Gain & HF Equalization controls
        • Rugged die-cast alloy case
        • 220-240 VAC (110-120 VAC is standard) & UL options available

      • Specifications

        • Input: 1 Vpp
        • Source: 75Ω
        • Response: 10 Hz - 10 MHz, +/-1dB
        • Equalization: 1000' of RG-59
        • Gain: -2dB to +3dB
        • S/N ratio: 62dB
        • Output isolation: 45dB
        • Differential gain: <.2%
        • Differntial phase: < .2°
        • Propagation delay: 100ns
        • Gain controls: One
        • Output level: 1 Vpp
        • Connectors: BNC
        • Enclosure: Die-cast Orange Box
        • Dimensions: 7.3" x 4.7" x 2.2"
        • Electrical: 117 VAC, 50/60 Hz
        • Power required: 3 Watts
        • Options: J, UL
