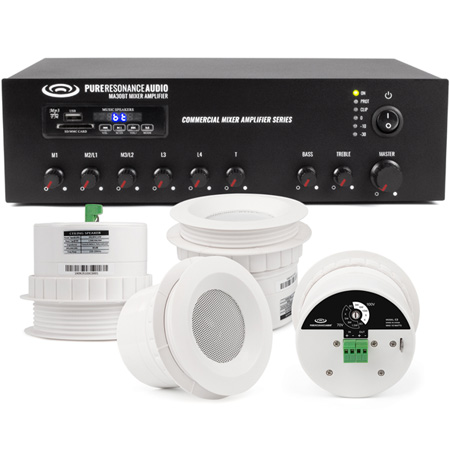

Pure Resonance Audio RTSS-4C3MA30BT Retail System with 4 C3 Speakers & Mixer Amplifier with Bluetooth


free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    RTSS-4C3MA30BT - Overview

    Retail Business Sound System With Bluetooth
    Pure Resonance Audio RTSS-4C3MA30BT retail store background music solution combines the stylish C3 ceiling speakers with our MA30BT Bluetooth mixer amplifier. Compact and lightweight, this C3 3" micro ceiling speaker system has an intelligent, stylish design that produces quality sound and excellent dispersion of both vocals and music while seamlessly blending into ceilings. The 30 watt Bluetooth mixer amplifier has the power to handle a variety of applications in your shop or boutique.

    Option For Paging
    This ceiling mount speaker audio system is perfect for playing background music, but it's not limited to that! Connect a handheld or push-to-talk paging microphone to use this sound system for paging or making important announcements to employees and shoppers. This sound system package is the ideal solution for providing background music, paging and ambient sound masking in retail stores, shops, boutiques, bodegas, and other retail spaces

    Pure Resonance Audio C3 3" Micro Ceiling Speaker
    Ideal for drop tile ceilings and featuring a stylish, intelligent design, the Pure Resonance Audio C3 3" micro ceiling speaker is compact and lightweight. This ceiling speaker seamlessly blends into the ceiling creating a beautiful architectural look. With 8 ohm and 70 volt taps, the C3 ceiling speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as background music, paging and ambient sound masking in commercial environments. An ultra-thin flat bezel allows the C3 to blend into ceiling planes. The quick and Easy-Mounting threaded mounting ring provides secure, clean installation onto ceiling tiles and many other ceiling types.

    Pure Resonance Audio MA30BT 7-Channel 30W Mixer Amplifier
    The Pure Resonance Audio MA30BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70V, 100V, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application.

    • Features:

      • Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring:
      • Compact and lightweight
      • Smallest possible footprint while maintaining powerful quality sound
      • Intelligent, stylish design that seamlessly blends into the ceiling
      • Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
      • Tap settings: 70V: 8 ohm, 1.5W, 3W, 5W / 100V: 8 ohm, 3W, 6W, 10W
      • Quick & easy installation with threaded mounting ring
      • Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

        Pure Resonance Audio MA30BT 7-Channel Mixer Amplifier with Bluetooth:
      • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
      • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
      • MP3 Player, FM Radio & Bluetooth (with IR remote control)
      • USB and SD inputs on front panel
      • Power output rating 30 Watts
      • Built-in 70V/100V transformer
      • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
      • Mic 1 of balanced XLR input (with phantom power)
      • Mic 2-3 microphone or line switchable
      • Line 1-2 input of RCA inputs
      • DIP switches for Mic/Line, phantom power and microphone priority
      • Unbalanced 6.3 mm phone jack input
      • One RCA line output (0.775 line level 0 dBV)
      • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
      • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
      • Short-circuit, clip, overload and high temp protection
      • 24 VDC Emergency backup supply
      • 115V 60 Hz & 24V DC both operation system
    • Specifications:

      • C3 Ceiling Speaker
      • Frequency Response: 120Hz - 20kHz
      • Low Frequency (-10 dB): 180 Hz - 20 kHz
      • Impedance: 8 Ohms with 70V transformer (built-in)
      • Maximum Input Voltage: 17 dBV (7.1V, 6W into 8Ω)
      • Power Taps @ 70V: 1.5W/3W/5W
      • Power Taps @ 100V: 3W/6W/10W
      • Transducer: Full-range 3" driver
      • Nominal Coverage Angle: 130° Conical Coverage
      • Cutout Size: 4.25" (107.95 mm)

        MA30BT Mixer Amplifier
      • Rated Power Output: 30W
      • Speaker Outputs: 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms
      • Connectors:
        Mic 1 input by balanced XLR with phantom power
        Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
        Line 1-2 inputs by RCA; Line output by RCA
      • Frequency Response: 60Hz - 15kHz (±3dB)
      • Protection: Short-circuit, clip, overload and high temp protection
    • Item Includes:

      • 4x Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Rings
      • 1x Pure Resonance Audio MA30BT 30W Bluetooth Mixer Amplifier
      • 1x IR Remote Control
      • 1x Power Cord
      • 1x (250') Free 18/2 Gauge Speaker Wire
    • Warranty:

      • Speakers: 2 Years
      • Amplifiers & Electronics: 1 Year
      • Microphones: 1 Year
      • Accessories: 1 Year
