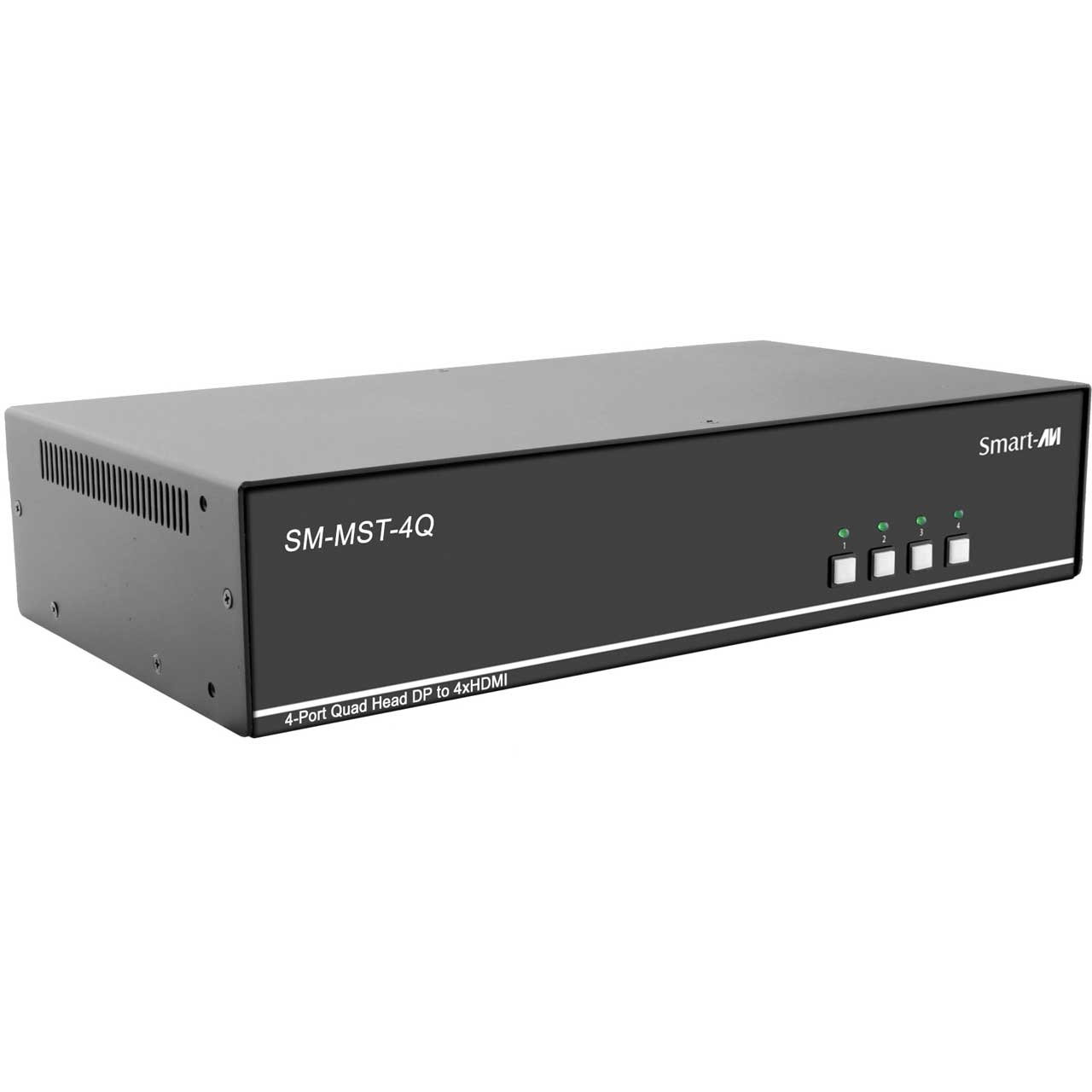

Smart AVI SM-MST-4Q MultiStream Transport Technology KVM Switch with Quad 4K HDMI Out - 4 Port

ITEM #: SAVI-SM-MST-4Q MFG #: SM-MST-4Q

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$999.00

Our Price:

$799.20

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SM-MST-4Q - Overview

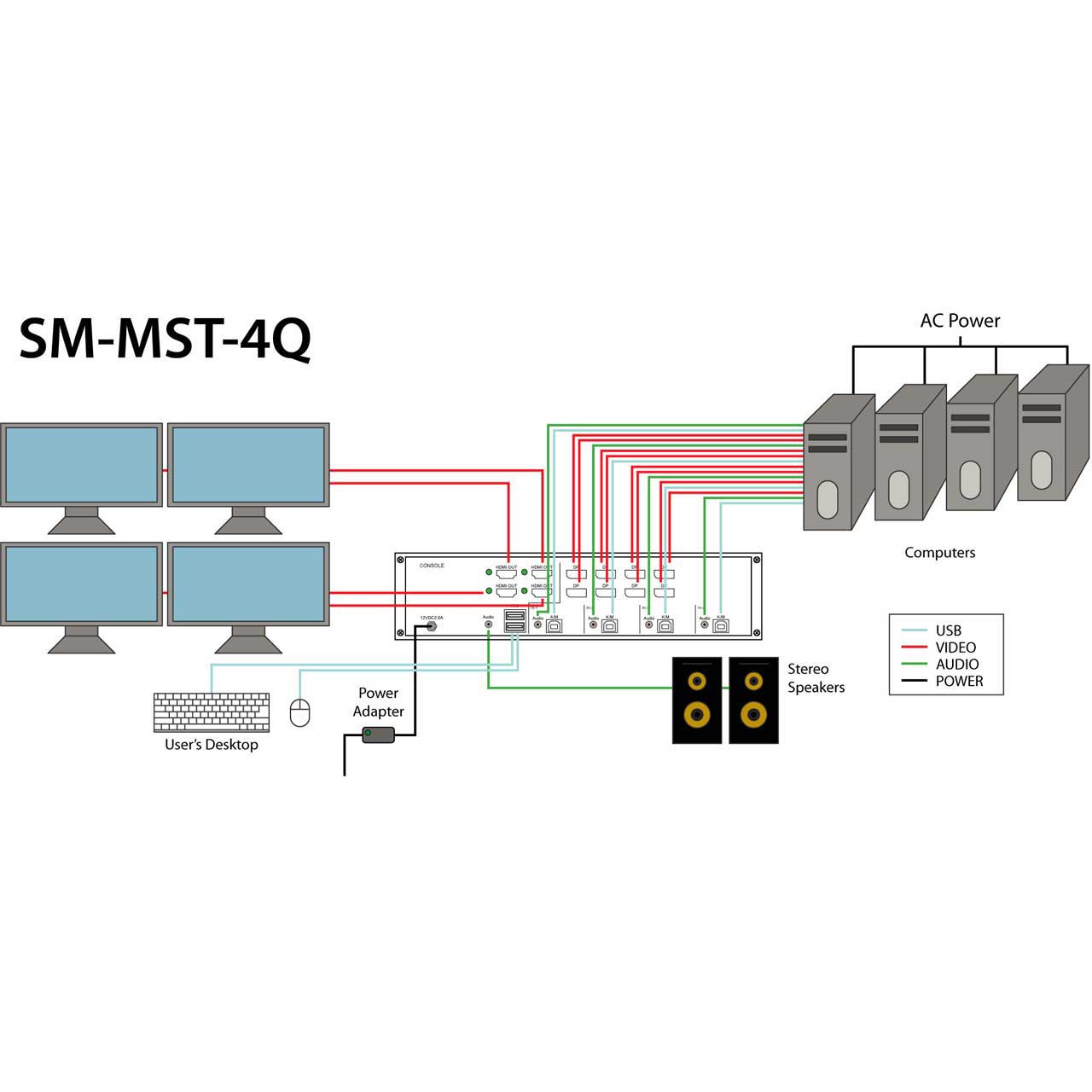

    The SM-MST-4Q converts a single DisplayPort 1.2 input signal to four separate HDMI Output connections through advanced MultiStream Transport technology. This allows a user to extend their display and achieve resolutions of up to 4K (3840 x 2160 @ 30 Hz) on each connected monitor from a single DP port.

    The SM-MST-4Q is a DisplayPort Standard Version 1.2a compliant device. The SM-MST-4Q can control up to 4 computers with a single DP input connection each, and allows the support of four HDMI outputs in any combination.

    Applications
    Industrial Operations
    Defense Applications
    Corporate Communications
    Server Operations
    Educational Administrations
    Medical Facilities
    Banking Network
    Insurance Data Centers
    Transit Management
    Industrial Operation
    Intelligence Communications

    • Features:

      • Supports Windows 7 and Windows 10
      • Dual-head DP to quad-head HDMI video interface for each connected computer
      • Resolutions up to 4K UHD (3840 x 2160 @ 30Hz) per display
      • DisplayPort1.2a dual mode receiver
      • HDMI/DVI operation up to 320MHz
      • Max video input resolution 4K2K@60Hz
      • Multi-Stream Transport supports up to 2 streams
      • Supports RGB or YCbCr
      • Supports balanced speakers output and switching
      • Front panel tactile buttons with LED indicator
      • External power supply - Level VI efficiency

    • Specifications:

      • Video:
      • Format: DisplayPort 1.2a

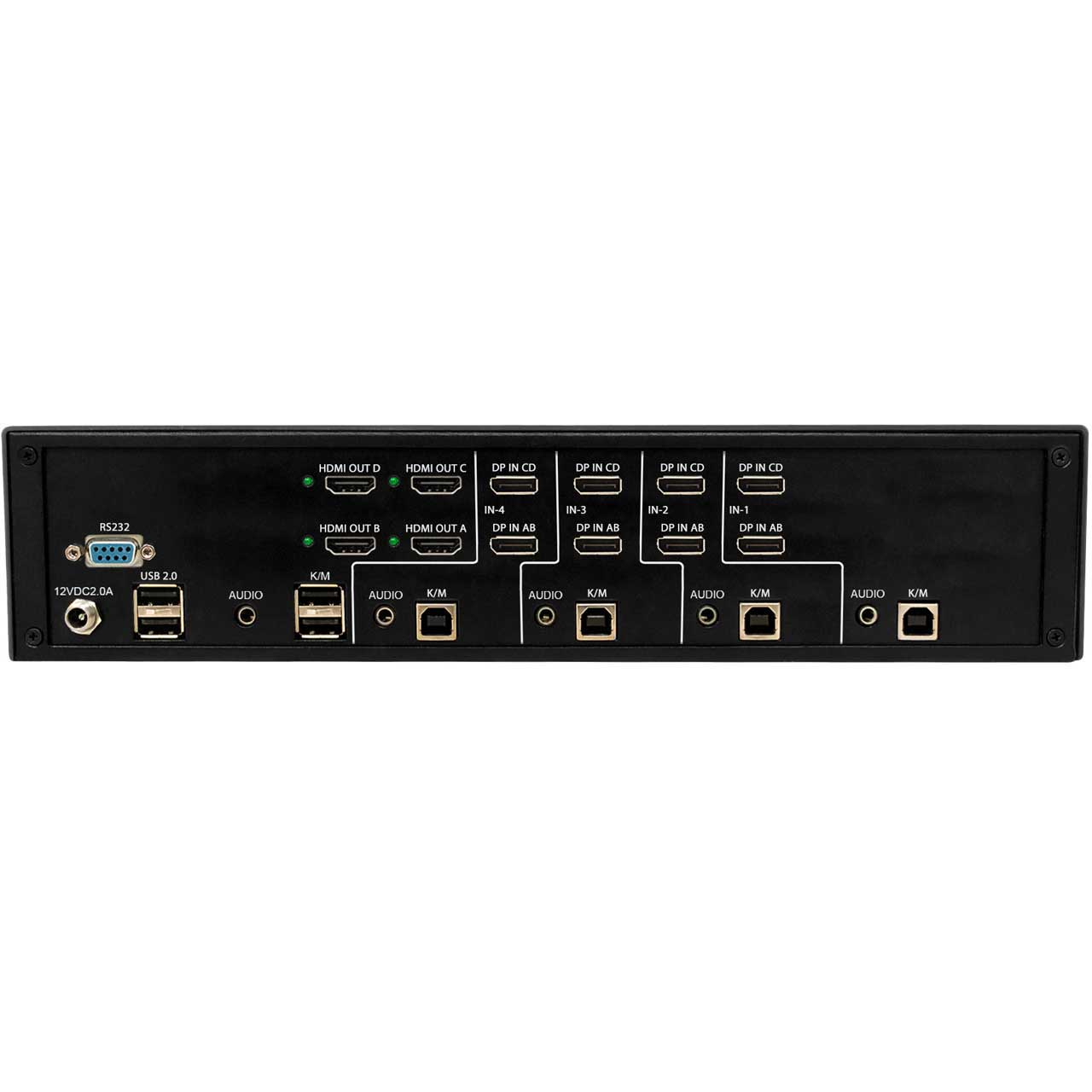

      • Input Interface: (8) DisplayPort
      • Output Interface: (4) HDMI
      • Input Resolution: Up to 4K (3840X2160 @60Hz)
      • Output Resolution: Up to 4K (3840X2160 @30Hz)
      • DDC: 5 volts p-p (TTL)
      • Input Equalization: Automatic
      • Input Cable Length: Up to 20 ft.
      • Output Cable Length: Up to 20 ft.

        USB:
      • Input Interface: (4) USB Type B
      • Output Interface: (2) USB 1.1 Type A for KM Devices
      • Emulation: USB 1.1 and USB 2.0 Compatible

        Audio:
      • Audio Input: (4) 3.5mm stereo audio
      • Audio Output: (1) 3.5mm stereo audio

        Control:

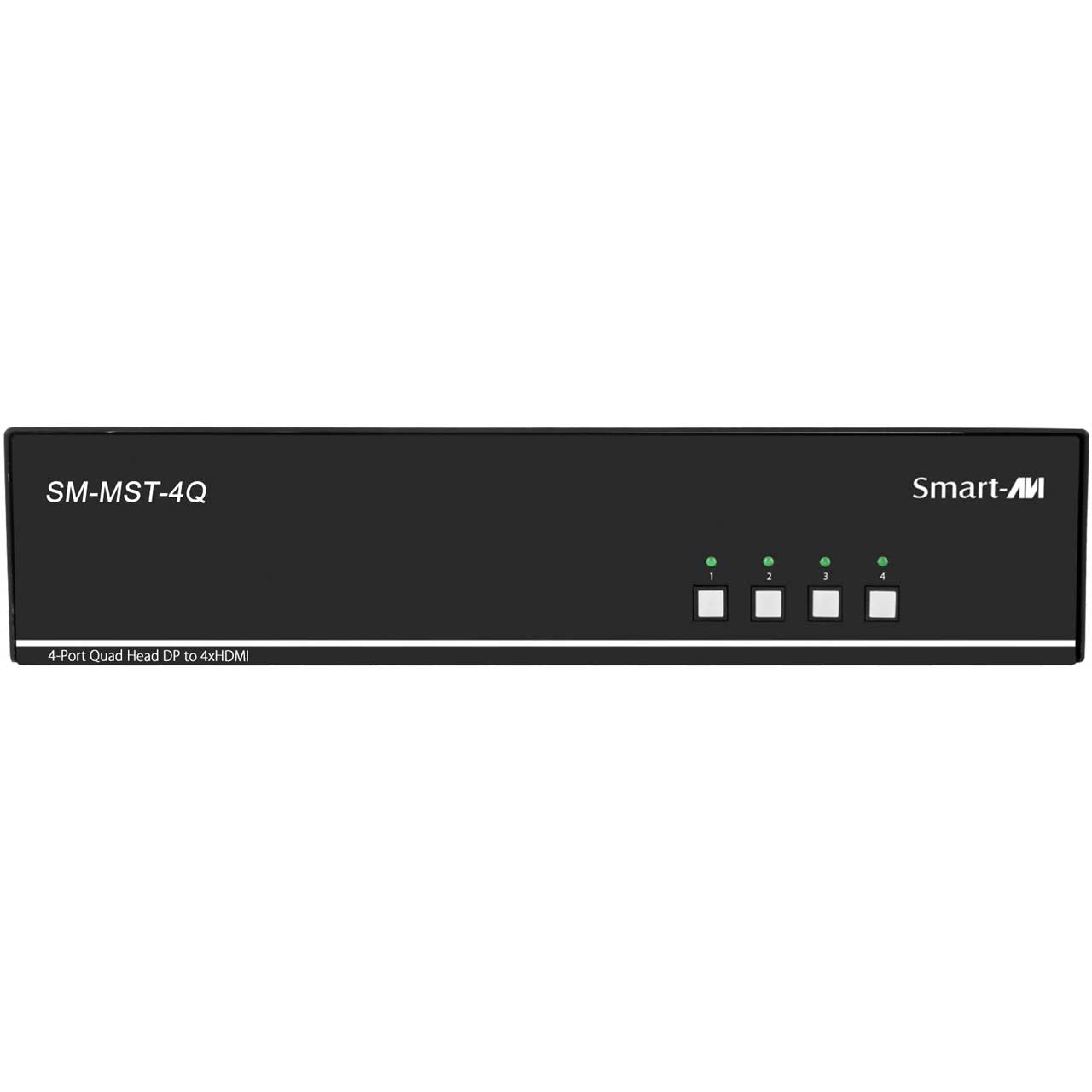

      • Front Panel: Push Buttons with LED Indicators
      • RS-232: Via Control @ 9600 bps
      • Hot Keys: Via Keyboard

        Other:
      • Power: External 100-240 VAC/ 12VDC2A @ 24W
      • Dimensions: 12.57" W x 2.7" H x 6.69" D
      • Weight: 4.5 lbs
      • Approvals: UL, CE, ROHS Compliant
      • Operating Temperature: +32 to +104°F (0 to +40°C)
      • Storage Temperature: -4 to 140°F (-20 to +60°C)
      • Humidity: Up to 80% (No Condensation)

    • Item Includes:

      • 1x SM-MST-4Q KVM Switch
      • 1x PS12VD2A 12V DC 2A Power Adapter
