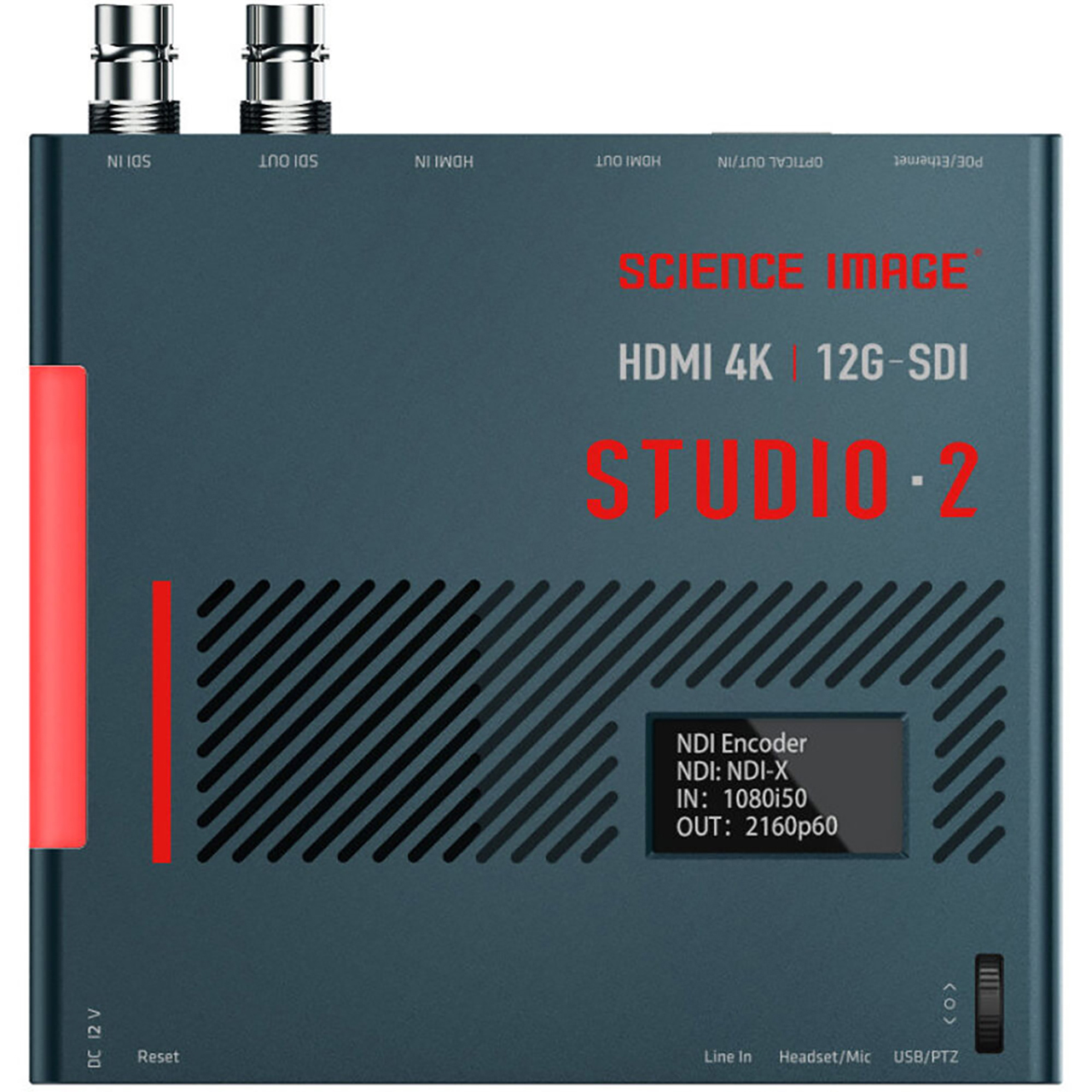

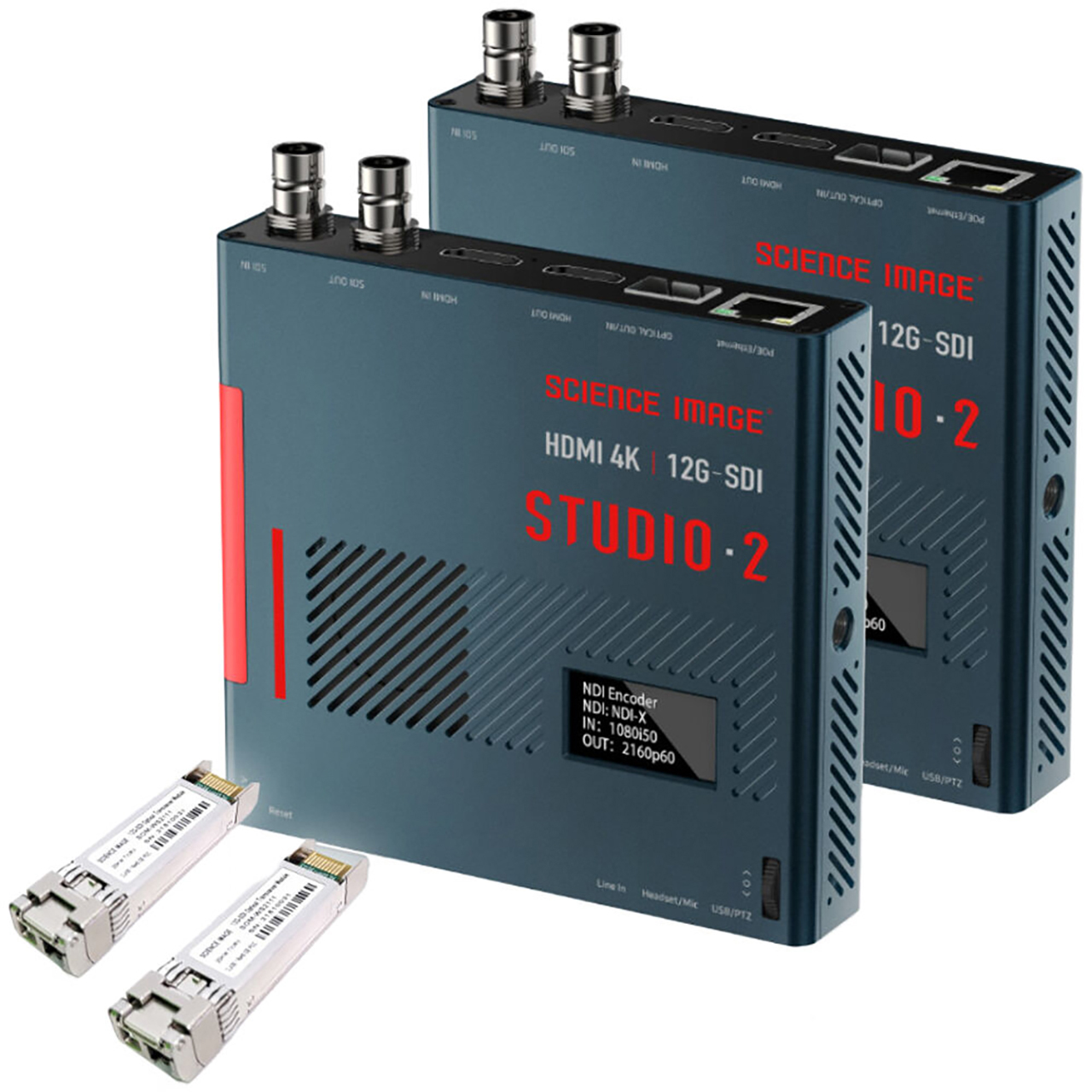

Perform reliable up and down conversions using the Science Image Studio 2 NDI Bi Directional Converters and 12G-SDI Fiber SFP Modules Bundle. This complete solution bundles 2x Studio 2 converters with 2x 12G-SDI fiber SFP modules.
Support At Least 27 Types Of SMPTE Formats - Multiple Functions, Efficient Inter-Convert
Studio 2 provides up and down conversion in 27 formats (from HD to UHD), the maximum 3840x2160p60. Supports up to 12G-SDI/HDMI 4K60 inter-conversion and output. The user can choose the output format with just a click.
Optical Transceiver - Ultra Long Distance Transmission
Featuring a 12G SDI optical transceiver interface, you can simultaneously transmit and receive 3G/6G/12G-SDI and HDMI 4K videos, and support maximum 20km transmission. The web UI is equipped with an optical transceiver switch, allowing users to freely choose HDMI optical transceiver or SDI optical transceiver in the web UI.
An Intelligent Scroll Wheel
The intelligent scroll wheel allows you to use your finger to scroll up and down and access the menu and manage settings, no need to enter the web UI.
Scroll Wheel Controls:
-Encoder/Decoder setting
-SDI/HDMI input priority setting
-Optical transceiver function transmitting and receiving settings
-Free selection of output resolution format
Flexible Deployment, Convenient And Practical
Flexible deployment on the front end or display/control terminal according to different scenes on site. It's an optical transceiver and an SDI/HDMI bidirectional converter, one machine for multiple purposes, reducing system cost.
Broadcast Level,Reliable And Stable
It Supports 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, is compatible with multiple sampling formats (444,422,420) and accurate and fast signal recognition. Adopt Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensure the program running stably, not influenced by the external complex environment.
Compatibility And Stability
Support SMPTE video source, compatible with the video from most equipment. Open to most software and browsers, truly plug and play. Studio 2 meets industrial standard, which ensure it works durably and reliably.

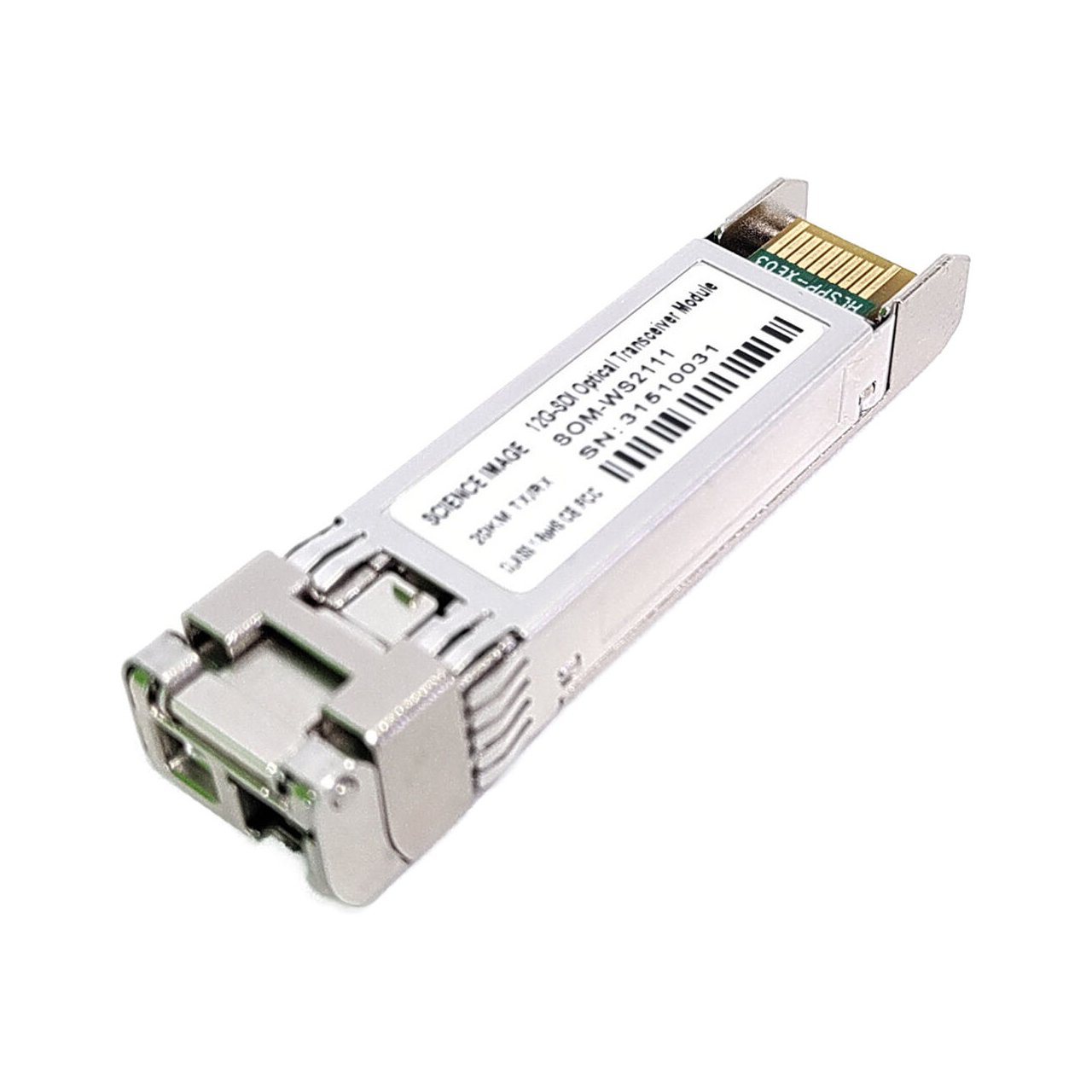

12G-SDI Fiber SFP Modules Included
The Science Image Optical SFP Module is customized for transferring 12G-SDI/HDMI 4K60 video from the 12-25G frequency band, named T1. With this transceiver installed in the two Science Image FLOW 2 units, the two converters can send and receive 12G-SDI signals over very long distances. It features a Simplex LC Singlemode connector and can carry a 12G-SDI or 4K HDMI signal up to 12 miles (20km).
