Shure AD4QNP-A Axient Digital Quad Channel Digital Wireless Receiver - G56 Band (470 - 636MHz)

ITEM #: SH-AD4QNP-A MFG #: AD4QNP=-A

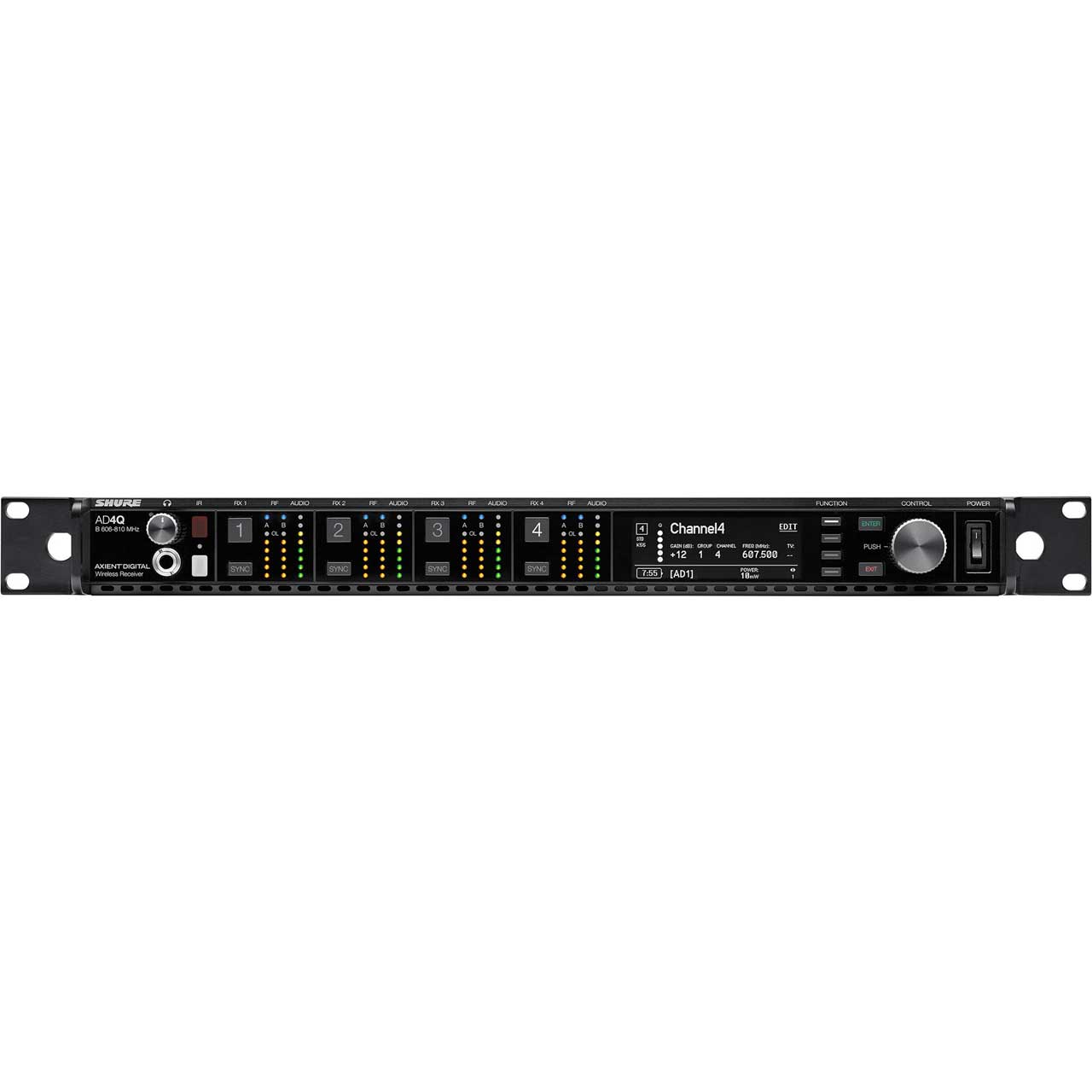

Primary Image

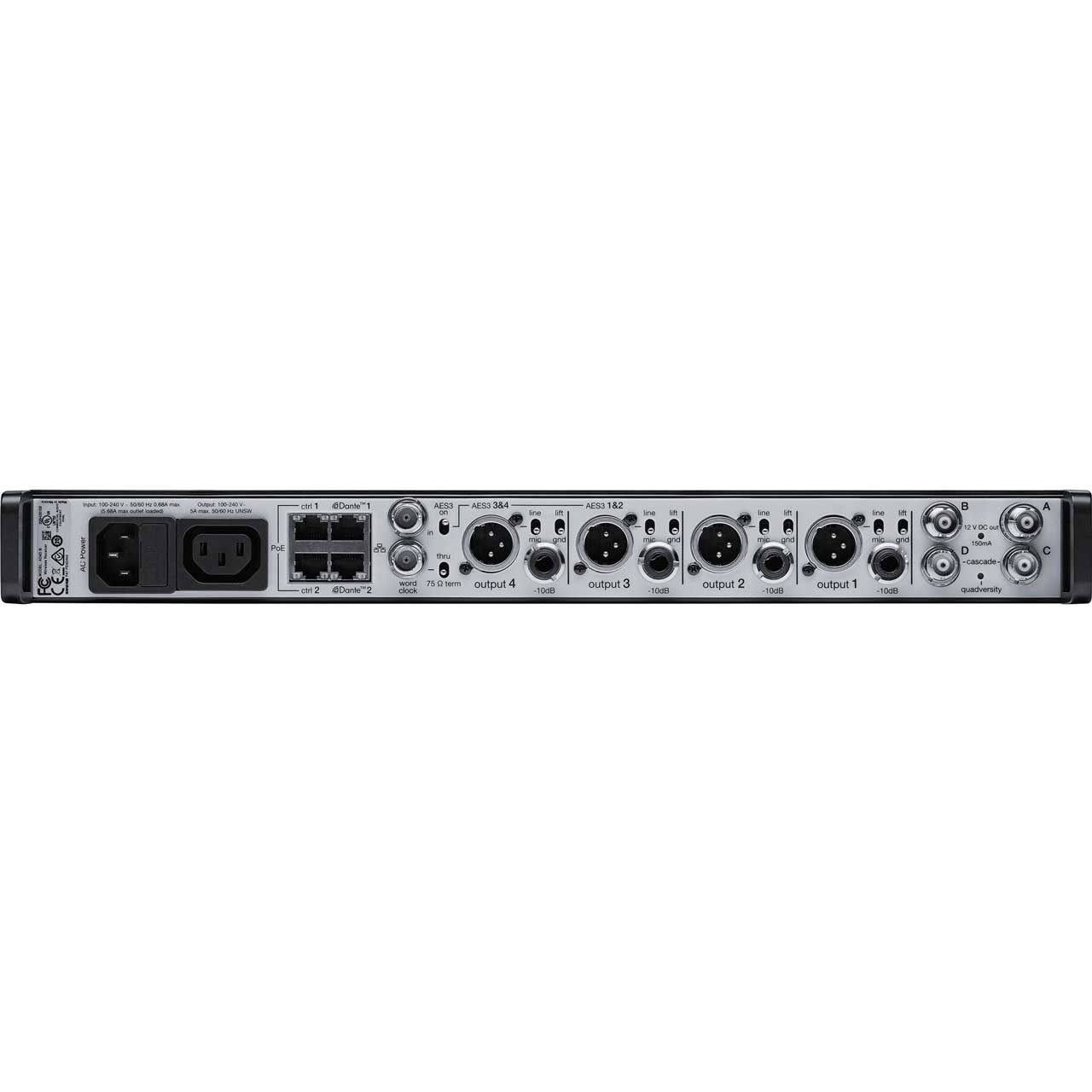

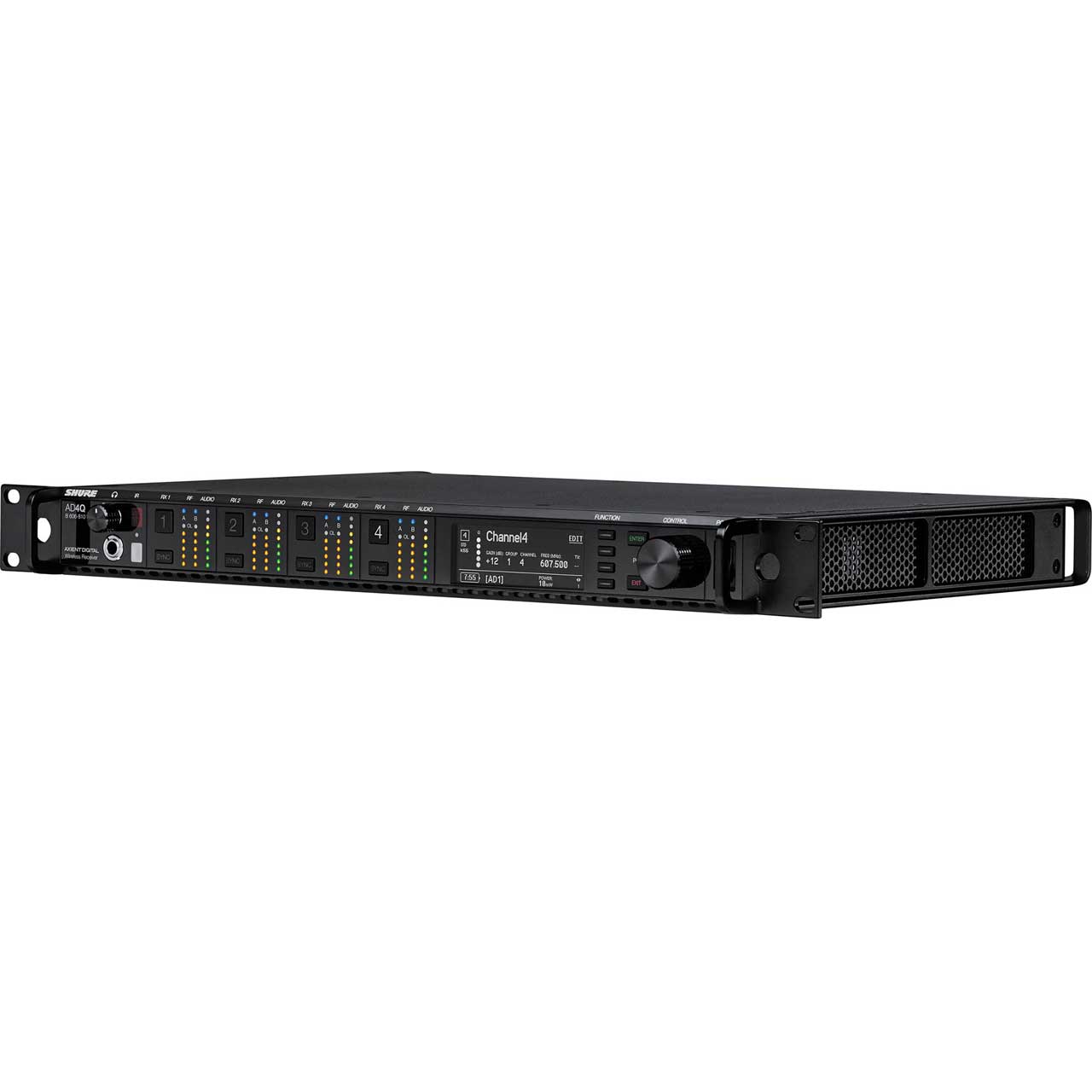

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$8,501.00

Our Price:

$6,801.00

Availability: In Stock
iAvailability Description Popup


    AD4QNP=-A - Overview

    The Shure AD4QNP-A Axient four-channel digital wireless receiver offers true digital diversity reception per channel for drop-out resistance, and a wide tuning range of up to 184 MHz. It can be used when paired with compatible Shure AD and ADX transmitters (sold separately) to deliver professional digital audio for live stage, theater, houses of worship, or other sound reinforcement applications. The receiver is built with a front-panel headphone jack that enables Dante Cue and Dante Browse monitoring. Each channel features switchable AES3 and XLR outputs with a 1/4" TRS output also available. A channel quality meter displays RF signal-to-noise information so you can always know the status of your output signal. Some other features include locking AC connectors, and a configurable Ethernet switch for redundant Dante digital output.

    • Features:

      • Compatible with AD and ADX Transmitters
      • Wide Tuning Range Up to 184 MHz
      • True Digital Diversity Reception
      • Channel Quality Meter Display
      • Network Control with Wireless Workbench
      • Quadversity Mode for Extended Coverage
      • Front-Panel Headphone Jack
      • Locking AC connectors
      • Configurable Ethernet switch for redundant Dante digital output
      • AES 3-pin output
      • Switchable XLR and AES 3-pin outputs
      • Channel quality meter displays RF signal-to-noise
      • Cascade antenna ports can be switched to Quadversity inputs
      • Selectable transmission modes and power levels enable optimum range and audio quality

    • Specifications:

      • Audio Output
      • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
      • Configuration: 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground), XLR: Transformer-Coupled Balanced (1=ground, 2=audio +, 3=audio -)
      • Impedance: Typical, XLR Line Out 100 Ω
      • Full Scale Output: 200 kΩ load, 1/4" (6.35 mm): +8 dBV, XLR (LINE setting): +18 dBV, XLR (MIC setting): -12 dBV
      • Mic/Line Switch: 30 dB pad
      • Phantom Power Protection: Yes

        Networking
      • Network Interface 10/100 Mbps, 1 Gbps, Dante Digital Audio
      • Network Addressing Capability: DHCP or Manual IP address
      • Maximum Cable Length: 100 m (328 ft)

        Cascade Output
      • Connector Type: BNC
        Note: For connection of one additional receiver in the same band
      • Configuration: Unbalanced, passive
      • Impedance: 50 Ω
      • Insertion Loss: 0 dB, typical

        RF Input
      • Spurious Rejection: >80 dB, typical
      • Connector Type: BNC
      • Impedance: 50 Ω
      • Bias Voltage: 12-13.5 VDC, 150 mA maximium, per antenna, switchable on/off

    • Item Includes:

      • 1x Four-channel receiver (470-636 MHZ)
      • 1x Locking power and jumper cables
      • 1x Rackmount kit
      • 1x User guide

    • GTIN:

      0042406533584
