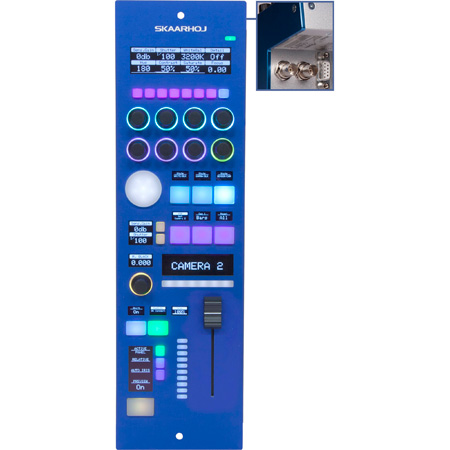

Skaarhoj RCP-V2.0-FE-FADER-S RCPv2 Camera Controller with Motorized Fader and SDI

RCP-V2.0-FE-FADER-S - Overview

RCP-V2.0-FE-FADER-S - Overview

RCP-V2.0-FE-FADER-S - Details

• Features:

  • Large Display - Super crisp window with large display tiles for settings
  • RGB Backlight - High-quality encoders with RGB backlight for function identification
  • Joystick Pad - Pressure and direction sensitive joystick pad
  • ID Display - Camera ID display with OLED technology and RGB tally bar
  • Iris Joystick - Classic iris joystick (with master black ring and preview button) or motorized fader with display and LED bar
  • Preview buttons - Preview button for GPI or control of video router
  • Four-way buttons - Four-way buttons with OLED legends for dynamic labeling and functionality
  • Form factor - Fits in your existing OB van rack with a Sony RCP Form Factor (4"/102mm wide) or sits console style on table top
  • PoE - Ethernet with PoE (IEEE802.3af)
  • SDI - The SDI option adds a Blackmagic Arduino shield to the controller for reading and writing Camera Control Data
  • Motorized Fader - Order your RCPv2 with a motorized fader for the ultimate user experience


• Specifications:

  • Power Consumption: 6.12 Watt
  • Dimensions: 102 mm x 355 mm x 72 mm
  • Total Weight: 1.182 kg
  • Shipping Dimensions: 440 mm x 140 mm x 145 mm
  • Shipping Weight: 1.872 kg


• Item Includes:

  • 1x RCPv2 Camera Controller with Motorized Fader and SDI
  • 1x 12 V Power Supply
  • 1x 3.28ft USB 2.0 A-Micro B Programming Cable
