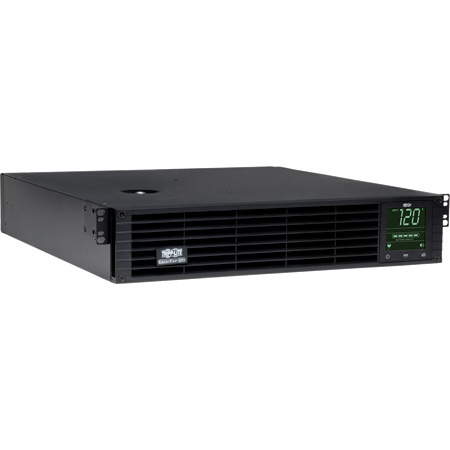

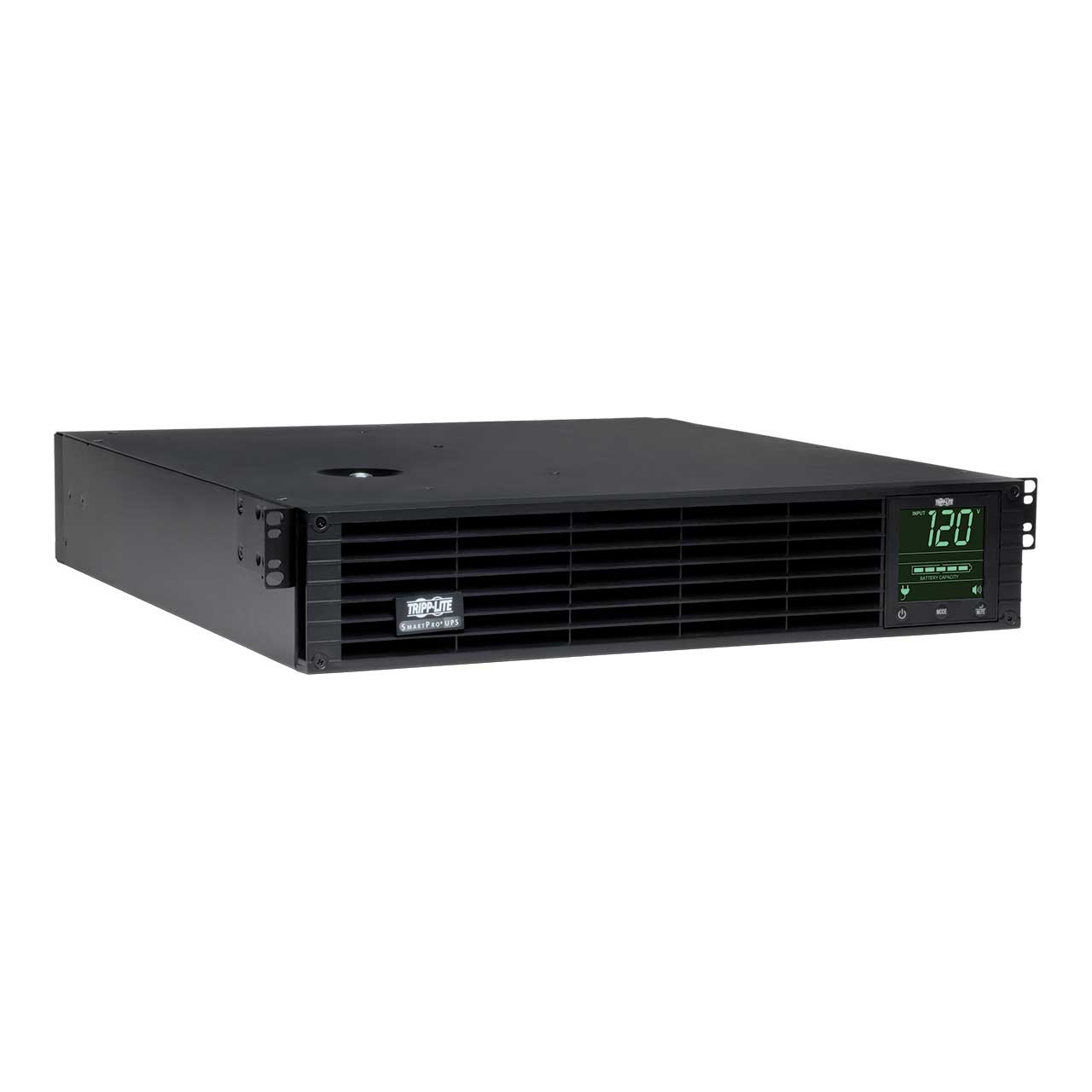

Tripp Lite SM2200RMXL2UPN UPS Smart Rackmount 2200VA 1920W WEBCARDLX LCD AVR 120V USB 2URM

ITEM #: SM2200RMXL2UPN MFG #: SM2200RMXL2UPN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$2,627.00

Our Price:

$1,750.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    SM2200RMXL2UPN - Overview

    2.2kVA/1.92kW/120V Battery Backup for PC Networks, Security Systems or Digital Signage
    The SmartPro® line-interactive Tripp Lite SM2200RMXL2UPN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup with 0.9 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.

    Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
    Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the field-replaceable, hot-swappable internal battery should keep a half load (960W) powered as long as 12 minutes and a full load (1920W) up to 4.5 minutes. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP48V27-2US (sold separately).

    8 NEMA Outlets Protect Your Connected Components
    Four 5-15R and four 5-15/20R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.

    Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
    AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SM2200RMXL2UPN can correct brownouts as low as 83V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

    Typical Applications
    Protect your small network server and other network components against power surges, line noise, brownouts, overvoltages and blackouts
    Operate essential equipment during short-term power outages using battery backup power
    Shut down desktop PCs and other equipment without data loss during long-term power outages
    Connect high-end security systems, casino gaming machines or digital signage in a small network

    • Features:

      • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
      • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
      • Maintains continuous 120V nominal output during brownouts and overvoltages
      • Pre-installed WEBCARDLX network interface supports Auto Probe feature

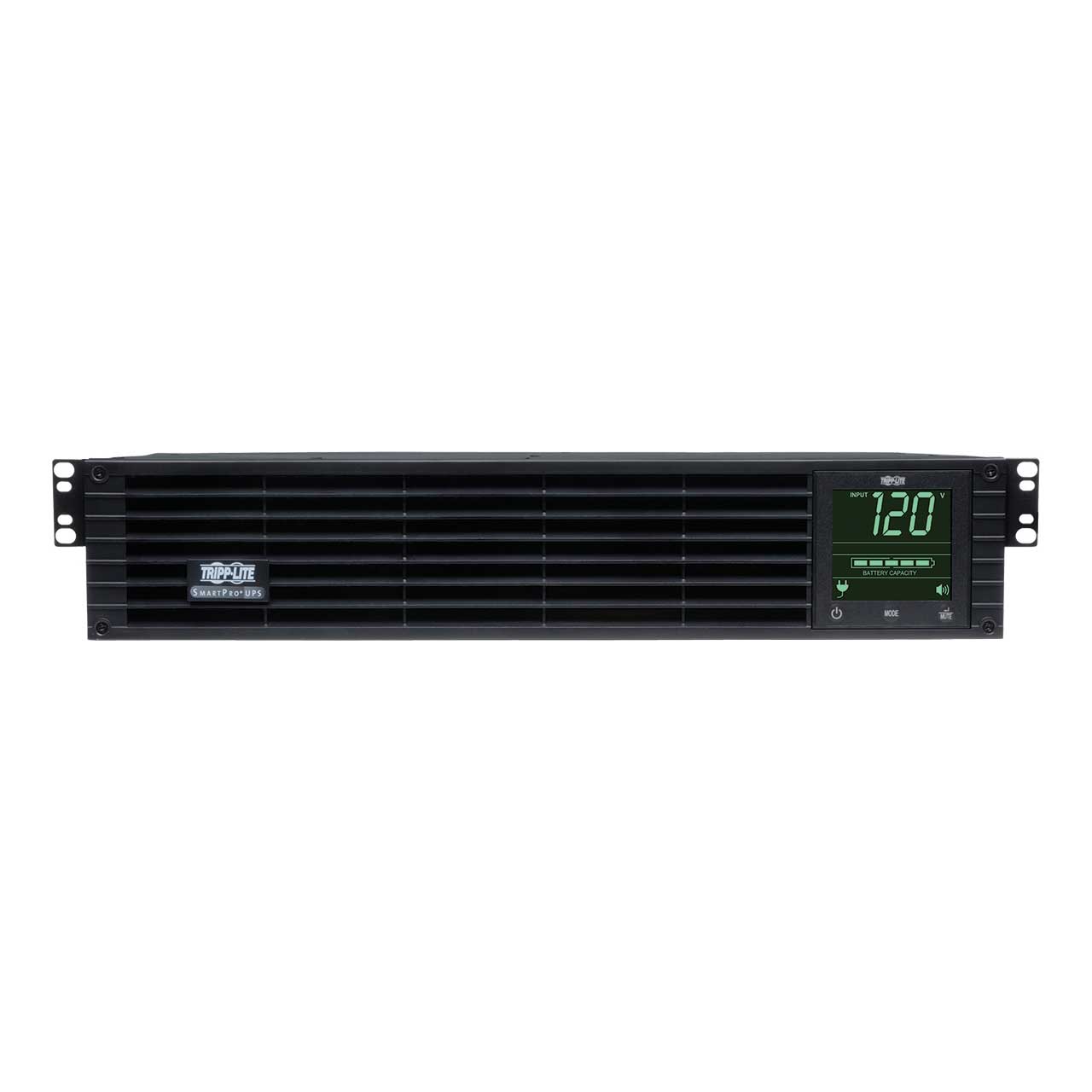

      • Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
      • 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
      • $250,000 Ultimate Lifetime Insurance


    • Specifications:

      • Input
      • Rated input current (Maximum Load): 16A
      • Nominal Input Voltage(s) Supported: 120V AC

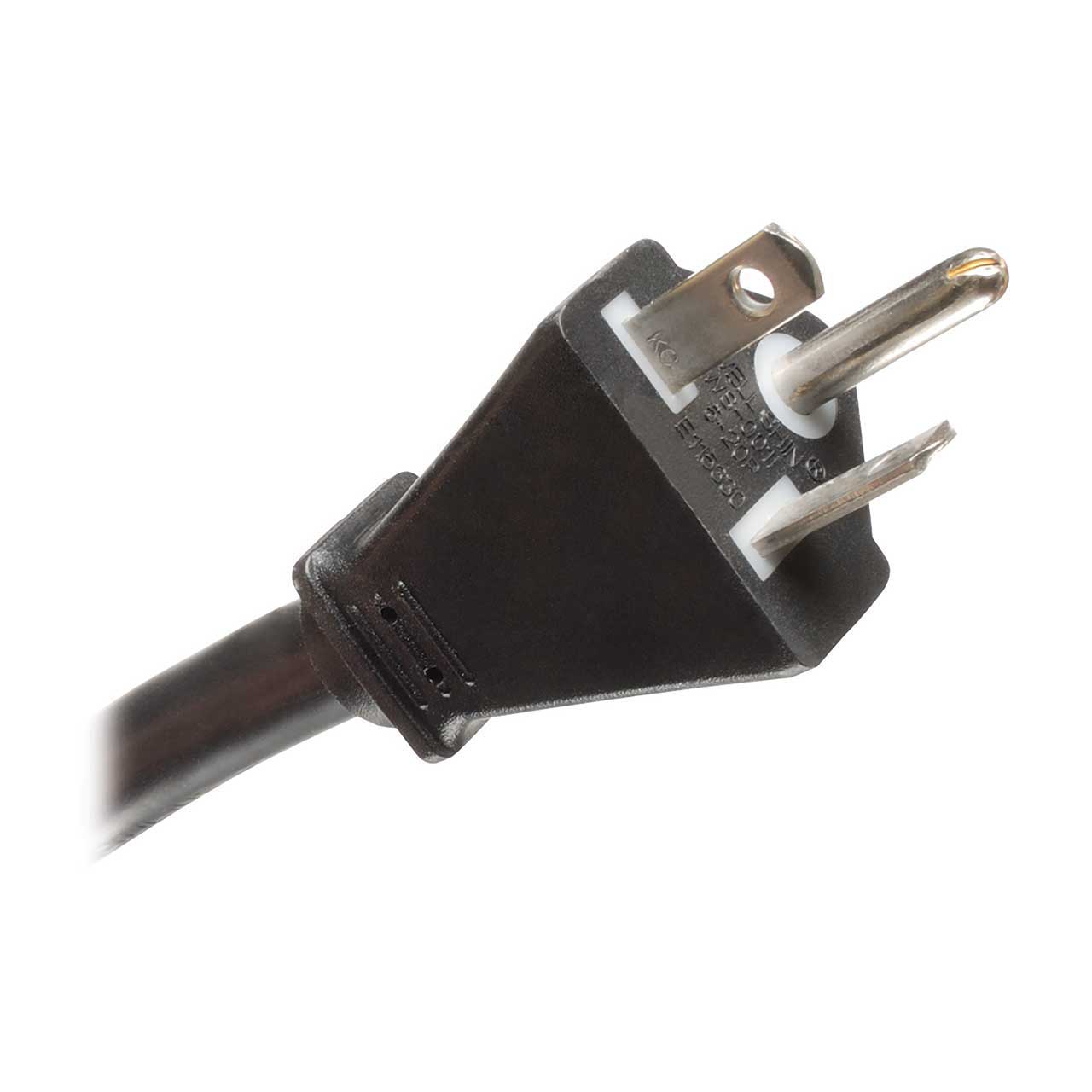

      • UPS Input Connection Type: 5-20P
      • UPS Input Cord Length (ft.): 10
      • Recommended Electrical Service: 20A 120V
      • Input Phase: Single-Phase

        Output
      • Output Volt Amp Capacity (VA): 2200
      • Output kVA Capacity (kVA): 2.20
      • Output Watt Capacity (Watts): 1920
      • Output kW Capacity (kW): 1.92
      • Output Capacity Details: Supports 1920 watts output capacity when used with external battery packs
      • Power Factor: 0.87
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line Mode): -14%, +6%
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Load Management Receptacles: Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
      • Output AC Waveform (AC Mode): Pure Sine wave
      • Output AC Waveform (Battery Mode): Pure Sine wave
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V

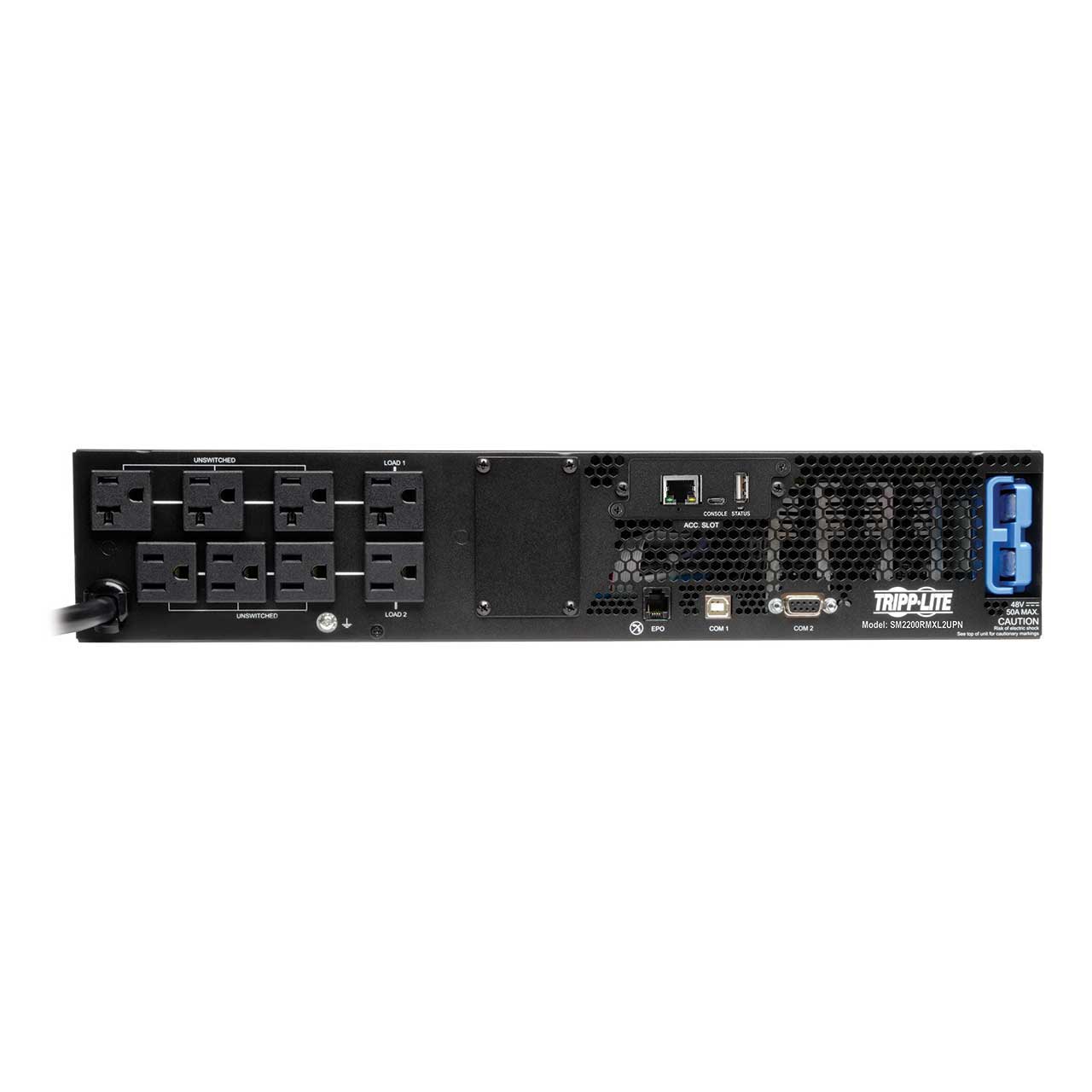

      • Output Receptacles: (4) 5-15R; (4) 5-15/20R
      • Individually Controllable Load Banks: Yes

        Battery
      • Full Load Runtime (min.): 4.5 min. (1920w)
      • Half Load Runtime (min.): 12 min. (960w)
      • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
      • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge: RBC94-2U
      • Battery Access: Front panel battery access door
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Expandable Runtime: Yes

        Voltage Regulation
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains regulated line power output with an input voltage range of 83 and 145
      • Overvoltage Correction: Voltage reduction of 12% applies when input is between 127 and 145
      • Undervoltage Correction: Voltage boost of 12% applies when input voltage is between 96 and 108
      • Severe Undervoltage Correction: Voltage boost of 24% applies when input voltage is between 83 and 95

        Surge / Noise Suppression
      • UPS AC Suppression Joule Rating: 570
      • UPS AC Suppression Response Time: Instantaneous
      • EMI / RFI AC Noise Suppression: Yes

        Physical
      • Cooling Method: Fan
      • Minimum Required Rack Depth with External Battery Pack (cm): 66
      • Minimum Required Rack Depth with External Battery Pack (in.): 26
      • Minimum Required Rack Depth without External Battery Pack (cm): 62
      • Minimum Required Rack Depth without External Battery Pack (in.): 24.5
      • Rack Height: 2U
      • Shipping Dimensions (hwd / in.): 8.80 x 21.70 x 24.00

        Environmental
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
      • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 250
      • Battery Mode BTU / Hr. (Full Load): 980
      • AC Mode Efficiency Rating (100% Load): 96%
      • Audible Noise: 45 dBA maximum, front side 1m

        Line / Battery Transfer
      • Transfer Time: 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)
      • Low Voltage Transfer to Battery Power (Setpoint): 83
      • High Voltage Transfer to Battery Power (Setpoint): 145

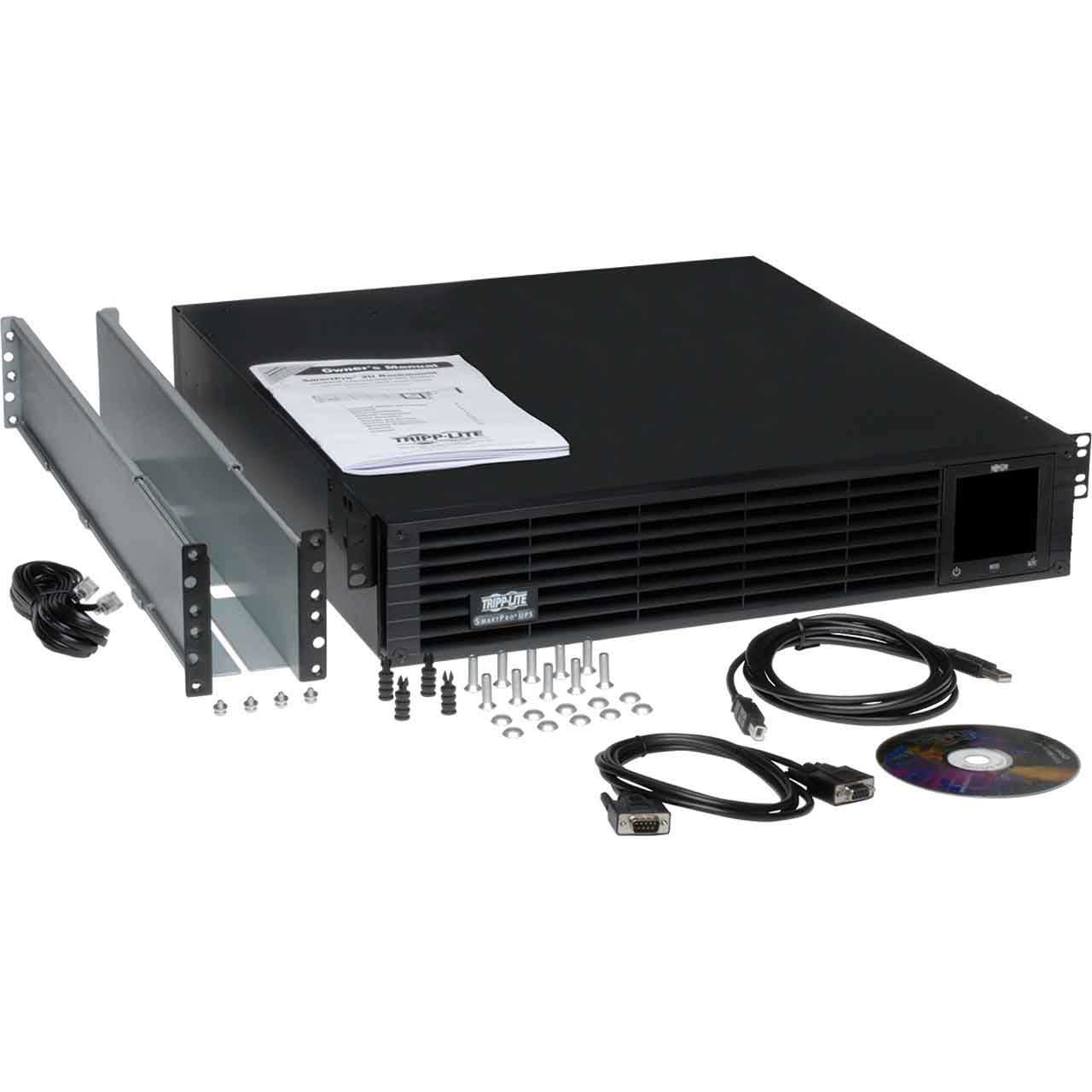

    • Item Includes:

      • 1x SM2200RMXL2UPN 120V 2200VA 1920W Line-Interactive UPS with 8 Outlets
      • 1x Pre-installed WEBCARDLX network management card
      • 1x USB cable
      • 1x DB9 cable
      • 1x EPO cable
      • 1x Rack-mounting hardware
      • 1x Owner's manual


    • GTIN:

      0037332257819
