Patton SN4141/8JS8V/EUI SmartNode VoIP Gateway - 8 FXS Ports

ITEM #: SN4141-8JS8V-EUI MFG #: SN4141/8JS8V/EUI

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

SN4141/8JS8V/EUI - Overview

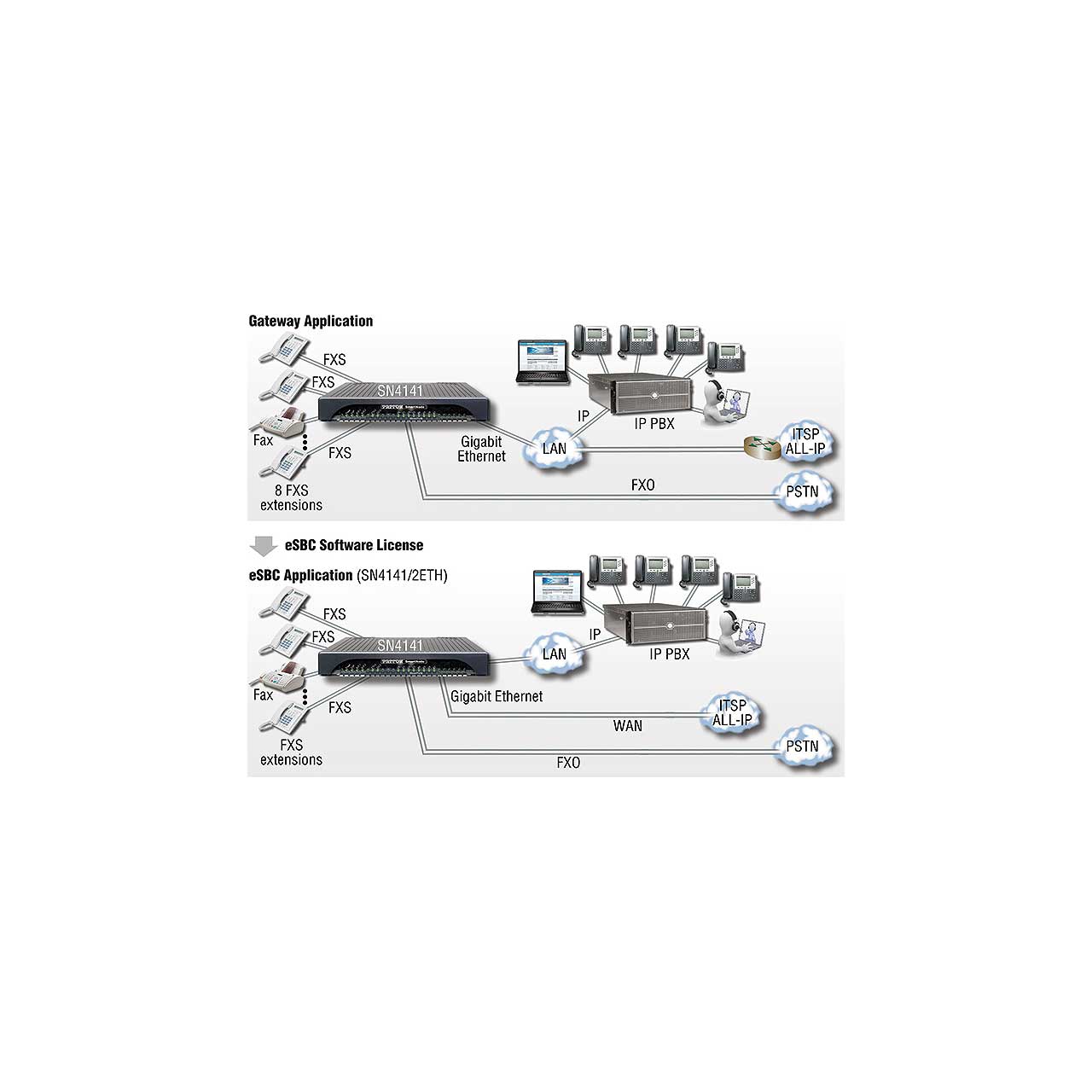

The Patton SN4141-8JS8V-EUI SmartNode 4140 Series of VoIP Media Gateways support up to eight telephone connections integrating legacy equipment into a UCC environment. High quality voice and reliable fax over any IP network. All-IP does not end when analog terminals have to be integrated. Security and quality guaranteed

Pattons SmartNode 4140 Series delivers the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks.

In All-IP networks as well as during the migration to the next generation communication network, legacy telephone equipment will remain for quite some years. The SmartNode 4140 Series will be responsible integrating this equipment at a very low cost for the enterprise. With its modem and fax signal to VoIP conversion capabilities it also helps to solve problems integrating PoS, metering systems, elevator phones, etc., into an All-IP environment.

  • Features:

    • Up to 8 Analog interfaces (FXS)
    • Advanced Local Call Switching
    • Network Monitoring
    • Management & Provisioning

    • Proprietary OS

    • Full VoIP protocol support
    • Survivability & Local Breakout

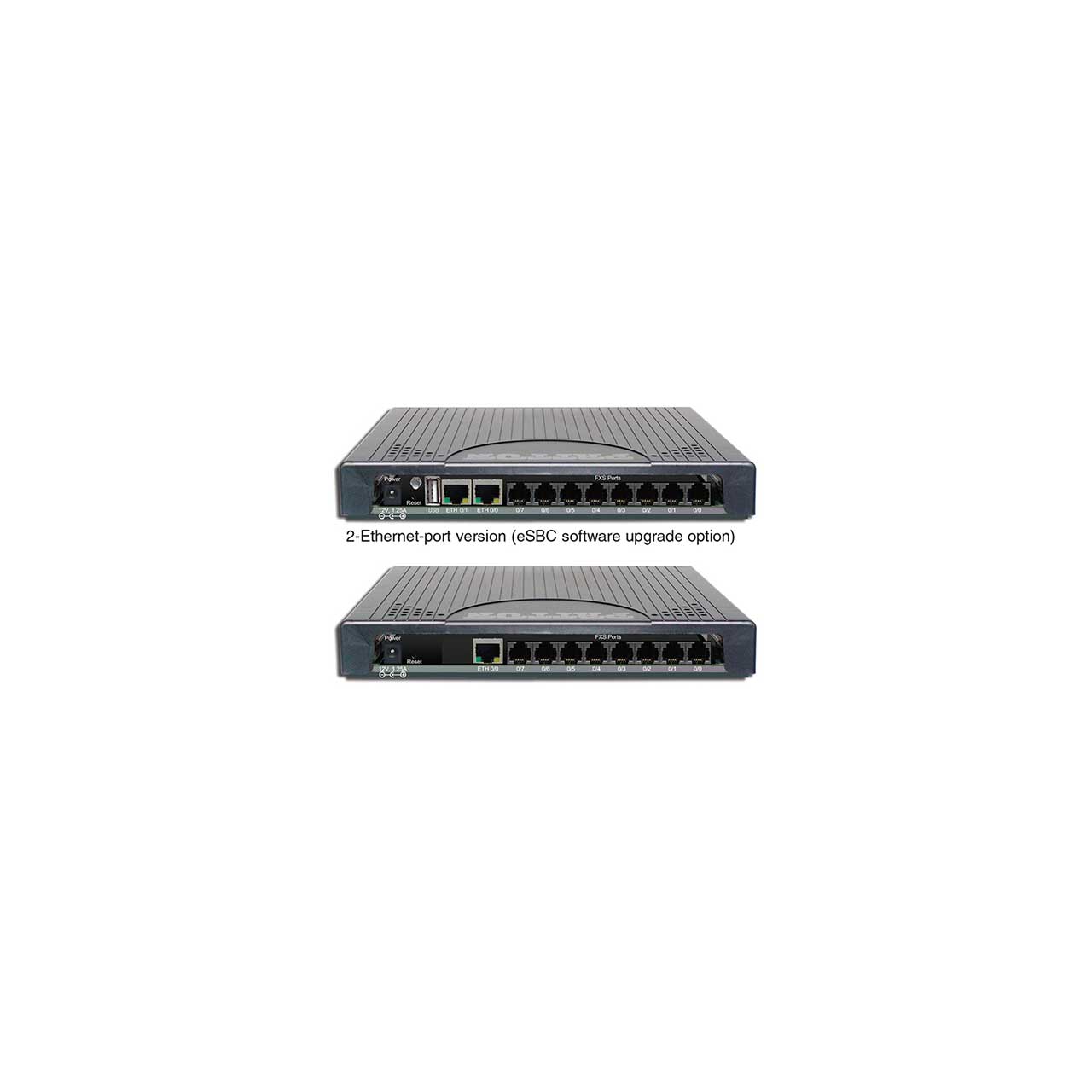

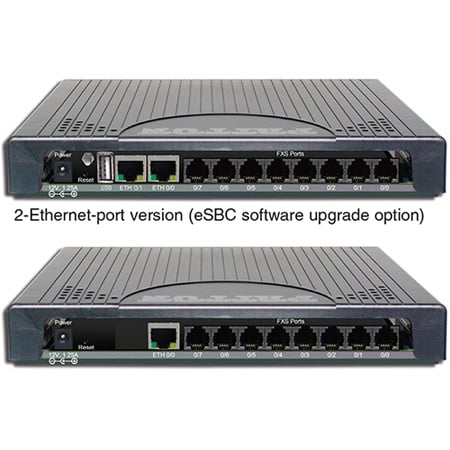

    • Optional eSBC upgrade for FXS VoIP Gateways with 2 Ethernet Ports
  • Specifications:

    • Capacity: Up to 8 simultaneous low- bandwidth voice or HD calls with SRTP or T.38 fax calls
    • Voice Signaling:
      SIPv2 / SIPv2 over TLS(B2BUA capable, multi instance, simultaneous support of multiple
      registrars and direct IP dialing)
      SIPv2 over IPv6
      SIP call transfer, redirect
      DTMF in-band & out-of-band
      All tones programmable (dial, ringing, busy)
    • Voice Processing
      G.723.1 (6.4 kbps)
      G.729, 729a, 729ab (8 kbps)
      G.726 (16 ,24, 32, 40 Kbps)
      AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps)
      iLBC at 13.33 kbps (SIP-SIP only)
      G.168-2004 echo cancellation (128 ms)
      Up to 8 simultaneous low-bandwidth voice or T.38 fax calls
      Up to 8 HD calls with SRTP
      Up to 200 SIP to SIP calls
      Up to 4 SIP transcoded calls
      Silence suppression and comfort noise
      Adaptive and configurabledejitter buffer
      Configurable RTP packet length
    • Call Switching and Services
      Regular expression based call routing and number manipulation
      Number blocking
      Digit collection, distribution and hunt groups
      Transparent line extension
      Fallback Routing: Soft fall back to alternative route(s)
    • FXS Connectivity
      2-wire Loopstart on RJ-11/12
      EuroPOTS (ETSI EG201188)
      Programmable AC impedance, feeding, ring and onhook voltage
      Caller-ID FSK and ITU V.23/Bell 202 generation
      Long Reach FXS 10 km @ 3REN load - 24AWG wire (0.205mm2)
      Secondary Surge Protection (optional)
    • FXO Connectivity
      2-wire Loopstart RJ11/12
      Programmable impedance
      Ring detection, tone detection
      Caller ID detection (FXS, DTMF)
      Disconnect supervision
    • Connectivity
      One or two 10/100/1000Base-T Ethernet ports
      USB 2.0 host port (/2ETH port version only)
      DHCP Client
      PPPoE Client (multi-session)
      IP Multi-Netting, VLAN, Secondary IP
      IPv4 and IPv6 - Dual Stack
      Dynamic and static NAT and NAPT
      ACL, Stateful Firewall
      DNS, DynDNS
      DHCP Server
      SNTP Client
    • Quality of Service
      Patton Cloud network monitoring
      Voice priority, DownStreamQoS™
      Traffic Management, shaping policing
      IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
    • Management
      Patton Cloud Orchestrated
      Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
      TR-069, TFTP, HTTP, HTTPS configuration up- and download
      TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
      SNMPv3 agent - MIB II and private MIB
      Separate config domain (LAN side config and WAN side config)
      Built-in diagnostic tools
      Secure Auto-Provisioning with built in root CA
    • Power Consumption: < 10W
    • Packaging: Desktop/Wall-mount plastic chassis
    • Dimensions: 8.2W x 1.3H x 6.5D Inches
    • Weight: 0.99 Lbs
    • Operating Temperature: 32 to 104°F
    • Operating Humidity: up to 90%, non-condensing)
    • EMC compliance: EN55022 and EN55024
    • Safety compliance: EN 60950
