Sonifex AVN-CU4 4 Mic/Line Input Commentator Unit - Dante

ITEM #: SON-AVN-CU4 MFG #: AVN-CU4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$6,634.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AVN-CU4 - Overview

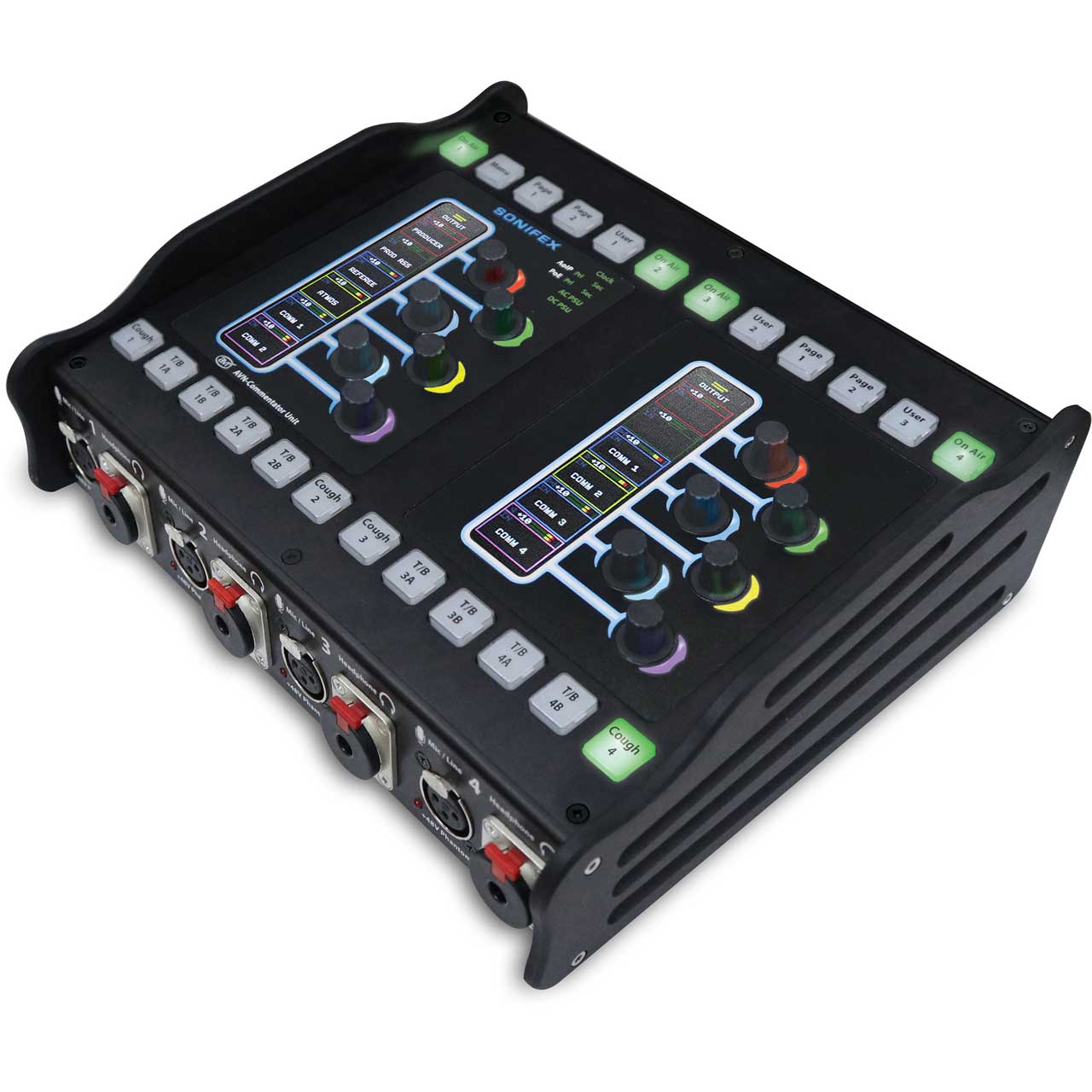

    The Sonifex AVN-CU4-DANTE is a portable commentator unit. Using Dante® AoIP together with 4 wire connections the AVN-CU4-DANTE bridges the gap between old and new technology, allowing the ease of connectivity & functionality of AoIP, together with the legacy connections needed to operate with the existing infrastructure in some stadia and sports grounds.

    This Dante® commentary unit is the same size as the existing Sonifex CM-CU1 single 4-wire unit whilst packing in more features. It's been designed from the ground up to be configurable for different situations with config files that can be saved and recalled for quick setup. Additionally, buttons and rotary encoders can be locked out from use, if the unit is being operated by less-technical commentators. The AVN-CU4-DANTE is a dual version of the AVN-CU2-DANTE providing four mic/line inputs with a wide, adjustable gain range and four stereo headphone outputs with lockable jack sockets, suitable for operation by three or four commentators.

    The unit supports up to 16 input and output AoIP channels and up to 16 simultaneous input and output AoIP streams. Stream setup to and from the unit is initially via Dante® Controller with more detailed configuration performed using the built-in web GUI. The power of this unit lies in the impressive mix engine which overlays the usual Dante® Controller settings. Once Dante® flows have been made, the mix engine allows inputs and outputs to be mixed freely to AoIP or physical inputs and outputs, controlled using the programmable buttons and rotary encoders on the unit. Remote operation of the unit is available using the Web-GUI allowing independent control of it from any network connected area.

    The AVN-CU4-DANTE provides four locking mic/line inputs, each with +48V phantom power indication and a wide, adjustable gain range. It has four stereo headphone outputs with locking 6.35mm jack sockets, suitable for operation by four commentators. It's powered using Power over Ethernet (PoE), using Neutrik EtherCON connectors, with primary and secondary ports for power and data redundancy.

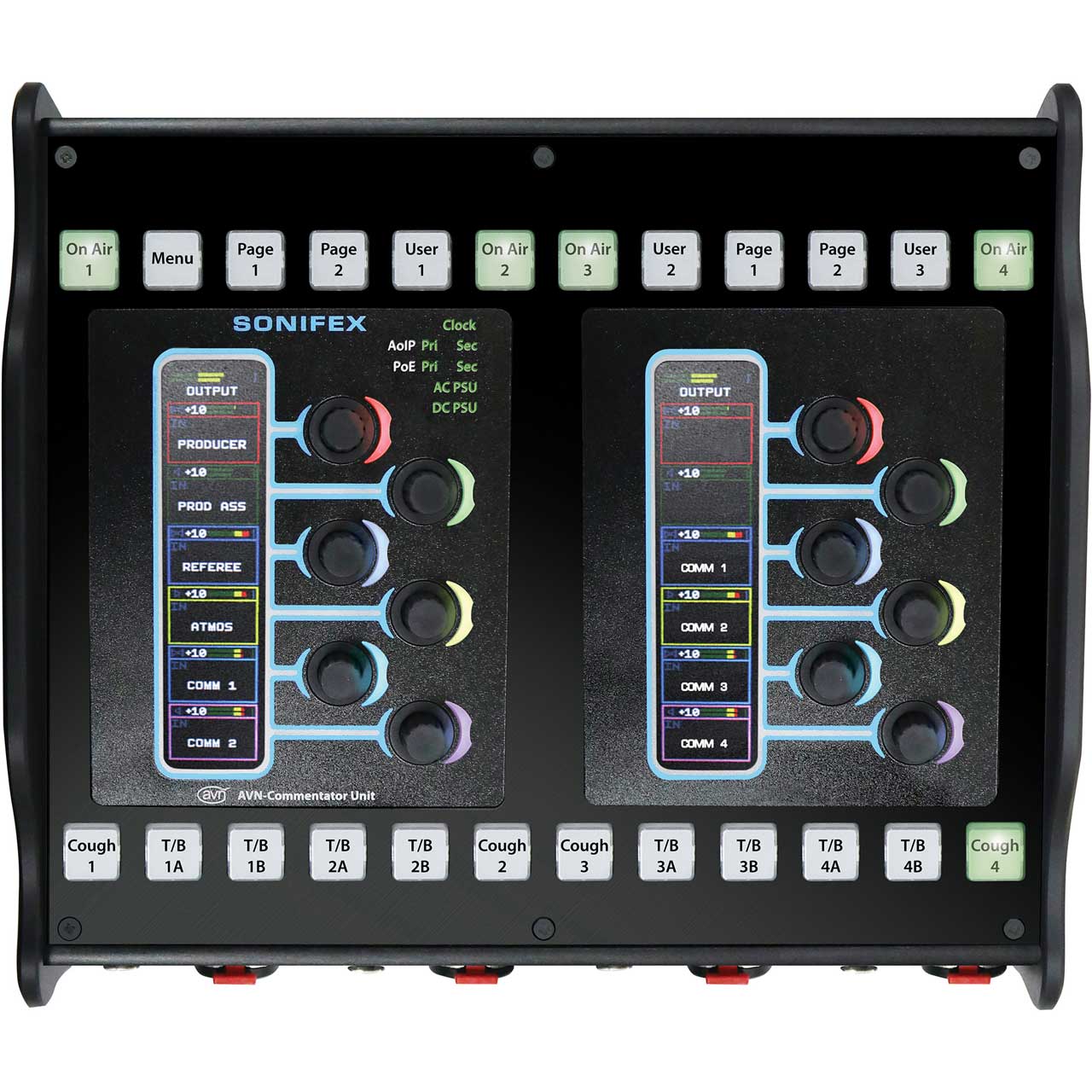

    Each rotary encoder has a separate colour-coded meter section showing the channel name, detailed level metering, left/right panning and a limiter indication, on a bright daylight reading display. Colours can be programmed per encoder to quickly identify particular source groups, so headphone source selection becomes intuitive. Metering is available per input/output, with output metering configurable as pre or post level adjustment. The top of the display shows output metering, a limiter indication and the name of the output. A limiter is available on every output.

    The I/O can be assigned as programme inputs, talkback inputs, mic outputs (line level), PA outputs, zone outputs or talkback outputs, as desired. In addition, the AES/analogue connections can be used as an insert or exit point into/out from the AoIP network. The unit has dual redundant network ports on both RJ45 (PoE using 2 x Neutrik EtherCON® connectors) and SFP cages. There are 10 x configurable GPIO on a 15 way D-type connector with 1 x switched changeover output.

    • Features:

      • 4 x On-air buttons.
      • 4 x Page buttons, 2 for each half of the display.
      • 4 x Cough buttons.
      • 8 x Talkback buttons, up to 4 for each user and
      • 3 x User buttons.

    • Specifications:

      • Network and AoIP
      • AoIP Standard: Dante
      • Number of Channels: 16 receive, 16 transmit
      • Number of Streams: 16 receive, 16 transmit
      • Sample Rate: 48 kHz
      • Format: Linear PCM, 16 or 24 bit
      • AES67 Support: Yes
      • Connectivity: 2 x RJ45 and 2 x SFP
      • Speed: 1Gbps and 100Mbps
      • Network Modes: Switched or redundant
      • Dante Domain Manager Ready: Yes

        Mic/Line Inputs
      • Input Impedance (Mic Mode): 2.5kΩ electronically balanced
      • Input Impedance (Line Mode): >10kΩ electronically balanced
      • Preamp Gain (Mic Mode): User selectable 0dB to 60dB in 3dB steps
      • 0dBFS Line-up (Mic Mode): -58dBu @ Max preamp gain, +2dBu @ Min preamp gain
      • 0dBFS Line-up (Line Mode): User selectable +15dBu / +18dBu / +20dBu / +22dBu / +24dBu = 0dBFS;
      • Frequency Response(Mic Mode): +0/-0.2dB 20Hz to 22kHz Ref 40dB gain @ 1kHz
      • Frequency Response(Line Mode): +0/-0.2dB 20Hz to 22kHz Ref 0dBu @ 1kHz
      • THD+N(Mic Mode): <-90dBFS, -64dBFS, 20Hz - 20kHz, 40dB gain, 20kHz BW
      • THD+N (Line Mode): <-98dBFS, -30dBFS, 20Hz - 20kHz, 20kHz BW
      • Equivalent Input Noise (Mic Mode): 127dB Ref. 60dB preamp gain, Rs = 200Ω
      • Noise(Line Mode): <-110dBFS, 20kHz BW, Rs = 200Ω
      • C.M.R.R.: >60dB

        Stereo Digital Input
      • Input Impedance: 110Ω
      • Supported Input rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz

        Stereo Digital Output
      • Output Impedance: 110Ω
      • Supported output rates: 48kHz

        Analogue Line Inputs
      • Input Impedance: >20kΩ electronically balanced
      • 0dBFS Line-up: User selectable +15dBu / +18dBu / +20dBu / +22dBu / +24dBu = 0dBFS
      • Frequency Response: +0/-0.2dB 20Hz to 22kHz Ref 0dBu @ 1kHz
      • THD+N: <-110dBFS, -30dBFS, 20Hz - 20kHz, 20kHz BW
      • Noise: <-110dBFS, 20kHz BW, Rs = 200Ω
      • C.M.R.R: >60dB

        Analogue Line Outputs
      • Output Impedance: <50Ω
      • 0dBFS Line-up: User selectable 0dBFS = +15dBu / +18dBu / +20dBu / +22dBu / +24dBu
      • Frequency Response: +0/-0.5dB 20Hz to 22kHz Ref 0dBu @ 1kHz
      • THD+N: <-110dBFS, -30dBFS, 20Hz - 20kHz, 20kHz BW
      • Noise: <-110dBFS, 20kHz BW

        Headphone Outputs
      • Drive Capability: Drives 150mW into 32Ω to 600Ω Headphones
      • 0dBFS Line-up: Fixed 0dBFS = +18dBu
      • Frequency Response: +0/-0.2dB 20Hz to 22kHz Ref 0dBu @ 1kHz
      • THD+N: <-108dBFS, -30dBFS, 20Hz - 20kHz, 20kHz BW
      • Noise: <-110dBFS, 20kHz BW

        Front Panel Connections

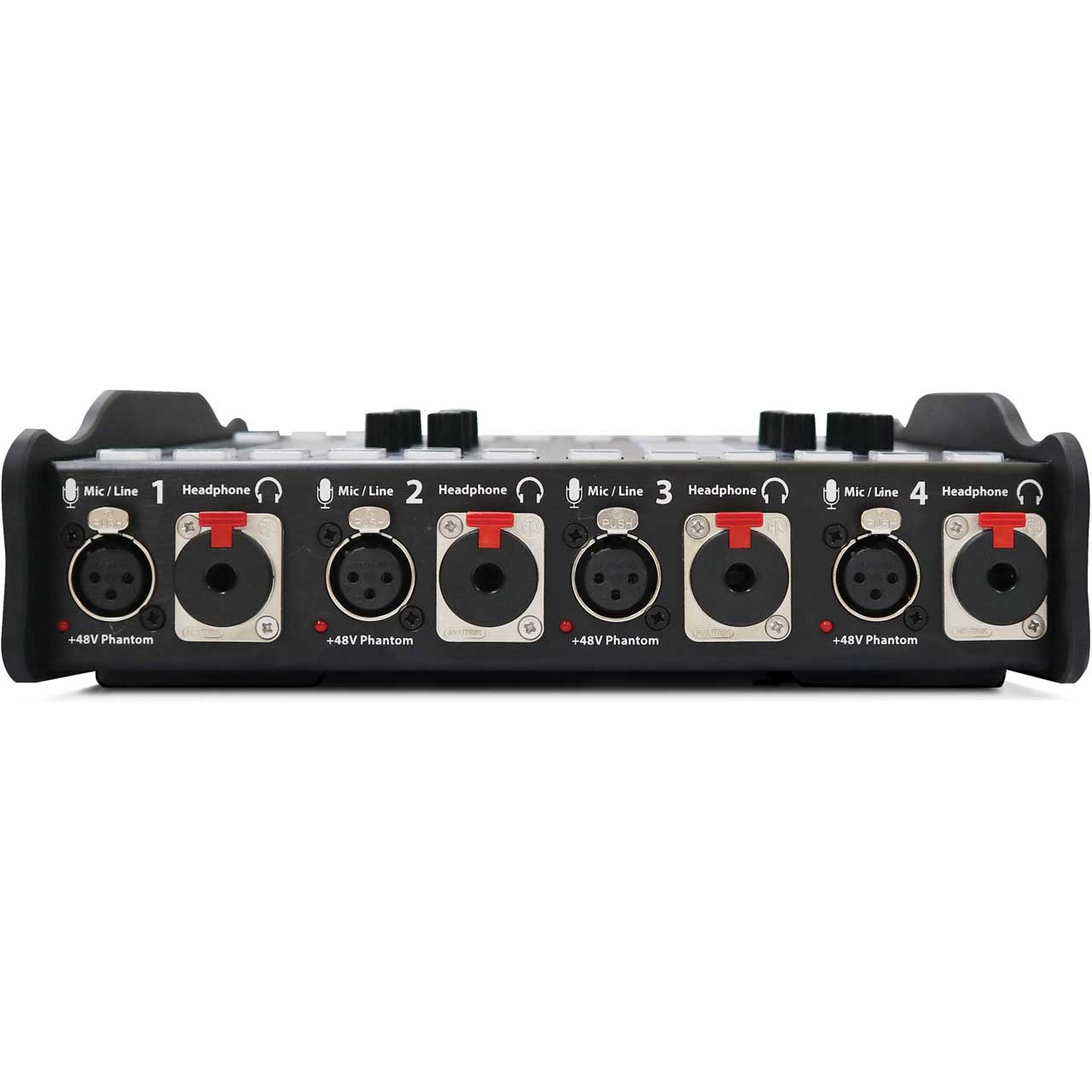

      • Headphone Outputs: 4 x Neutrik 1/4" (6.35mm) locking jack sockets
      • Microphone/Line Inputs: 4 x Neutrik 3 pin latching XLR sockets

        Rear Panel Connections

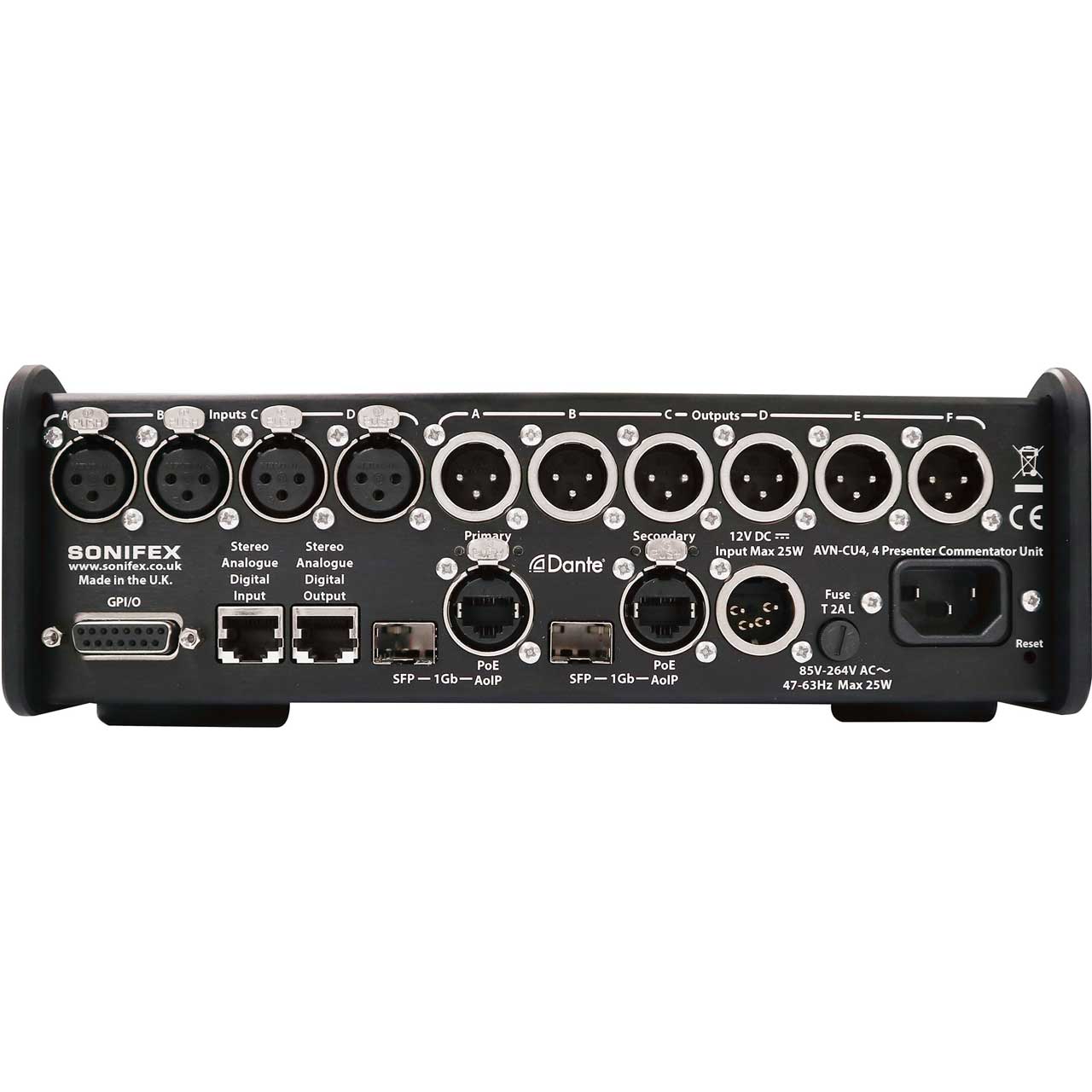

      • Stereo Digital
      • Input: RJ45 socket (electronically balanced)
      • Stereo Digital Output: RJ45 socket (electronically balanced)
      • Analogue Line Inputs: 4 x Neutrik locking XLR sockets
      • Analogue Line Outputs: 6 x Neutrik locking XLR plugs
      • GPIO Port: 15-way `D'-type socket
      • Network: 2 x 1Gbps Neutrik EtherCON receptacles, with PoE, Maximum 12W
      • 2 x SFP slots for alternative interfaces
      • DC Input: Neutrik 4 pin XLR plug, 12VDC, Maximum 12W
      • Mains Input: Filtered IEC, 85 - 264VAC, 47-63 Hz, 60W max
      • Fuse Rating: Anti-surge fuse 2A 20 x 5mm

        Equipment Type
      • AVN-CU4-DANTE AVN Dante commentator unit, 4 commentators

        Physical Specification
      • Dimensions (Raw): 10.1" (W) x 9" (D) x 3.6" (H - max), 2.6" (H - front), 3.5" (H - rear) / 25.7cm (W) x 22.9cm (D) x 9.2cm (H - max), 6.5cm (H - front), 8.9cm (H - rear)
      • Dimensions (Boxed): 14.6" (W) x 14" (D) x 7.5" (H) / 37cm (W) x 35.5cm (D) x 19cm (H)
