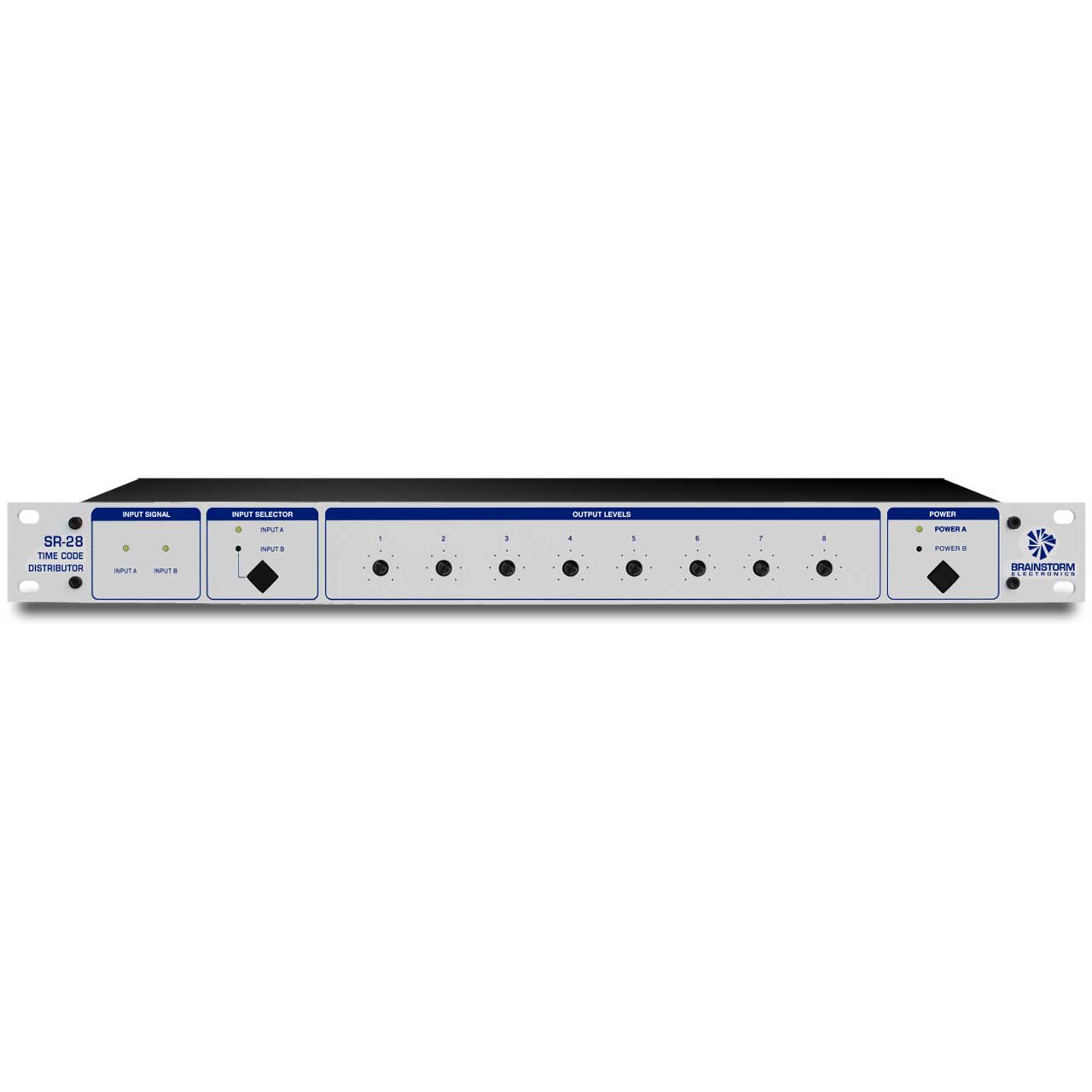

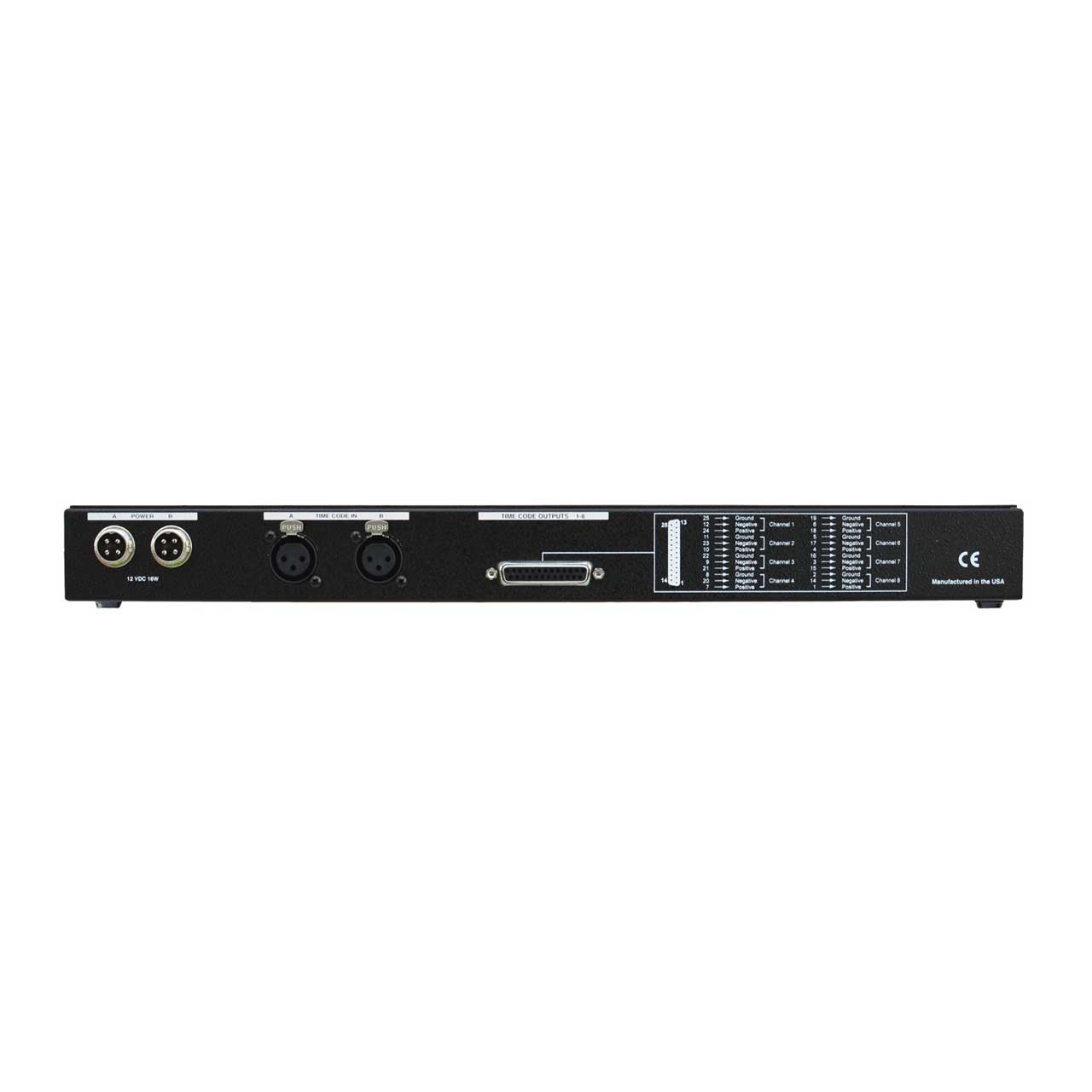

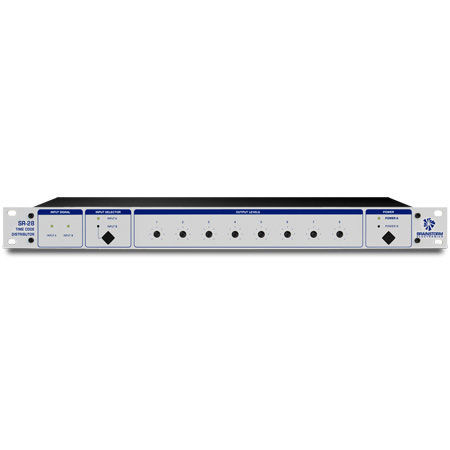

Brainstorm SR-28 2x8 SMPTE/EBU Longitudinal Time Code (LTC) Distributor/Reshaper

Item #: SR-28 MFG #: SR-28

Brainstorm SR-28 2x8 SMPTE/EBU Longitudinal Time Code (LTC) Distributor/Reshaper
  • Product Image Thumbnail
  • Product Image Thumbnail
free ship

Our Price: $549.00


Availability: More on the way, usually ships in 3-10 business days
i

This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    Like it's big brother the SR-112 Distripalyzer, the Brainstorm SR-28 can drive time code over long cables, making it ideal for synchronization during live shows and remote recording. The SR-28 time code distributor, with two inputs and eight outputs, reshapes time code while distributing it, eliminating amplitude distortions and level fluctuations. The level of each output is individually adjustable via front panel pots. The input is selected via a front panel switch. Also included are 2 power inputs and an automatic switch over in case of failure.

    Buffered Outputs.
    Multing a single time code source to multiple destination can cause many problems. The Brainstorm SR-28 eliminates those by distributing time code through balanced and buffered outputs.

    Reshaping vs DA.
    The Brainstorm Time Code Distributors are more than audio DA's: they reshape the signal before distributing it. Audio DA's on the other hand, transfer all distortions and level fluctuations present at the source.

    Low Input Threshold.
    The Brainstorm SR-28 recognizes time code at levels much lower than the threshold of many readers (better than -30db) while still safely above the noise floor. This feature makes it often possible to recover unreadable code by reshaping it, almost as if it was regenerating over drop outs.

    Output Level Adjust.
    Output levels are adjustable individually via front panel pots from full off to +12db. These adjusted levels remain constant regardless of input level fluctuations.

    Switchable Rise Times.
    The output rise time (slew limiting) is switchable between 25?s (SMPTE), 50?s (EBU) and 1?s (square wave, preferred by most readers).

    Cleaning Up Unreadable Time Code.
    By eliminating amplitude distortions and level fluctuations the Brainstorm SR-28 can often recover unreadable code.
    Dual Redundant Power Supply.
    The SR-28 provides 2 power inputs and an automatic switch over in case of failure.

    Live Applications.
    The SR-28 can drive time code over long cables making it ideal for synchronization during live shows and remote recording.
