ShieldRock TWELVE RXRX 12G-SDI Optical Extender Dual Receiver - LC - 6.2 Mile Range

ITEM #: SRK-TWELVE-RXRX MFG #: SRBMC-TWLVRXRX

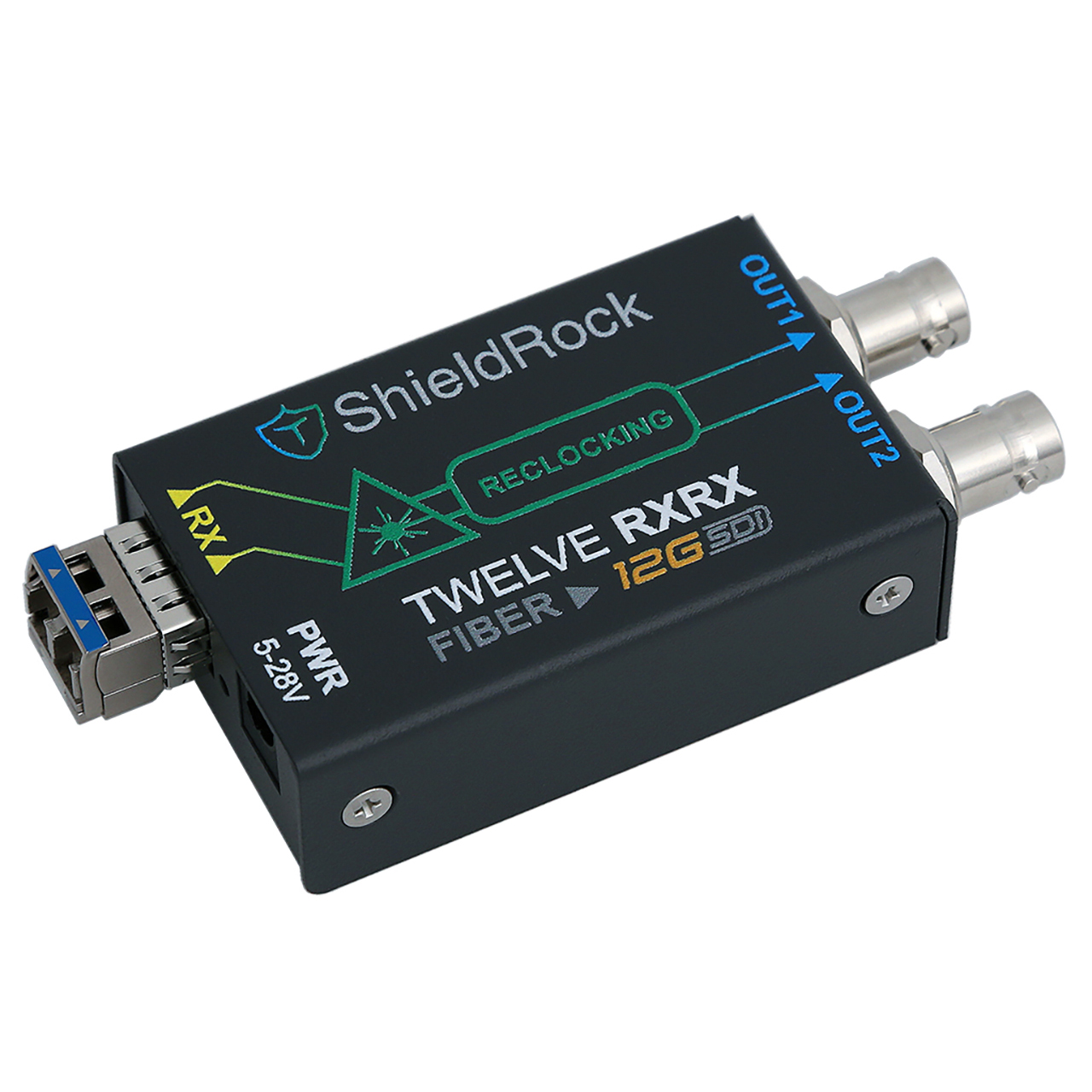

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$895.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SRBMC-TWLVRXRX - Overview

Receive 4K/UHD formats up to 2160p60 over fiber optic cable with the ShieldRock TWELVE RXRX Dual Receiver. The converter includes both equalizing and reclocking functions. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.

  • Features:

    • Receive 4K/UHD formats up to 2160p60 over fiber optic cable
    • Compact and Lightweight
    • Supports AES10 multi-channel (MADI) audio
    • Rugged powder coated aluminum construction

  • Specifications:

    • Video Interface
    • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
    • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

      Video Format
    • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23.98/24/25/29.97/30
    • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
    • SD: 525i29.97 NTSC, 625i25 PAL

      Electrical
    • Input: 5-28 VDC
    • Power: 1.75W max

      Mechanical
    • Dimensions: 3.77" x 1.75" x 0.86" (95.9mm x 44.4mm x 21.9mm)
    • Weight: 0.16 lbs (75g)

  • Item Includes:

    • 1x ShieldRock TWELVE RXRX 12G-SDI Optical Extender - Dual Receiver - LC

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0685239811865
