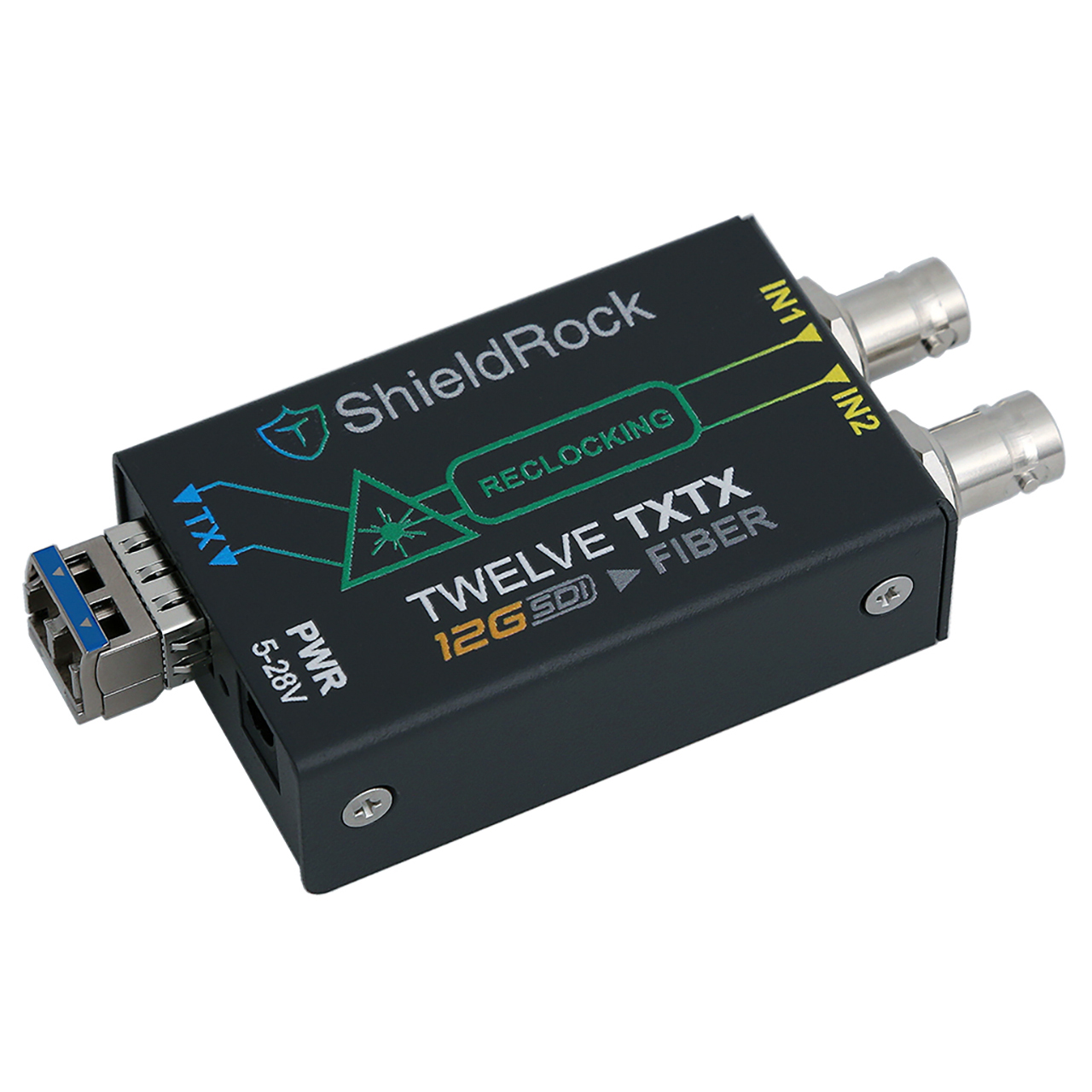

ShieldRock TWELVE TXTX 12G-SDI Optical Extender Dual Transmitter - LC - 6.2 Mile Range

SRBMC-TWLVTXTX - Overview

• Features:

  • Transmit and receive 4K/UHD formats up to 2160p60 over fiber optic cable
  • Compact and Lightweight
  • Supports AES10 multi-channel (MADI) audio
  • Rugged powder coated aluminum construction


• Specifications:

  • Video Interface
  • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
  • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

    Video Format
  • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 1080i: 50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 720p: 23.98/24/25/29.97/30/48/50/59.94/60
  • SD: 525i29.97 NTSC, 625i25 PAL

    Electrical
  • Input: 5-28 VDC
  • Power: 1.75W max

    Mechanical
  • Dimensions: 3.77" x 1.75" x 0.86" (95.9mm x 44.4mm x 21.9mm)
  • Weight: 0.16 lbs ( 75g)


• Item Includes:

  • 1x ShieldRock TWELVETXTX 12G-SDI Optical Extender - Dual Transmitter - LC


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0685239811858
