StarTech ETCHS2UPSU Replacement Redundant 200 Watt Media Converter Chassis Power Supply Module for ETCHS2U

ITEM #: ST-ETCHS2UPSU MFG #: ETCHS2UPSU

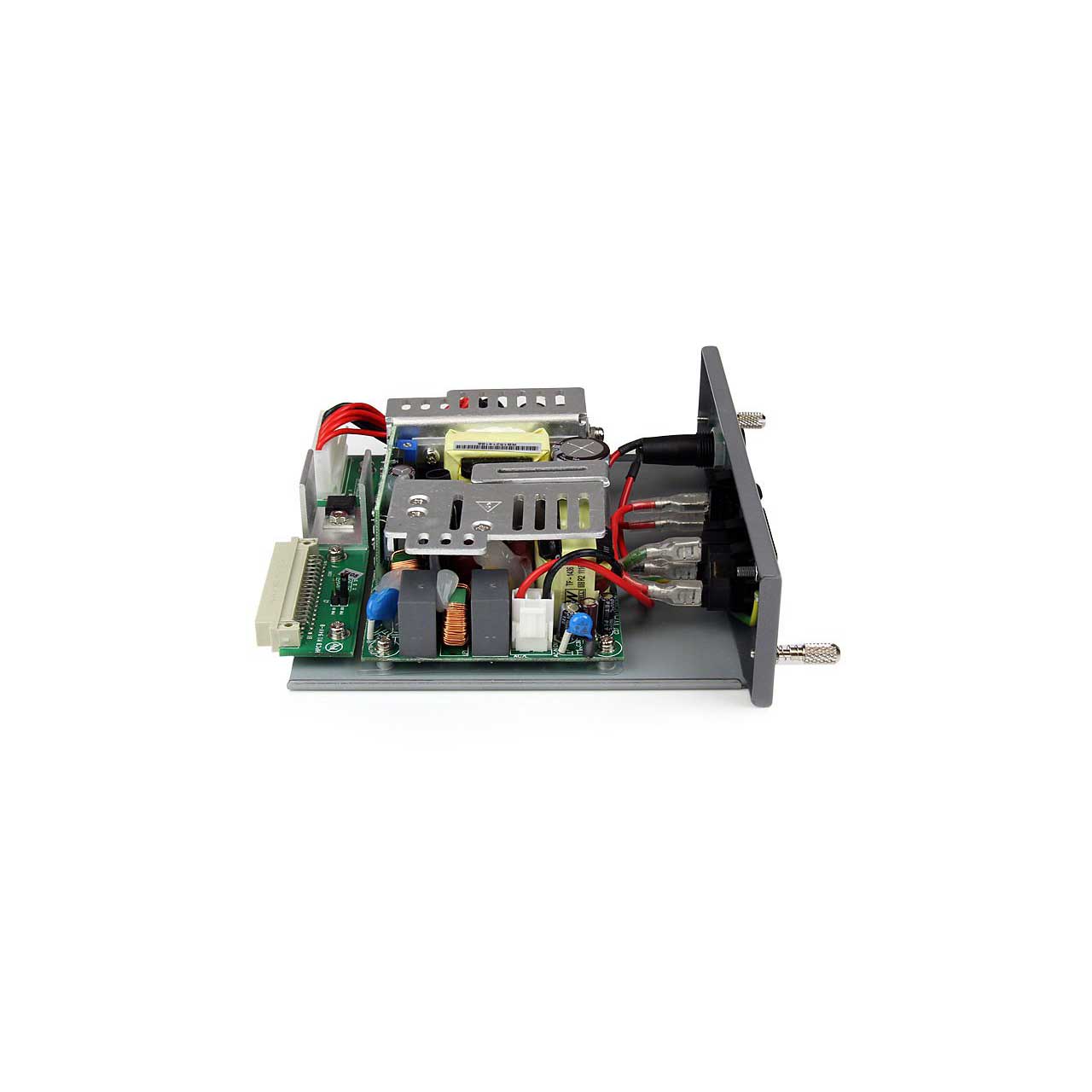

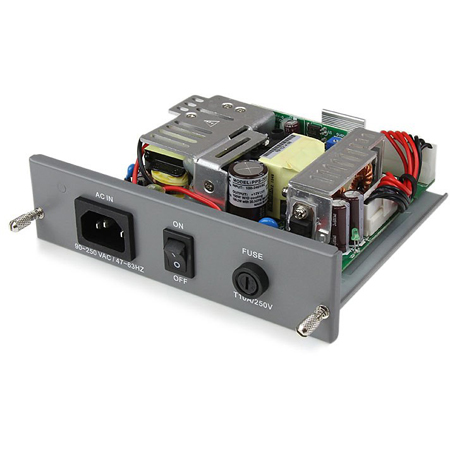

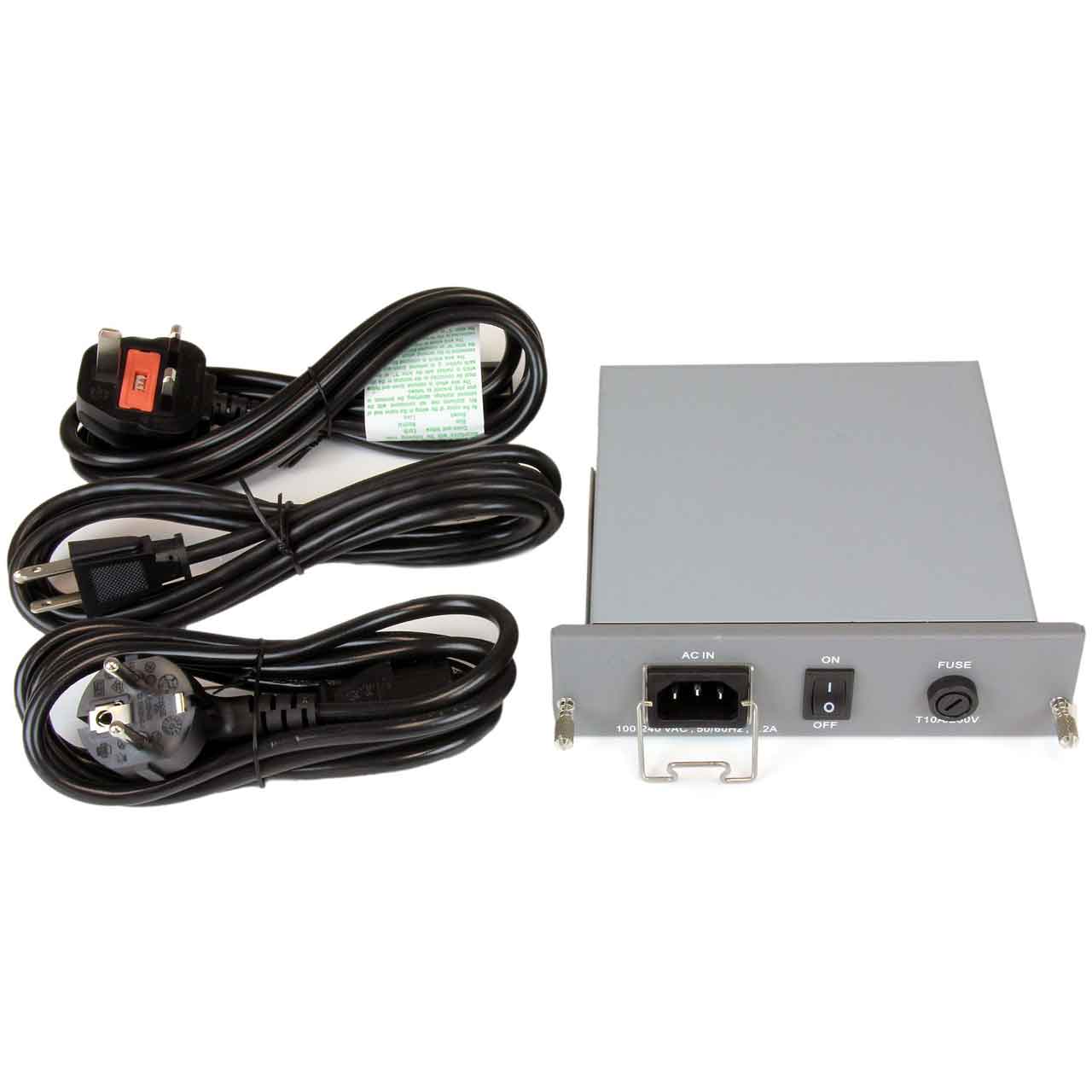

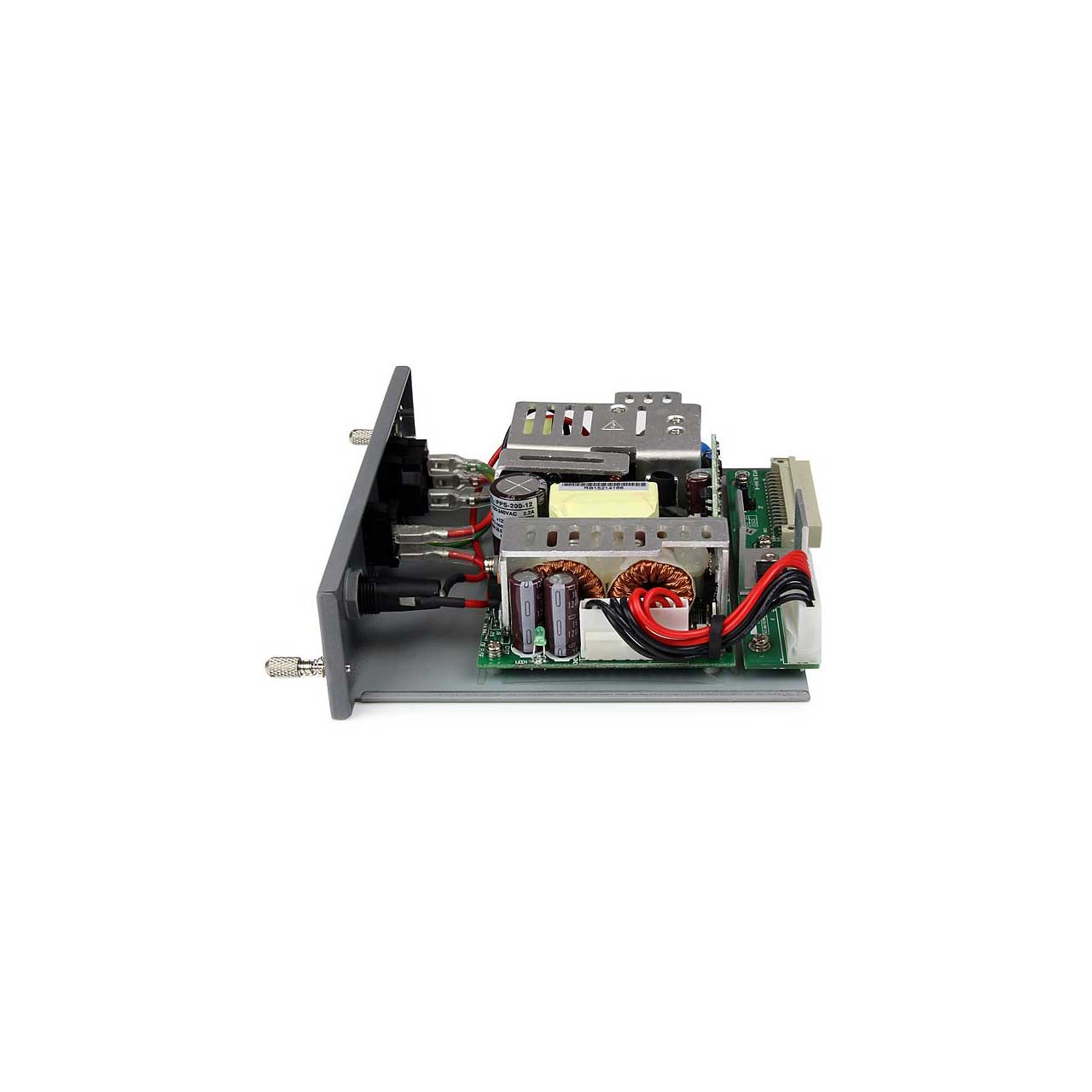

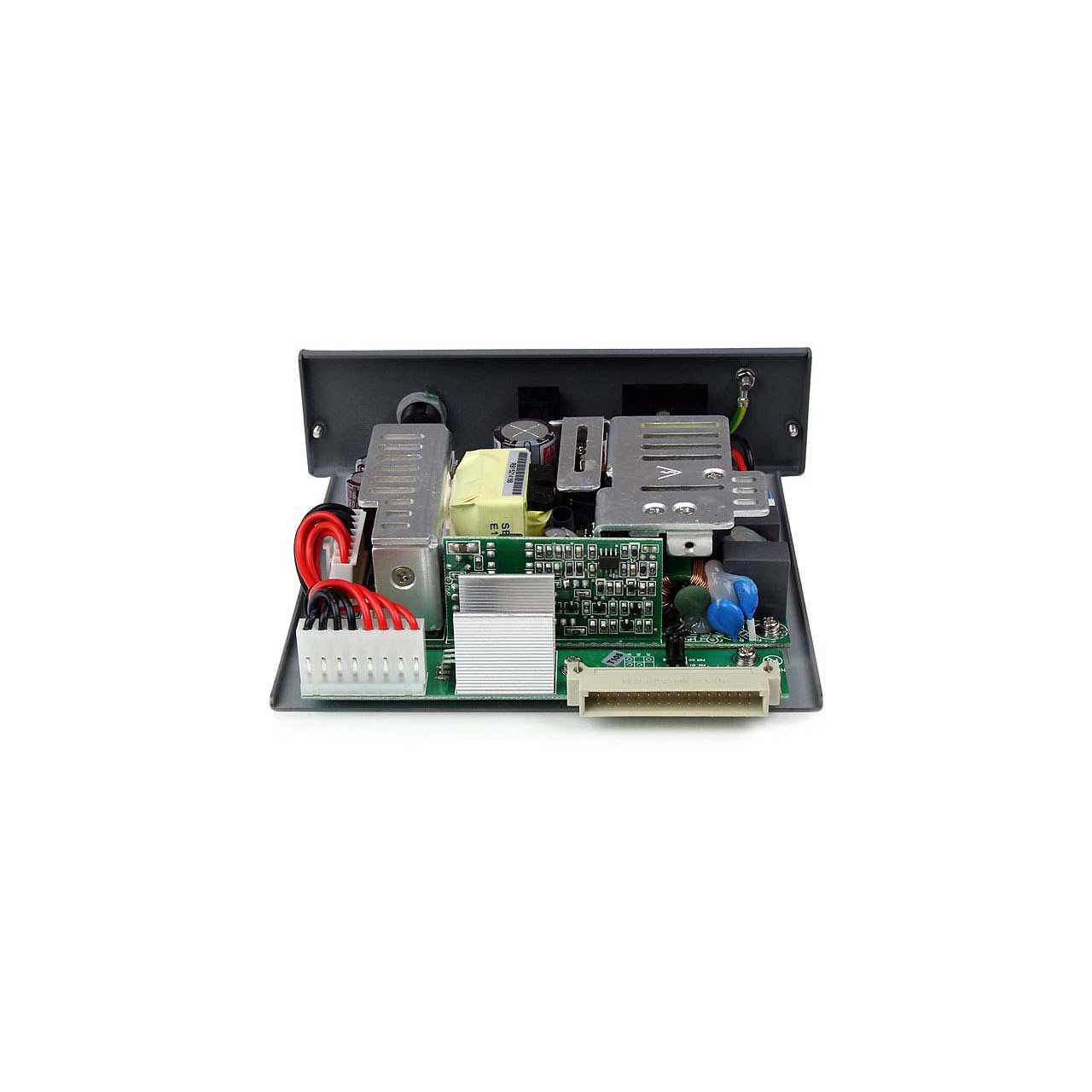

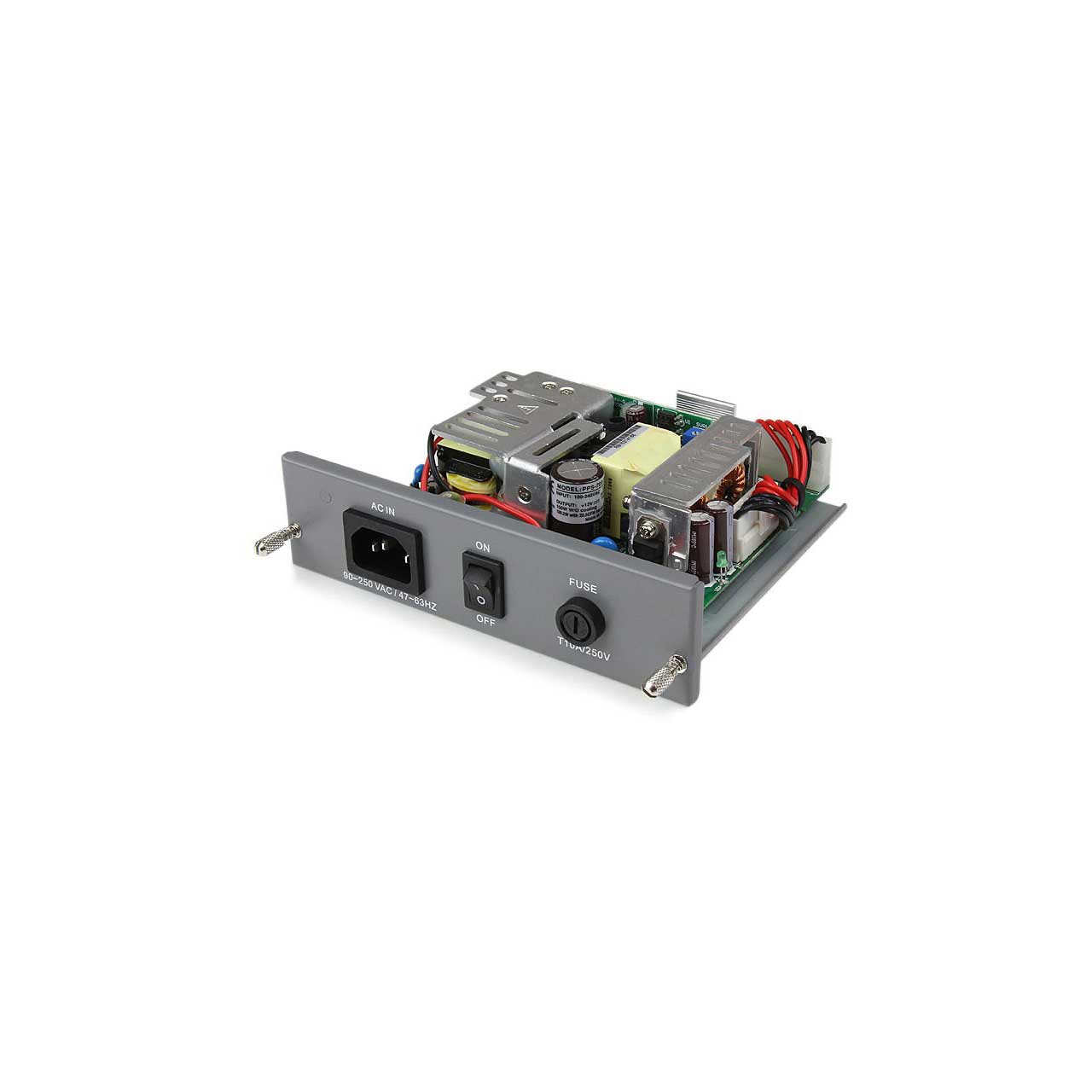

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-ETCHS2UPSU

ETCHS2UPSU - Overview

The StarTech ETCHS2UPSU Redundant / Replacement 200W Chassis Power Module for ETCHS2U lets you add a redundant power supply, or keep a replacement power supply on hand for your ETCHS2U media converter chassis.

A hot-swappable, modular design allows a second media converter redundant power supply to be removed or installed while the chassis is still operating, avoiding unnecessary downtime. The power supply is installed using thumbscrews for a quick and easy installation that doesn't require additional tools.

Backed by a StarTech 2-year warranty and free lifetime technical support.

Applications:
Install into the ETCHS2U media converter chassis to provide redundancy
Store a replacement power supply to have it on hand in the event of a failure

  • Features:

    • Redundant / replacement power supply for ETCHS2U
    • 200W Output
    • Hot-swappable, simple installation
    • Active Power Factor Correction (PFC)


  • Specifications:

    • Performance
    • Output Power: 200W
    • Power Factor Correction: Active
    • Efficiency Rating: 90% (Typical Load)
    • MTBF: 65,000 Hours (25°C)

      Power
    • Power Source: Standard 120V Power Cords
    • Input Voltage: 110V-240V AC
    • Input Current: 2.2A @ 115VAC / 1.2A @ 230VAC
    • Output Voltage: 12V DC
    • Output Current: 16.6A
    • Power Consumption (In Watts): 60

      Environmental
    • Operating Temperature: 32°F to 140°F
    • Storage Temperature: 14°F to 158°F
    • Humidity: 5~90% RH Non-condensing

      Physical Characteristics
    • Color: Gray
    • Material: Steel
    • Product Length: 8.3 in [21.2 cm]
    • Product Width: 8.9 in [22.5 cm]
    • Product Height: 4.7 in [12.0 cm]
    • Weight of Product: 2.2 lb [1.0 kg]

      Packaging Information
    • Package Height: 2.7 in [6.9 cm]
    • Package Length: 14.0 in [35.6 cm]
    • Package Width: 8.4 in [21.4 cm]
    • Shipping (Package) Weight: 3.9 lb [1.8 kg]


  • Item Includes:

    • 1x Replacement 200W Power Module for ETCHS2U


  • Warranty:

    • 2 Years


  • GTIN:

    0065030848282
