StarTech MOD4DOCKACPD Laptop Docking Module for Conference Table Connectivity Box

MOD4DOCKACPD - Overview

• Features:

  • Easily access boardroom or huddle space devices and set up conference calls using applications such as Skype for Business
  • Connect to all your boardroom peripherals from a USB-C or USB-A laptop
  • Power and charge your USB-C laptop with USB Power Delivery 2.0 (up to 60W)


• Specifications:

  • Hardware
  • 4K Support: Yes
  • Bus Type: USB-C
  • USB 3.0
  • Chipset ID:
  • DisplayLink - DL-6950
    Genesys Logic - GL850G
    Texas Instruments - TPS65982
    Parade Technologies - PS176
    VIA Labs - VL813
    Realtek - RTL8153
  • Displays Supported: 1
  • Fast-Charge Port(s): Yes
  • Industry Standards:
  • USB Power Delivery Specification Rev. 2.0
    USB Battery Charging Specification Rev. 1.2
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    USB 3.0 - Backward compatible with USB 2.0 and 1.1

    Performance
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
  • Maximum Data Transfer Rate:
  • 5 Gbps (USB 3.0)
    2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions: 3840 x 2160p (4K) @ 30Hz
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes

    Connector(S)
  • 3 - HDMI (19 pin) Female
  • 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
  • 3 - USB Type-A (9 pin) USB 3.0 Female
  • 2 - 3.5 mm Mini-Jack (3 Position) Female
  • 1 - RJ-45 Female
  • 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
  • 1 - USB Type-B (9 pin) USB 3.0 Female

    Software
  • OS Compatibility: Windows® 7, 8, 8.1, 10
  • macOS 10.9 - 10.12, 10.14 - 10.15
  • Chrome OS™ v55+

    Indicators
  • LED Indicators: 1 - Power

    Power
  • Center Tip Polarity: Positive
  • Input Current: 2 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 6 A
  • Output Voltage: 20V DC
  • Plug Type: N
  • Power Delivery: 60W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 20 to 80% RH
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 65°C (-4°F to 149°F)

    Physical Characteristics
  • Color: Black
  • Material: Aluminum and Plastic
  • Height: 2.4" (6.1cm)
  • Length: 4.7" (12cm)
  • Width: 3.7" (9.4cm)
  • Weight: 20.8oz (588g)

    Packaging Information
  • Height: 0.4" (1cm)
  • Length: 9.9" (25.1cm)
  • Width: 8.3" (21.1cm)
  • Weight: 4.6Lbs (2.1kg)

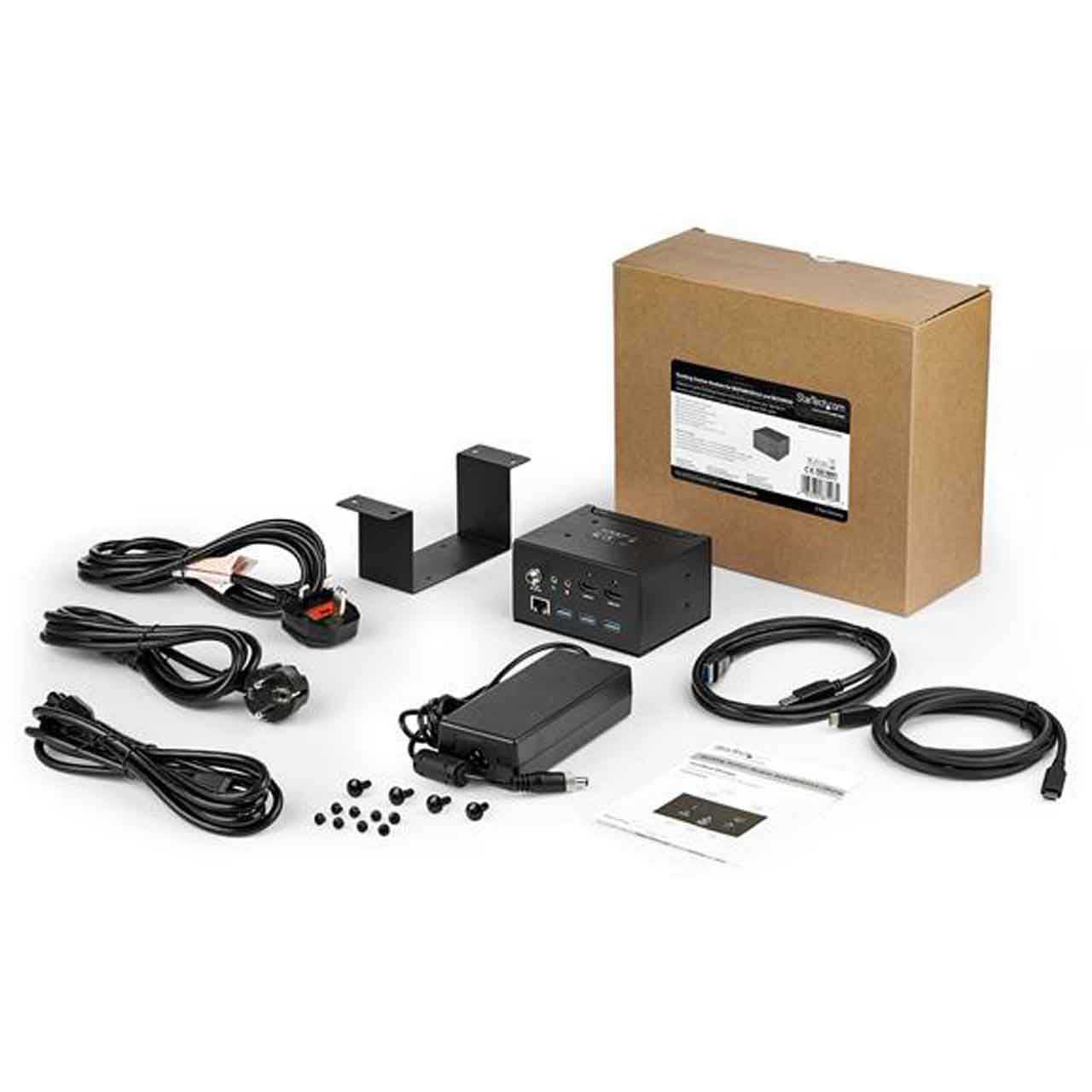

• Item Includes:

  • 1x Docking Station Module
  • 1x Universal Power Adapter
  • 3x Power Cords (NA, EU, UK)
  • 1x USB-A to USB-B cable
  • 1x USB-C cable
  • 1x Mounting Bracket
  • 4x Mounting Bracket Screws (M5 X 20 Mm)
  • 8x Module Screws (#6-32 X 3/16")
  • 1x Quick-Start Guide


• Warranty:

  • 2 Years


• GTIN:

  0065030871075
