Studio Technologies Model 5422-02 Dante Intercom Matrix
  • Studio Technologies Model 5422-02 Dante Intercom Matrix
  • Studio Technologies Model 5422-02 Dante Intercom Matrix
  • Studio Technologies Model 5422-02 Dante Intercom Matrix
  • Studio Technologies Model 5422-02 Dante Intercom Matrix

Questions? Ask a Markertek Expert:
800-522-2025 Email

Studio Technologies Model 5422-02 Dante Intercom Matrix

Item #: ST-MODEL-5422-02   •   MFG #: MODEL-5422-02



List Price:$3,295.00
Our Price:$2,885.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

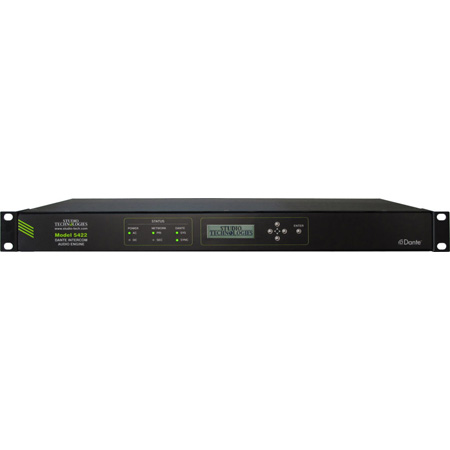

    The Studio Technologies Model 5422-02 Dante Intercom Audio Engine is a high- performance, cost-effective, and flexible solution for creating party-line (PL) intercom circuits when used with Danter-compatible products. These include the Studio Technologies range of 2- and 4-channel intercom beltpacks. The Model 5422 will also prove valuable in a variety of other broadcast-related mixing, IFB (talent cueing), and interfacing applications. The unit is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications. Only power and an Ethernet network connection are required for the Model 5422 to provide a powerful resource in a variety of Dante applications. The Model 5422 is available in two versions - one with 32 input and output channels and the other with 64 input and output channels.

    Applications:

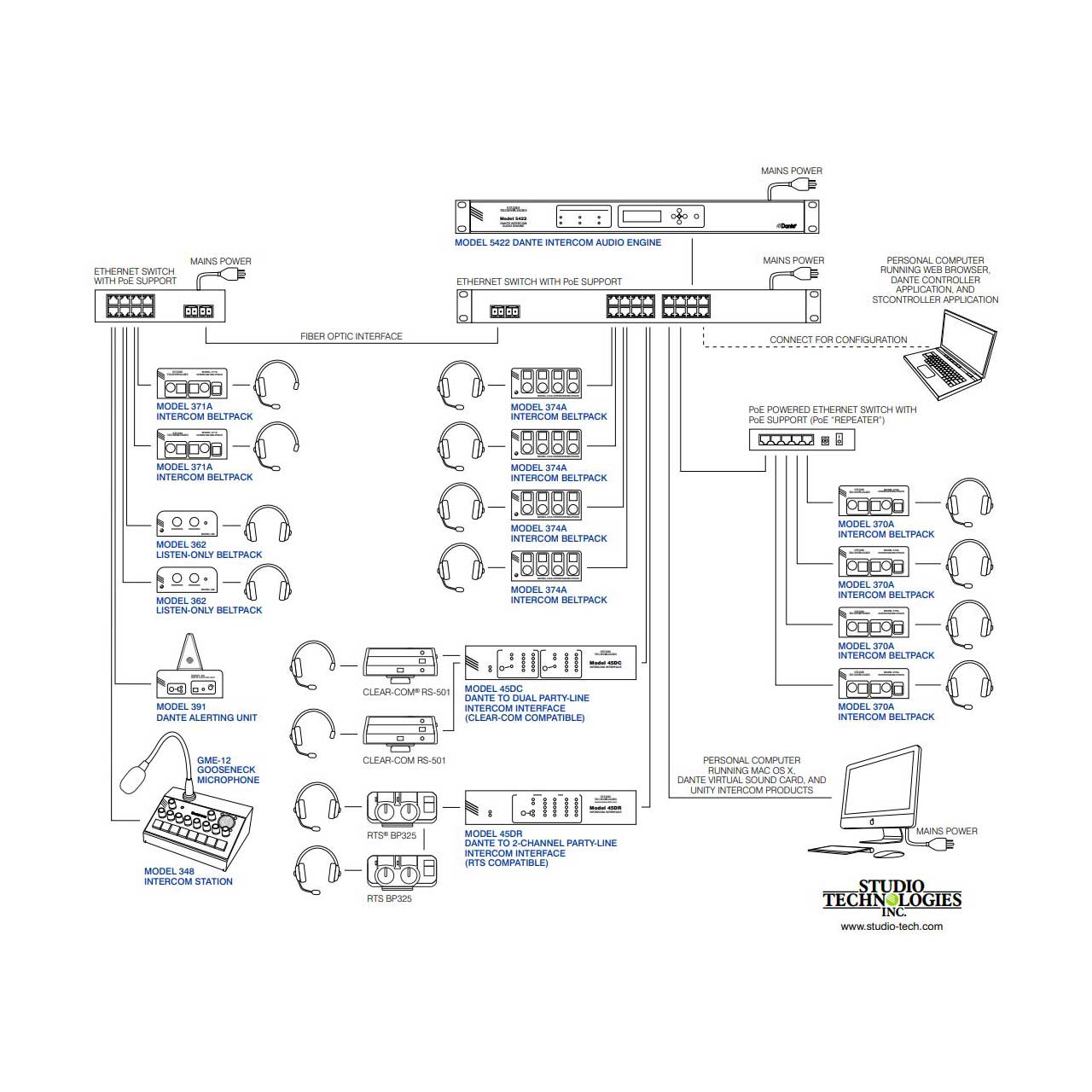

    Designed to create multiple party-line (PL) circuits in Dante audio-over-Ethernet environments. Also provides IFB (talent cueing) capability for Remote Integration (REMI) production environments. Digital summing (mixing) functions for general-purpose applications also available. Special Dante pass-thru mode allows flow-limited and non-AES67-compliant Dante devices to participate in more advanced applications.


    • Features

      • Dante audio-over-Ethernet technology with AES67 support
      • Creates multiple virtual party-line (PL) intercom circuits
      • IFB functions with voice and tone interrupt-audio detection
      • Perfect for REMI (Remote Integration) production applications
      • High-performance, low-latency 32-bit digital audio processing
      • Two versions available: one or two 32-channel audio engines
      • Dual Gigabit Ethernet interfaces allow switched, redundant, and split Dante operation
      • Web-based configuration and software updating
      • AC mains and 12 volts DC powering
      • Lightweight enclosure, single rack-space (1U) mounting

    • Specifications

      • Versions Available:
      • Model 5422-01: one 32-channel Dante audio engine
      • Model 5422-02: two 32-channel Dante audio engines (64 channels total)

        Engine Configuration Options:
      • Group Size: the following group sizes can be selected for each 32-channel audio engine:
      • 32 (one group)
      • 24, 8 (two groups)
      • 20, 8, 4 (three groups)
      • 16, 16 (two groups)
      • 16, 12, 4 (three groups)
      • 12, 12, 4, 4 (four groups)
      • 8, 8, 8, 8 (four groups)
      • 8, 8, 8, 4, 4 (five groups)
      • 8, 8, 4, 4, 4, 4 (six groups)
      • 4, 4, 4, 4, 4, 4, 4, 4 (eight groups)
      • Group Mode: party-line, IFB, summing bus, and pass-thru, selectable by individual group
      • Receiver (Input) and Transmitter (Output) Channel Level Adjustment: ±12 dB, selectable in 1-dB steps

        IFB (Talent Cueing) Support:
      • Voice Detect Operation (VOX):
      • Audio Bandpass: 185 to 1300 Hz, -3 dB
      • Level Threshold: -44 dBFS at 400 Hz
      • Minimum On Time: 385 milliseconds
      • Tone Detect Operation (TOX):
      • Level Threshold: -23 dBFS at 16 kHz; -28 dBFS at 18 kHz; -30 dBFS at 20 kHz
      • Minimum On Time: 80 milliseconds
      • Interrupt Audio Low-Pass Filter: -6 dB at 10 kHz; -28 dB at 16 kHz; -55 dB at 20 kHz
      • Program Audio Attenuation: 0, -10, -15, -20 dB, full mute, configurable

        Network Audio Technology:
      • Type: Dante audio-over-Ethernet
      • AES67-2013 Support: yes
      • Dante Domain Manager (DDM) Support: yes
      • Ethernet Interface Configuration: switched, redundant, or split
      • Clock Source: Dante network or internal (can serve as clock master)
      • Bit Depth: 24
      • Sample Rate: 48 kHz
      • Number of Dante Receiver (Input) Channels: 32 (Model 5422-01), 64 (Model 5422-02)
      • Number of Dante Transmitter (Output) Channels: 32 (Model 5422-01), 64 (Model 5422-02)
      • Number of Dante Flows: 32 transmitter, 32 receiver
      • Internal Digital Audio Processing: 32-bit, fixed
      • Input-to-Output Audio Processing Latency: <100 uSec

        Network Interfaces: 2, Primary and Secondary
      • Type: 1000BASE-T (Gigabit Ethernet ("GigE")) per IEEE 802.3ab (100 Mb/s also supported but not recommended for optimal performance)
      • NIC Status LEDs: one link and one activity for each Ethernet interface

      • Software Updating: internal FTP client supports updating of main and audio processing (FPGA) firmware; Audinate's Firmware Update Manager used for updating Dante interface firmware

      • Front Panel Display: LCD with LED backlighting

        Front Panel LEDs:
      • 6, dual-color
      • Functions: provides indication of condition of incoming AC and DC power, status of Dante connections on Ethernet interfaces, and status of Dante connectivity

        Power Sources:
      • AC Mains: 100 to 240 V, 50/60 Hz, 5 W maximum
      • DC: 10 to 18 V, 0.5 A max

        Connectors:

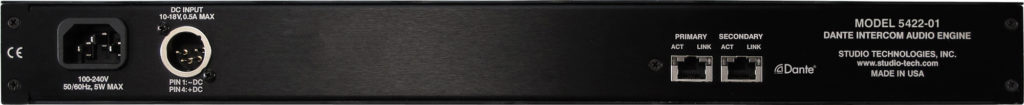

      • Ethernet: 2, RJ45
      • AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with C13)
      • DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)

        General
      • Dimensions (WxHxD): 19 x 1.72 x 7.9" (48.3 x 4.4 x 20.1cm)
      • Mounting: one space (1U) in a standard 19-inch rack
      • Weight: 2.8Lbs (1.3kg)
