Studio Technologies Model 5422A-02 Dante Intercom Audio Engine with 2 Groups of 32 Dante Transmitter & Receiver Channels

ITEM #: STCH-M5422A-02 MFG #: M5422A-02

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: In Stock
iAvailability Description Popup

    M5422A-02 - Overview

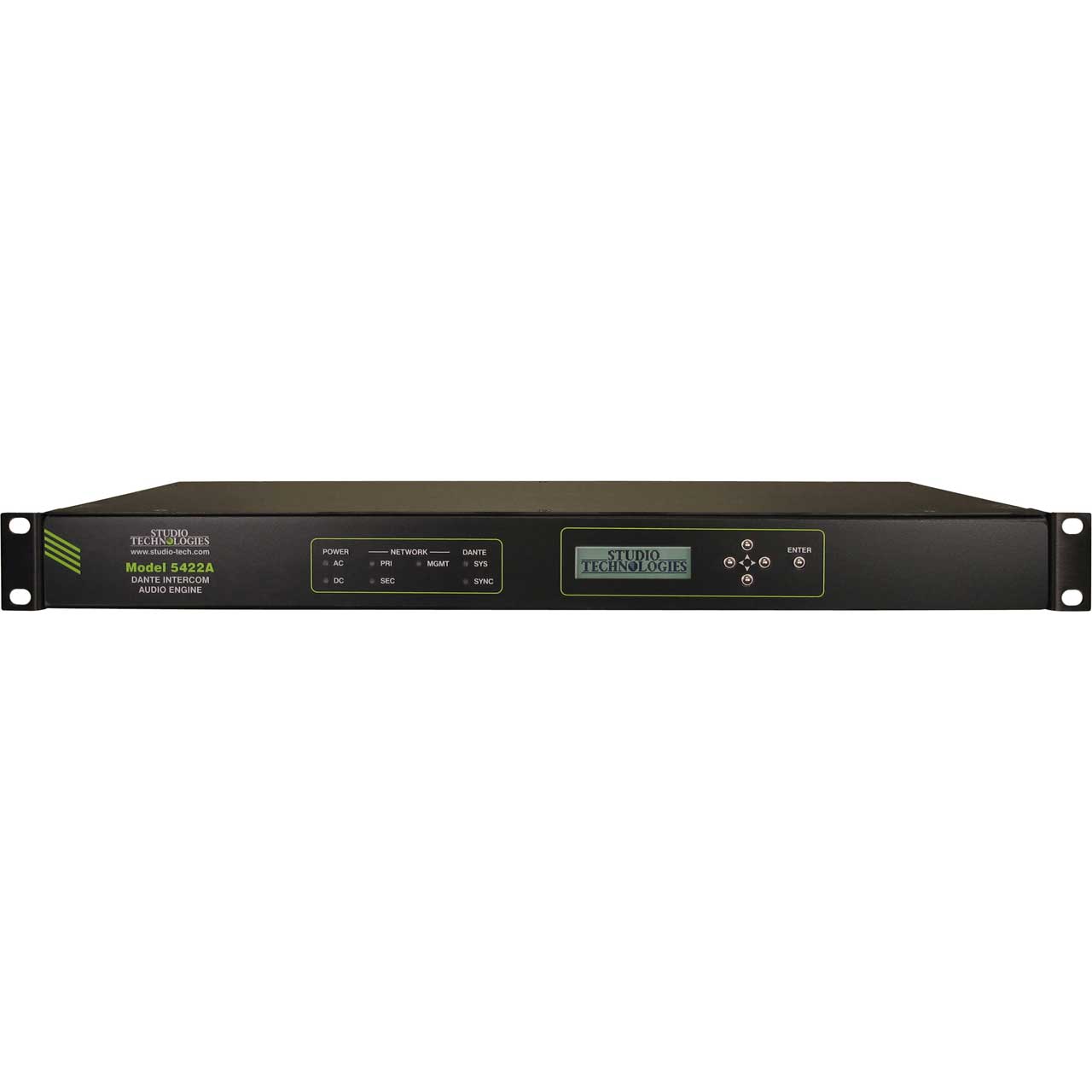

    The Model 5422A provides three Gigabit Ethernet ("GigE") network interfaces, two which can support redundant Dante operation and a third for accessing the management menu system. To meet the latest interoperability standard the unit's Dante implementation meets the requirements of AES67. Support for the Dante Domain ManagerT (DDM) software application is also provided. An integral web server allows fast and flexible configuration of the unit's audio, networking, and Dante performance. Front-panel indicators, a graphics display, and pushbutton switches provide personnel with direct access to key operating parameters. The Model 5422A can be powered by 100-240 V, 50/60 Hz mains or a source of 12 volts DC. The lightweight enclosure mounts in one space (1U) of a standard 19-inch rack.

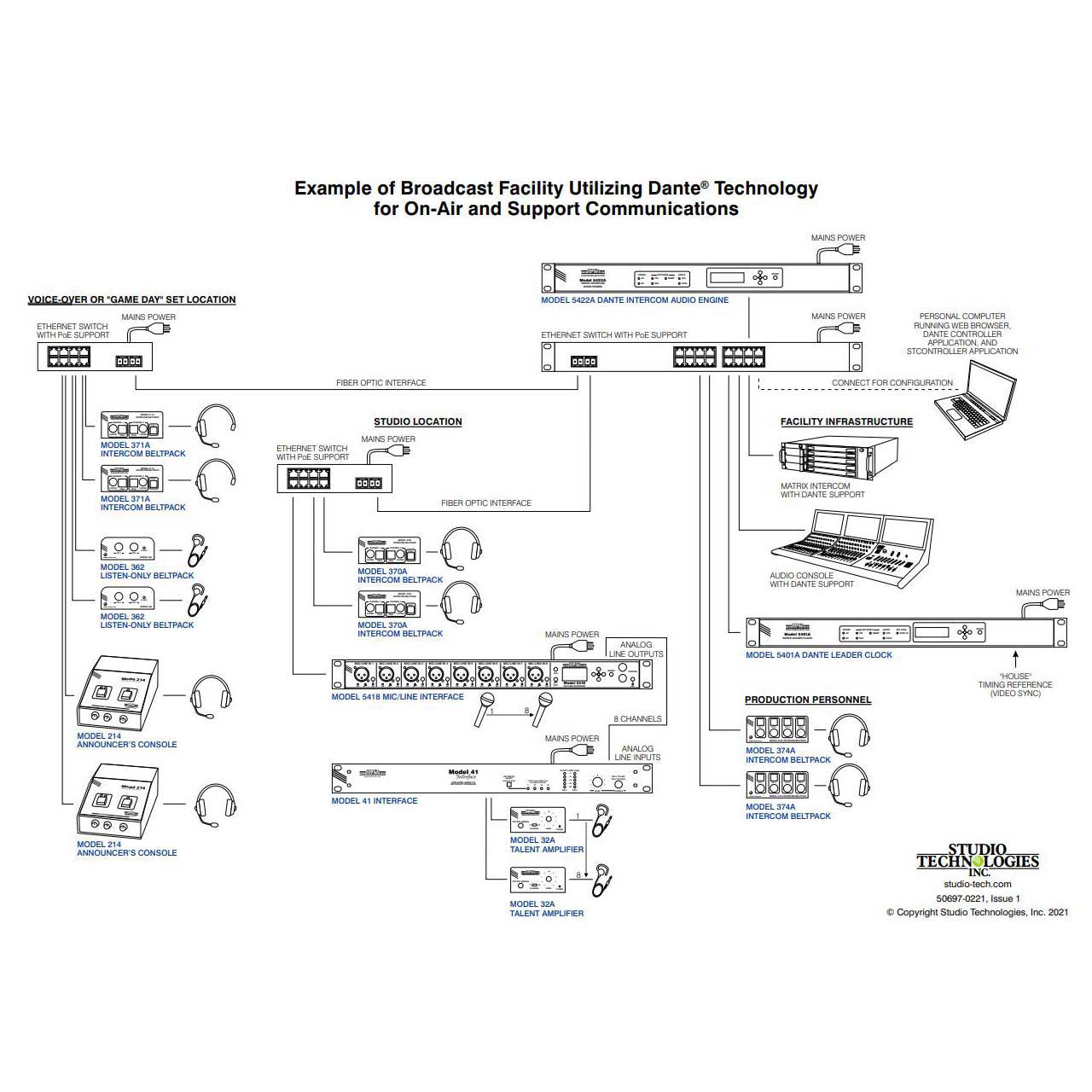

    The Model 5422A is compatible with many Dante-compliant devices including the extensive range of intercom beltpacks from Studio Technologies. These include the single-channel/dual-listen Model 372A and Model 373A, the 2-channel Model 370A and Model 371A, and the 4-channel Model 374A. The Model 5422A will also function directly with other Dante-supporting devices such as the Model 348 Intercom Station and Model 391 Dante Alerting Unit. In addition, the Model 5422A can function with matrix intercom systems, audio consoles, and wireless intercom base stations.

    Pro Audio Quality and Auto Mix
    The Model 5422A supports 24-bit, 48 kHz sampling rate digital audio signals that interface using Dante. The unit's audio circuitry was designed to meet the demands of professional audio applications, far exceeding the sonic quality of "typical" intercom products. All audio processing is performed using high-speed 32-bit programmable logic. This ensures that the audio performance is excellent, providing the expected benefits of minimal distortion, low noise, high headroom, flat frequency response, and extremely low latency.

    The Model 5422A's Auto Mix function utilizes a sophisticated FPGA-based algorithm to provide enhanced audio intelligibility. This feature is unique to party-line (PL) intercom applications and offers user's the opportunity to obtain the absolutely finest audio performance. Studio Technologies' is confident that the Model 5422A's Auto Mix capability will meet or exceed the automatic mixer performance of virtually all other hardware- or software-based devices.

    Two Versions
    Two versions of the Model 5422A are available. The Model 5422A-01 provides one 32-channel audio engine. The Model 5422A-02 provides two 32-channel audio engines for a total of 64 input and output channels. The size and scope of a specific application will dictate which Model 5422A version is applicable. The term "audio engine" was selected to describe a set of audio input, processing, routing, and output resources that can be configured to support specific intercom, talent-cueing, and audio routing and control functions. Unlike general-purpose digital matrix devices, the Model 5422A is optimized to allow direct support for these special broadcast and general intercom applications.

    • Features:

      • Dante audio-over-IP technology with AES67 and DDM support
      • Creates multiple virtual party-line (PL) intercom circuits
      • Special audio functions including summing, IFB, and audio switching
      • Auto Mix for enhanced audio performance
      • Perfect for REMI/At-Home production applications
      • Two versions available: one or two 32-channel audio engines
      • Three Gigabit Ethernet interfaces support independent redundant Dante and management networks
      • Webpage management and USB flash drive software updating
      • AC mains and 12 volts DC powering
      • Lightweight enclosure, single rack-space (1U) mounting
    • Specifications:

      • Versions Available:
      • Model 5422A-01: One 32-channel Dante audio engine
      • Model 5422A-02: Two 32-channel Dante audio engines (64 channels total)

        Audio Engine Configuration Options:
      • Group Size: the following group sizes can be selected for each 32-channel audio engine:
      • 32 (one group)
      • 24, 8 (two groups)
      • 20, 8, 4 (three groups)
      • 16, 16 (two groups)
      • 16, 12, 4 (three groups)
      • 12, 12, 4, 4 (four groups)
      • 8, 8, 8, 8 (four groups)
      • 8, 8, 8, 4, 4 (five groups)
      • 8, 8, 4, 4, 4, 4 (six groups)
      • 4, 4, 4, 4, 4, 4, 4, 4 (eight groups)
      • Group Modes: Party-Line w/Auto Mix, Party-Line, Summing Bus w/Auto Mix, Summing Bus, IFB, Audio Switching, and Pass-Thru, selectable by individual group
      • Receiver (Input) and Transmitter (Output) Channel Level Adjustment: ±20 dB, selectable in 1-dB steps

        Audio Performance:
      • Internal Digital Audio Processing: 32-bit, fixed
      • Input-to-Output Audio Processing Latency: <100 uSec
      • Auto Mix: sophisticated FPGA-based algorithm provides enhanced audio intelligibility for party-line (PL) and summing bus modes

        IFB (Talent Cueing) Support:
      • Voice Detect Operation (VOX):
      • Audio Bandpass: 185 to 1300 Hz, -3 dB
      • Level Threshold: -44 dBFS at 400 Hz
      • Minimum On Time: 385 mSec
      • Tone Detect Operation (TOX):
      • Level Threshold: -23 dBFS at 16 kHz; -28 dBFS at 18 kHz; -30 dBFS at 20 kHz
      • Minimum On Time: 80 milliseconds
      • Interrupt Audio-to-IFB Output Low-Pass Filter: -6 dB at 10 kHz; -28 dB at 16 kHz; -55 dB at 20 kHz
      • Interrupt Tone-to-IFB Output Rejection Filter: -31 dB at 18 kHz; -46 dB at 20 kHz; -70 dB at 22 kHz
      • Program Audio Attenuation: 0, 10, 15, 20 dB, full mute, configurable

        Audio Switching Support:
      • Tone Detect Operation (TOX):
      • Level Threshold: -23 dBFS at 16 kHz; -28 dBFS at 18 kHz; -30 dBFS at 20 kHz
      • Minimum On Time: 80 milliseconds

        Network Audio Technology:
      • Type: Dante audio-over-IP
      • AES67-2018 Support: yes
      • Dante Domain Manager™ (DDM) Support: yes
      • Ethernet Interface Configuration: Switched, Redundant, Switched+Mgmt, or Redundant+Mgmt, selectable
      • Clock Source: Dante network or internal (can serve as basic Leader Clock)
      • Bit Depth: 16, 24, or 32
      • Sample Rate: 48 kHz
      • Number of Dante Receiver (Input) Channels: 32 (Model 5422A-01), 64 (Model 5422A-02)
      • Number of Dante Transmitter (Output) Channels: 32 (Model 5422A-01), 64 (Model 5422A-02)
      • Number of Dante Flows: 32 transmitter, 32 receiver
      • Internal Digital Audio Processing: 32-bit, fixed
      • Input-to-Output Audio Processing Latency: <100 uSec

        Network Interfaces:
      • 3, Primary, Secondary, and Management
      • Type: 1000BASE-T, Gigabit (GigE) twisted-pair Ethernet per IEEE 802.3ab (100 Mb/s supported but not recommended for optimal performance; 10 Mb/s not supported)
      • Auto MDI/MDI-X Support: yes
      • Connection (NIC) Status LEDs: one link and one activity for each Ethernet interface

        Software Updating:
      • USB flash drive supports updating of application and FPGA firmware (embedded software); Dante interface updated via Ethernet interface

        Power Sources:
      • AC Mains: 100 to 240 V, 50/60 Hz, 5 W maximum
      • DC: 10 to 18 V, 0.5 A max

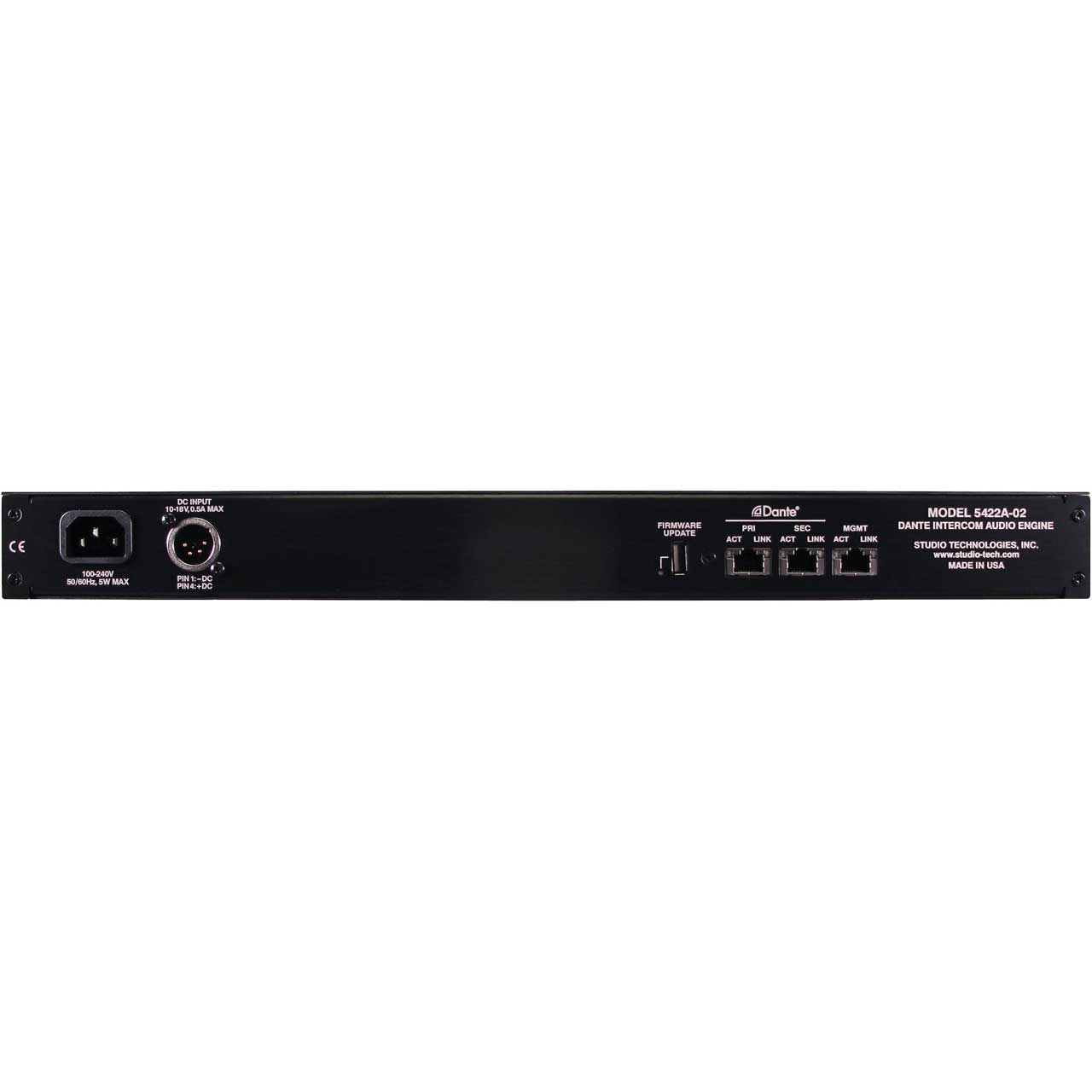

      • Ethernet: 3, RJ45 receptacle
      • USB: type A receptacle (used only for updating firmware)
      • DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
      • AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with C13)

      • Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
      • Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
      • Humidity: 0 to 95%, non-condensing
      • Altitude: not characterized

        Dimensions (Overall):
      • 19.00 inches wide (48.3 cm)
      • 1.72 inches high (4.4 cm)
      • 7.9 inches deep (20.1 cm)
      • Mounting: one space (1U) in a standard 19-inch rack
      • Weight: 2.8 pounds (1.3 kg)
    • Item Includes:

      • 1x Studio Technologies Model 5422A-02 Dante Intercom Audio Engine with 2 Groups of 32 Dante Transmitter & Receiver Channels
