Studio Technologies Model 210 Announcers Console
  • Studio Technologies Model 210 Announcers Console
  • Studio Technologies Model 210 Announcers Console
  • Studio Technologies Model 210 Announcers Console
  • Studio Technologies Model 210 Announcers Console
  • Studio Technologies Model 210 Announcers Console

Questions? Ask a Markertek Expert:
800-522-2025 Email

Studio Technologies Model 210 Announcers Console

Item #: STCH-M210   •   MFG #: M210



List Price:$695.00
Our Price:$693.99

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

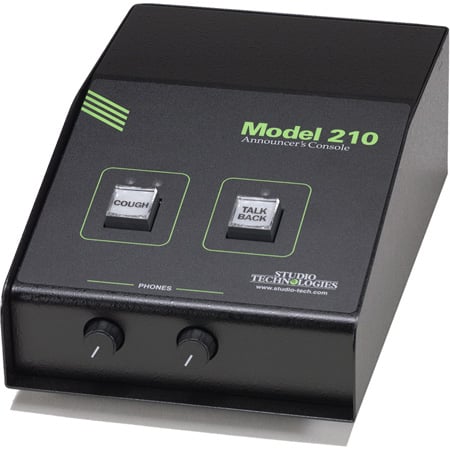

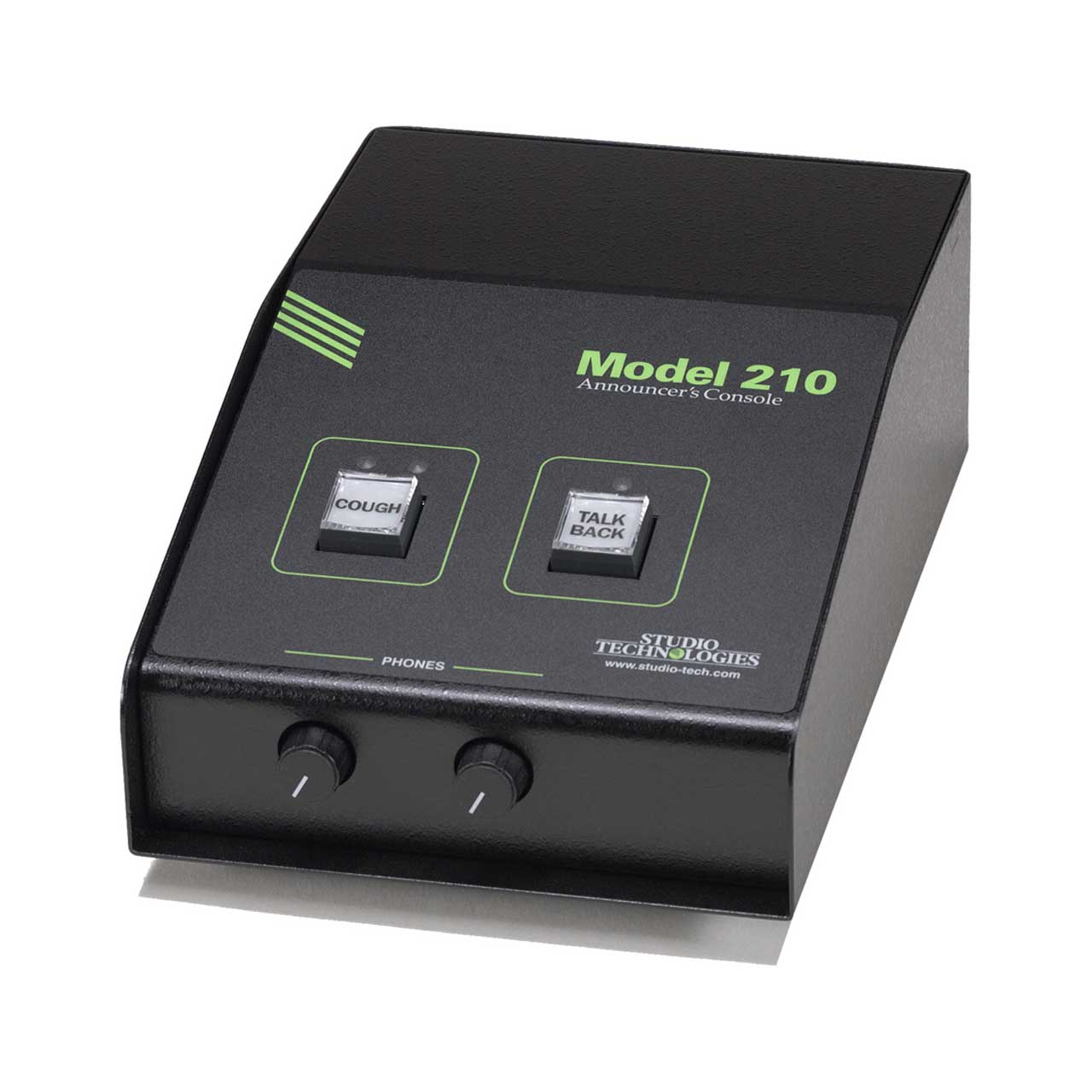

    The Studio Technologies Model 210 Announcer's Console is an audio control "hub" for announcers, commentators, and production personnel. Compatible with essentially all broadcast and production audio system environments, the tabletop unit is often used for on-air sports broadcasting. Ease of use, configuration flexibility, and sonic excellence are some of the unit's highlights.

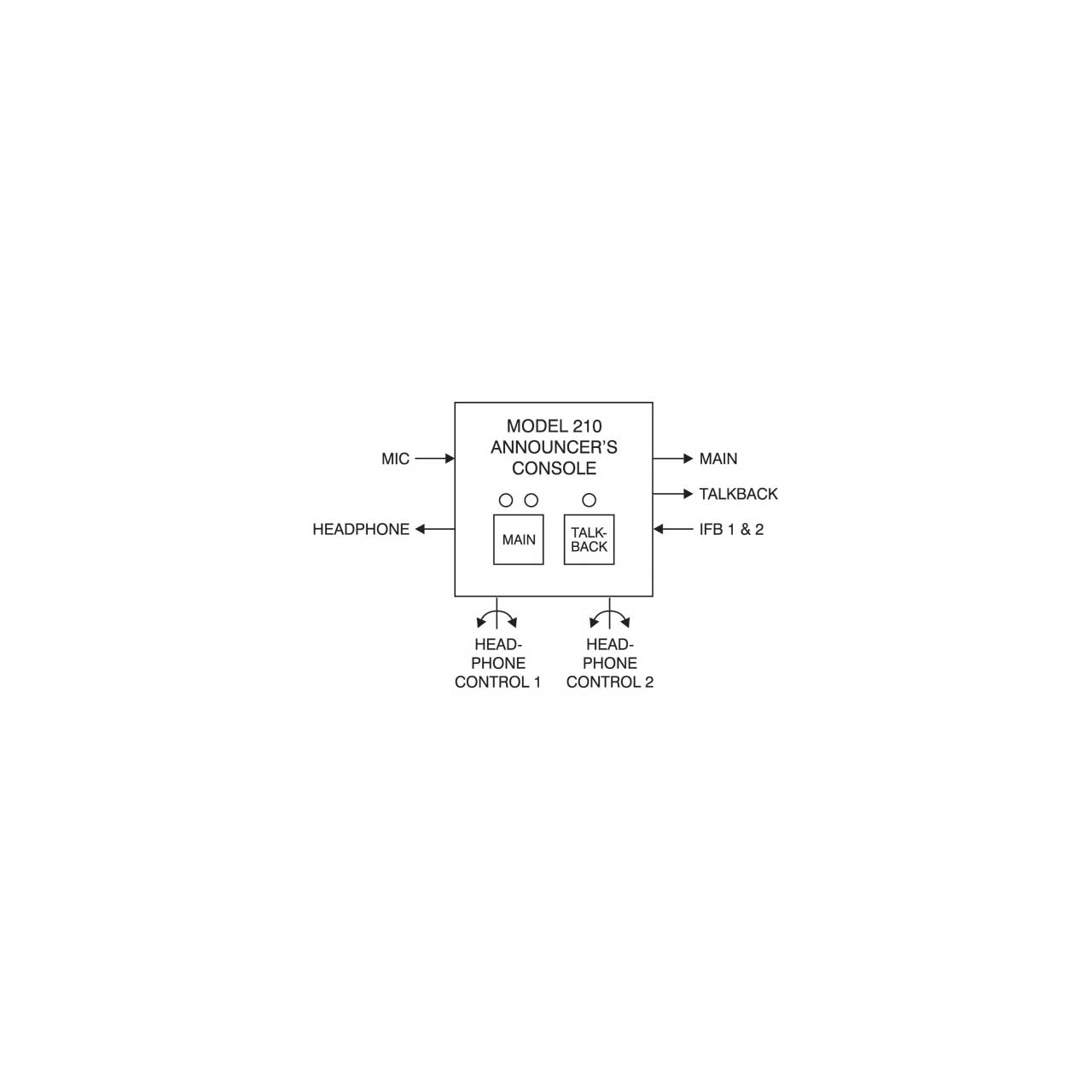

    The Model 210 is compatible with most broadcast and audio system environments. Standard connectors are used to interface microphone, headphone, talkback, and IFB signals. Whether it's microphone switching, talkback output, or headphone cue feed, superior audio quality is maintained. A microprocessor provides the Model 210's logic power, allowing exacting control of the unit's operation. A range of configuration choices allow the desired operating parameters to be easily selected. While flexible, the user is presented with an easy-to-use set of controls and indicators.

    A high-performance microphone preamplifier circuit provides low-noise/low-distortion amplification over a 20 to 60 dB gain range. The gain is adjustable in 10 dB steps. The input is compatible with balanced dynamic or condenser microphones. The microphone power source is 48 V nominal and meets the worldwide P48 phantom power standard. The preamplifier's gain can also be set for 0 dB, allowing a line-level audio signal to be connected. This could prove useful in special applications such as when an external preamp or mic processor is being used.

    An LED indicator serves as an aid for optimizing the setting of the preamplifier's gain. The output of the microphone preamplifier is used by the main output as well as being routed to the compressor circuit that supports the talkback function.


    • Features

      • Microphone preamp with selectable gain and 48 volt phantom power
      • Broadcast IFB input
      • Two pushbutton switches offer programmable "click-free" audio path control
      • Transformer-balanced main output
      • Line-level talkback output
      • Stereo headphone monitoring
      • Two rotary headphone output level controls
      • Microcontroller-directed audio routing
      • Powered by IFB or by external DC source

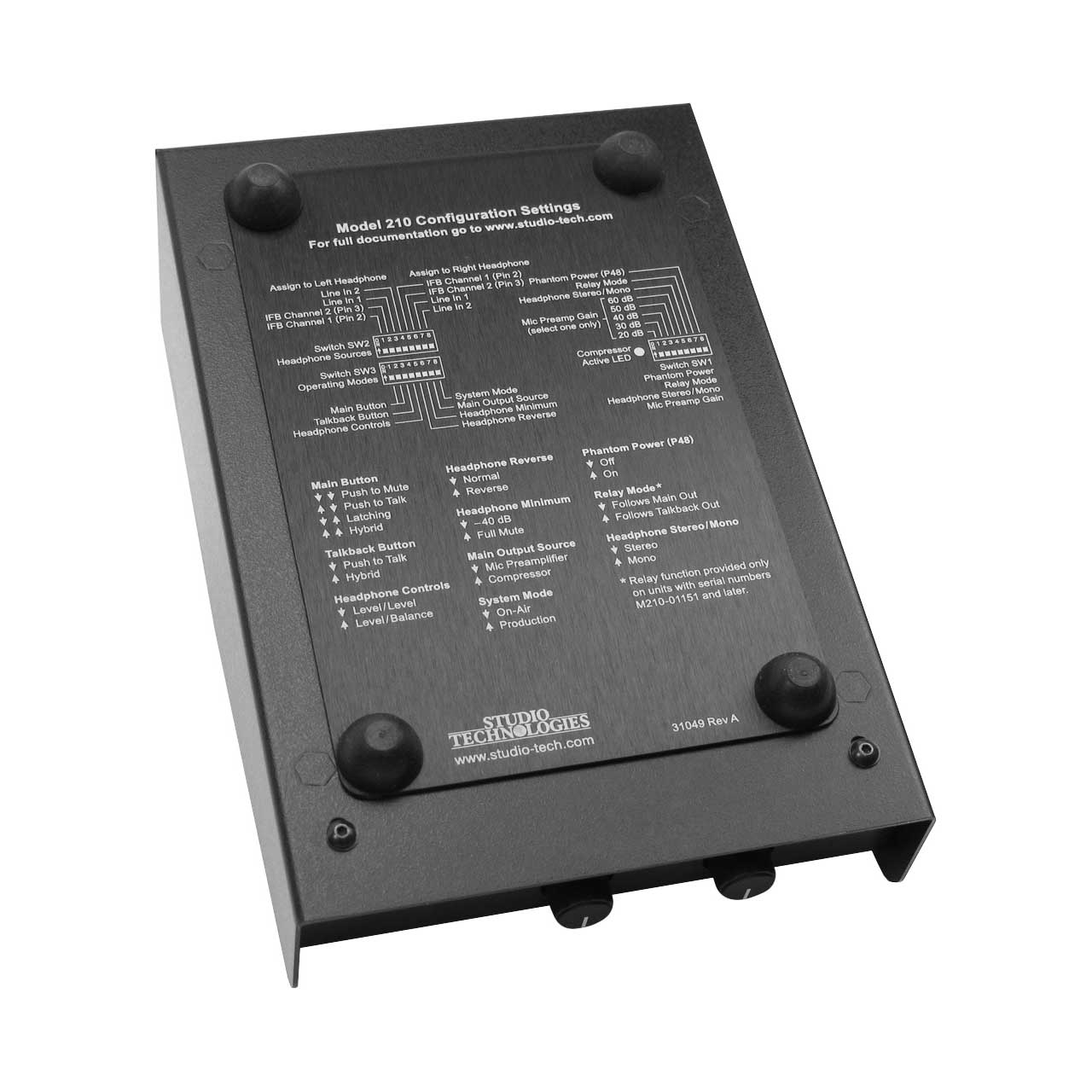

      • All configuration switches accessible via the bottom of the enclosure

    • Specifications

      • General Audio
      • Frequency Response 20 Hz-20 kHz, ±0.1 dB, mic in/main out
      • Distortion (THD+N) 0.008%, measured at 1 kHz, mic in/main out
      • S/N Ratio 80 dB, referenced to -46 dBu mic in/-2 dBu main out

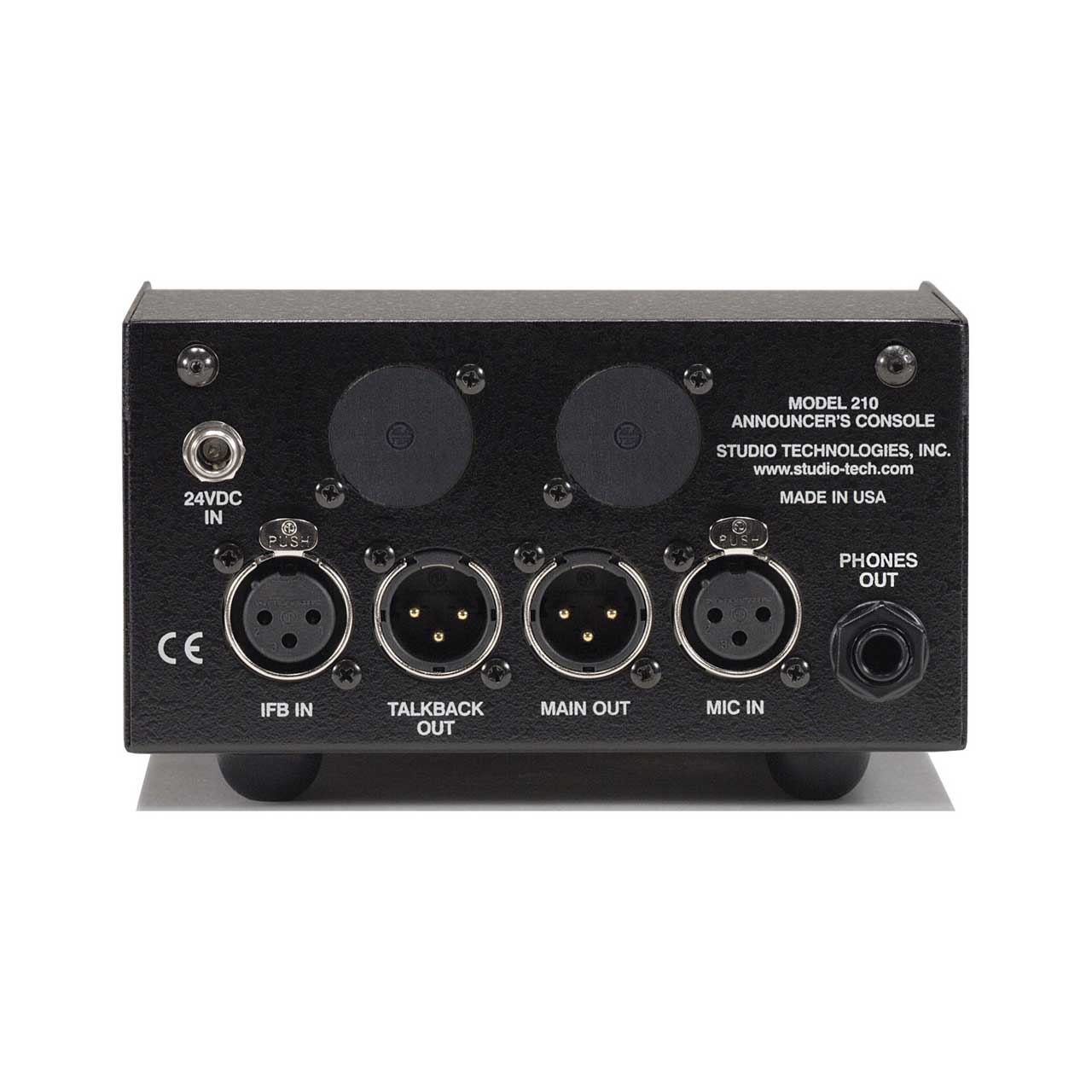

        Connectors
      • Mic In, IFB In 3-pin female XLR-type
      • Main Out, Talkback Out 3-pin male XLR-type
      • Headphone Out ¬-inch 3-conductor phone jack
      • 24 Vdc Power In 2.1 x 5.5 mm coaxial power jack
      • Spare Connector Locations 2, Allows one or two Neutrik NC*D-L-1 connectors to be installed (*=3F, 3M, 5F, 5M, 6F, 6FS, etc.)

        Microphone Input/Preamplifier
      • Type electronically balanced
      • Input Impedance 2 k ohms, nominal
      • Gain Range 20 to 60 dB, nominal, adjustable in 10 dB steps
      • Compatibility dynamic or phantom-powered mics
      • Phantom Power 48 Vdc, nominal, meets IEC 61938

        Compressor
      • Threshold 2 dB above nominal level
      • Attack/Release Time 2 mSec/100 mSec, nominal
      • Slope 5:1, nominal

        IFB Input
      • Type 2-channel, unbalanced (pin 1 common; pin 2 DC with channel 1 audio; pin 3 channel 2 audio)
      • Impedance 10 k ohms, nominal
      • Nominal Level -10 dBu
      • Optional Line Inputs: 2
      • Type balanced, transformer-coupled
      • Impedance 10 k ohms, nominal
      • Nominal Level +4 dBu

        Main Output
      • Type balanced, transformer-coupled
      • Nominal Level -2 dBu
      • Maximum Level +20 dBu into 2 k ohms
      • Impedance 100 ohms, nominal

        Talkback Output
      • Type transformer-coupled with series capacitors and isolation resistors
      • Impedance 600 ohms, nominal
      • Nominal Level +4 dBu
      • Maximum Level +11 dBu (compressor restricts maximum)
      • Headphone Output: 1, binaural (stereo)
      • Compatibility intended for connection to mono or stereo headphones or headsets with nominal impedance of 100 ohms or greater

        Type voltage driver
      • Maximum Output Voltage 8 Vpp, 150 ohm load

        Power Sources
      • IFB 24-32 Vdc, 105 mA
      • External 24 Vdc nominal, 70 mA; acceptable range 20-30 Vdc. All units include a universal input/24 Vdc output power supply.

        Dimensions (Overall)
      • 5.6 inches wide (14.2 cm)
      • 3.3 inches high (8.4 cm)
      • 8.5 inches deep (22.4 cm)
      • Weight 3.4 pounds (1.6 kg)
