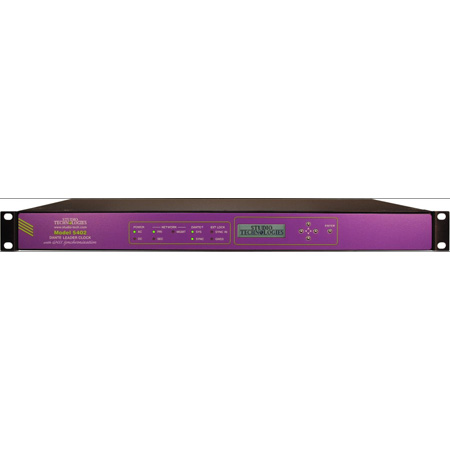

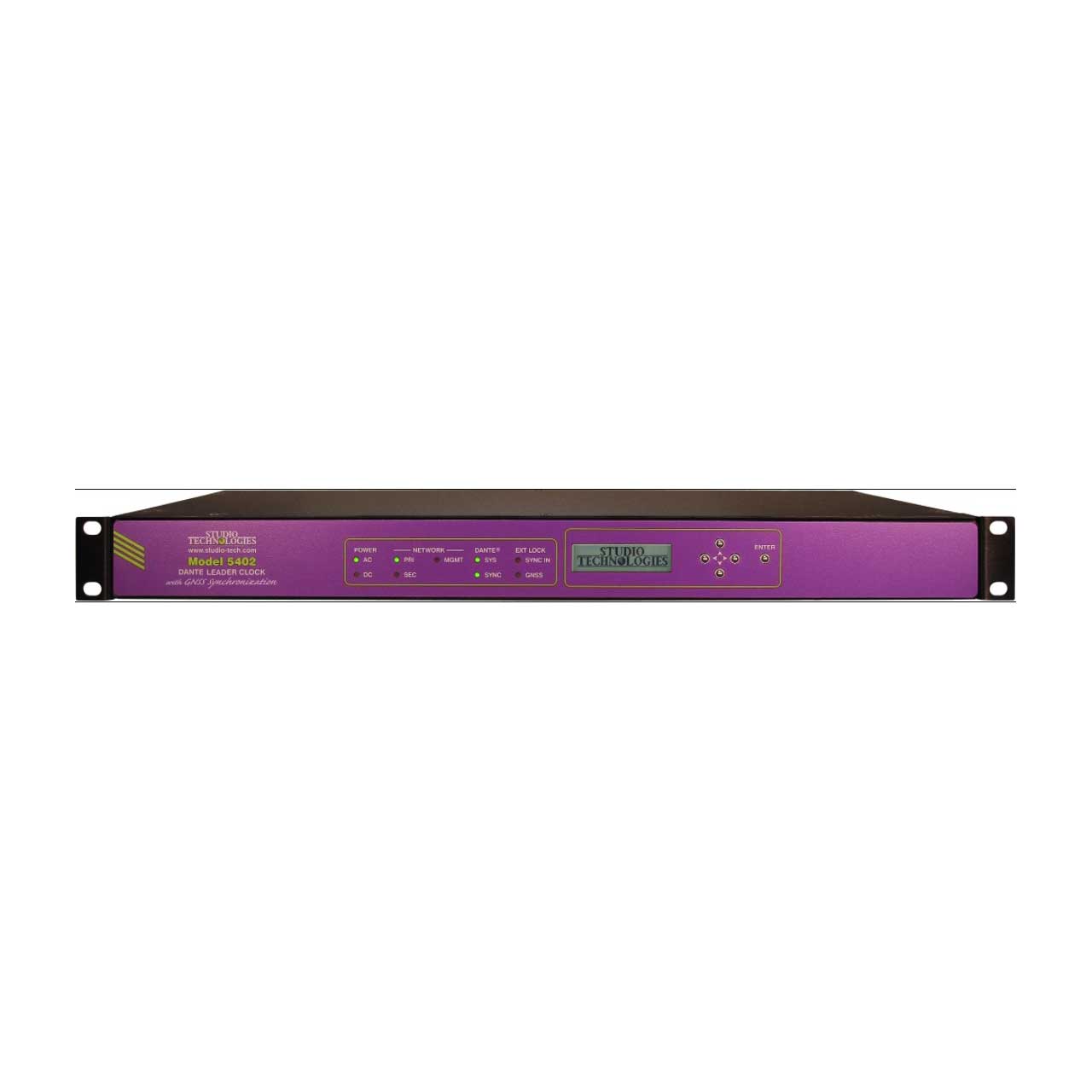

Studio Technologies Model 5402 Dante Leader Clock with GNSS Synchronization

ITEM #: STCH-M5402 MFG #: M5402

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$3,795.00

Availability: In Stock
iAvailability Description Popup


    M5402 - Overview

    The Studio Tech Model 5402 Dante Leader Clock with GNSS Synchronization provides precise timing signals for applications that utilize the Dante audio-over-IP (AoIP) media networking technology. The unit implements a high-performance IEEEr 1588 precision time protocol (PTP) server, compatible with the requirements of Dante and capable of simultaneously supporting the timing needs of up to hundreds of Dante-compatible devices. As expected, the Model 5402 provides the PTPv1 (IEEE 1588-2002) compatibility that's required by Dante. In addition, the unit supports PTPv2 (IEEE 1588-2008) for AES67 applications. The unit includes an integrated GNSS (satellite) receiver to allow a precise timing reference to be acquired from the four major constellations: GPS, Galileo, BeiDou, and GLONASS. In additional, a sync input connection allows the Model 5402's internal oscillator to be synchronized with a variety of external timing and reference signals. A word clock output provides a general-purpose timing reference for use by external devices.

    The Model 5402 integrates with the Dante Domain ManagerT (DDM) software application. With DDM, support for ST 2110 and AES67 can take place alongside Dante audio. And with multiple Model 5402 units all utilizing GNSS-based timing, studios across town or even around the globe can share audio.

    The Model 5402 is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications. Only power, a GNSS antenna, and one, two, or three Ethernet network connections are required for full operation. Using Dante's inherent capabilities two Model 5402 units can serve in primary and backup Leader clock roles for redundant operation.

    The Model 5402 can be powered by 100-240 V, 50/60 Hz mains or a source of 12 volts DC. Both can be simultaneously connected to provide redundant operation. The lightweight enclosure mounts in one space (1U) of a 19-inch equipment rack. Industry-standard connectors are used for Ethernet, GNSS antenna, DC power, and AC mains interconnections. Updating the Model 5402's operating software can be easily performed using a USB flash drive.

    Please Note! Studio Technologies offers both the Model 5401A Dante Leader Clock and the Model 5402 Dante Leader Clock with GNSS Synchronization. They are intended for essentially the same applications - to serve as a Leader Clock for Dante digital audio applications. Everything that can be done with the Model 5401A can be done by the Model 5402. But the latter includes an integrated satellite receiver which is capable of deriving a precise time signal from the major GNSS (Global Navigation Satellite System) constellations. The Model 5402 supports these constellations: GPS (US), Galileo (Europe), BeiDou (China), and GLONASS (Russia). In addition, the QZSS augmentation system from Japan can be enabled (it can add precision to GPS for certain locations in Asia).

    • Features:

      • Dedicated Leader clock for Dante audio-over-IP, AES67, ST 2110, and DDM applications
      • High-performance IEEE 1588 PTP v1 and v2 servers
      • Integral GNSS (satellite) receiver for nanosecond-level timing accuracy
      • Supports GPS (USA), Galileo (Europe), BeiDou (China), and GLONASS (Russia)
      • Allows synchronization of audio between multiple sites
      • Word clock output with selectable rates
      • Eight configurable audio tone signals
      • Three Gigabit Ethernet interfaces support independent redundant Dante and management networks
      • Webpage management and USB flash drive software updating
      • AC mains and 12 volts DC powering
      • Lightweight enclosure, single rack-space (1U) mounting

    • Specifications:

      • Timing Reference:
      • Source: GNSS receiver, external sync input, internal time base, or via an existing Dante network, selectable
      • Precision Time Protocol (PTP) Support: PTPv1 (IEEE 1588-2002) for Dante; PTPv2 (IEEE 1588-2008) for AES67-2018

        GNSS Receiver Capability:
      • Type: multi-band GNSS, optimized for timing applications
      • Constellations Supported: GPS (USA), Galileo (Europe), BeiDou (China), GLONASS (Russia), selectable
      • Augmentation Support: QZSS (Japan, applies only to GPS), selectable
      • Number of Concurrent Constellations: 4
      • Time to First Fix: less than 40 seconds, typical
      • Timing Accuracy: <5 ns (clear sky)
      • Sensitivity: -148 dBm (cold starts), -166 dBm (tracking), typical
      • Antenna Power Source: 5 Vdc, 100 mA max
      • Antenna Requirement: active, multi-band (L1, L2/E5b), terminated with SMA plug

        Sync Input:
      • Compatible Sources: word clock, bi-level video, tri-level video, 10 MHz
      • Termination: 50 ohms (10 MHz), 75 ohms (word clock or video), or high Z (unterminated), selectable
      • Word Clock Compatibility: square wave, 5 Vpp nominal unloaded, 44.1, 48, 88.2, or 96 kHz
      • Video Signal Compatibility: bi- or tri-level, 1 Vpp nominal into 75 ohm load
      • 10 MHz Signal Compatibility: sine wave, 3 Vpp nominal into 50 ohm load

        Word Clock Output:
      • Type: square wave
      • Rate: 44.1, 48, 88.2, or 96 kHz, selectable
      • Source Impedance: 75 ohms
      • Amplitude: 5 Vpp, unterminated; 2.5 Vpp, externally terminated with 75 ohms
      • Jitter: 0.01 UI

        Network Audio:
      • Type: Dante audio-over-IP
      • AES67-2018 Support: yes
      • Dante Domain ManagerT (DDM) Support: yes
      • Ethernet Interface Configuration: Switched, Redundant, Switched+Mgmt, or Redundant+Mgmt, selectable
      • Clock Source: follows overall Model 5402 configuration
      • Sample Rate: 44.1, 48, 88.2, or 96 kHz, selectable
      • Bit Depth: 24
      • Dante Transmitter (Output) Channels: 8
      • Dante Flows: 32 transmitter

        Audio Reference Signals:
      • Type: continuous sine-wave signals on Dante transmitter (output) channels
      • Number of Channels: 8
      • Frequency: 1 Hz to 22 kHz, individually configurable in 1-Hz steps
      • Amplitude: 0 to -99 dBFS, individually configurable in 1-dB steps
      • Distortion (THD+N): <0.0001% (<-121 dB), measured at 1 kHz, -1 dBFS

        Network Interfaces:
      • Qty: 3; Dante Primary, Dante Secondary, and Management
      • Type: 1000BASE-T, Gigabit Ethernet (GigE) per IEEE 802.3ab (100 Mb/s supported but not recommended)
      • Front-Panel Display: Backlit LCD
      • Front-Panel LEDs: 9, dual-color

        Power:
      • AC Mains: 100 to 240 V, 50/60 Hz, 5 W max
      • DC: 10 to 18 V, 0.5 A max: 110 uA max with 12 volts DC and AC mains present, 190 uA max with 18 volts DC and AC mains present

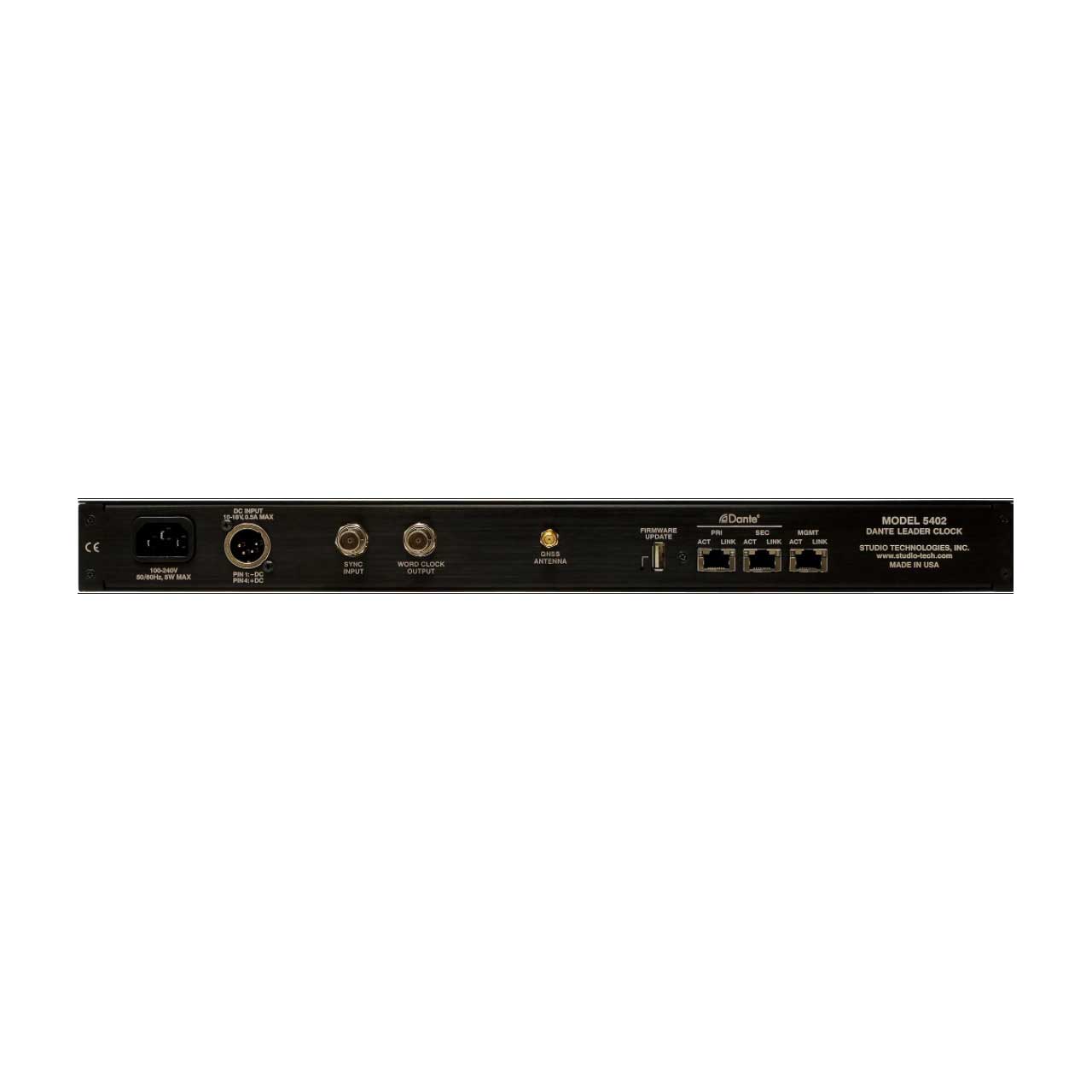

        Connectors:
      • GNSS Antenna: SMA receptacle
      • Sync Input, Word Clock Output: BNC receptacle, per IEC 61169-8 Annex A
      • Ethernet: 3, RJ45 receptacle
      • USB: type A receptacle
      • DC Input: 4-pin male XLR
      • AC Mains Input: 3-blade male, IEC 320 C14-compatible

    • Item Includes:

      • 1x Model 5402 Leader Clock
      • 1x GNSS Antenna with 16.3 Foot Cable terminated on an SMA plug
