    M5482-02 - Overview

    The Model 5482 Dante Bridge provides a high-performance means of interconnecting ("bridging") Danter audio-over-Ethernet channels associated with two independent local-area-networks (LANs) or Dante domains. The unit is compatible with the Dante Domain ManagerT (DDM) software application and is complaint with the AES67 technical standard. The Model 5482 is available in two versions: the Model 5482-01 allows up to 32 audio channels to pass in each direction, while the Model 5482-02 allows up to 64 audio channels. Internal sample rate conversion (SRC) capability provides sample rate, bit-depth, and timing conversion to ensure that audio signal integrity is maintained.

    Dante audio-over-Ethernet has found wide acceptance as a network "backbone" due to its ease of use, excellent audio performance, strong interoperability, and wide adoption by a large number of equipment manufacturers. However, interconnecting Dante audio channels on independent local-area-networks or domains can present a challenge. But using the Model 5482 makes this a simple task, only requiring interconnecting standard Ethernet signals and performing a minimal amount of configuration. A few minutes of time is all that's required to make the unit part of a sophisticated, networked audio system.

    The Model 5482 can be powered by 100-240 V, 50/60 Hz or a source of 12 volts DC. Both can be simultaneously connected to provide redundant power operation. The unit's lightweight enclosure mounts in one space (1U) of a standard 19-inch equipment rack. Industry-standard connectors are used for the Ethernet, AC mains, and DC power interconnections. The unit is built to professional standards and is intended for continuous, 24-hour operation.

    Each of the Model 5482's two Dante interfaces incorporates three Gigabit Ethernet (GigE) connections. Two GigE ports are designated for use by the associated Dante network while the third is reserved for factory configuration use. A setting performed within the Dante Controller application selects whether each Dante interface will operate in a Switched or Redundant mode. For installation flexibility the two Dante interfaces can be configured independently.

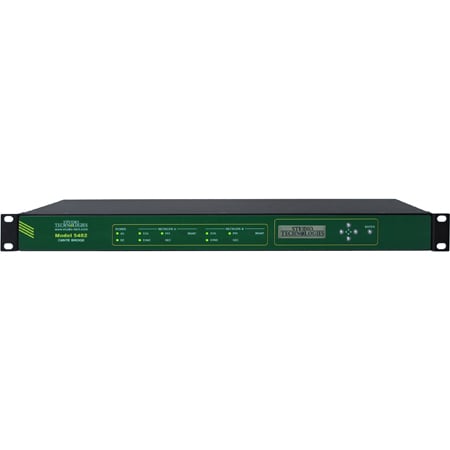

    Front-panel LED indicators, an LCD display, and five pushbutton switches are provided to view and revise selected operating parameters. The Dante Controller software application, available free of charge from Audinate, is used to configure all Dante network and audio parameters.

    Dante Audio-over-Ethernet
    Audio data is sent to and received from each Model 5482 interface using the Dante audio-over-Ethernet media networking technology. Two separate network interfaces allow completely independent Dante configurations. Audio signals with a sample rate of 44.1, 48, 88.2, and 96 kHz and a bit depth of up to 24 are supported.

    A special function allows, if desired, the timing reference from one interface to be used as the reference timing for the Leader Clock on the other. This will result in the Dante synchronization on one LAN to be utilized as the synchronization source on the other.

    • Features:

      • Dante audio-over-Ethernet technology with AES67 and DDM support
      • Two versions available: one with up to 32 channels and one with up to 64 channels in each direction
      • 44.1, 48, 88.2, and 96 kHz sample rate support
      • Integrated Sample-Rate-Conversion (SRC) capability
      • Multiple Gigabit Ethernet interfaces allow Switched or Redundant Dante operation
      • AC mains and DC powering
      • Multiple status LEDs and graphics display
      • Lightweight enclosure, single rack-space (1RU) mounting

    • Specifications:

      • Network Audio Technology (each Network Interface)
      • Type: Dante audio-over-Ethernet
      • AES67-2018 Support: yes
      • Dante Domain Manager (DDM) Support: yes
      • Ethernet Interface Configuration: switched or redundant
      • Sample Rates: 44.1, 48, 88.2, or 96 kHz
      • Pull-Up/Down Support: yes
      • Bit Depth: up to 24 bits
      • Number of Transmitter (Output) Channels: 64 (44.1 or 48 kHz sample rates), 32 (88.2 or 96 kHz sample rates)
      • Number of Receiver (Input) Channels: 64 (44.1 or 48 kHz sample rates), 32 (88.2 or 96 kHz sample rates)
      • Dante Audio Flows: 32 transmitter, 32 receiver

      • Network Interfaces: 2
      • Physical Ethernet Connections per Interface: 3; Dante Primary, Dante Secondary, and Management
      • Ethernet Connection Type: 1000BASE-T Gigabit Ethernet (GigE) per IEEE 802.3ab (10 and 100 Mb/s not supported)
      • Ethernet Connection NIC Status LEDs: one link and one activity for each Ethernet connection

      • Audio Performance
      • Type: fully digital paths between network interfaces (by way of sample-rate-converter (SRC) functions)
      • Dynamic Range: 147 dB at 48 kHz sample rate, 148 at 96 kHz sample rate, A-weighted
      • Distortion (THD+N): -140 dB at 48 kHz sample rate, -143 dB at 96 kHz sample rate, measured at -1 dBFS, 1 kHz
      • Internal Digital Audio Processing: 32 bits
      • Input-to-Output Audio Processing Latency: <500 uSec

      • Front-Panel LEDs: 12, dual-color
      • Functions: provides indication of condition of incoming AC and DC power, Dante status on each interface, and Ethernet status on each interface

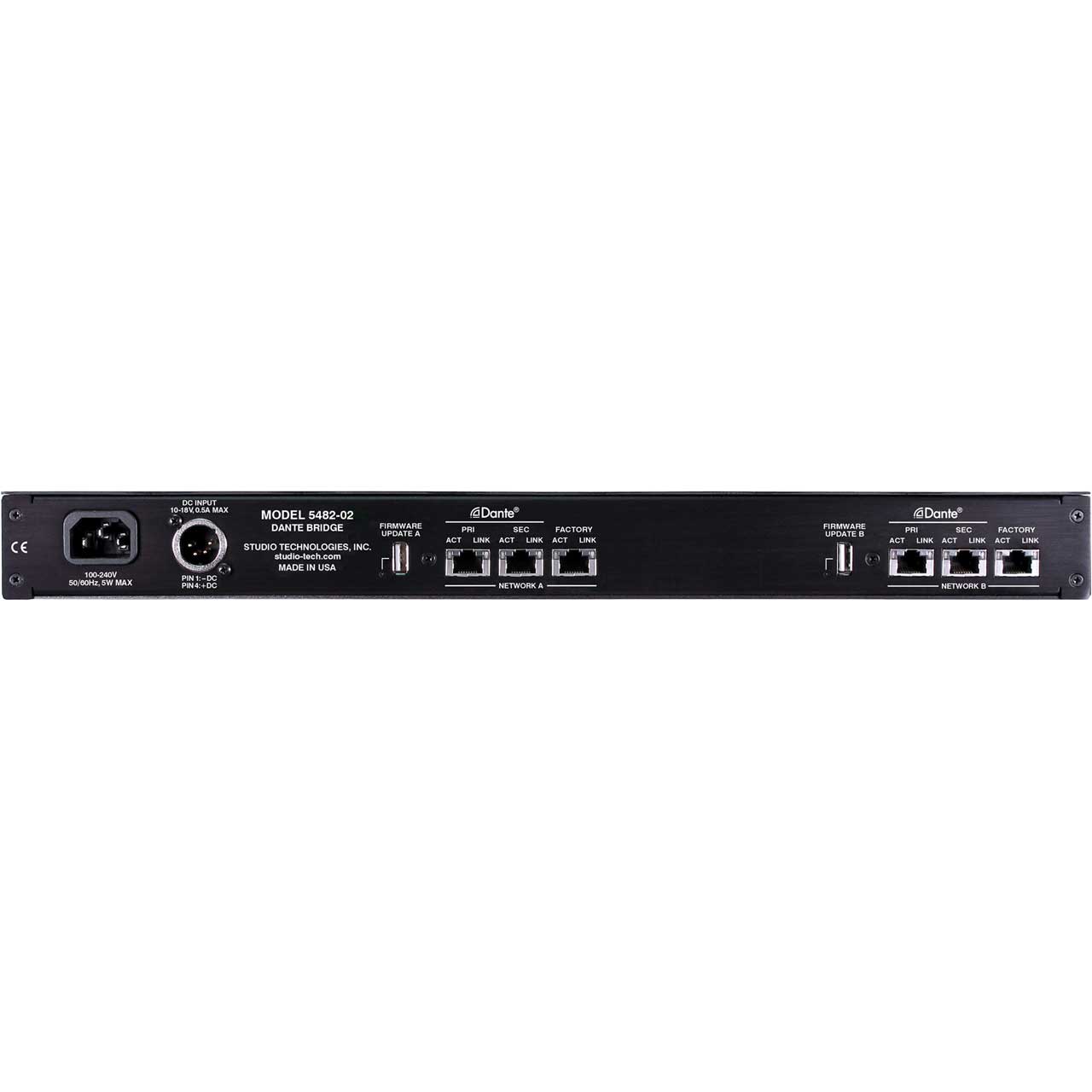

        Back-Panel LEDs: 14
      • Functions: provides status indication of both firmware update functions and six Ethernet interfaces

        Power Sources
      • AC Mains: 100 to 240 V, 50/60 Hz, 8 W maximum
      • DC: 10 to 18 V, 0.6 A max

        Connectors
      • Ethernet: 6, RJ45 jacks
      • USB: 2, type A receptacle (used only for updating firmware)
      • DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
      • AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

        Environmental
      • Operating Temperature: 32 to 122 °F
      • Storage Temperature: -40 to 158 °F
      • Humidity: 5 to 95%, non-condensing
      • Altitude: not characterized

        General
      • Dimensions: 19.0" wide, 1.72" high, 8.0" deep
      • Mounting: one space (1RU) in a standard 19-inch rack
      • Weight: 3.2 pounds
