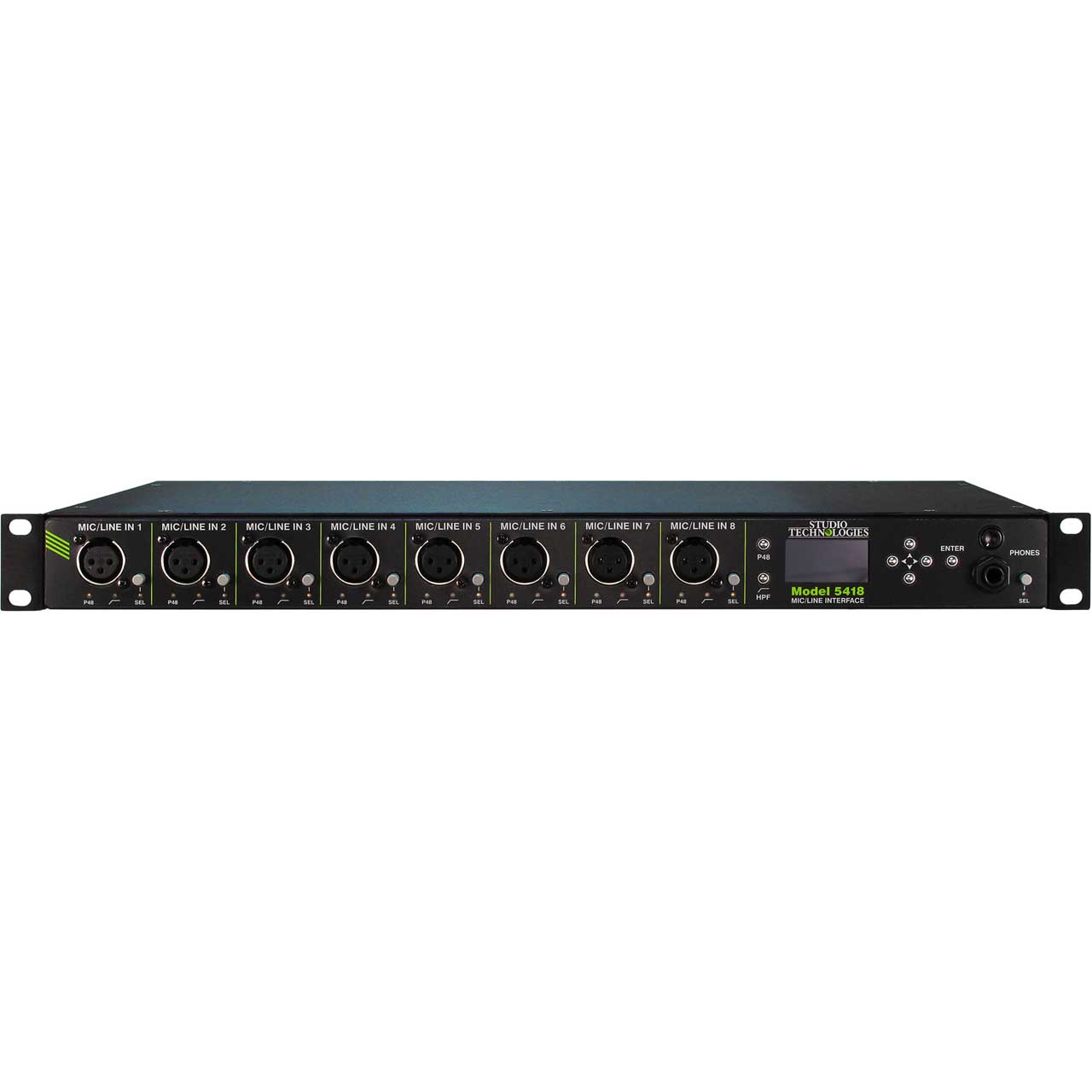

    M5418 - Overview

    The Studio Technologies Model 5418 Mic/Line Interface provides a simple yet high-performance means of interfacing analog signals with applications that utilize Dante audio-over-Ethernet media networking technology. Eight analog microphone- or line-level sources can be connected to the unit and then output in the digital domain by way of a Dante interface. Eight digital audio signals, which arrive by way of Dante, are converted to analog and then output as balanced line-level signals. Configuration choices also allow other audio signals to be selected as the sources for the analog output channels. A monitor section allows the input and output signals to be selectively observed using meters and a headphone output.

    The Model 5418 can be powered by 100-240 V, 50/60 Hz mains or a source of 12 volts DC. Both can be simultaneously connected to provide redundant operation. The lightweight enclosure mounts in one space (1U) of a standard 19-inch rack. Industry-standard connectors are used for the audio input, audio output, Ethernet, DC power, and AC mains interconnections.

    Dante Audio-over-Ethernet
    Digital audio data associated with the Model 5418 is interfaced with a local area network (LAN) using Dante audio-over-Ethernet media networking technology. Status LEDs provide a real-time indication of Dante and LAN performance. A major benefit of using Dante is its ability to use any standard Ethernet network implementation, including switches, to directly transport professional audio signals. The Model 5418 supports digital audio signals with a sampling rate of 44.1, 48, and 96 kHz and a bit depth of up to 24. These sampling rates were selected for optimal support of broadcast, production, industrial, and commercial applications.

    Network Ports
    Using the Dante Controller software application, the Model 5418's two Dante Ethernet ports can be selected to operate in either the switched or redundant modes. In the switched mode a single Ethernet connection is used for interconnection with other Dante-compliant devices. The second Model 5418 Dante Ethernet port can be used to interface with another piece of network equipment. In the redundant mode independent Ethernet connections would be made to the unit's two Ethernet ports implementing Dante's redundant network capability.

    Applications

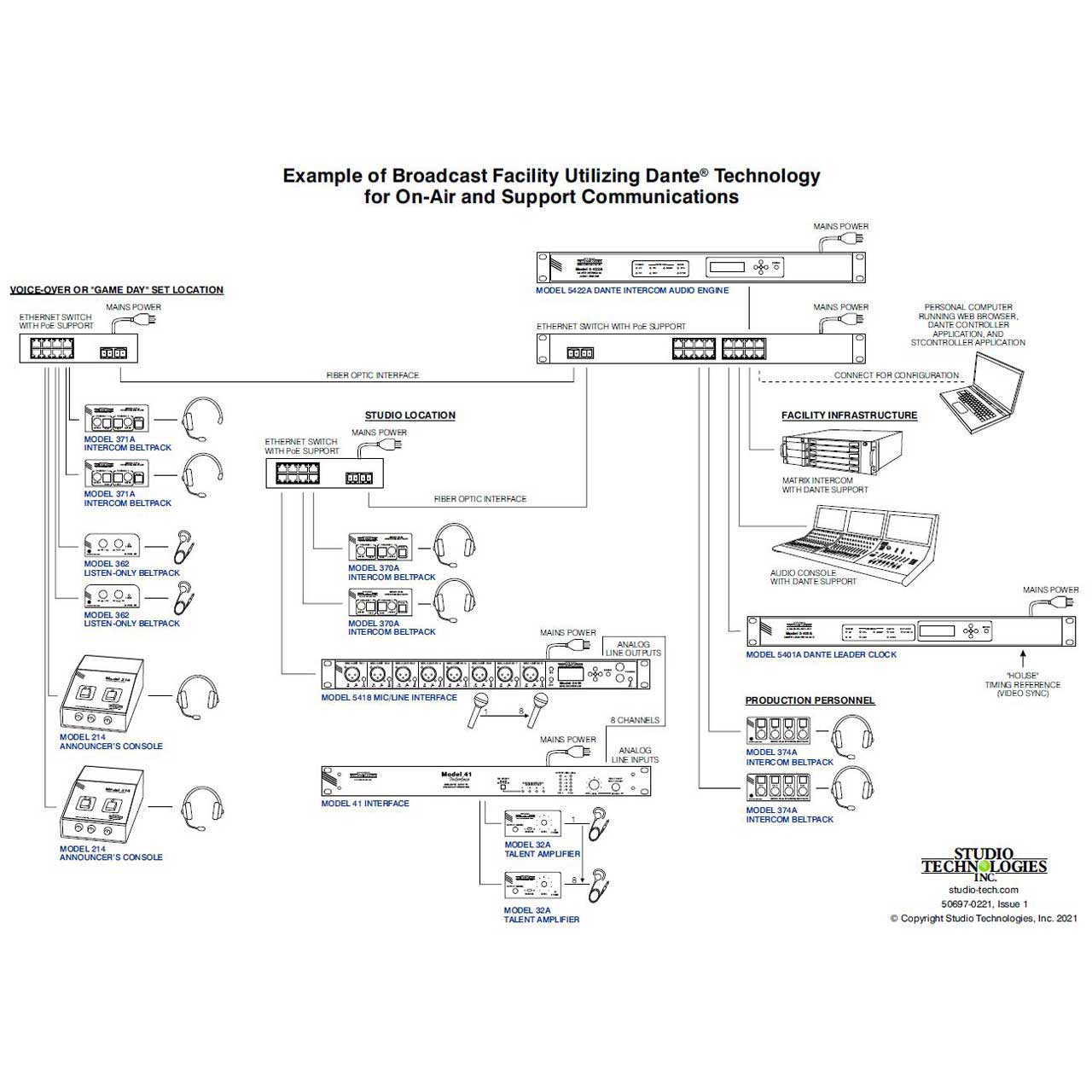

    It's suitable for use in demanding on-air broadcast and live-event applications that require both excellent audio performance and reliable operation. The rack-mounted unit is appropriate for installation in fixed locations, serving the needs of systems associated with stadium, worship, education, commercial, and government facilities. Its lightweight enclosure also makes it suitable for mobile and field uses.

    The Model 5418 features an optimized set of controls and indicators that makes it simple and intuitive to use. With the unit's headphone and level monitoring resources it's easy for operators to obtain optimal performance. And by providing standard connectors for all inputs and outputs, along with AC mains and DC powering, setup can be completed in just a few minutes.

    • Features:

      • Dante audio-over-Ethernet technology
      • Eight mic/line inputs to Dante outputs
      • Eight Dante inputs to line-level analog outputs
      • Flexible monitoring with metering and headphone output
      • Three Gigabit Ethernet interfaces
      • Standard connectors
      • Excellent audio quality
      • Uses STcontroller for configuration
      • AC mains and 12 volt DC powering
      • Lightweight enclosure, single rack-space (1U) mounting

    • Specifications:

      • Network Audio Technology:
      • Type: Dante audio-over-Ethernet
      • AES67-2018 Support: yes
      • Dante Domain Manager (DDM) Support: yes
      • Ethernet Interface Configuration: switched or redundant
      • Bit Depth: up to 24
      • Sampling Rates: 44.1, 48, and 96 kHz, selectable
      • Number of Transmitter (Output) Channels: 8
      • Number of Receiver (Input) Channels: 8
      • Dante Audio Flows: 32 transmitter, 32 receiver

        Network Interfaces:
      • Qty: 3; Dante primary, Dante secondary, and management
      • Type: 1000BASE-T (Gigabit Ethernet ("GigE")) per IEEE 802.3ab (100 Mb/s also supported but not recommended for optimal performance)
      • NIC Status LEDs: one link and one activity for each Ethernet interface

        Mic/Line Inputs: 8
      • Compatibility: dynamic, ribbon, or phantom-powered mics; mic/line-level sources
      • Type: analog, electronically balanced, capacitor coupled
      • Impedance - Mic Setting: 3.0 k ohms, nominal
      • Impedance - Line Setting: 6.4 k ohms, nominal
      • Gain: 0 dB (line), 10-60 dB in 1-dB steps
      • Maximum Level: +24 dBu, 0 dB gain selected (results in Dante output level of 0 dBFS)
      • EIN: -126 dBu, 22 kHz bandwidth, 49 dB gain, 150 ohm source resistance
      • Dynamic Range: >117 dB, 0 dB gain, A-weighted
      • Distortion (THD+N): <0.001% (-101 dB) at -1 dBFS, 40 dB gain, 22 kHz bandwidth
      • Frequency Response: +0.0/-0.1 dB, 20 Hz to 22 kHz, HPF off
      • High-Pass Filter (HPF): -6 dB at 75 Hz, 18 dB per octave, on/off selectable per channel
      • Phantom Power: P48 per IEC 61938:2013 standard, +46 volts DC nominal, on/off selectable per channel
      • Metering: part of OLED display function
      • Status LEDs per Input Channel: 3; P48, HPF, and input channel selected
      • Remote Configuration Capability: preamplifier gain, P48 phantom power on/off status, and high-pass filter (HPF) on/off status (uses STcontroller software application)

        Analog Outputs: 8
      • Type: line-level, electronically balanced, capacitor coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
      • Source Impedance: 200 ohms
      • Nominal Level: +4 dBu, reference -20 dBFS, adjustable ±20 dB in 1-dB steps
      • Maximum Level: +24 dBu
      • Dynamic Range: >119 dB, A-weighted
      • Distortion (THD+N): 0.001% (-100 dB), reference 1 kHz, measured at +23 dBu output (-1 dBFS input)
      • Frequency Response: ±0.1 dB, 6 Hz to 20 kHz

        Audio Monitor:
      • Source: mic/line inputs or analog outputs, selectable as monaural or stereo
      • Metering: part of OLED display function

        Headphone Output:
      • Type: stereo (dual-channel)
      • Compatibility: intended for connection to stereo headphones with nominal impedance of 100 ohms or greater
      • Maximum Output Voltage: 4.9 volts RMS, 1 kHz, 150 ohm load
      • Frequency Response: +0/-1.4 dB, 20 Hz to 20 kHz
      • Distortion (THD+N): 0.005%
      • Dynamic Range: >100 dB

      • Front-Panel Display: OLED
      • Software Updating: USB flash drive supports updating of application and FPGA firmware (embedded software); Dante interface updated via Ethernet interface

        Power Sources:
      • AC Mains: 100 to 240 V, 50/60 Hz, 20 W maximum
      • DC: 10 to 18 V, 1.5 A maximum

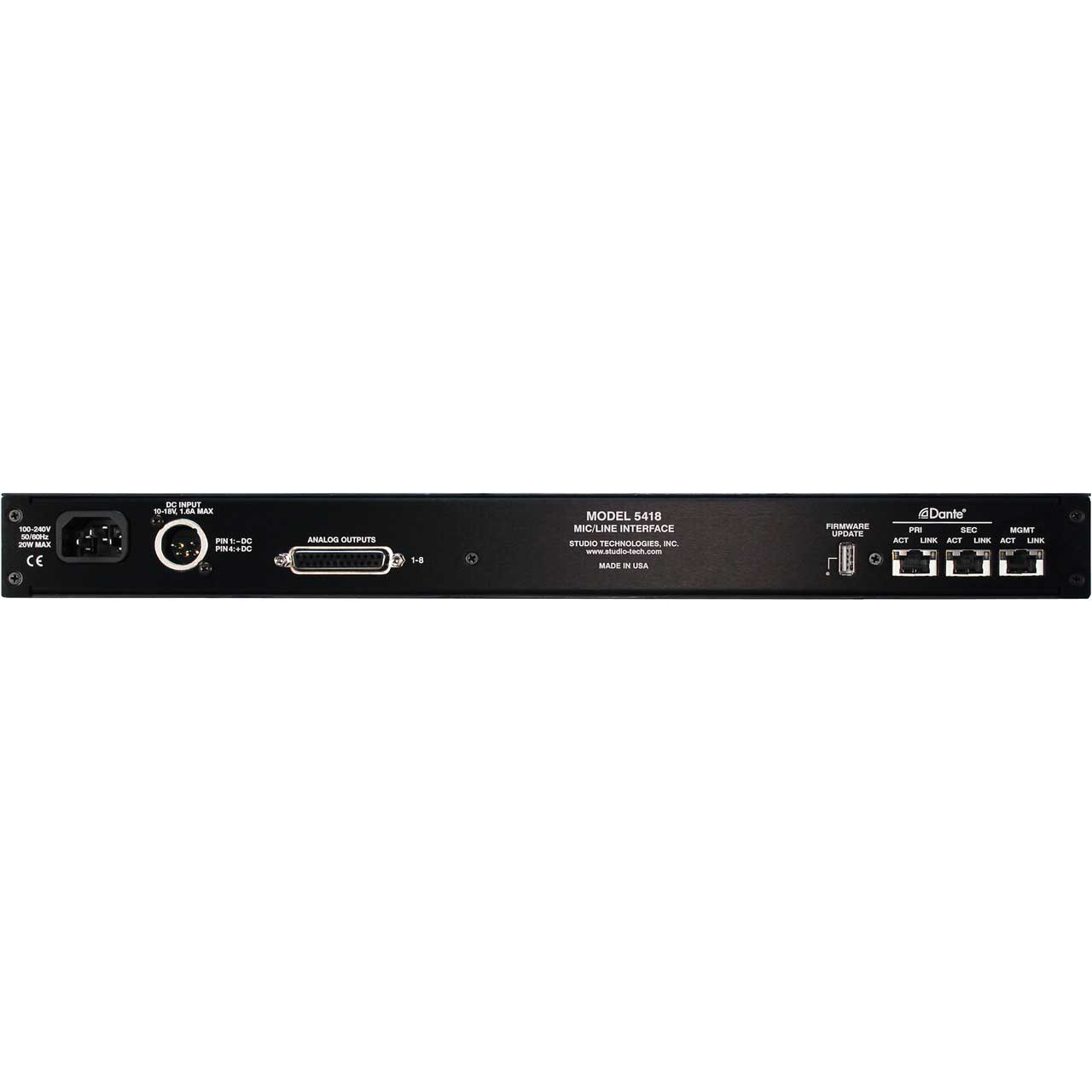

        Connectors:
      • Mic/Line Inputs: 3-pin female XLR
      • Analog Outputs: 25-pin female D-subminiature (DB-25F), AES59-2012 compliant
      • Ethernet: RJ45
      • Headphone Output: 3-conductor ¬-inch jack
      • USB: type A receptacle (used only for application firmware updates)
      • DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
      • AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

        Environmental:
      • Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
      • Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
      • Humidity: 5 to 95%, non-condensing
      • Altitude: not characterized

        Dimensions Overall:
      • 19.0 inches wide (48.3 cm)
      • 1.72 inches high (4.4 cm)
      • 7.8 inches deep (19.8 cm); 8.3 inches (21.1 cm) overall
      • Mounting: one space (1U) in a standard 19-inch rack
      • Weight: 3.5 pounds (1.6 kg)

    • Item Includes:

      • 1x Studio Technologies Model M5418 Mic/Line Interface with Dante Audio-over-Ethernet - 8 Mic/Line Inputs to Dante


    M5418 - Required Accessories
