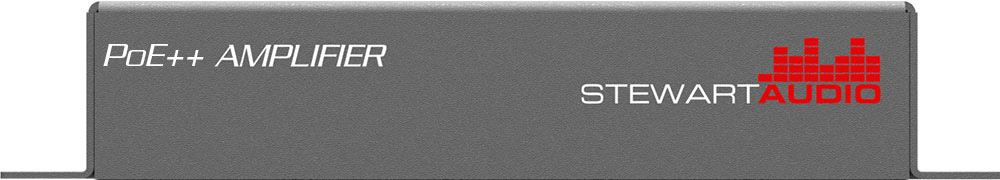

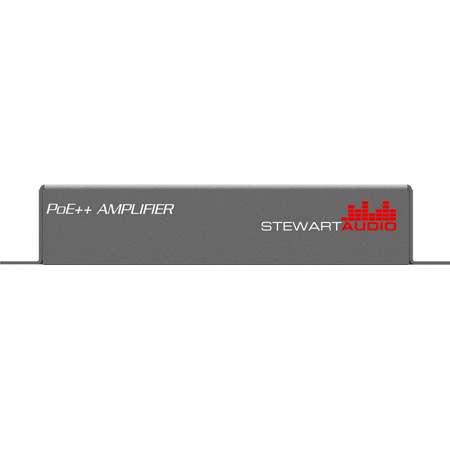

Stewart Audio CVA40-1-CV-D 40W x 1 @ 70/100V Ultra PoEplusplus Dante Amplifier

ITEM #: STW-CVA40-1-CV-D MFG #: CVA40-1-CV-D

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$676.00

Our Price:

$555.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    CVA40-1-CV-D - Overview

    Stewart Audio CVA40-1-CV-D is a single channel PoE++ (60W port power or injector) Dante™ amplifier in a plenum-rated, compact, flange mount enclosure.

    The PoE++ Amplifier Series leverages the higher power 802.3bt PoE++ standard (60W port power) to power two amplifier models, the AV20-2-LZ-D (20W x 2 @ 4/8Ω) and the CVA40-1-CV-D (40W x 1 @ 70V/100V). These compact Dante™ amplifiers are designed to be single cable solutions for small/medium zones without the need for a local power outlet. This amplifier series leverages the ubiquitous nature of existing CAT 5e/6 cable in zones and also the inexpensive process of pulling new cable to zones. It creates an opportunity to reduce labor costs with a single, reliable, twisted pair cable that carries power and data to where you need it. Simply plug the PoE++ CAT 5e/6 cable into the amplifier, wire the speakers and route audio and repeat for the next zone. The plenum rating and compact size, allows this amplifier series to be placed in the air handling space, closets, the rack or any other convenient space. The confluence of readily available and inexpensive CAT 5e/6 cabling, Dante™ networked audio and quick installation, makes this amplifier series an essential problem solver.

    Applications:
    Dante audio networks
    Hospitality Installations
    Classrooms
    Conference Rooms
    Healthcare
    Medium+ zone sound reinforcement

    • Features:

      • One Dante™ input channel
      • Single category cable solution for both signal and power
      • Plenum rated package
      • AES67 support
      • Single cable Dante/AES67 amplifier
      • 4/8Ω and 70V/100V models
      • Plenum rated
      • Compact flanged enclosure for easy mounting under tables, closets & plenum

    • Specifications:

      • Max. Output Power (all channels driven): 40WRMS x 1 @ 70.7V/100V (selectable
      • Frequency Response: 100Hz - 20kHz, 70.7V/100V
      • THD + N @ full frequency and power: <0.3%
      • THD + N @ 1kHz and full power: <0.05%
      • Signal to Noise Ratio: >88dB
      • Channel-to-Channel Separation (Crosstalk): >85dB
      • Noise Floor: -95dBV
      • Amplifier Class: D

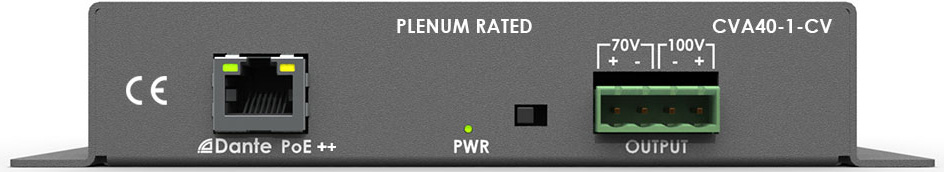

      • Input Connector (Dante™ Audio and DC): RJ-45
      • Output Connector: 5mm Euroblock
      • LED Indicator: Power
      • Construction: Aluminum
      • Cooling: Convection (no fan)
      • Dimensions: 1.2" H x 6.70" W x 4.31" D (31 x 170 x 110mm)
      • Weight: 1 lb (0.45kg)
      • Warranty: 3 years

    • Item Includes:

      • 1x Stewart Audio CVA40-1-CV-D 40W x 1 @ 70/100V Ultra PoEplusplus Dante Amplifier

    • Warranty:

      • 3 years
