Tripp Lite SUINT2200LCD2U 2200VA 1980W INTL UPS Smart Online LCD Rackmount 208/230V USB 2U

ITEM #: SUINT2200LCD2U MFG #: SUINT2200LCD2U

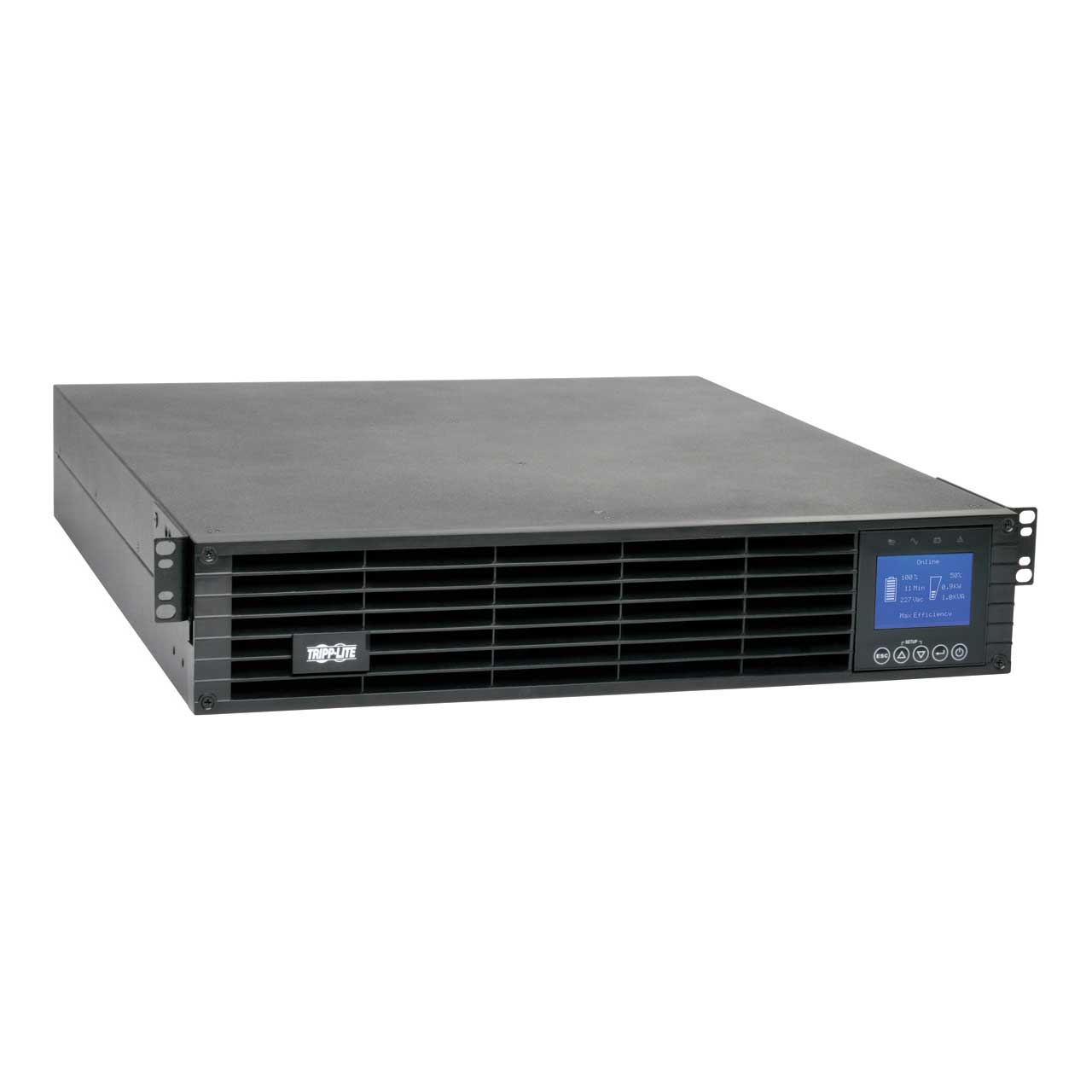

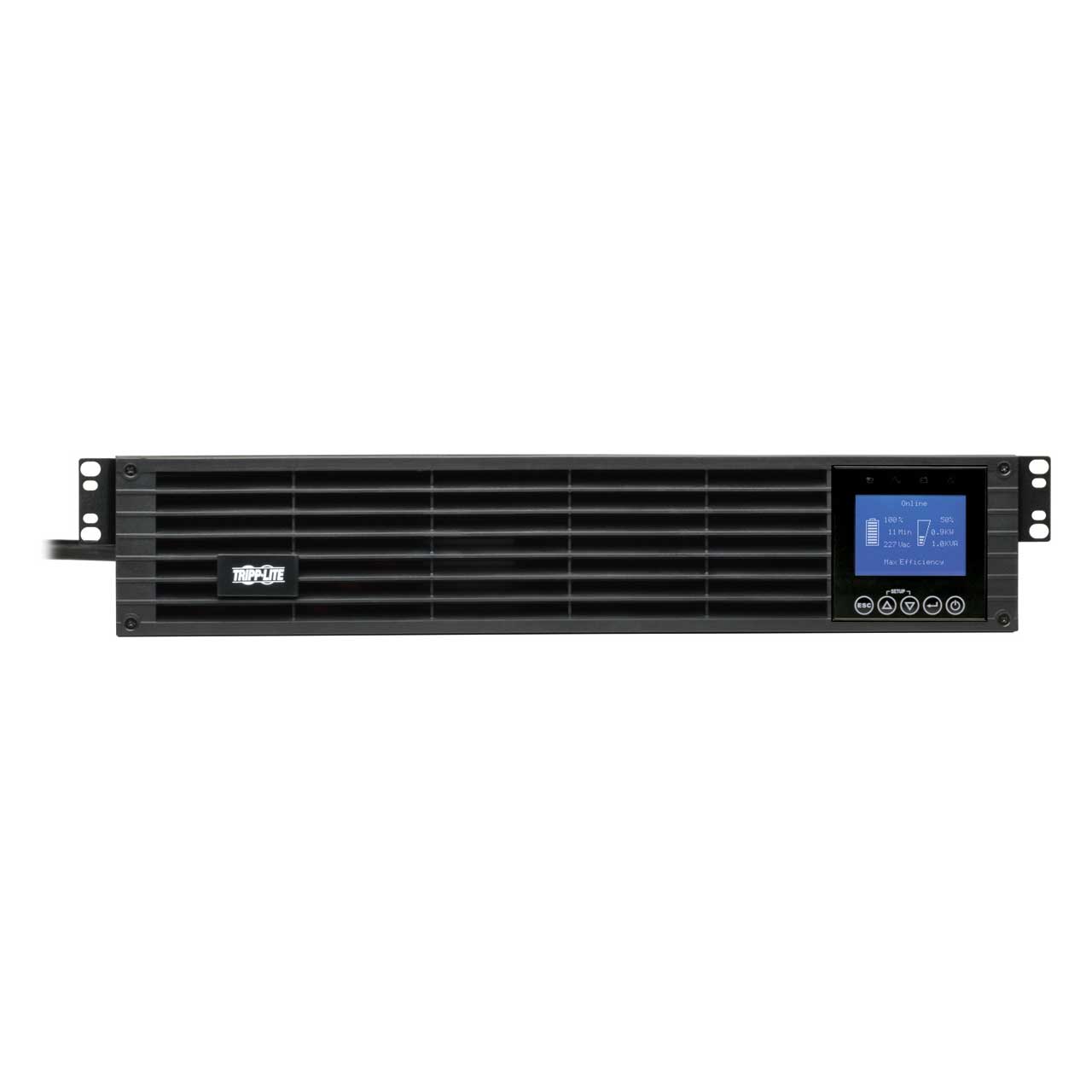

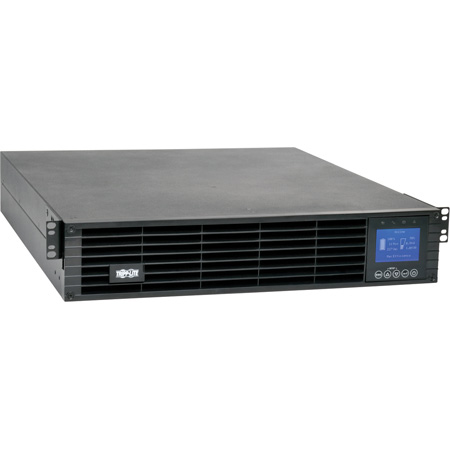

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,807.90

Our Price:

$1,795.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SUINT2200LCD2U - Overview

    The Tripp Lite SUINT2200LCD2U SmartOnline® 2200VA/1980W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. ENERGY STAR certification saves you money by meeting strict EPA guidelines. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options. In case of AC power outage, the internal batteries support 11.7 minutes of runtime at half load and 4.3 minutes at full load. Extended runtime is possible with optional external battery packs. "Smart" battery packs, such as Tripp Lite’s BP48V27-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life. Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite network management accessory card permits remote management of the UPS, including reboots and activity logs.

    • Features:

      • Zero transfer time suitable for advanced network applications
      • 2% output voltage regulation in online and battery modes
      • Selectable 200/208/220/230/240V output voltage
      • Meets strict ENERGY STAR efficiency guidelines
      • 11.7 min. runtime at half load; 4.3 min. at full load

    • Specifications:

      • Output
      • Output Volt Amp Capacity (VA): 2200
      • Output kVA Capacity (kVA): 2.2
      • Output Watt Capacity (Watts): 1980
      • Output kW Capacity (kW): 1.98
      • Power Factor: 0.9
      • Crest Factor: 3:1
      • Nominal Output Voltage(s) Supported: 200V; 208V; 220V; 230V; 240V
      • Nominal Voltage Details: Nominal output voltage is user configured on first power-on
      • Frequency Compatibility: 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
      • Output Voltage Regulation (Line Mode): +/- 2%
      • Output Voltage Regulation (Economy Line Mode): +/- 10%
      • Output Voltage Regulation (Battery Mode): +/- 2%

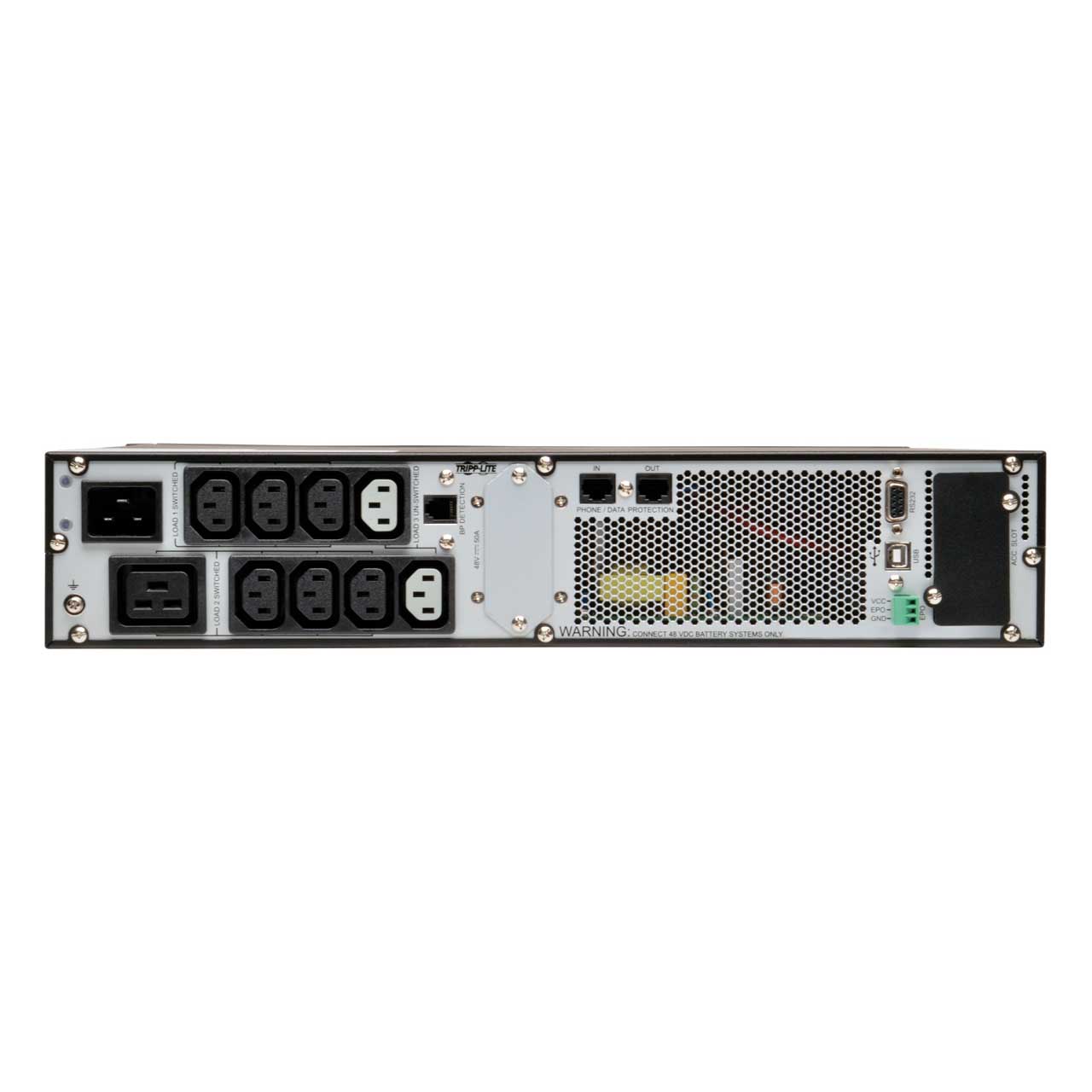

      • Output Receptacles: (8) C13; (1) C19
      • Included Output Power Cables: Includes 2 C13 to C14 and 1 C19 to C20 power cables
      • Load Management Receptacles: Two switchable outlet load banks (Bank 1: 3 C13 outlets / Bank 2: 1 C19 + 3 C13 outlets)
      • Output AC Waveform (AC Mode): Pure Sine wave
      • Output AC Waveform (Battery Mode): Pure Sine wave

        Input
      • Rated input current (Maximum Load): 10.94A
      • Nominal Input Voltage(s) Supported: 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
      • UPS Input Connection Type: C20 inlet
      • Input Phase: Single-Phase

        Battery
      • Full Load Runtime (min.): 4.3 min. (1980w)
      • Half Load Runtime (min.): 11.7 min. (990w)
      • Expandable Battery Runtime: Supports extended runtime with optional external battery packs
      • DC System Voltage (VDC): 48
      • Battery Recharge Rate (Included Batteries): Less than 3.0 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge: RBC48S
      • Battery Access: Front panel battery access door
      • Battery Replacement Description: Hot-swappable, replaceable batteries

        Voltage Regulation
      • Voltage Regulation Description: Online, double-conversion power conditioning
      • Overvoltage Correction: 2% output voltage regulation during overvoltages to 288V
      • Undervoltage Correction: 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)

        Surge / Noise Suppression
      • UPS Dataline Suppression Details: Single line dialup / network dataline protection included
      • AC Suppression Joule Rating: 936
      • AC Suppression Response Time: Instantaneous

        Physical
      • Primary Form Factor: Rackmount
      • UPS Power Module Dimensions (hwd, in.): 3.46 x 17.24 x 19.53
      • Rack Height: 2U
      • Minimum Required Rack Depth without External Battery Pack (cm): 59
      • Minimum Required Rack Depth with External Battery Pack (cm): 67
      • Minimum Required Rack Depth without External Battery Pack (in.): 23.03
      • Minimum Required Rack Depth with External Battery Pack (in.): 26.53
      • UPS Power Module Weight (lbs.): 50.94
      • UPS Power Module Weight (kg): 23.11
      • Shipping Dimensions (hwd / in.): 9.45 x 22.24 x 27.56
      • Shipping Weight (lbs.): 60.00
      • Cooling Method: Fan

        Environmental
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
      • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
      • Relative Humidity: 5 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 675
      • AC Economy Mode BTU / Hr. (Full Load): 356
      • Battery Mode BTU / Hr. (Full Load): 1012
      • AC Mode Efficiency Rating (100% Load): >90%
      • AC Economy Mode Efficiency Rating (100% Load): >95%
      • Audible Noise: <50dB at front side 1M

        Communitcations
      • Communications Interface: USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
      • Network Management Cards: SNMPWEBCARD; WEBCARDLX
      • PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
      • Communications Cable: USB and DB9 cabling included
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

        Line / Battery Transfer
      • Transfer Time: No transfer time (0 ms.) in online, double-conversion mode; 2-12 ms. transfer time during economy mode operation
      • Low Voltage Transfer to Battery Power (Setpoint): 160V (100% load), 140V (66% load), 120V (33% load)
      • High Voltage Transfer to Battery Power (Setpoint): 288V

        Certifications
      • UPS Certification

    • Item Includes:

      • SUINT2200LCD2U SmartOnline 2200VA/1980W On-Line Double-Conversion UPS
      • 4-post rack-mount installation kit
      • USB cable
      • RS-232 cable
      • C19-to-C20 power cable
      • (2) C13-to-C14 power cables
      • Owner’s manual

    • Warranty:

      • 2-year

    • GTIN:

      0037332183330
