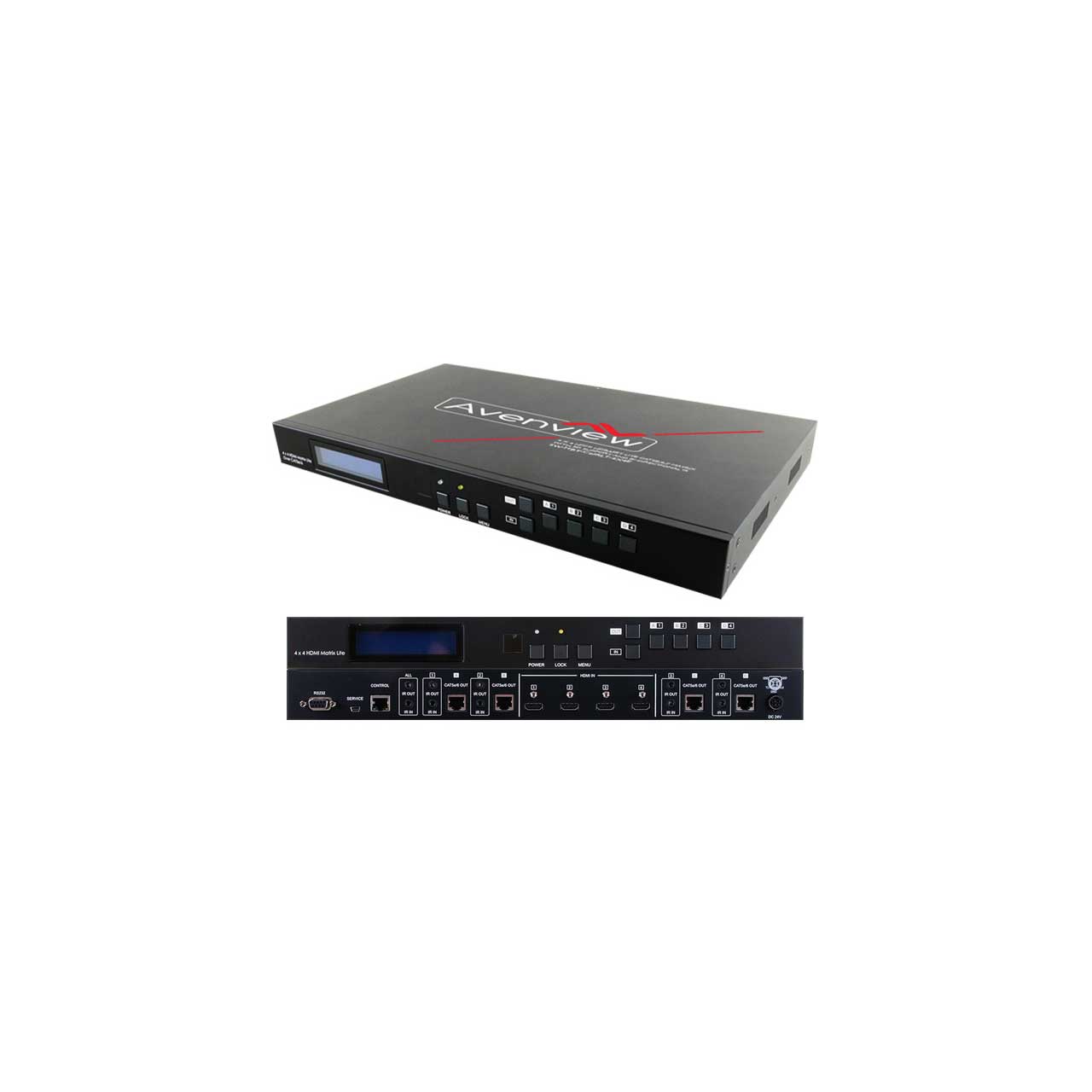

Avenview SW-HBT-C6IRLT-4X4E HDMI HDBaseT Lite Matrix Switch 4X4 CAT5e/6/7 - 3D Support & Bi-Directional IR w/ 4 RXs


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    SW-HBT-C6IRLT-4X4E - Overview

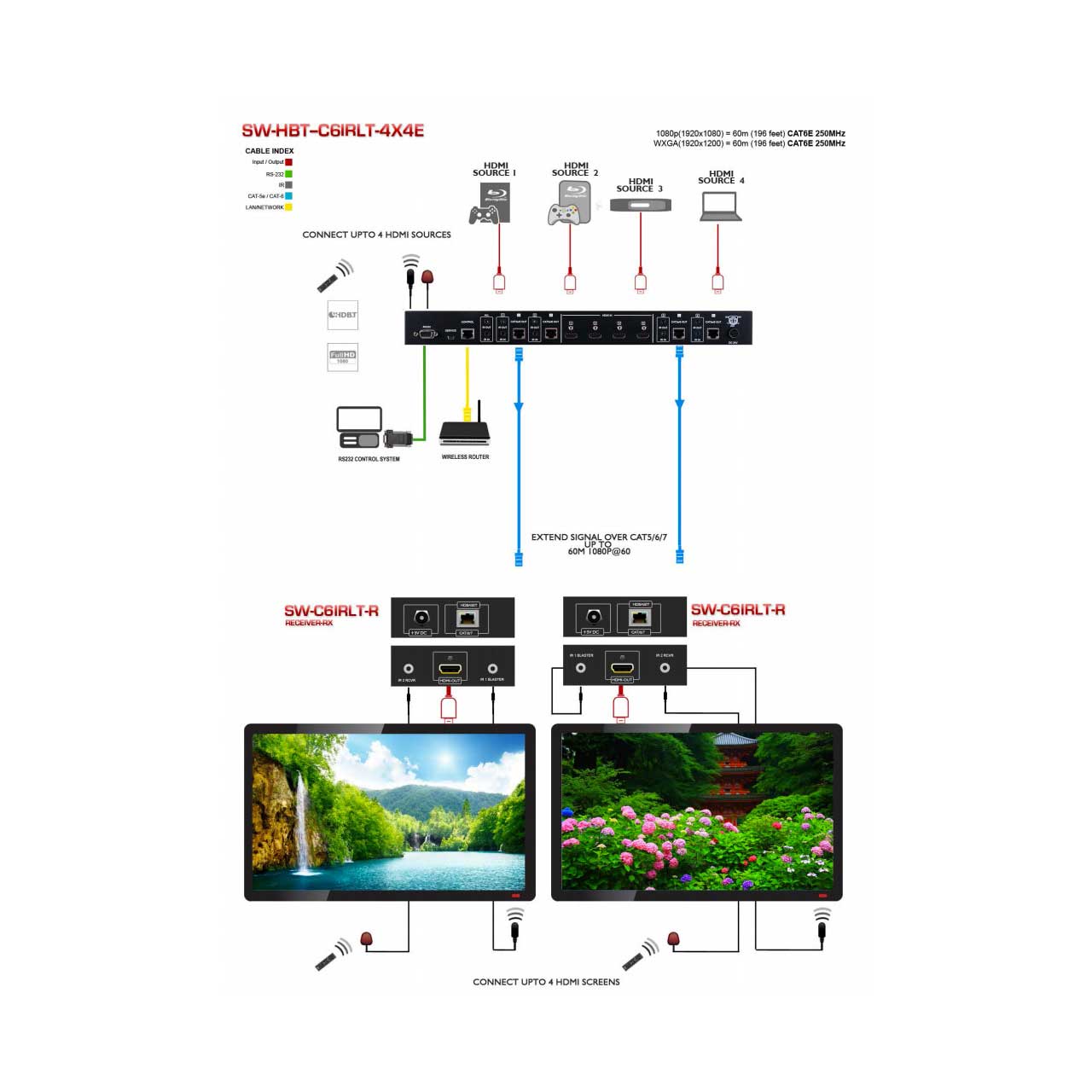

    The Avenview SW-HBT-C6IRLT-4X4E HDBaseT™ Lite HDMI Matrix is designed to accept Full HD 1080p and WUXGA 1920X1200 @60 Hz(RB) signal from 4 DVI/HDMI sources to any of the connected 4 displays over CAT5/6 cable upto 60m (196 feet). This matrix model has been tested and proven to be cost effective and reliable within the market sector because of its HDBaseT chipset technology inside. The unit supports not only transmission of video but multi channel digital audio and bi directional control via IR to four displays for true digital experience over a single CAT5e/6/7 cable (up to 60m).

    Please note: this matrix supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. Bonus feature with all Avenview matrix series family it allows users to control the matrix switching functionality via WEB GUI over LAN with any device that supports web browser application. Example iPad, Android device or Windows 8 touch device. This is a complete system and includes the SW-HBT-C6IRLT-4X4E base unit, 4 SW-C6IRLT-R receivers as well as an IR Receiver, IR Blster and an IR Remote. A 24V/2.7A DC power supply is also included.

    • Features:

      • HDMI, HDCP1.1 and DVI compliant
      • Supports HDMI 3D features
      • Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display's EDID settings
      • Supports distances up to 60 meters through CAT5e/6/7 cables
      • Supports 3D signal display dependent upon the output display EDID settings
      • Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
      • Supports bi-directional IR from input and output locations
      • Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
      • Supports external and internal EDID settings
      • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
      • 1 U size design
    • Specifications:

      • Unit Description: HDMI HDBaseT Lite CAT5e/6/7 Matrix
      • Video Bandwidth: 225MHz (6.25Gbps)
      • Supported Resolutions: [email protected]/60 (1920x1080), [email protected], WUXGA (1920X1200), 3D
      • Audio Support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
      • Input:
        4x HDMI/DVI
        5x IR Receiver
        1x RS-232
        1x RJ-45
        1x Mini USB Type B (For firmware updates only)
      • Output:
        4x CAT5e/6/7
        5x IR Blaster
      • HDMI Connector: Type A (19 pin female)
      • Switching Speed: ±8kV (air-gap discharge); ±4kV (contact discharge)
      • Weight: 7.1lbs
      • Dimensions (LxWxH): 17" x 10" x 1.8"
      • Power Supply: 24 V/2.7 A DC (US/EU standards, CE/FCC/UL certified)
      • Power Consumption: 35W
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Relative Humidity: 20 - 90% RH (no condensation)

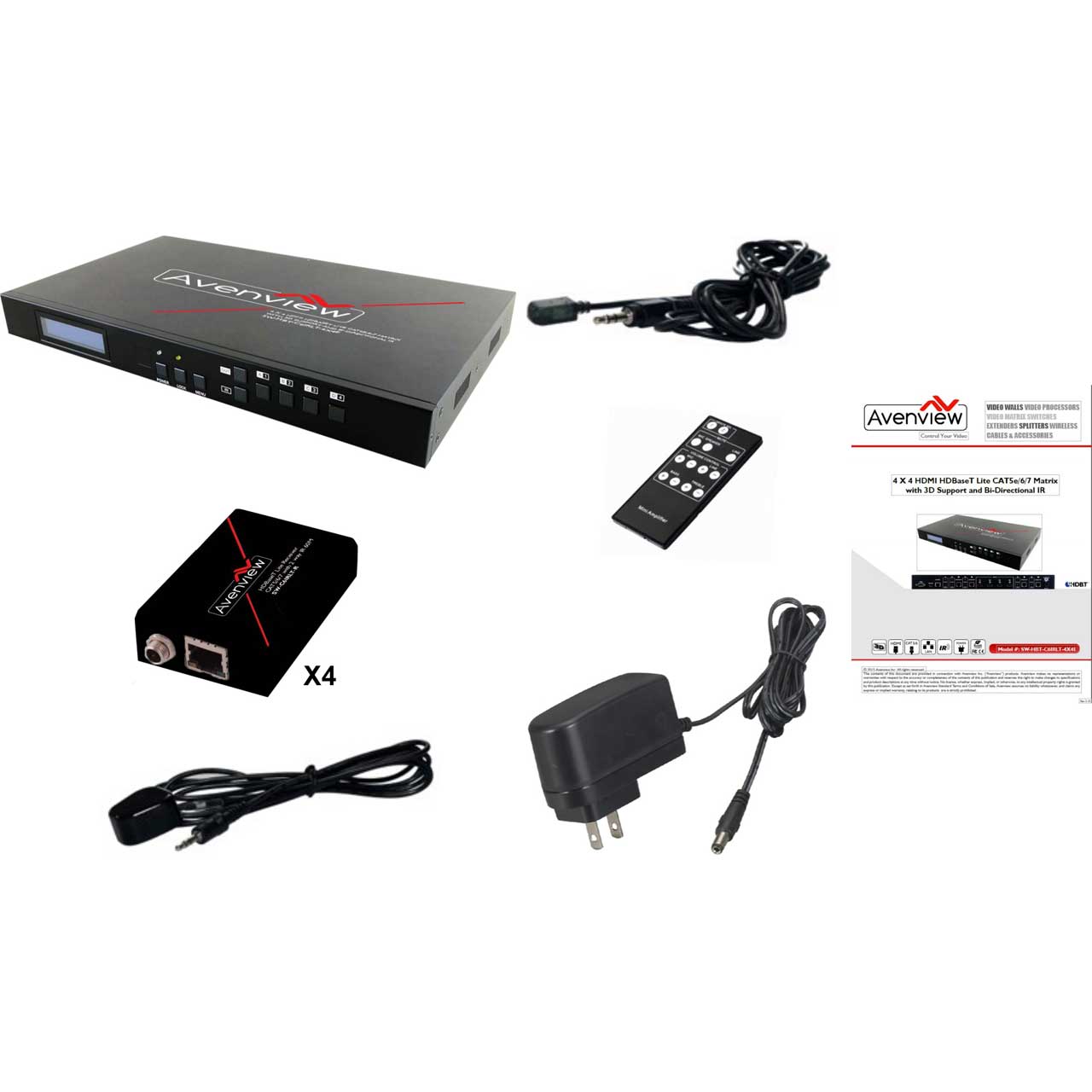

    • Item Includes:

      • 1x SW-HBT-C6IRLT-4X4E
      • 4x SW-C6IRLT-R
      • 1x IR Receiver
      • 1x IR Blaster
      • 1x IR Remote
      • 1x Power Adapter (24V/2.7A DC)
      • 1x User's Manual
    • GTIN:


    SW-HBT-C6IRLT-4X4E - Required Accessories

      SW-HBT-C6IRLT-4X4E - Recommended Accessories
