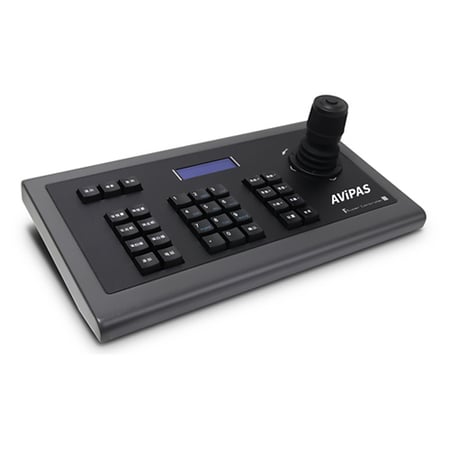

AViPAS AV-3104SE 4D Serial Joystick PTZ Camera Controller without IP Control

AV-3104SE - Overview

• Features:

  • Simultaneous pan/ tilt/ zoom control, adjustable speed
  • Button on the joystick provides lock/unlock function
  • Communication: RS485 half-duplex, RS422 full duplex, RS232 serial
  • Support VISCA, Pelco-P and Pelco-D protocols
  • Baud rate: 1200/ 2400/ 4800/ 9600 bps
  • LED status and menu display


• Specifications:

  • Communication mode: RS485 half-duplex, RS422 full duplex, RS232 serial port
  • Baud Rate: 2400bps, 4800bps, 9600bps, 19200bps
  • Interface: 5PIN Crimping terminal, RS232 Port
  • Joystick: 3D control: up/ down/ left/ right/ rotate
  • Display: Backlight LCD screen
  • Input voltage: DC12V ±10%
  • Power consumption: 6W max
  • Temperature: 14°F~122°F
  • Humidity: ≤90%RH (No frosting)
  • Dimension: 13 x 7 x 4 inch
  • Weight: 5.5lb


• Item Includes:

  • 1x 3-axis control keyboard
  • 1x 5pin plug (on the unit)
  • 1x DC-12V power adapter
  • 1x 8ft RS232 cable (9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
  • 1x User manual


• GTIN:

  0858738005695
